T-54 | |
|---|---|
| 国家 | 乌尔斯 |
| 类型 | 车 |
T-54坦克上的照片库，坦克 T-54 是苏联在20世纪40年代末设计的装甲车，一直制造到20世纪60年代。
| T-54 | |
|---|---|
| 摄影师 | Unknow |
| 本地化 | 未知 |
| 照片 | 173 |
T-54 001
T-54 002
T-54 003
T-54 004
T-54 005
T-54 006
T-54 007
T-54 008
T-54 009
等等，为您搜索T-54照片。。。

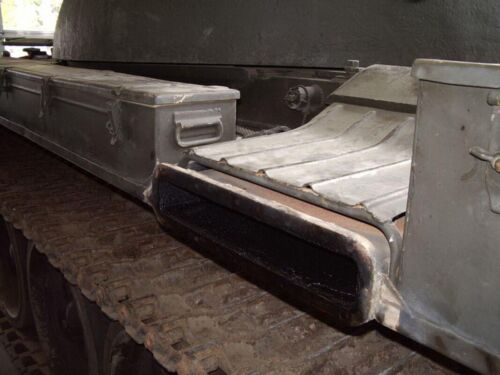

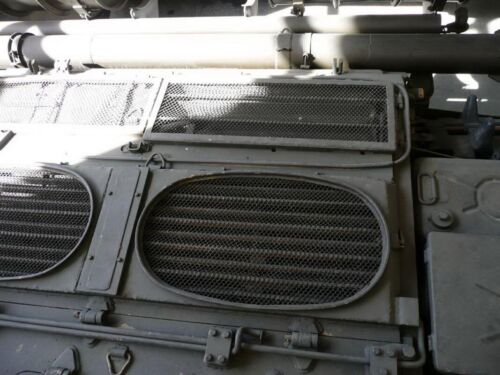

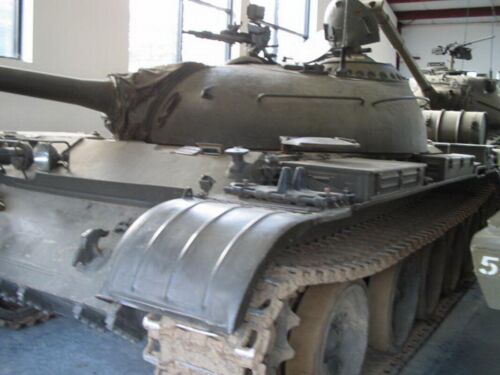

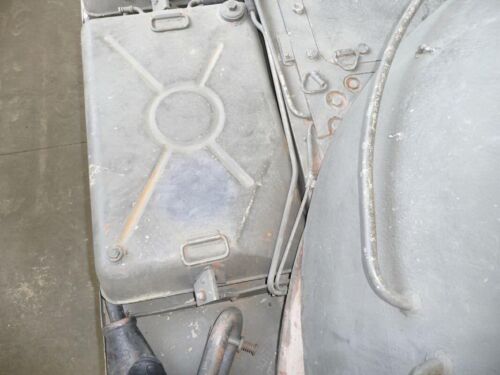

| T-54AR Walk Around | |
|---|---|
| T-54AR "里卡" （里卡 - 河） - T-54 现代化与前浮潜.它类似于苏联T-54AM。 | |
| 摄影师 | Vladimir Yakubov |
| 本地化 | 未知 |
| 照片 | 160 |
另请参阅：
The T-54 is a Soviet medium tank introduced after World War II. It was the first tank of the new generation that formed the backbone of Soviet and Warsaw Pact armored forces, eventually becoming the most-produced tank series in history (T-54/T-55).
Key Specifications (T-54 / T-55 Series)
| 特征 | Detail (Typical T-54/T-55) |
|---|---|
| 作用 | Medium Tank / Main Battle Tank (Post-1950s) |
| 制造商 | Uralvagonzavod (USSR), China (Type 59), Poland, Czechoslovakia |
| 船员 | 4 (Commander, Gunner, Loader, Driver) |
| 质量 | Approx. 36 metric tons |
| Length (Gun Forward) | Approx. 9.00 m (29 ft 6 in) |
| 主要武器装备 | 100 mm D-10T Rifled Gun |
| 发动机 | V-12 Diesel (e.g., V-54, ~520 hp) |
| Max Speed (Road) | 51 km/h (32 mph) |
| Frontal Hull Armor | 100 mm to 120 mm at 60° (depending on variant) |
| Turret Front Armor | Up to 200 mm (Hemispherical Cast) |
Design and Innovation
The T-54 revolutionized tank design with several key features that influenced Cold War tank development globally:
- Low Profile: Its squat, compact design gave it a lower silhouette compared to contemporary Western tanks like the M47/M48 Patton, making it harder to hit.
- Hemispherical Turret: The distinctive dome-shaped, cast turret minimized the risk of a “shot trap” and provided excellent inherent ballistic protection.
- Powerful Gun: The 100 mm D-10T gun was a significant increase in firepower over the 85 mm of the late-war T-34/85 and was highly effective.
- NBC Protection (T-55): Later variants (T-55) were among the first tanks equipped with an effective Nuclear, Biological, and Chemical (NBC) protection system, a critical factor during the Cold War.
Historical Note: The T-54/T-55 series is widely considered the most-produced tank in military history, with estimates ranging from 86,000 to over 100,000 units built worldwide (including licensed copies like the Chinese Type 59).
