Seversky P-35 | |
|---|---|
| 国家 | 美国 |
| 作用 | 战斗机 |
| 第一只苍蝇 | 1935年8月15日 |
| 建立 | 196 |

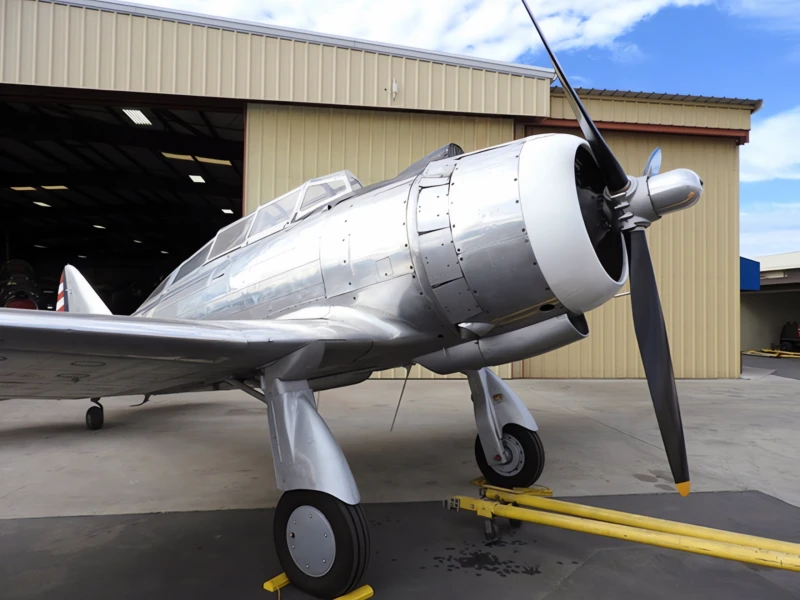

这 塞弗斯基P-35 是塞弗斯基飞机公司在20世纪30年代末制造的一架美国战斗机。P-35是"小贩"飓风和梅塞施密特Bf 109的当代战斗机，是美国陆军航空兵中第一架采用全金属结构、可伸缩起落架和封闭式驾驶舱的单座战斗机。
| Seversky AT-12 (2PA, P-35) Walk Around | |
|---|---|
| 摄影师 | 塞斯·亨德里克斯 |
| 本地化 | 未知 |
| 照片 | 64 |

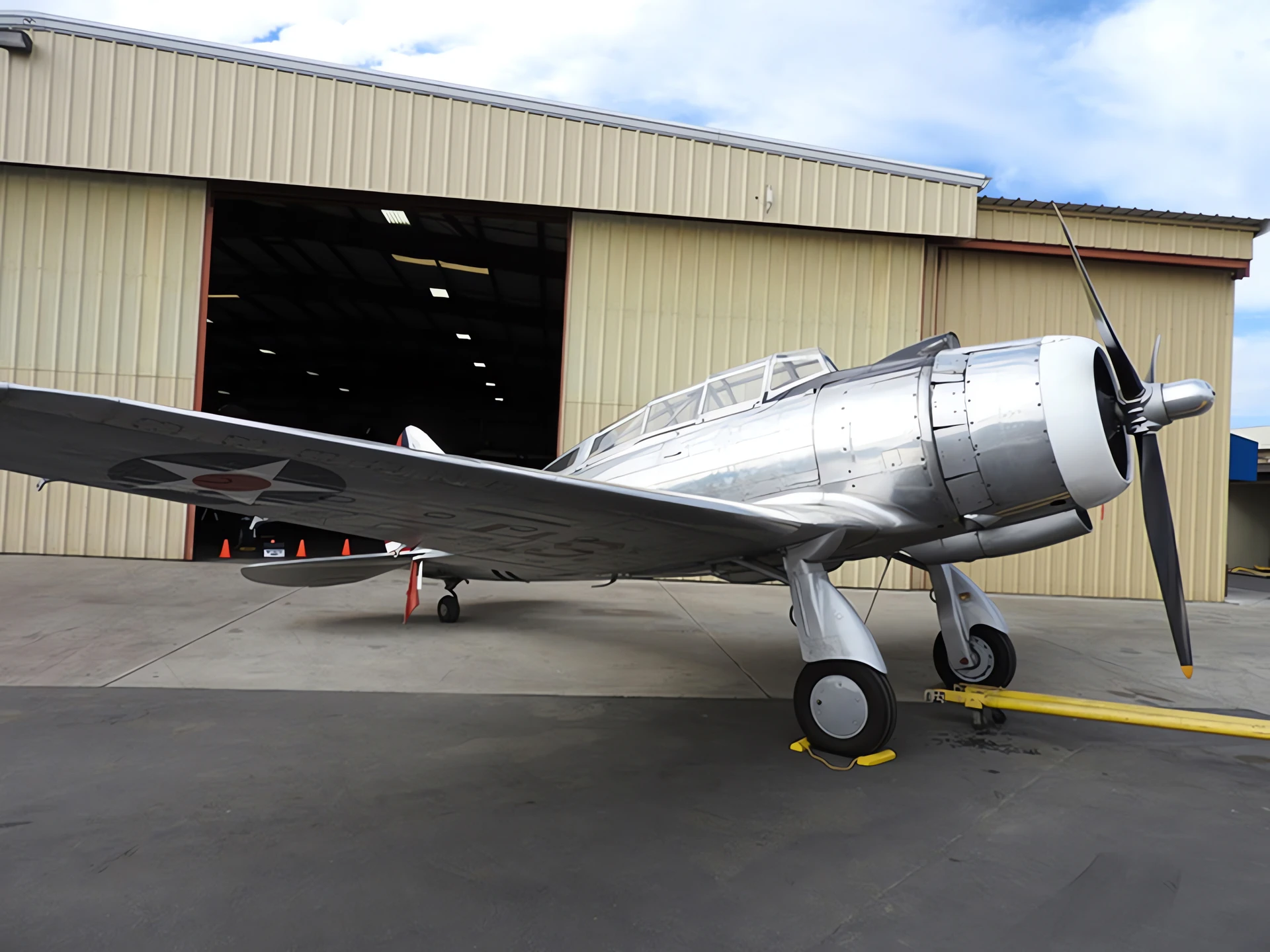

Seversky P-35 01

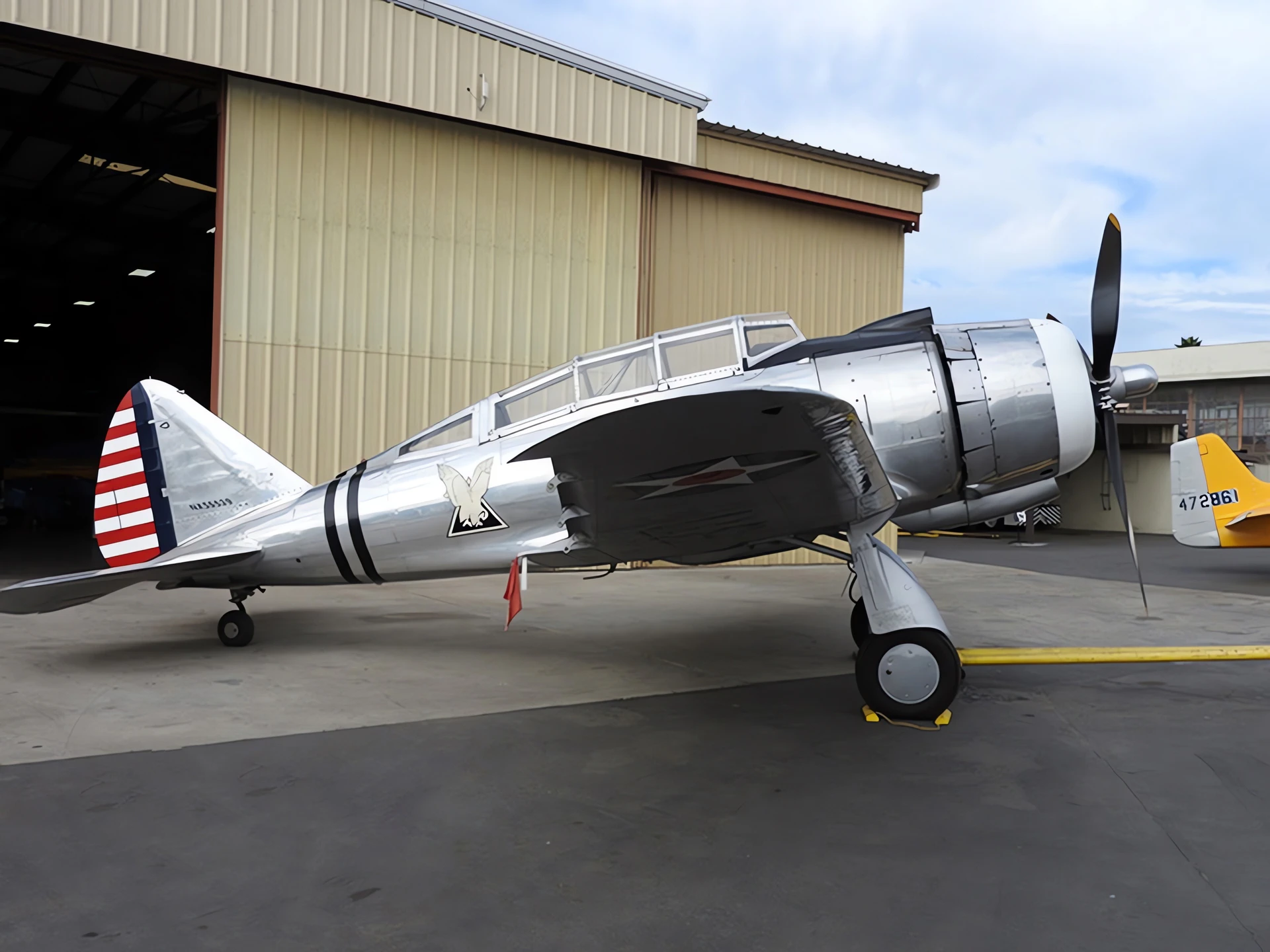

Seversky P-35 02

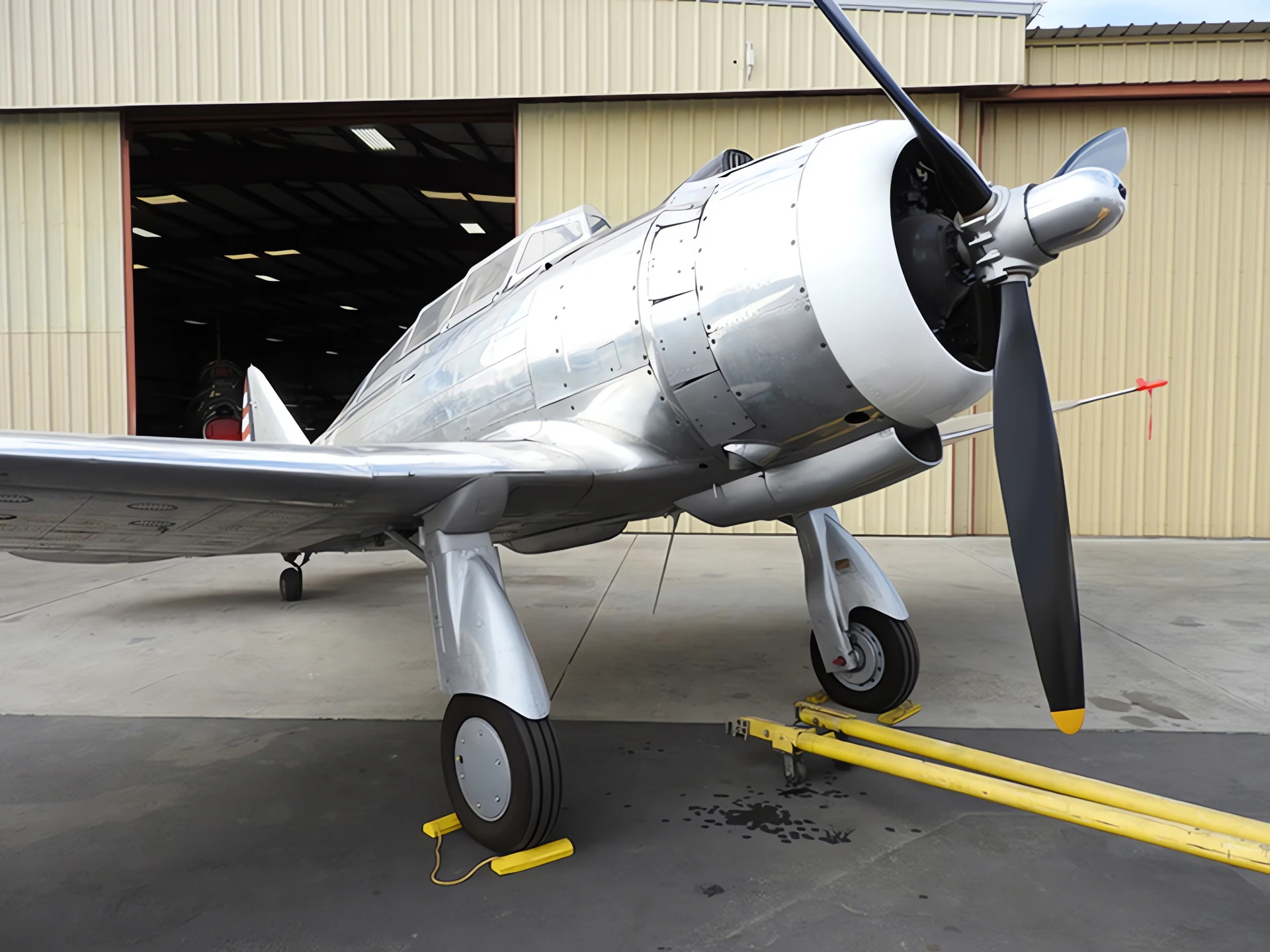

Seversky P-35 03

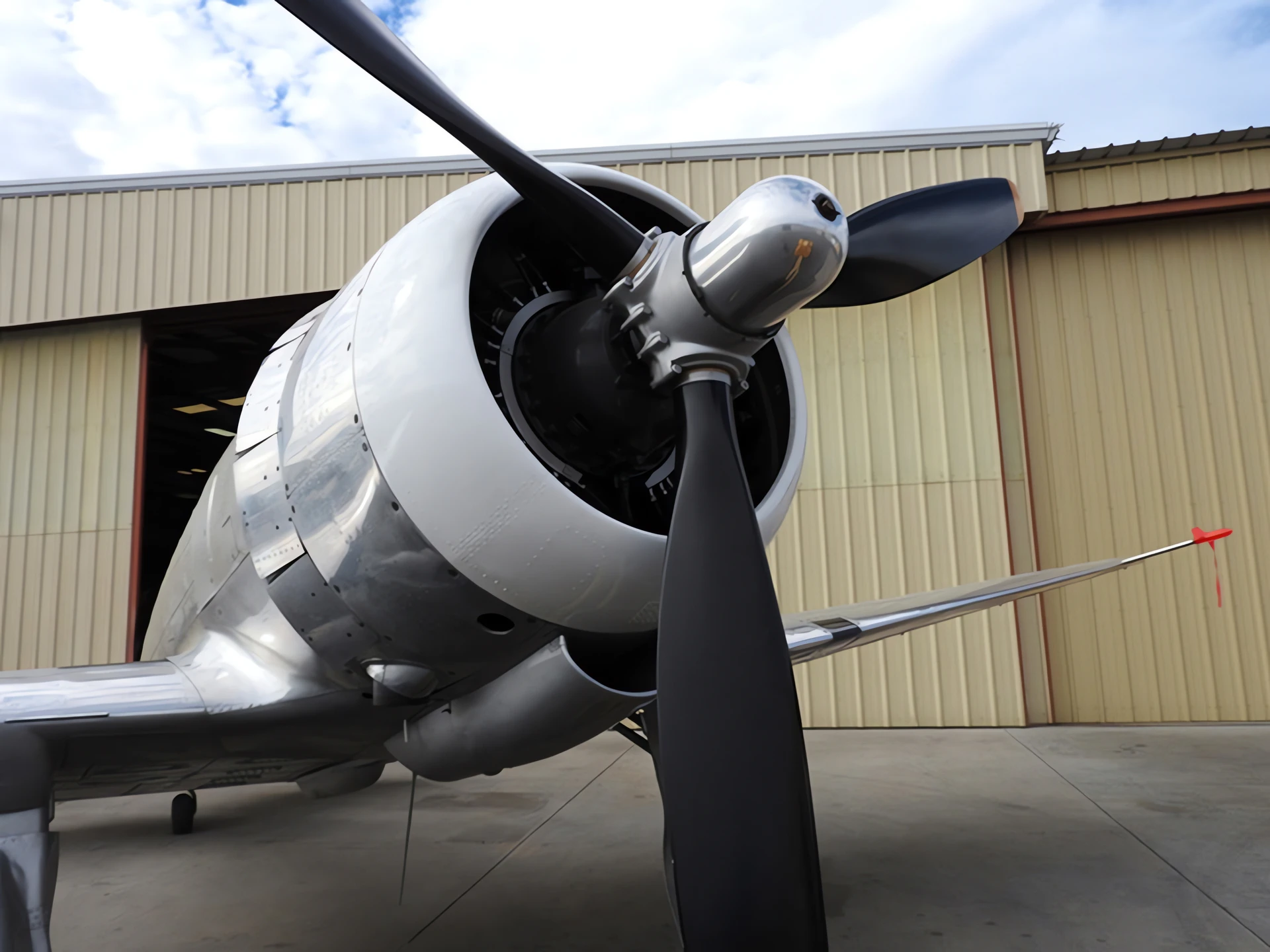

Seversky P-35 04
Seversky P-35 06

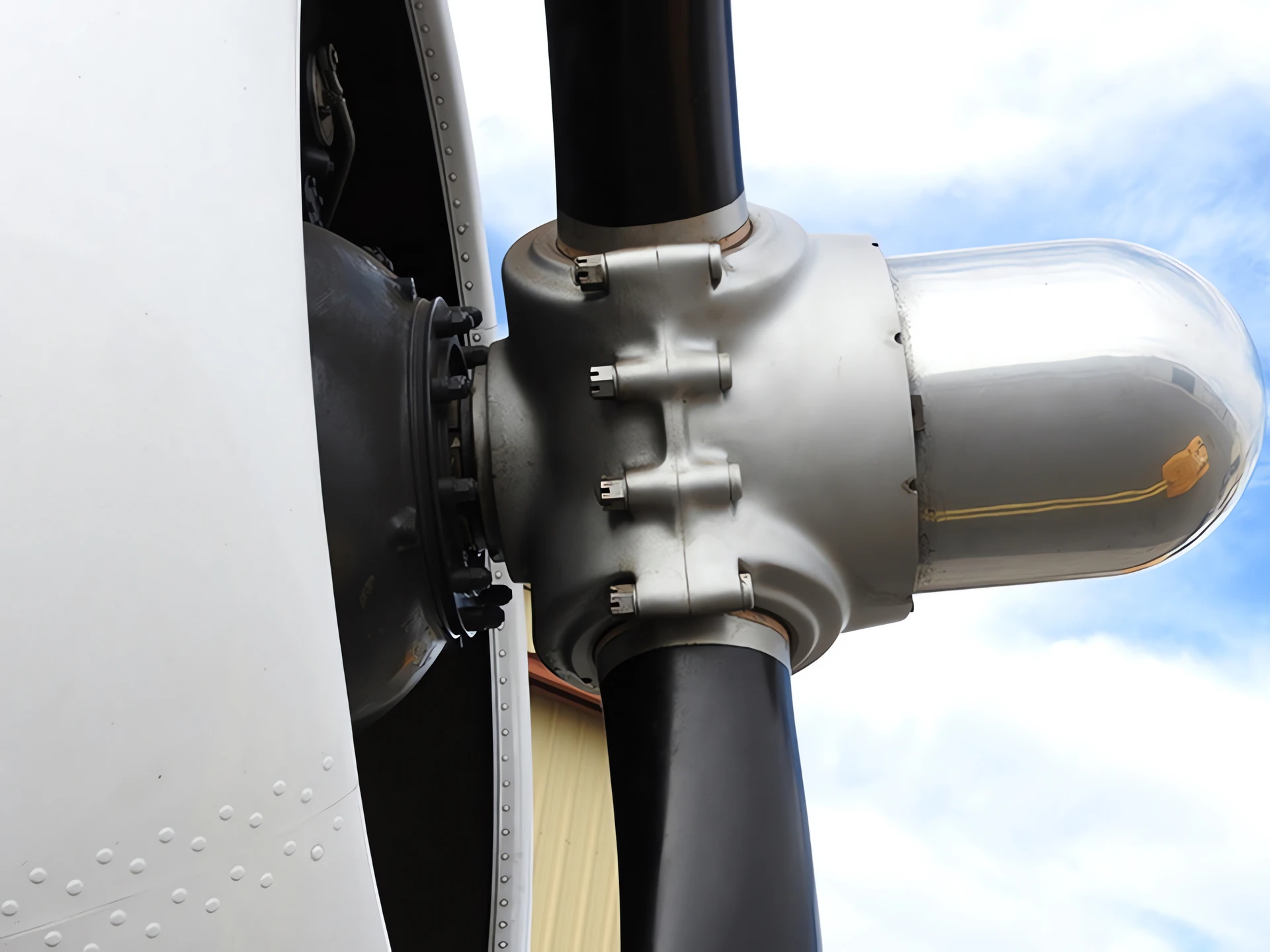

Seversky P-35 05

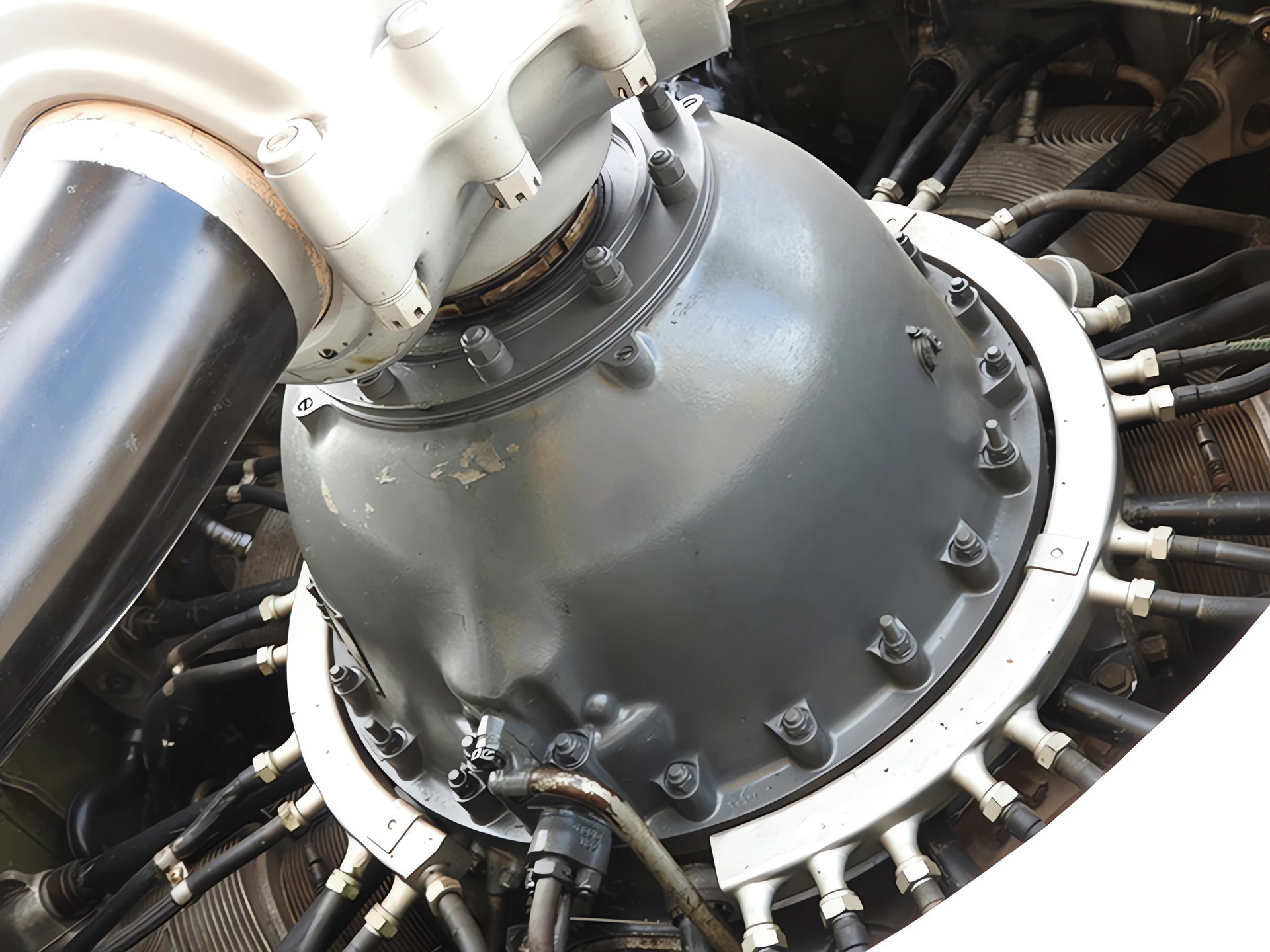

Seversky P-35 07

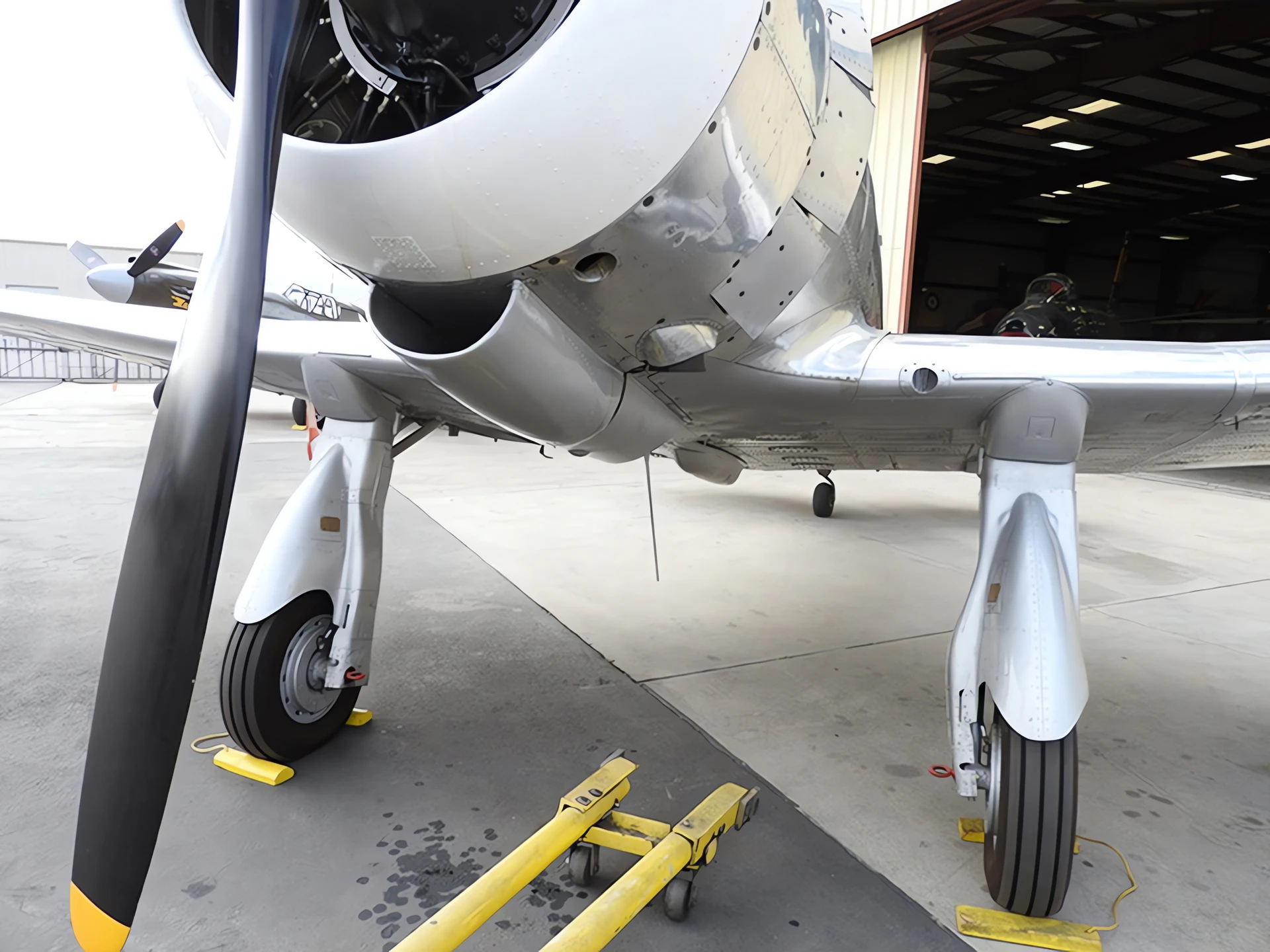

Seversky P-35 08

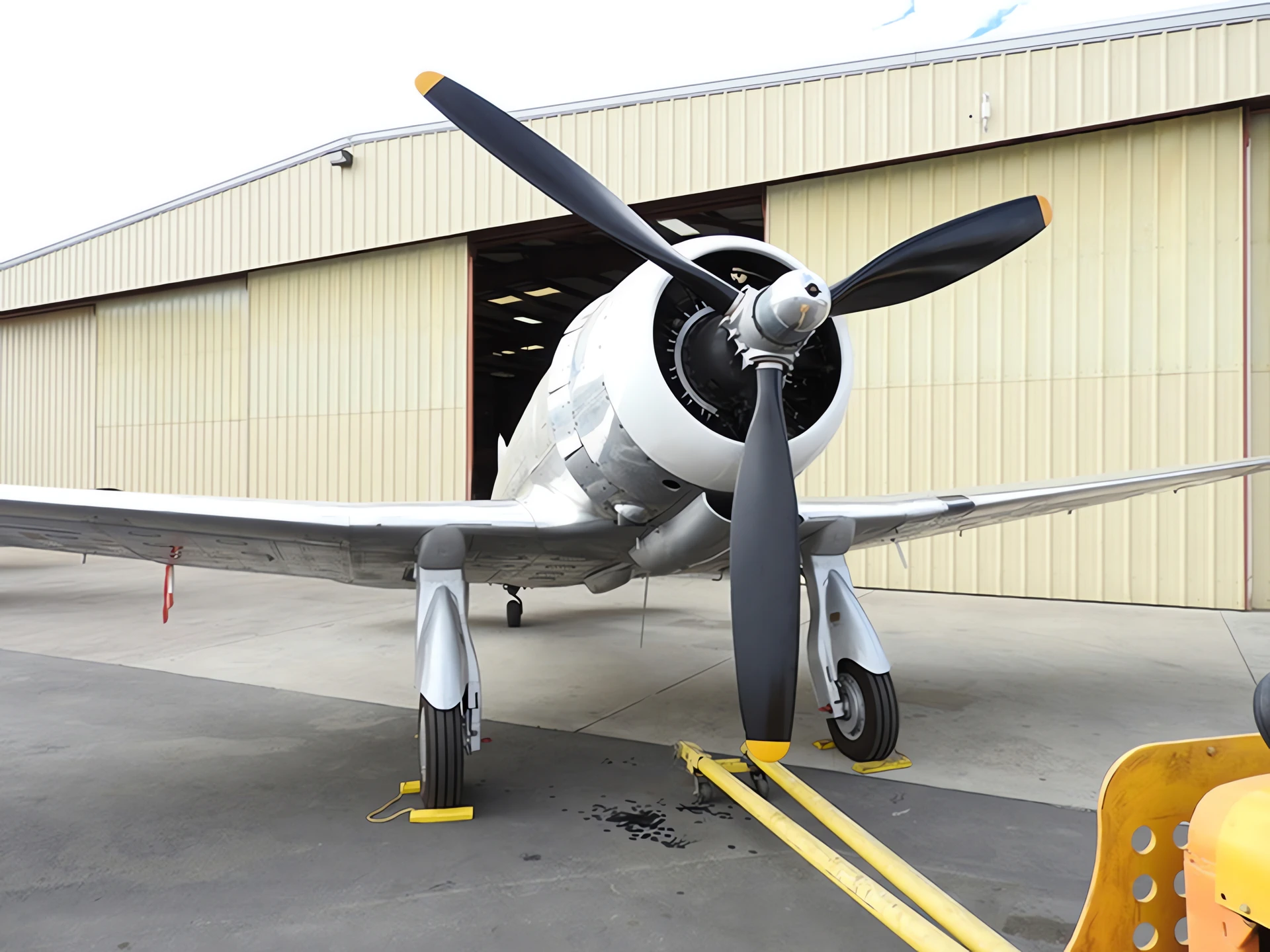

Seversky P-35 09
等等，搜索塞弗斯基P-35给你。。。
| Severski P-35 Walk Around | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 18 |
另请参阅：
等等，搜索塞弗斯基P-35给你。。。
A Revolutionary Milestone
这 塞弗斯基P-35 was a landmark in American aviation history. When it won the 1936 Army Air Corps fighter competition, it signaled the end of the biplane era. It was the first pursuit aircraft for the U.S. Army to feature the “holy trinity” of modern fighter design: an all-metal stressed-skin construction, a closed cockpit, and retractable landing gear. Though it was quickly outclassed by faster European designs like the Bf 109, it provided the direct DNA for the legendary P-47 Thunderbolt.
| Attribute | Technical Specification (P-35) |
|---|---|
| 作用 | Fighter / Pursuit Aircraft |
| 船员 | 1 (Pilot) |
| First Flight | August 15, 1935 (SEV-1XP) |
| 动力装置 | 1 × Pratt & Whitney R-1830-9 Twin Wasp radial |
| Horsepower | 850 hp (634 kW) |
| 最高速度 | 281 mph (452 km/h) |
| Service Ceiling | 30,600 feet (9,327 m) |
| 装备 | 1 × .50 cal machine gun; 1 × .30 cal machine gun (Nose mounted) |
Design Innovations & Quirks
- The Elliptical Wing: The P-35 featured beautiful, semi-elliptical wings that tapered to rounded tips. This design was aerodynamically efficient but difficult to manufacture.
- Semi-Retractable Gear: Unlike later fighters where the wheels disappeared completely into the wing, the P-35’s gear retracted rearward into large, aerodynamic fairings (or “tubs”) on the underside of the wing.
- Wet Wing Technology: The P-35 was a pioneer in using integral fuel tanks—where the wing structure itself is sealed to hold fuel—rather than separate metal tanks. This saved weight and increased fuel capacity.
- The “Rear Passenger” Space: Behind the pilot’s seat was a small baggage compartment. In emergencies, a second person could crawl in there, a feat famously performed during the Japanese invasion of the Philippines.
Trial by Fire in the Pacific
- Battle of the Philippines: By December 1941, the P-35 was hopelessly obsolete. Most American P-35s were stationed in the Philippines. They were decimated on the ground and in the air by the much faster Japanese Zeros and Oscars, though they fought bravely in ground-attack roles.
- Swedish Service (J 9): Ironically, the most successful version was the export EP-1. Sweden ordered 120 of them (designated J 9), and they served as the backbone of the Swedish Air Force during the early war years.
- The Alexander Kartveli Connection: The P-35 was designed by Alexander Kartveli, who would go on to design the P-47 雷电. If you look at a P-35 and a P-47 side-by-side, the evolution of the fuselage and tail shape is unmistakable.
- Survivors: Only a handful remain. The most significant is a P-35A displayed at the National Museum of the United States Air Force, painted in the markings of the 17th Pursuit Squadron.
