PT-76 | |
|---|---|
| 国家 | 乌尔斯 |
| 类型 | 两栖轻型坦克 |
| 战斗中的质量 | 15 吨 |
PT-76 坦克上的照片库， PT-76 qui était un char soviétique de la gamme “léger amphibie” fut dans sa catégorie surement le plus répandu. A l’instart de ses homologues l’AMX-13 français et le M113 américain son châssis a été utilisé comme base à de multiples dérivés d’engins militaires. La production du PT-76 开始于53年，然后这个坦克被深刻修改在59，它将被命名为PT-76B。其生产（7000份PT-76是生产）在1963年停止。
| PT-76–四处走动 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 81 |
| PT-76 | |
|---|---|
| 照片 | 维克多·克雷斯蒂宁 |
| 本地化 | 巴蒂哈奥塞夫博物馆 |
| 描述 | 专辑 63 坦克的四处走动照片 PT-76 |
| PT-76 四处走动 | |
|---|---|
| 照片 | 安德烈·尼古拉耶夫 |
| 本地化 | 无名小内 |
| 描述 | 专辑 32 走动的照片 PT-76 |
| PT-76 四处走动 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 53 |
| PT-76 四处走动 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 13 |

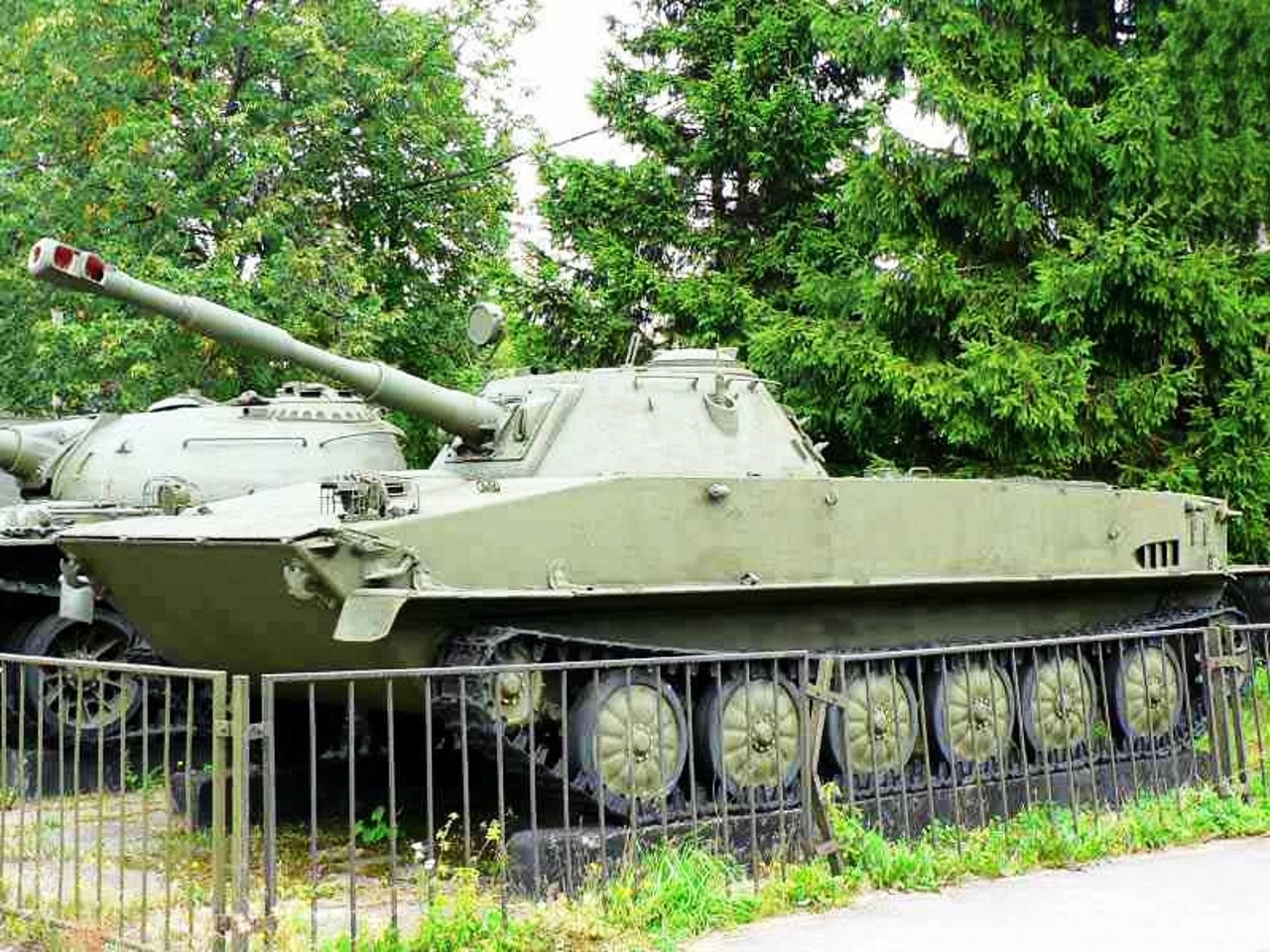

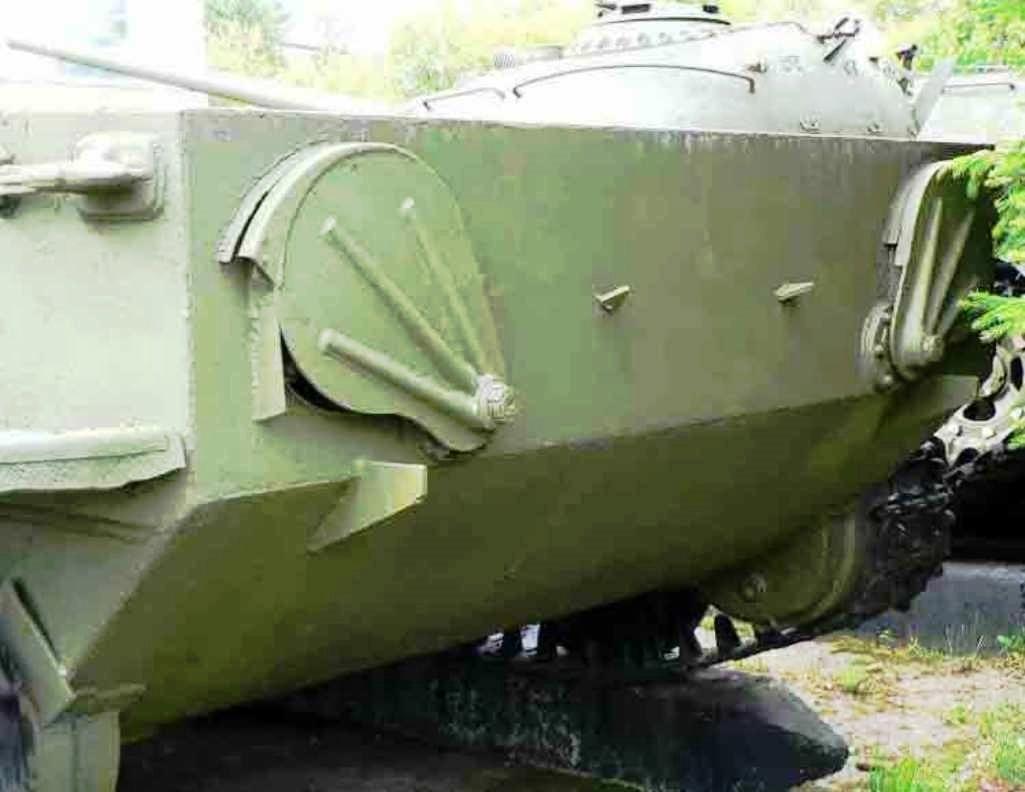

| PT-76B 四处走动 | |
|---|---|
| 摄影师 | 未知 |
| 本地化 | 未知 |
| 照片 | 14 |
另请参阅：
Primary Role and Design Philosophy
The PT-76 (from Plavayushchiy Tank, meaning “Floating Tank”) is a Soviet light amphibious tank introduced in the early 1950s. It was designed primarily for reconnaissance and fire support for Soviet Naval Infantry and ground forces crossing major water obstacles.
Its overall design prioritizes low weight and a spacious hull to ensure the necessary buoyancy for full amphibious operations without extensive preparation.
Mobility and Amphibious Capability
The ability to operate in water is the tank’s defining feature:

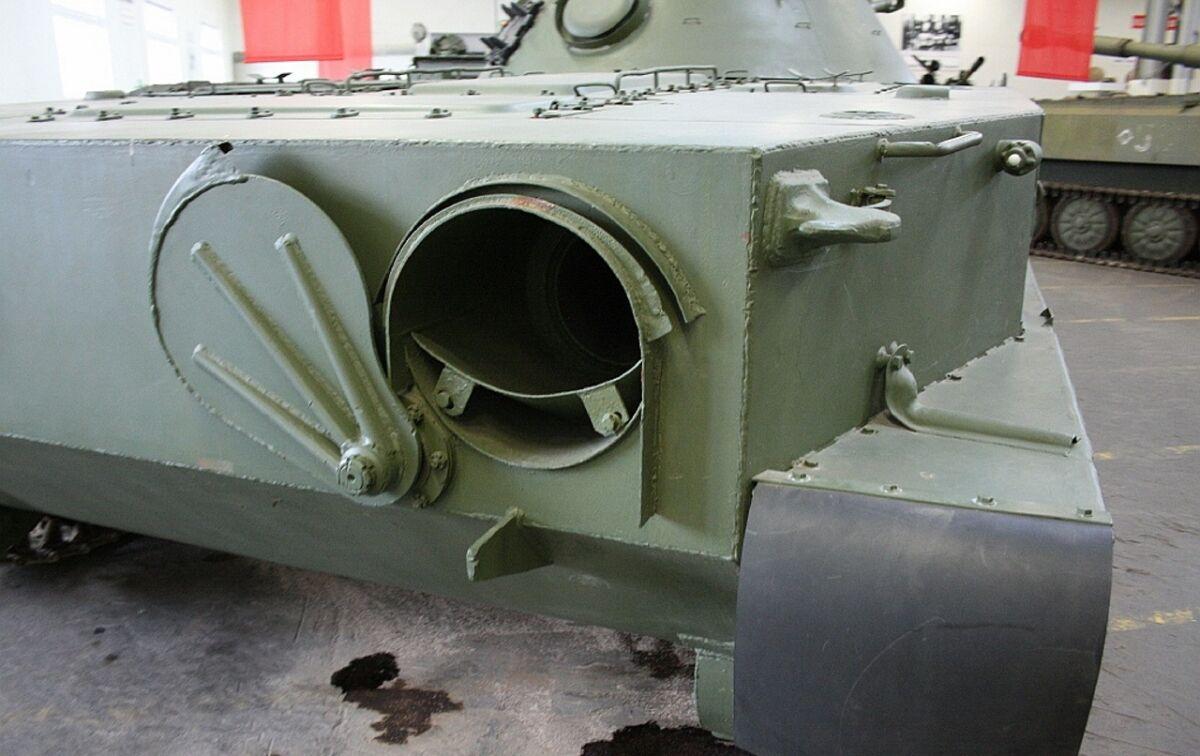

- Water Propulsion: The tank is propelled through the water by two powerful hydro-jets located at the rear of the hull. Steering in the water is achieved by opening and closing covers over the jet outlets.
- Preparation: To swim, the crew only needed to raise a trim vane on the front glacis plate and switch on bilge pumps.
- Speeds: It achieves a modest road speed of around 44 km/h on land, but its water speed is crucial, reaching approximately 10.2 km/h.

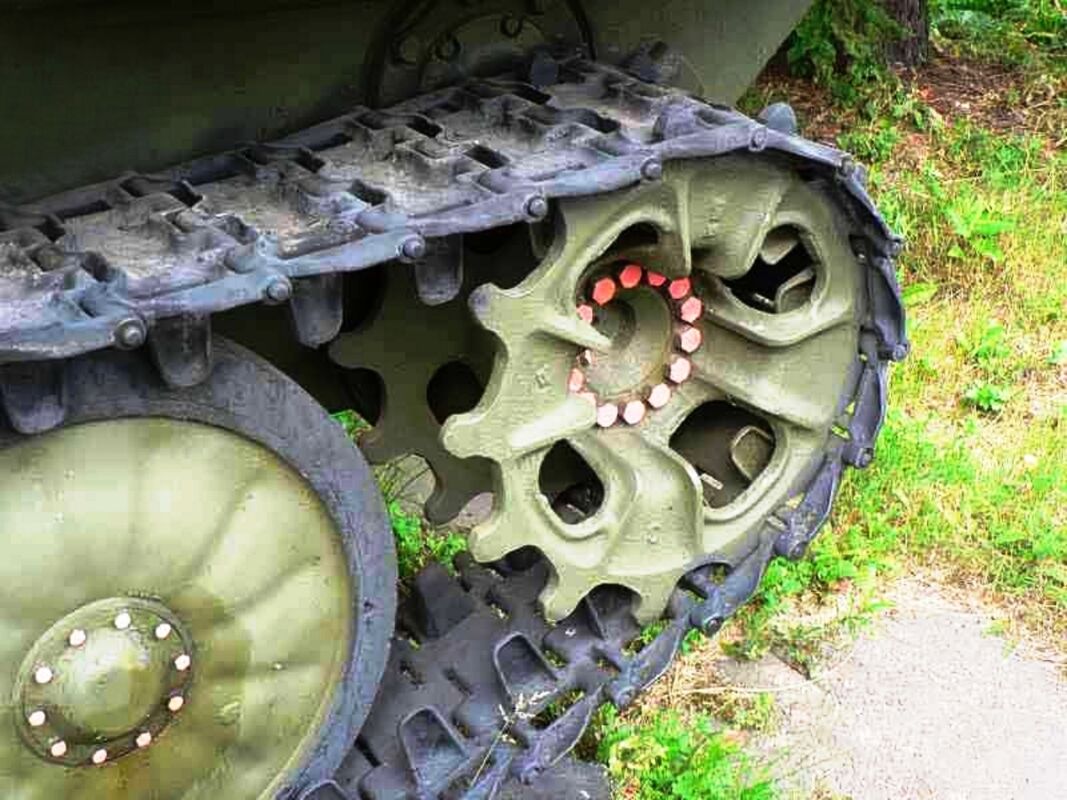

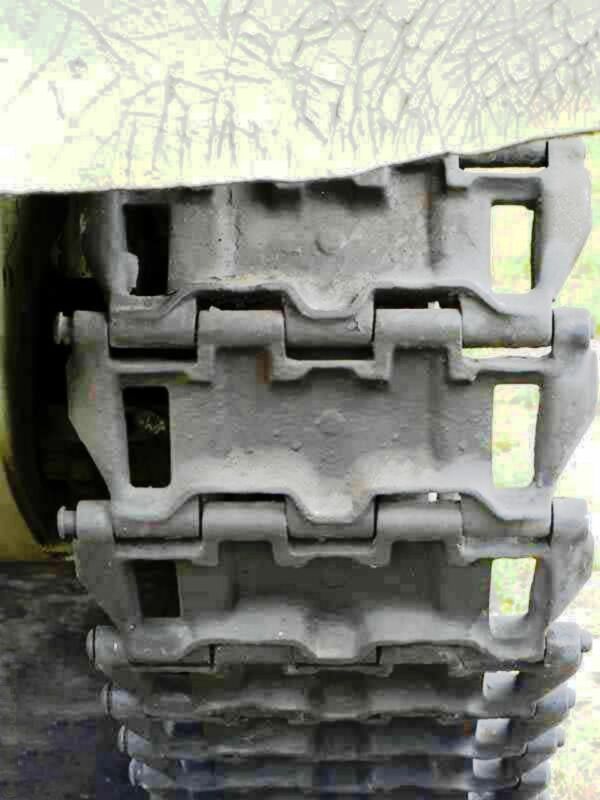

- 底盘： It uses a torsion-bar suspension and six large, hollow road wheels on each side, which also contribute to buoyancy.
Armament and Protection
The firepower and armor were a compromise to achieve amphibious capability:
| 特征 | Detail |
|---|---|

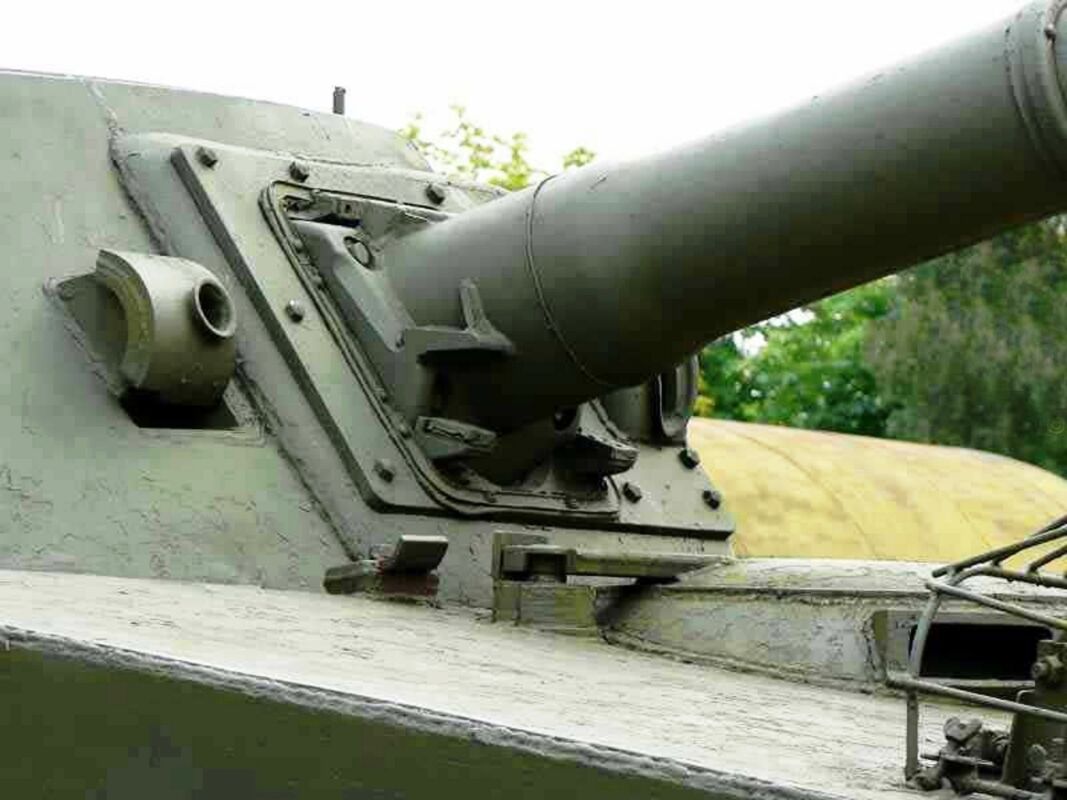

| 主要武器装备 | 76.2 mm D-56T rifled gun (later D-56TS with stabilization in the PT-76B variant). |
| Ammunition | Carries 40 rounds, including Fragmentation-HE, AP-T, and crucial HEAT (High-Explosive Anti-Tank) rounds for engaging heavier armor. |
| 次要武器 | 7.62 mm coaxial machine gun. |
| 装甲 | The hull and turret armor is made of thin, welded steel, providing protection only against small arms fire and shell fragments, but not against heavy machine guns or anti-tank weapons. |
The tank has a crew of three: the Driver, and the Commander/Gun
