Convair C-131 Samaritan | |
|---|---|
| 国家 | 美国 |
| 作用 | 军事运输 |
| 首次飞行 | 1972 |
| 建立 | 512 |
这 康维尔C-131撒玛利亚人 是康维尔从1954年至1956年生产的美国双引擎军用运输机。这是康维尔CV-240系列客机的军事版本。
| 康维尔 C-131D 撒玛利亚人四处走动 | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 名人航空展的飞机 |
| 照片 | 52 |

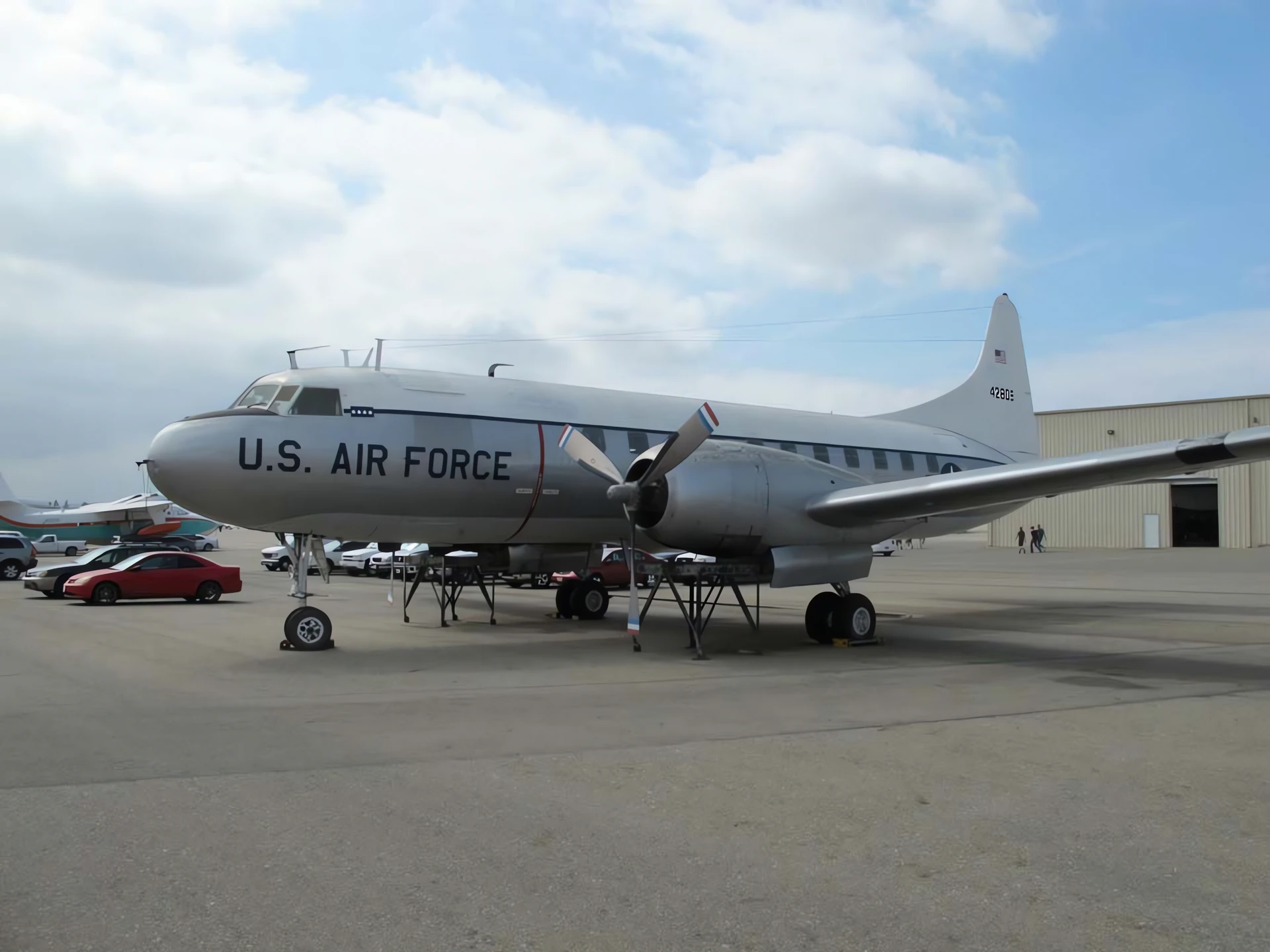

Convair C-131D Samaritan 01

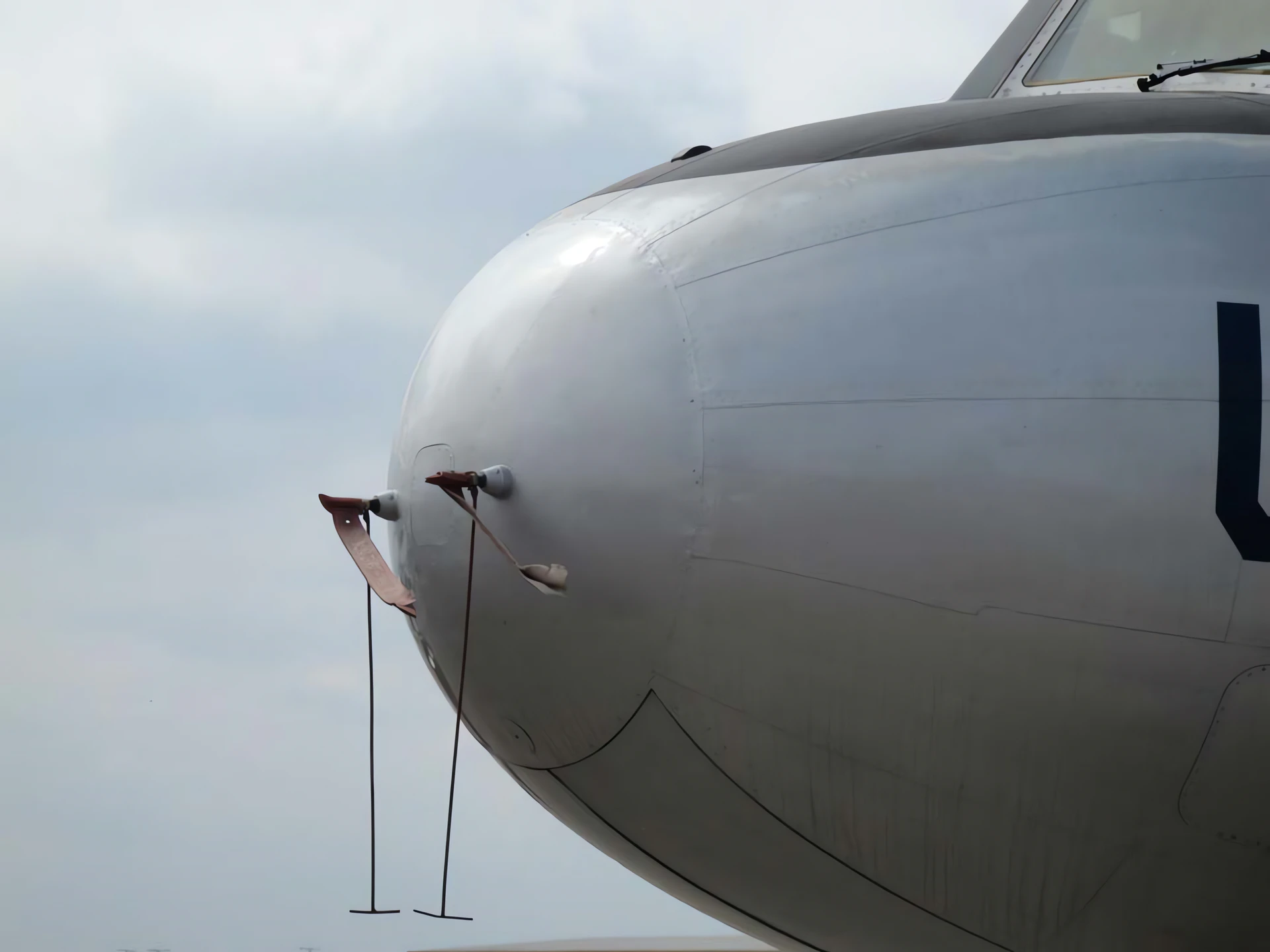

Convair C-131D Samaritan 02

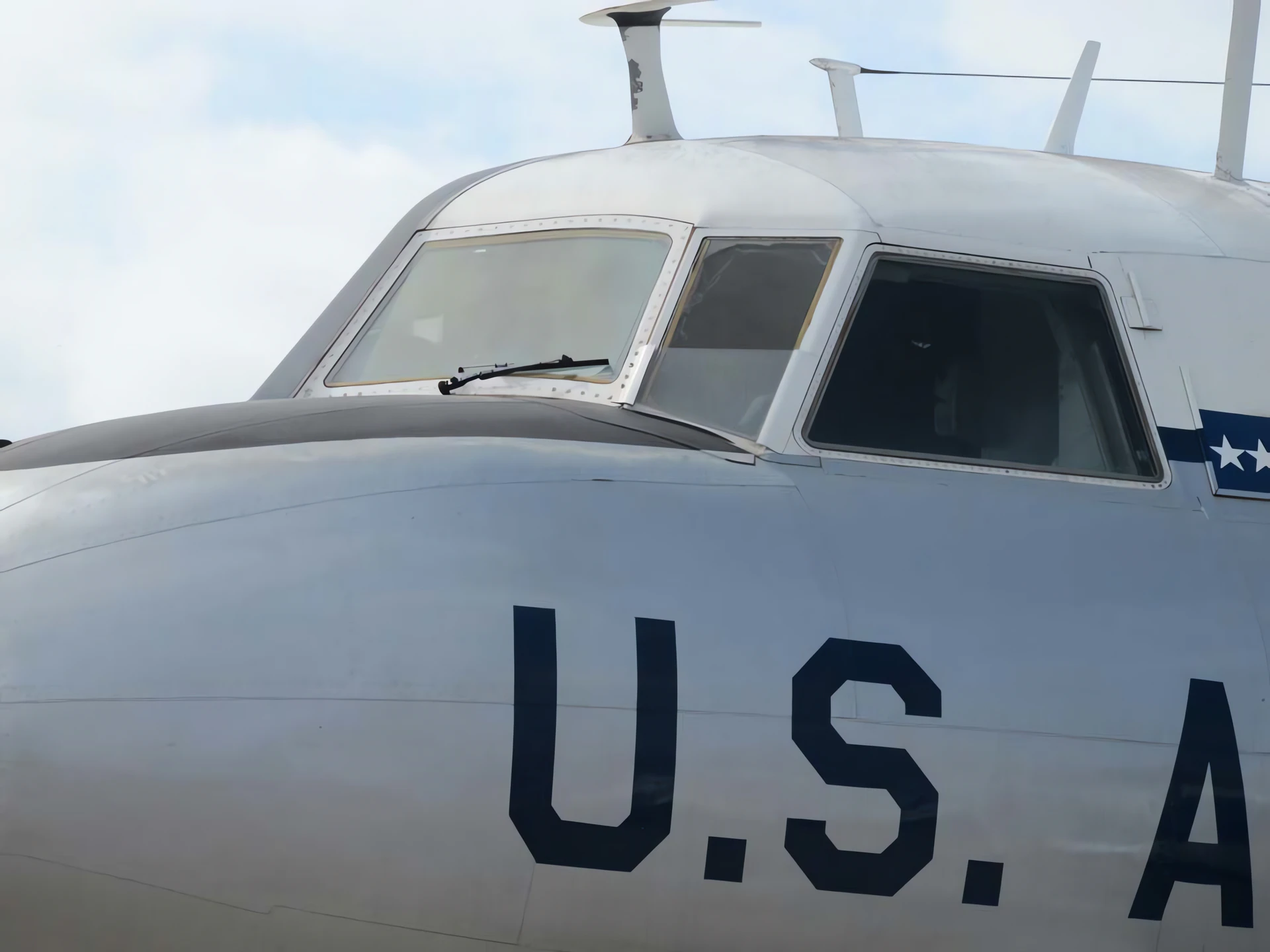

Convair C-131D Samaritan 03

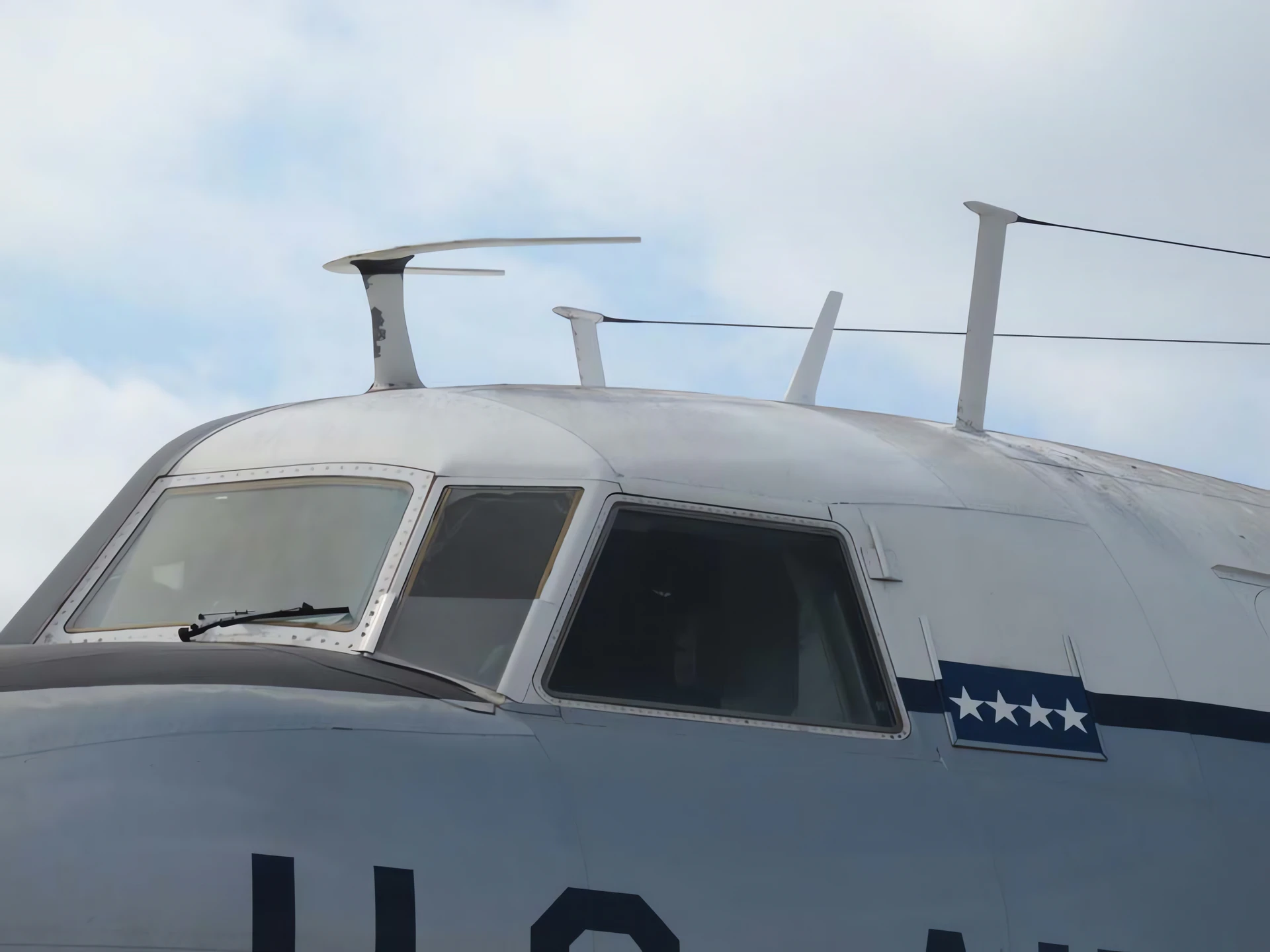

Convair C-131D Samaritan 04

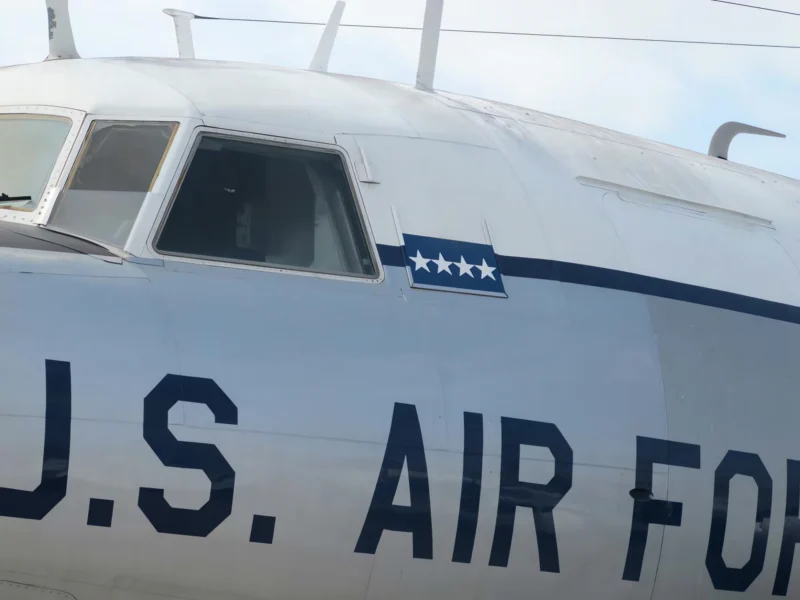

Convair C-131D Samaritan 05

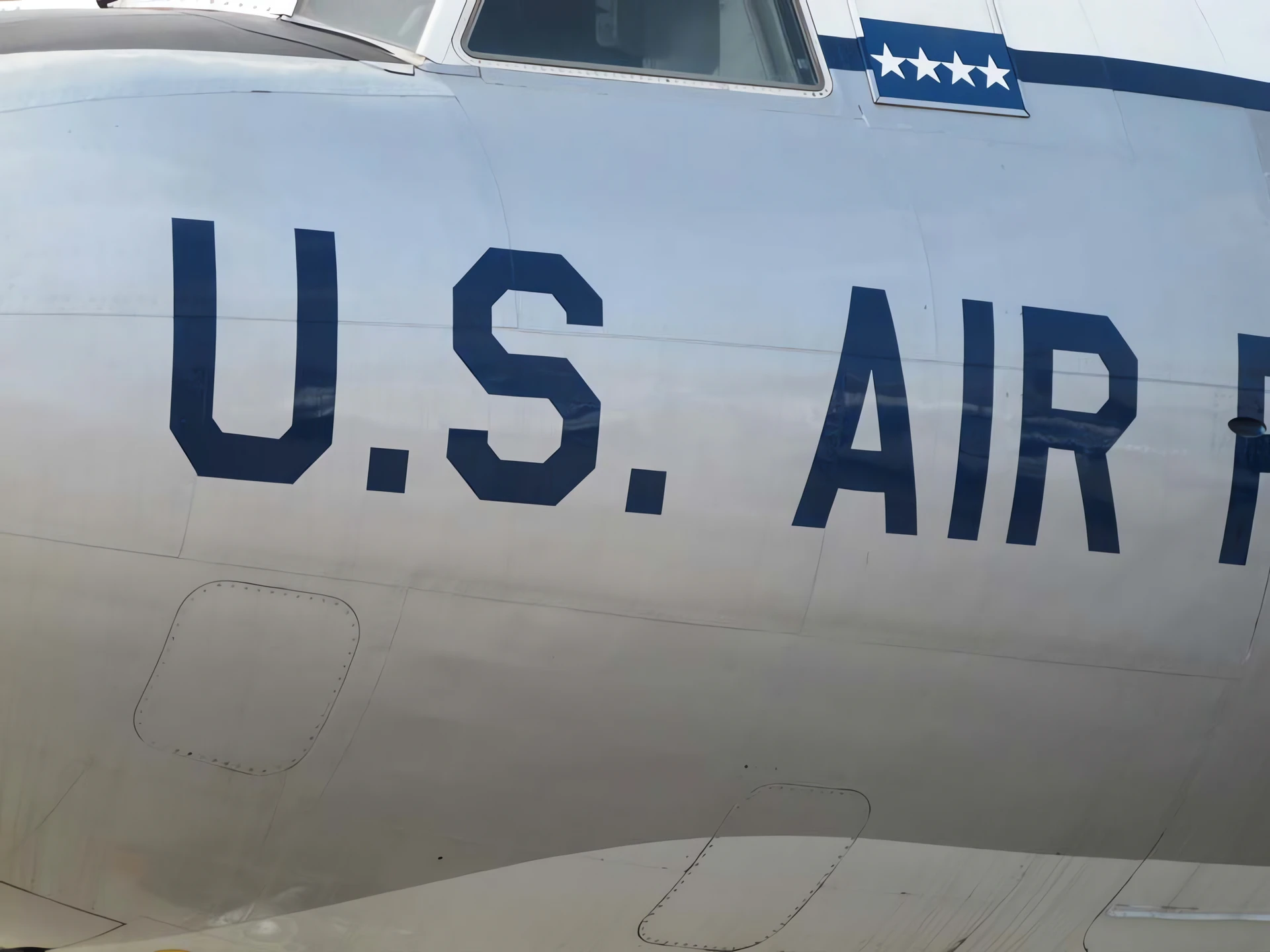

Convair C-131D Samaritan 06

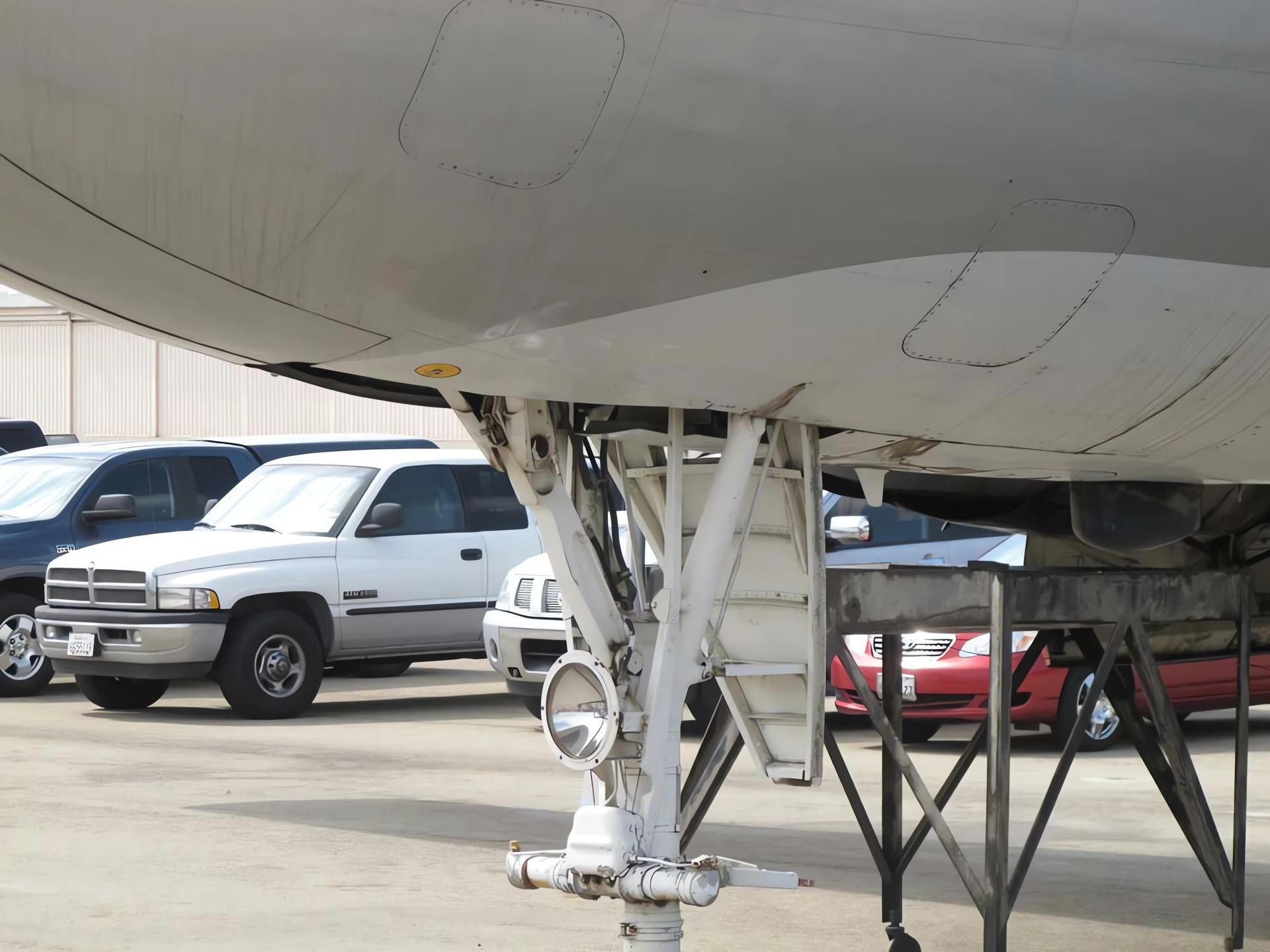

Convair C-131D Samaritan 07

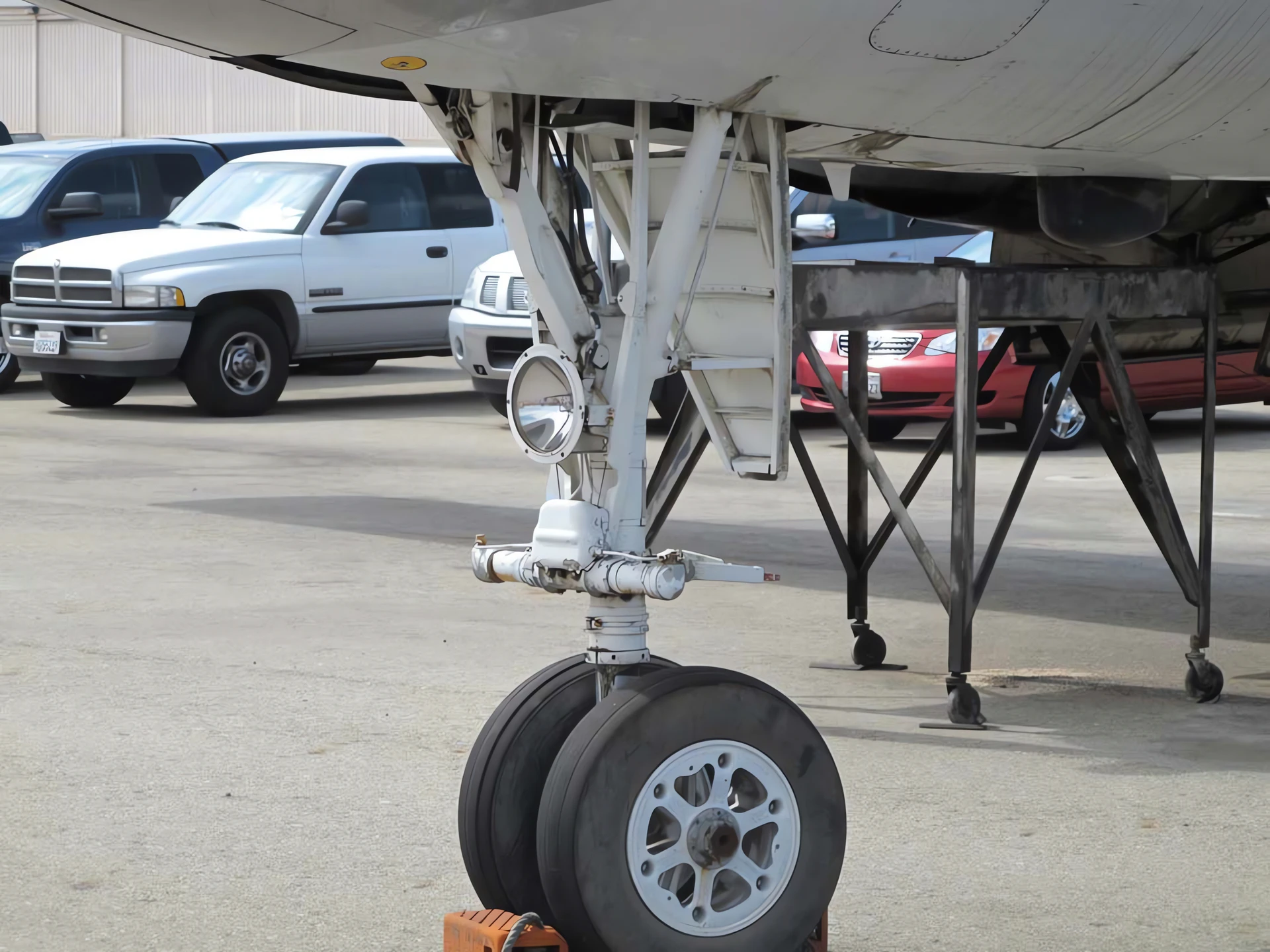

Convair C-131D Samaritan 08

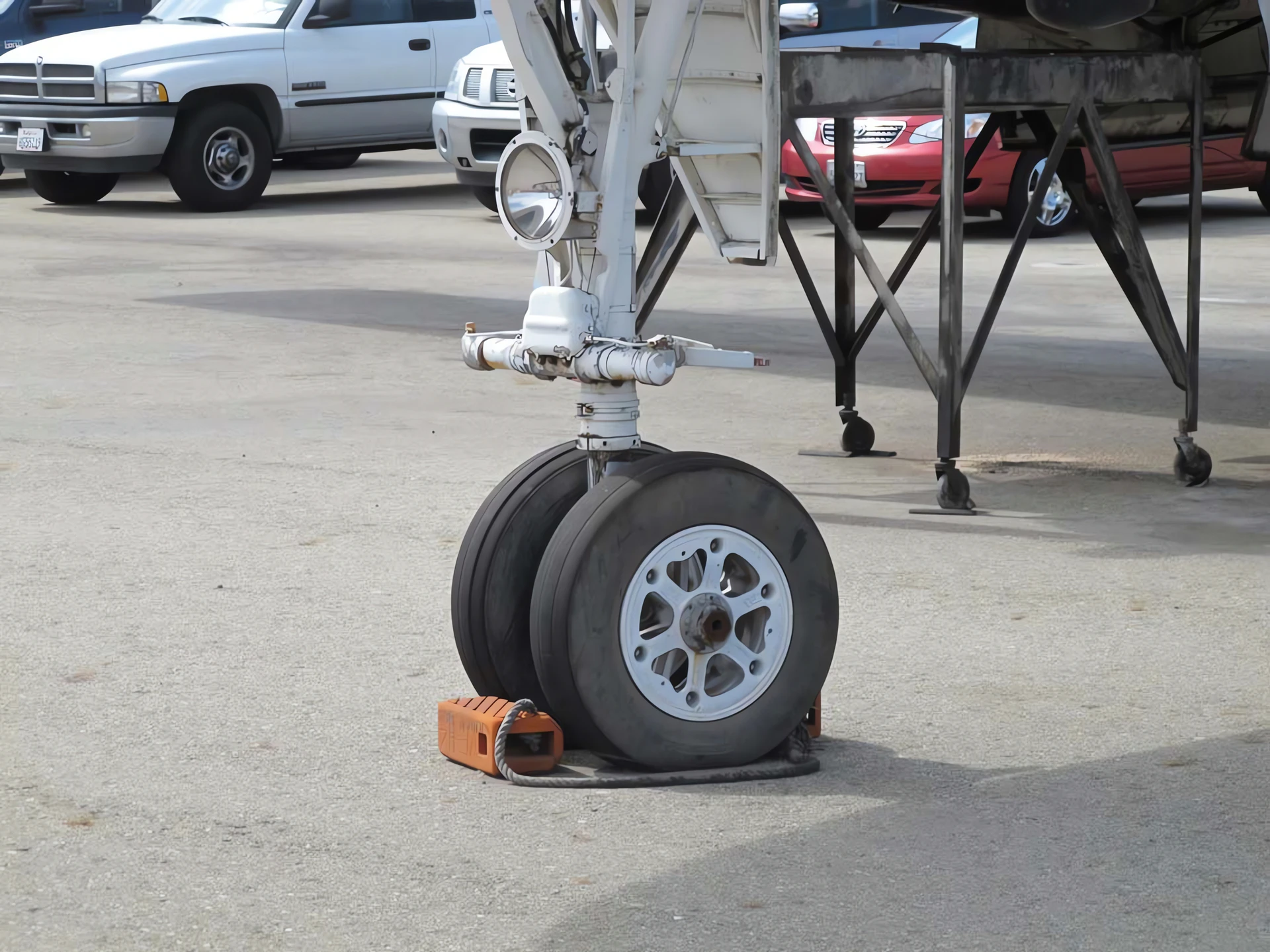

Convair C-131D Samaritan 09
等等，为你搜索康维尔C-131撒玛利亚人。。。
| Convair C-131 Samaritan Walk Around | |
|---|---|
| 摄影师 | 霍华德·梅森 |
| 本地化 | 未知 |
| 照片 | 18 |
| Convair HC-131A Samaritan Walk Around | |
|---|---|
| 摄影师 | 弗拉基米尔·亚库博夫 |
| 本地化 | 城堡航空博物馆， 阿特瓦特 |
| 照片 | 106 |
另请参阅：
The “Samaritan” of the Skies
这 康维尔 C-131D 撒玛利亚人 was the military transport version of the successful Convair CV-340 civilian airliner. Introduced in the 1950s, it was the first pressurized, twin-engine transport ordered by the U.S. Military Air Transport Service. While earlier variants like the C-131A were primarily flying hospitals, the “D” model was configured as a versatile personnel and VIP transport. Its reliability and pressurized cabin made it a staple for moving high-ranking officials and wounded personnel across the globe for over three decades.
| Attribute | Technical Specification (C-131D) |
|---|---|
| 作用 | Military Personnel / VIP Transport |
| 船员 | 3-4 (Pilot, Co-pilot, Flight Engineer, Steward) |
| First Flight (C-131 series) | September 22, 1949 |
| 动力装置 | 2 × Pratt & Whitney R-2800-103W radial engines |
| Horsepower | 2,500 hp each (with water/alcohol injection) |
| 最高速度 | 293 mph (472 km/h) |
| Service Ceiling | 24,500 – 30,000 feet |
| 范围 | Approx. 1,300 – 1,800 miles |
| 能力 | 44 Passengers or specialized VIP interiors |
Engineering Excellence and Design Features
- Pressurization Advantage: The C-131 was a massive leap forward from the unpressurized C-47s it replaced. This allowed it to fly above most weather, providing a much smoother ride for VIPs and more stable conditions for aeromedical evacuation patients.
- Integral Airstair: Unlike many cargo planes of the era that required external ramps, the C-131D featured a built-in stairway that folded into the right side of the fuselage, allowing it to operate from remote airfields with minimal ground support.
- Water/Alcohol Injection: To assist with heavy takeoffs or “hot and high” airfield conditions, its R-2800 engines could use a water-methanol injection system to temporarily boost horsepower, a common feature in late-era high-performance radial engines.
- The “Long” Convair: The C-131D was based on the CV-340, which featured a longer fuselage and greater wingspan than the original CV-240 (used for the C-131A), allowing for increased payload and range.
A Legacy of Service
- The First “Vomit Comet”: In 1959, a C-131 was the first aircraft used as a reduced-gravity platform to train the original Mercury Seven astronauts, earning it the famous “Vomit Comet” nickname.
- The Gunship Testbed: In 1963, a C-131B was used for “Project Tailchaser,” the very first experiments in side-firing gunships, which eventually led to the development of the AC-47 and AC-130.
- Air Force One Duty: On October 26, 1972, a C-131D was used by President Richard Nixon for a campaign trip, briefly serving as the primary presidential aircraft.
- Long Life: While most were retired from the Air Force in the late 1970s, many continued to fly with the Air National Guard and the U.S. Navy well into the late 1980s.
