Fuji T-1
Країні	Японія
Роль	Intermediate trainer aircraft
Перший політ	January 1, 1958
Номер побудований	66

The Fuji T-1 Hatsutaka was Japan’s first jet-powered trainer aircraft. Its first flight was in January 1958. A total of 66 T-1 planes were built. It was retired in March 2006.

Джерело: Fuji T-1 on Wiki

Wait, Searching Fuji T-1 for you…

More detailed information:

The Fuji T-1 Hatsutaka: Japan’s Pioneering Post-War Jet Trainer

I. Introduction: A Symbol of Revival

The Fuji T-1 Hatsutaka stands as a pivotal aircraft in Japan’s post-World War II aviation history, representing the nation’s first domestically designed and mass-produced jet aircraft. Its development marked a crucial step in the revival of the Japanese aircraft industry after a prolonged ban on aircraft manufacturing and research following the war. Following Japan’s defeat in World War II, its once-thriving aircraft industry faced severe restrictions, including a comprehensive ban on research and the destruction of materials and equipment related to aircraft production. This prohibition effectively halted indigenous aerospace development for over a decade. A partial lifting of this ban occurred in 1952, which gradually allowed for some domestic aircraft development, with a complete lifting in 1956. The rapid re-establishment of Japan’s aerospace capabilities is underscored by the T-1’s maiden flight on January 19, 1958, a remarkable achievement just two years after the full ban was lifted. This swift turnaround, from complete prohibition to the first flight of a domestically designed jet, was not merely a timeline fact; it underscored a powerful national imperative and leveraged significant pre-existing industrial capacity. Fuji Heavy Industries, the developer, had notably “inherited” the material and human resources of the Nakajima Aircraft Company, a major wartime manufacturer, which provided a critical foundation for such a rapid re-mobilization. The T-1’s existence therefore symbolizes Japan’s strategic decision to re-establish its indigenous defense industrial base and technological self-sufficiency, rather than solely relying on foreign aircraft, even though licensed production of American jets like the F-86 and T-33 was also occurring. It represented a deliberate and successful effort to overcome the substantial impediment caused by the decade-long ban, particularly during the global transition from piston to jet engines. It is imperative to distinguish the Fuji T-1 Hatsutaka, the Japanese jet trainer, from other similarly named entities encountered in aviation discourse. These include the US Air Force’s T-1A Jayhawk, a medium-range, twin-engine jet trainer based on the Beech 400A, used for airlift and tanker pilot training. Additionally, the Fujifilm X-T1 is a weather-resistant mirrorless interchangeable lens camera. These are entirely unrelated to the Fuji T-1 aircraft that is the subject of this report.

II. Design and Development Journey

The genesis of the Fuji T-1 project began in the spring of 1954, when the Defence Agency of Japan formulated a plan to develop a training jet aircraft. This plan also envisioned the aircraft possessing the potential to serve as an emergency fighter, indicating an early consideration for a dual-role capability within Japan’s nascent post-war air defense structure. Fuji Heavy Industries, now known as Subaru, was selected as the developer and manufacturer for this crucial project. The company’s unique position stemmed from its inheritance of the material and human resources of the pre-WWII Nakajima Aircraft Company, a major aircraft manufacturer. This legacy proved instrumental, providing the expertise and infrastructure necessary for the rapid re-establishment of design and production capabilities in the post-war era. The T-1 was, in fact, Fuji’s first original jet trainer design, marking a significant milestone for the company and the nation. The first prototype of the T-1 achieved its maiden flight on January 19, 1958. Following successful testing, the T-1s officially entered service in 1960. Pre-production models, such as c/n 95-5803, 95-5804, 95-5805, and 95-5806, conducted their initial flights between January and March 1959, and were delivered to the Japan Air Self-Defense Force (JASDF) shortly thereafter. A significant challenge during the T-1’s development was the lagging progress of a domestically produced jet engine, specifically the Ishikawajima-Harima J3. To avoid delays in the overall program, a pragmatic decision was made: the initial series of T-1s, designated T-1A, were equipped with the British Bristol Siddeley Orpheus Mk 805 turbojet engine. The T-1A’s first flight with this engine occurred on May 17, 1960. Once the locally produced Ishikawajima-Harima J3-IHI-3 turbojet engine became available and successfully passed testing by July 1959, production transitioned to aircraft known as the T-1B. Some aircraft were later converted to use the Ishikawajima-Harima J3-IHI-7 engine, designated T-1C. It is noteworthy that the Japanese engines were observed to be “noticeably less powerful” than their British counterparts. This sequence of events reveals a pragmatic strategic decision. While the overarching goal was indigenous capability, the immediate need for a modern jet trainer for the JASDF necessitated a compromise. Importing engines allowed the airframe program to proceed, providing vital experience in jet airframe design and production, even if the engine technology was not yet fully mature domestically. This highlights the complex trade-offs faced by nations rebuilding advanced industries post-conflict: the tension between achieving full self-sufficiency and the practical demands of immediate operational readiness and technological catch-up. It also points to the foundational challenge of developing complex systems like jet engines, which often require more time and resources than airframes.

III. Technical Specifications and Design Features

The Fuji T-1, particularly the T-1A variant, exhibited respectable technical specifications for a trainer of its era. It was designed to accommodate a crew of two and measured 12.12 meters (39 ft 9 in) in length, with a wingspan of 10.49 meters (34 ft 5 in) and a height of 4.08 meters (13 ft 5 in). The wing area was 22.22 square meters (239.2 sq ft), featuring an aspect ratio of 4.96:1 and K-561/K-569 airfoils. The empty weight for the T-1A was 2,420 kg (5,335 lb), while the T-1B, with its different engine, was slightly heavier at 2,845 kg (6,272 lb). Gross weight for the T-1A was 4,150 kg (9,149 lb) clean, compared to 4,390 kg (9,678 lb) for the T-1B. Maximum takeoff weight for both variants was 5,000 kg (11,023 lb) with external tanks. Fuel capacity stood at 1,400 liters (308 Imp Gallons) internally. The T-1A was powered by a single Bristol Siddeley Orpheus Mk 805 turbojet engine, producing 18 kN (4,000 lbf) of thrust. This enabled a maximum speed of 925 km/h (575 mph) at 6,100 m (20,000 ft) and a cruise speed of 620 km/h (390 mph) at 9,150 m (30,000 ft). Its internal fuel range was 1,300 km (810 mi), extending to a ferry range of 1,950 km (1,210 mi) with external tanks. The service ceiling for the T-1A was 14,400 m (47,200 ft), with a rate of climb of 33 m/s (6,500 ft/min). The thrust-to-weight ratio for the T-1A was 0.43. In contrast, the T-1B, powered by the Ishikawajima-Harima J3-IHI-3 turbojet engine with 11.77 kN (2,645 lbf) thrust, exhibited a lower maximum speed of 827 km/h (513.9 mph) at 6,000 m (19,685 ft) and a cruise speed of 570 km/h (354.2 mph). Its service ceiling was 12,000 m (39,370 ft), and its rate of climb was 24 m/s (4,724.4 ft/min). The ferry range of the T-1B was slightly greater at 2,000 km (1,242.7 mi) with external tanks.
Comparative Technical Specifications (Fuji T-1A vs. T-1B) The T-1 was Japan’s first domestically designed swept-wing jet, showcasing significant aerodynamic and structural innovations. It featured a low-wing configuration with a 25% chord and a 26-degree 46-minute swept wing. This wing design was an evolution of the Nakajima K-series laminar flow airfoil, previously utilized in aircraft such as the “Saiun,” demonstrating the effective leveraging of pre-war and wartime expertise. The thick main wing design also provided ample space for internal fuel tanks. The horizontal stabilizer incorporated new swept-wing theory, featuring a sweep angle of 34 degrees 15 minutes, while the vertical stabilizer had a sweep angle of 33 degrees 18 minutes. This design aimed to ensure the effectiveness of the tail surfaces even when approaching the speed of sound and encountering shockwave conditions. Furthermore, the combination of the vertical stabilizer, which included a slightly forward-extending dorsal fin, and the horizontal stabilizer with its dihedral, contributed to excellent spin recovery characteristics, a crucial safety feature for a trainer aircraft. To optimize air intake efficiency and reduce overall drag, the air intake was strategically located in the nose of the aircraft. While the fuselage was made slender to reduce weight and drag, which led to some compromises such as a cramped cockpit for larger pilots, this design choice resulted in superior acceleration, climb performance, maneuverability, and takeoff/landing characteristics compared to the contemporary T-33A trainer. The design of the T-1 reflects a balanced approach: aiming for modern aerodynamic performance essential for jet training, while simultaneously being constrained by post-war resource limitations and the need for cost-effectiveness. The “emergency fighter” role, initially considered, was likely a secondary, opportunistic capability rather than a primary design driver, reflecting a pragmatic defense posture in the early Cold War. The use of Nakajima’s airfoil evolution and common components demonstrates a clever leveraging of pre-existing knowledge and available resources to accelerate development and reduce costs. This design philosophy allowed Japan to rapidly field a competent jet trainer that was both technologically advanced enough for its primary role and economically feasible, laying the groundwork for future indigenous aircraft development without over-committing to complex, high-cost combat features. In the cockpit, the aircrew sat in tandem, with the flight instructor positioned behind the cadet on a raised seat to provide an improved forward view. The aircraft was equipped with dual controls, and a windblast screen separated the two cockpits. Both crew members sat under separate clamshell canopies. For emergency egress, the T-1 utilized Weber ES-7J zero-zero (zero altitude, zero speed) ejection seats, manufactured by Daiseru. These seats featured specially fitted canopy penetrators to ensure safe ejection even if the canopy was not fully blown off. The canopy and ejection seat were reportedly the same as those used in the T-33A, suggesting a pragmatic approach to component commonality and cost reduction. The front and rear seats incorporated a 120 mm height difference to enhance visibility for both occupants. Furthermore, the electronic equipment largely comprised off-the-shelf products common with the F-86F fighter and T-33A, a strategic choice aimed at reducing both cost and development time.

IV. Variants and Armament Capabilities

The Fuji T-1 series saw several developmental and production variants, each reflecting the evolution of Japanese aerospace capabilities and engine technology.

• T1F1: This was a single prototype powered by a Nippon J3 engine.
• T1F2: Two prototypes were built, equipped with 11,800 N (2,645 lbf) Bristol BOr.1 Orpheus engines.
• T1F3: This designation was initially given to the production T-1A, powered by 11,765.55 N (2,645 lbf) Bristol BOr.4 Orpheus engines.
• T-1A: This was the most produced variant, with 46 units built. It was powered by a 17.79 kN (4,000 lbf) Bristol Siddeley Orpheus Mk 805 turbojet engine. The first T-1A made its flight on May 17, 1960.
• T-1B: This variant was powered by an 11.77 kN (2,645 lbf) Ishikawajima-Harima J3-IHI-3 turbojet engine, the first domestically produced jet engine for the T-1. A total of 20 units were built between June 1962 and June 1963. Additionally, two T-1A aircraft were converted to the T-1B version. As previously noted, the T-1B’s Japanese engine was noticeably less powerful than the T-1A’s British counterpart.
• T-1C: Some existing aircraft were later converted to utilize the Ishikawajima-Harima J3-IHI-7 engine, which provided 13.72 kN (3,085 lbf) of thrust.

While primarily a trainer, the Fuji T-1 possessed inherent armament capabilities, reflecting its initial consideration for an “emergency fighter” role.

• Guns: Provision existed for a single 12.7 mm Browning M53-2 machine gun mounted in the nose. The T-1B specifically featured a Browning M2 12.7 mm machine gun with 220 rounds in the nose.
• Hardpoints: The aircraft was equipped with two hardpoints under its wings, allowing for the carriage of various external stores. The T-1B could carry up to 680 kg on these hardpoints.
• Missiles: The T-1 could be armed with two AIM-9B Sidewinder air-to-air missiles. The T-1B’s potential armament included AIM-9 Sidewinder variants (AIM-9E, AIM-9B, or AAM-1).
• Bombs: Provisions were made for various bomb types, including two 750 lb (340 kg) bombs. The T-1B’s loadout could include 100 lb, 250 lb, 500 lb, 750 lb (M117), and napalm bombs.
• Rockets: The aircraft was capable of carrying unguided rockets such as two 5-inch HVARs, two seven-round 2.75-inch Mighty Mouse FFARs on M-3 (MA-3) adaptors, two two-round 2.75-inch Mighty Mouse on Ma-2 Adaptors, and two 2.25-inch SCARs on A-1 adaptors.
• Gunpods: The T-1 also had provision for two 12.7mm gunpods.
• Training Dispensers: For training purposes, it could carry two CBLS-200 training dispensers, each capable of holding four 25-pound BDU-33 training bombs and four rockets.
• Drop Tanks: The T-1 was typically fitted with two sabre-type twin-fin drop-tanks. These were 455 L (100 Imp Gallon) capacity tanks, with the T-1B specifying two 454 L drop tanks.

While the “emergency fighter” role was a stated capability, the T-1’s actual armament and performance (especially the less powerful T-1B, which formed a significant portion of the fleet) suggest that its combat utility was highly limited. The primary role remained training. The inclusion of Sidewinders and bombs likely served as a basic self-defense or ground-attack training capability, rather than equipping it for serious combat. This reflects the reality of a nation rebuilding its military capabilities under strict post-war limitations and focusing on foundational training needs. This highlights a common trend in post-war military aviation for nations with nascent industries: multi-role designs are often a compromise born of necessity (limited budget, need for versatility) rather than optimal combat effectiveness. The T-1’s “emergency fighter” role was more about having any jet fighter capability in a pinch, given the early stage of JASDF’s rearmament, than about fielding a competitive combat aircraft.

V. Operational History and Role in JASDF Training

The Fuji T-1 Hatsutaka primarily served as an intermediate jet trainer throughout its operational life for the Japan Air Self-Defense Force (JASDF). Its service career was notably long, spanning over 45 years. The first T-1s entered service in 1960, and the last unit was officially retired on March 3, 2006. Key operational units for the T-1 included the 13th Flying Training Wing at Ashiya Air Base (AB), where numerous T-1A and T-1B aircraft were based throughout their service life. The Experimental Wing/Air Proving Group at Gifu AB also played a significant role, particularly for prototype and pre-production models, as well as some production variants. Later in their service, some T-1B aircraft were assigned to the 5th Technical School at Komaki AB. Individual aircraft records indicate continuous service, with some T-1A units being upgraded to the T-1B configuration during their operational lives. Initially, the production plans for the T-1 were ambitious, targeting over 200 units. However, the actual production was severely curtailed to a total of only 66 aircraft. This reduction was directly influenced by the introduction of Lockheed F-104J/DJ fighters into the JASDF inventory and, more significantly, the existing large numbers of Lockheed T-33A trainers already available to Japan. The T-33A, being readily available, took on a similar training role, which altered the planned education system and reduced the necessity for a larger domestic production run of the T-1. This indicates that despite the strong national desire for indigenous aircraft production, economic realities and the availability of proven, potentially more cost-effective foreign (US-supplied or licensed) aircraft significantly impacted the scale of domestic manufacturing. The T-33A, being “available in large numbers,” likely offered immediate training capacity that outweighed the long-term benefits of a larger domestic production run for the T-1. This highlights the complex interplay between national industrial policy, defense procurement, and international relations (specifically, the US-Japan security alliance and military aid post-WWII). While the T-1 successfully re-launched Japan’s jet aircraft industry, its limited production run demonstrates that nationalistic aspirations could be tempered by pragmatic considerations of cost, efficiency, and geopolitical alignment. The T-1 served its purpose as a foundational step, but not as a dominant production model. Flight training with the T-1 was officially completed in December 2000, following the entry into service of its successor, the Kawasaki T-4 jet trainer. Despite its long and generally successful service, several T-1 aircraft were involved in incidents throughout their operational history. These included instances of ditching into the Sea of Genkai or off Ashiya AB, and crashes, which are detailed in historical records by construction number and date.

VI. Preservation and Enduring Legacy

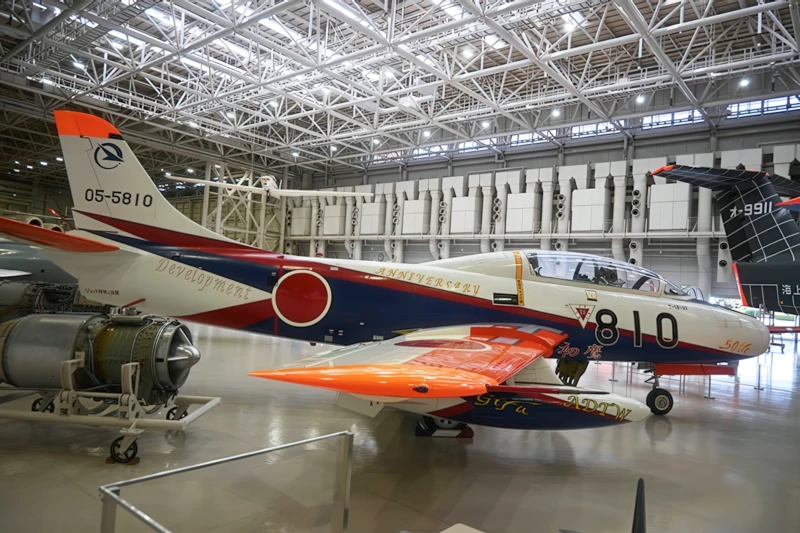

The retirement of the Fuji T-1 aircraft marked the end of a remarkable service life. Flight training with the T-1 concluded in December 2000, and the last T-1 was officially retired on March 3, 2006. This date signified the conclusion of over 45 years of continuous service for Japan’s pioneering jet trainer. A significant number of the 66 produced T-1s have been preserved across Japan, a testament to their historical importance and symbolic value. These preserved aircraft include prototypes, pre-production models, and production T-1A and T-1B variants. Table 2: Preserved Fuji T-1 Aircraft Locations The T-1’s long service life, despite its limited numbers and the introduction of more modern trainers like the T-4, suggests its fundamental soundness and effectiveness in its primary training role. It was a reliable and capable platform that fulfilled its mission for decades. The extensive preservation efforts underscore its profound historical and symbolic value to Japan, far beyond its numerical impact. It represents the successful re-entry of Japan into advanced aerospace manufacturing. This illustrates that the success of an aircraft program, especially a pioneering one, is not solely measured by production volume or combat prowess. Its true legacy can lie in its role as a catalyst for industrial revival, a training ground for engineers and pilots, and a symbol of national technological resilience, laying the groundwork for future, more advanced projects. The T-1’s development provided crucial experience in jet aircraft design, production, and engine integration for the Japanese aviation industry. This foundational experience proved invaluable. Fuji Heavy Industries, through its successor Subaru, continues its significant contributions to the aerospace industry today. Subaru has supplied 54 T-5 basic trainers for the Japanese Maritime Self-Defense Force and actively manufactures airframe components, particularly wing sections, for major commercial aircraft like Boeing’s 767, 777, and 787 jet airliners. The company also produces helicopters primarily for the Japanese Ground Self-Defense Force. This demonstrates a direct lineage of aerospace expertise nurtured by pioneering projects like the T-1, solidifying its enduring impact on Japan’s industrial landscape.

VII. Conclusion

The Fuji T-1 Hatsutaka transcends its designation as a mere trainer aircraft; it stands as a profound symbol of Japan’s post-World War II industrial resurgence and its determined re-entry into the global aerospace arena. Its development successfully navigated the complex landscape of post-occupation restrictions and technological gaps, particularly concerning jet engine development, by strategically integrating foreign technology while simultaneously fostering crucial domestic capabilities. The aircraft’s design, while pragmatic in its compromises, laid the foundational experience for future Japanese aircraft development, showcasing the nation’s capacity for innovation under challenging circumstances. Despite a production run that was ultimately curtailed by external factors, such as the availability of readily supplied U.S. aircraft, the T-1 served with distinction for over four decades. Its long operational life attested to its reliability and effectiveness as a training platform for the Japan Air Self-Defense Force. Today, the enduring presence of numerous T-1 airframes in museums across Japan stands as a tangible testament to its pivotal role in shaping the nation’s modern air force and its continued legacy through companies like Subaru. The Fuji T-1 remains a compelling testament to national ambition, engineering ingenuity, and strategic adaptation in the face of significant challenges, securing its place as a cornerstone of modern Japanese aviation history.
