Aermacchi MB-339 | |
|---|---|
| Maa | Italia |
| Rooli | Kehittyneet koulukoneet ja kevyet hyökkäyslentokoneet |
| Ensimmäinen lento | 12 August 1976 |
| Rakennettu | 230 |
Nniiden Aermacchi MB-339 is a military jet trainer and light attack aircraft designed and manufactured by Italian aviation company Aermacchi. The MB-339 was developed during the 1970s in response to an Italian Air Force requirement that sought a replacement for the service’s existing fleet of Aermacchi MB-326. Its design was derived from that of the MB-326, rather than a new design, and thus the two aircraft share considerable similarities in terms of their design. Aermacchi had found that the MB-339 was capable of satisfying all of the specified requirements while being the most affordable option available. The maiden flight of the MB-339 took place on 12 August 1976; the first production aircraft were delivered two years later.
Lähde: Aermacchi MB-339 Wikipediassa

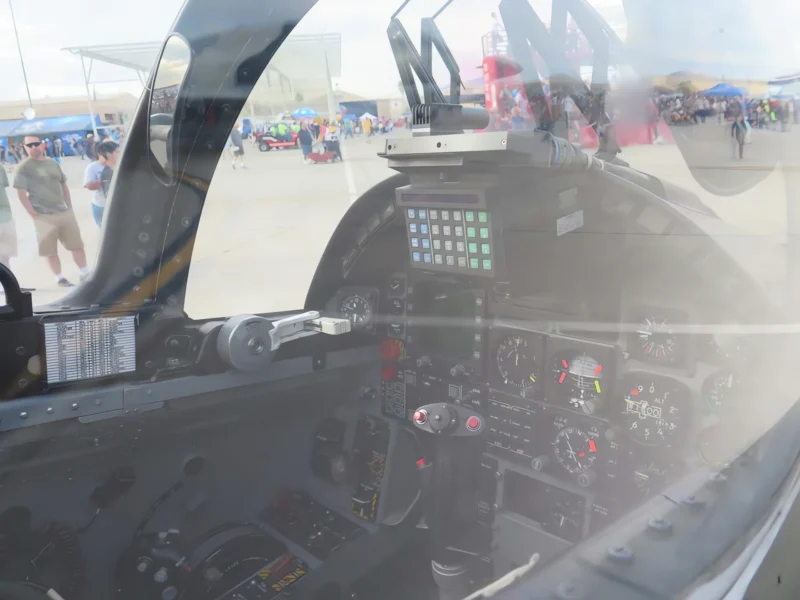

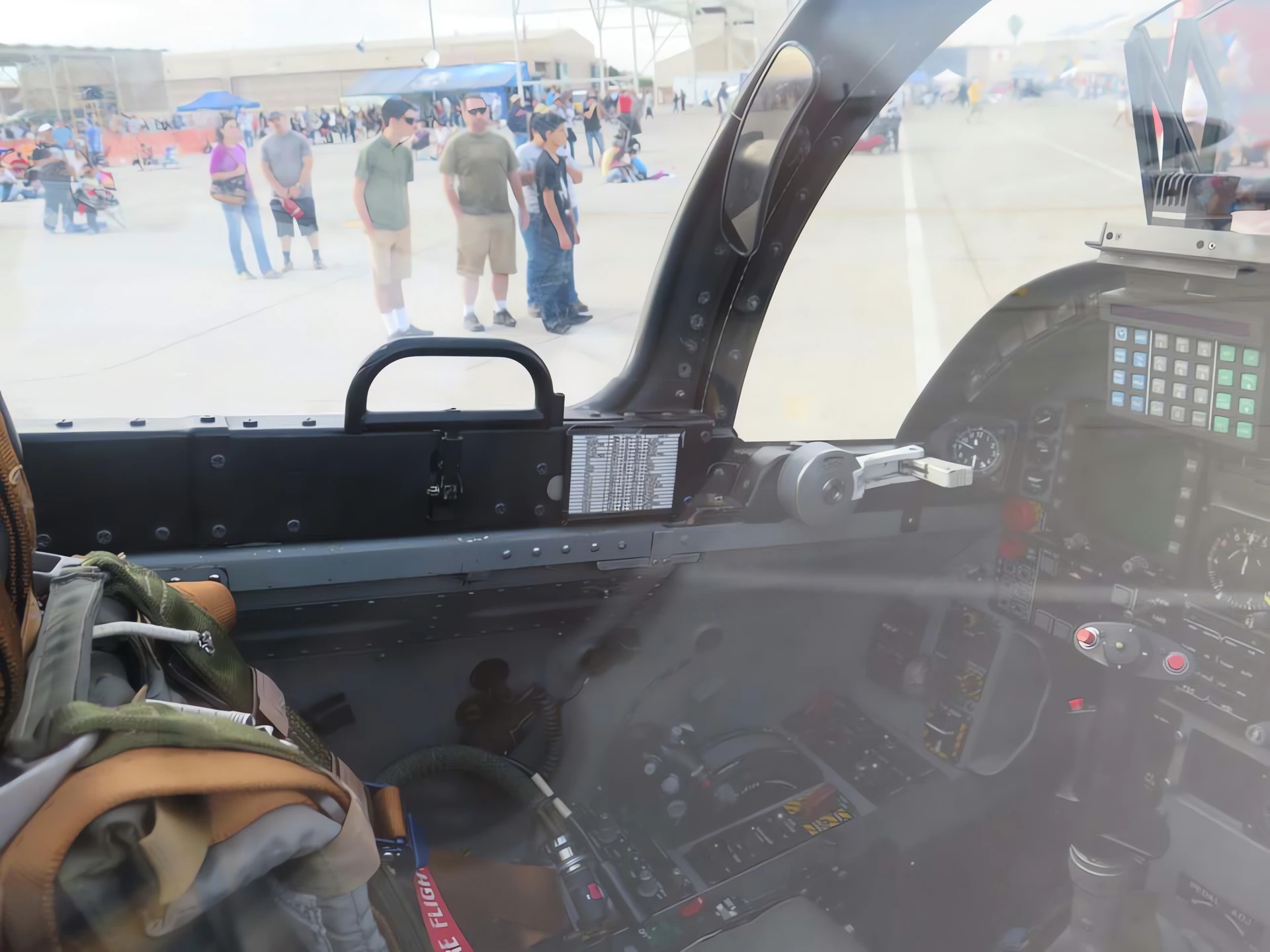

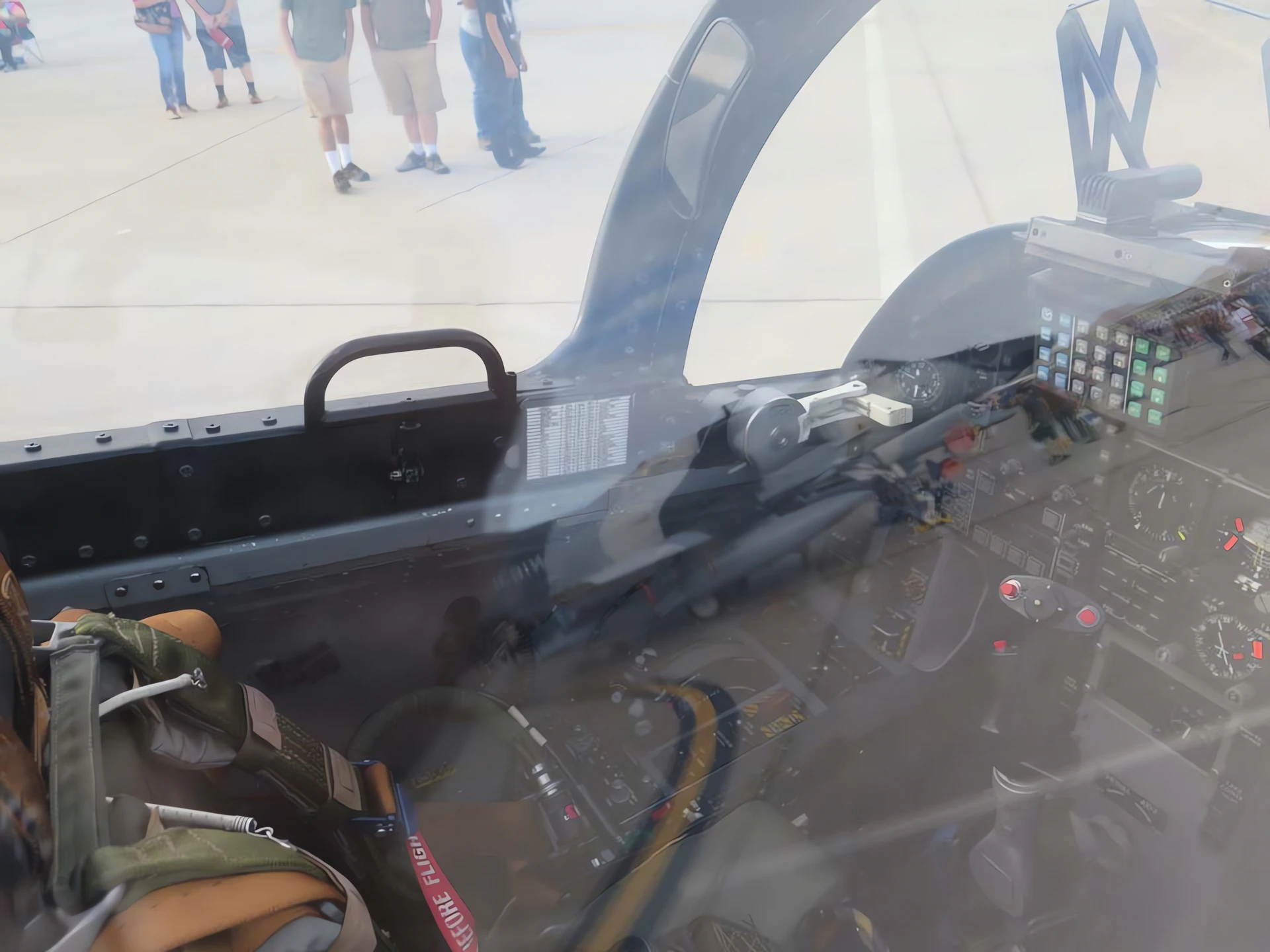

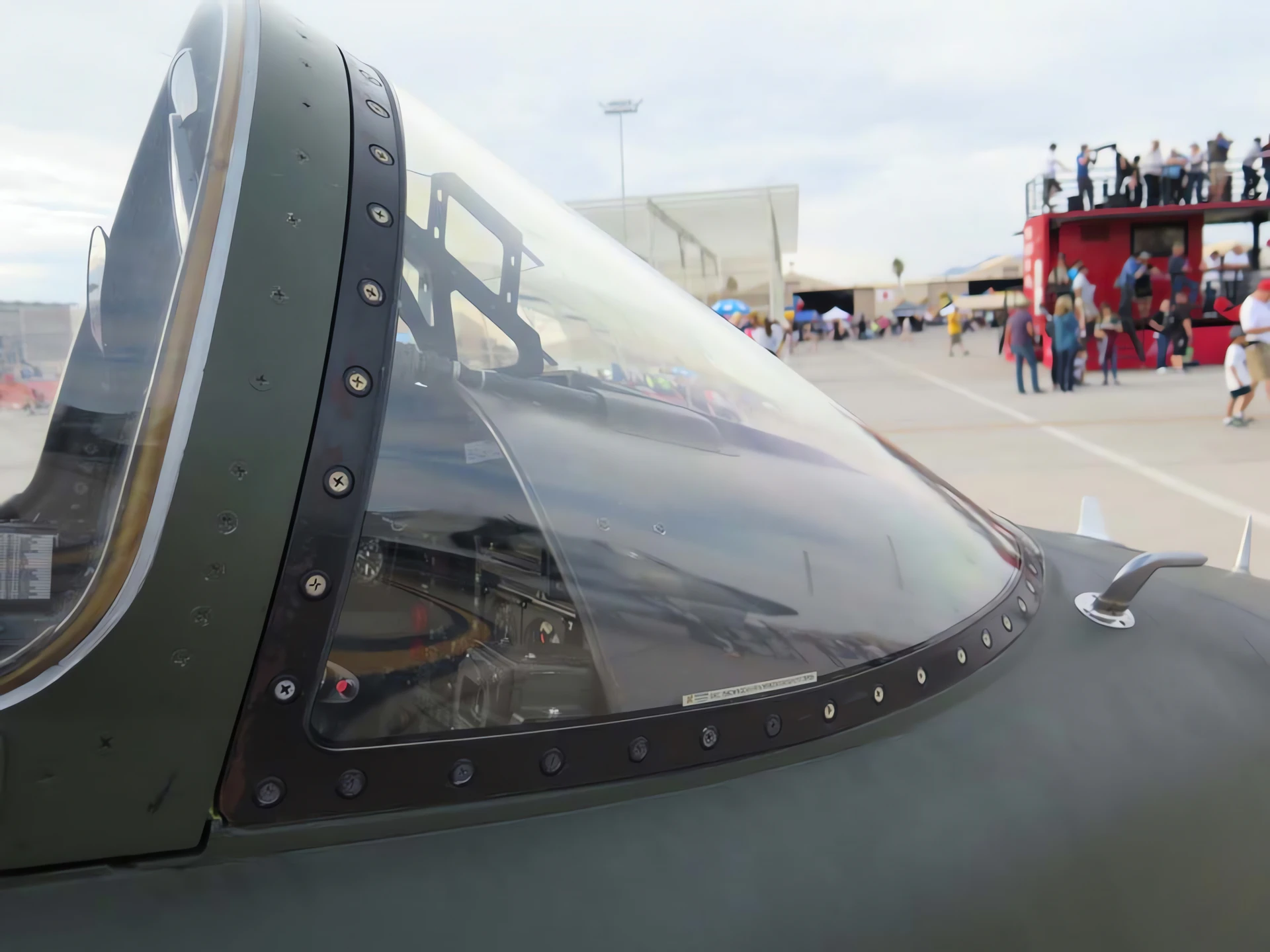

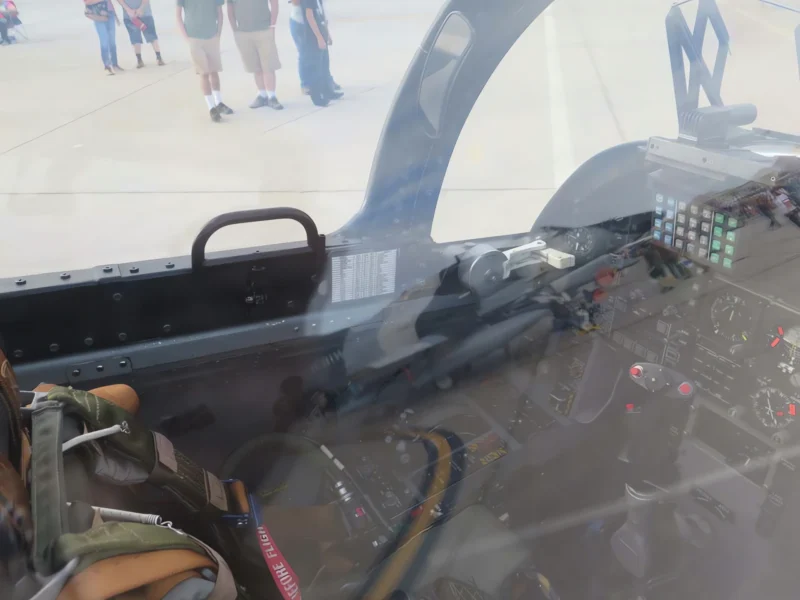

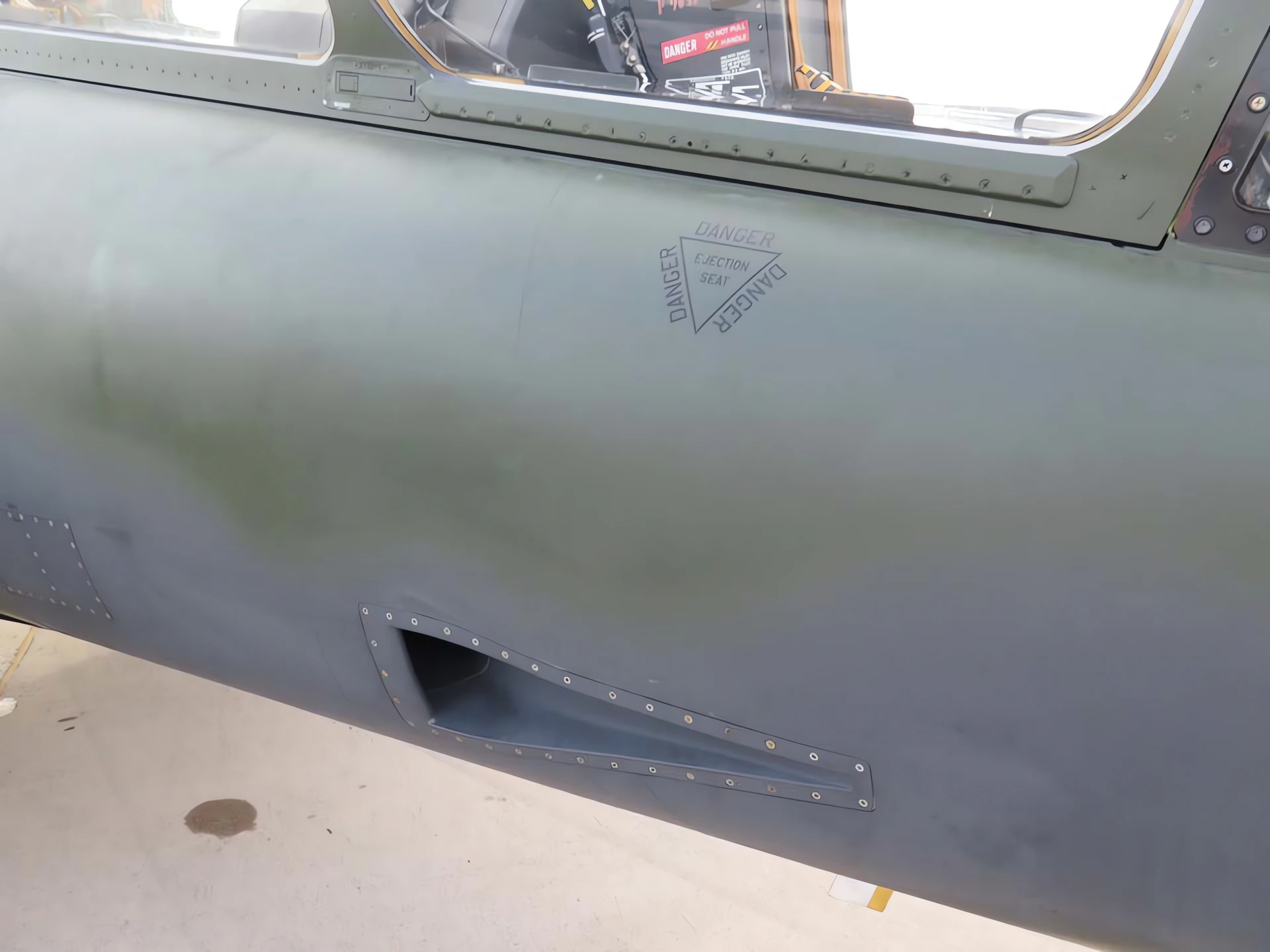

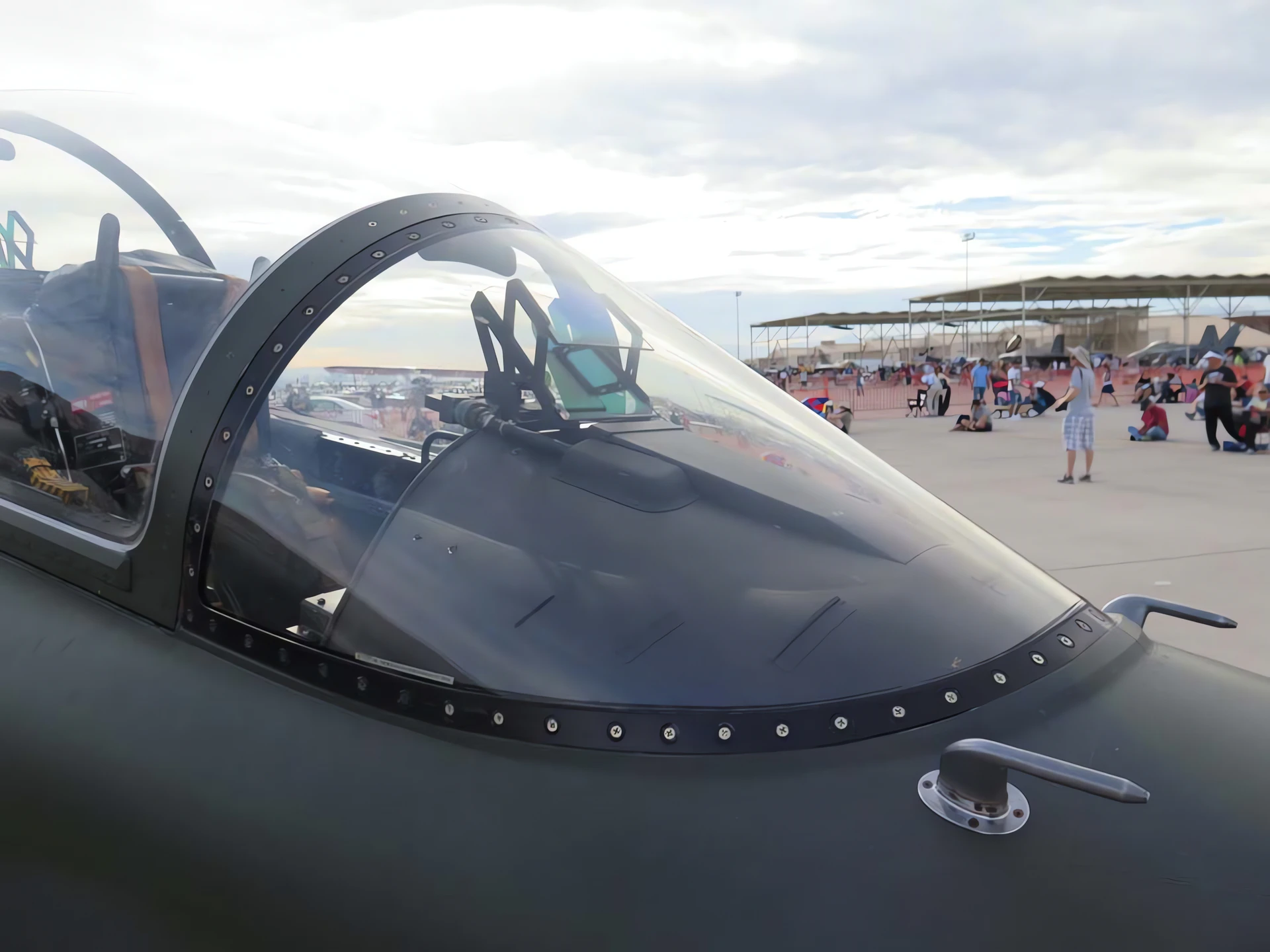

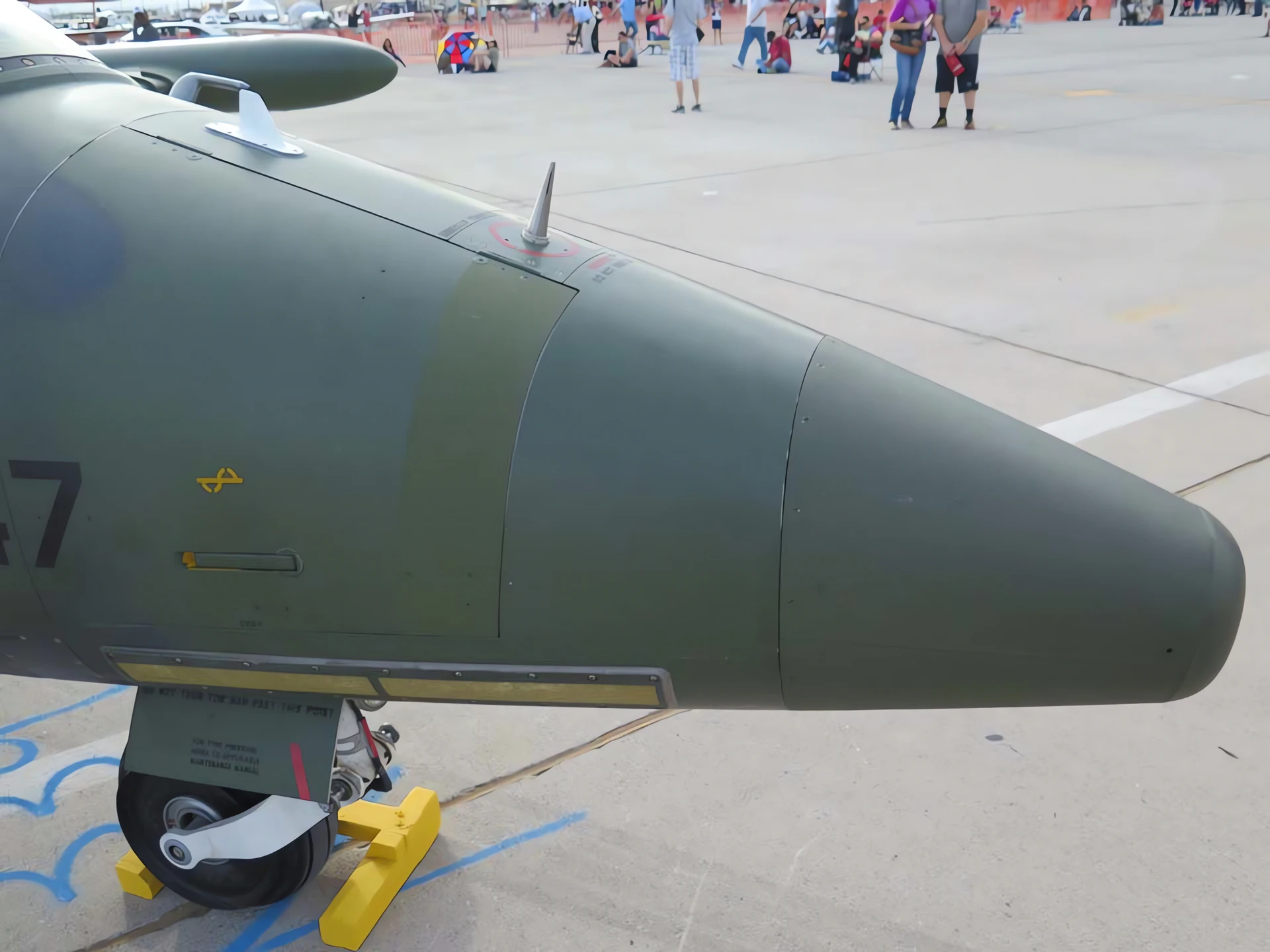

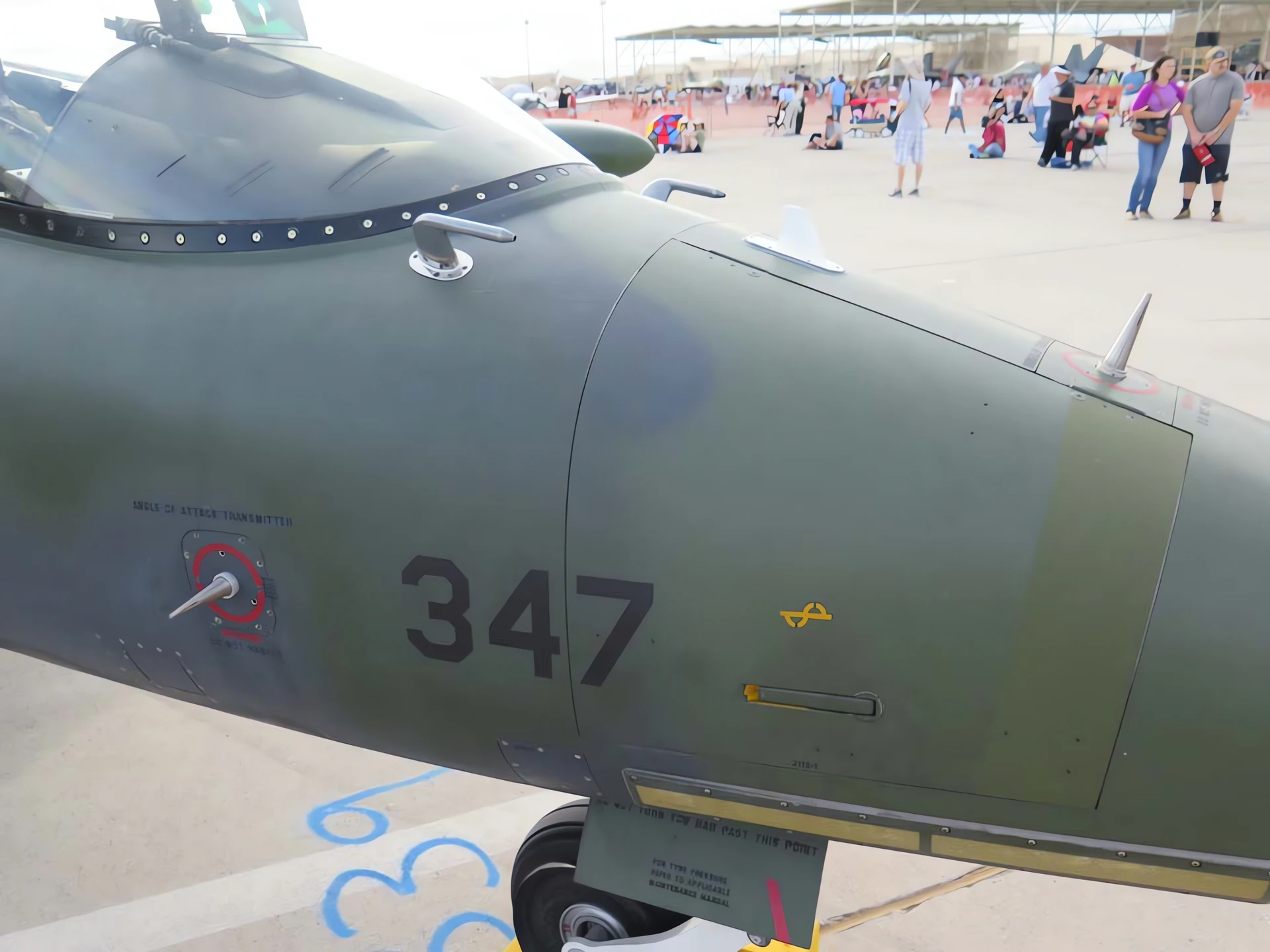

| Aermacchi MB-339CB Walk Around | |
|---|---|
| Photographer | Vladimir Yakubov |
| Localisation | Nellis Air Force Base |
| Photos | 123 |

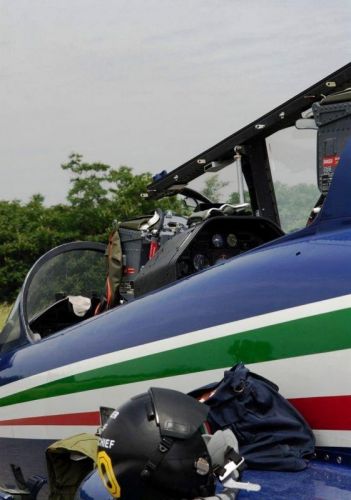

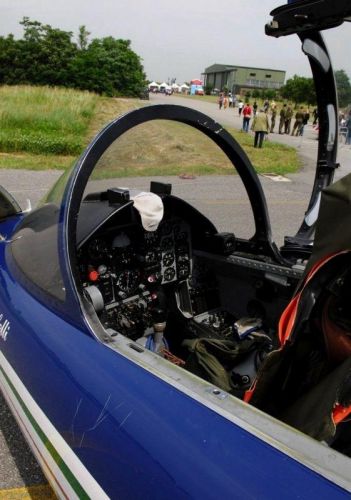

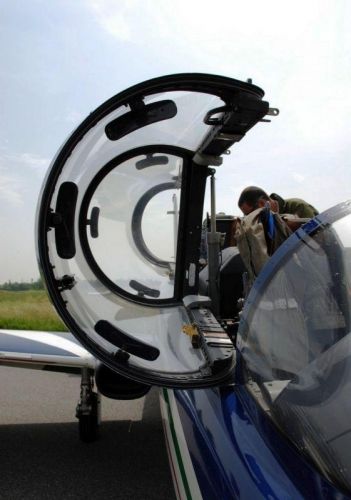

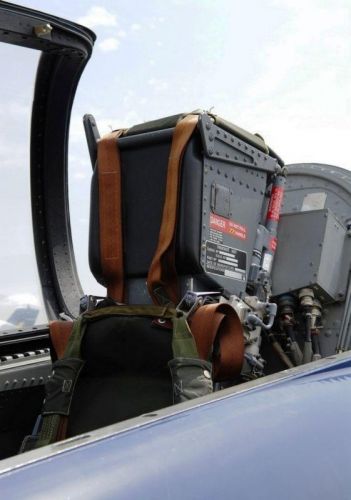

| Aermacchi MB-339 PAN Walk Around | |
|---|---|
| Photographer | Unknow |
| Localisation | Unknow |
| Photos | 43 |
Katso myös:
General Characteristics and Role

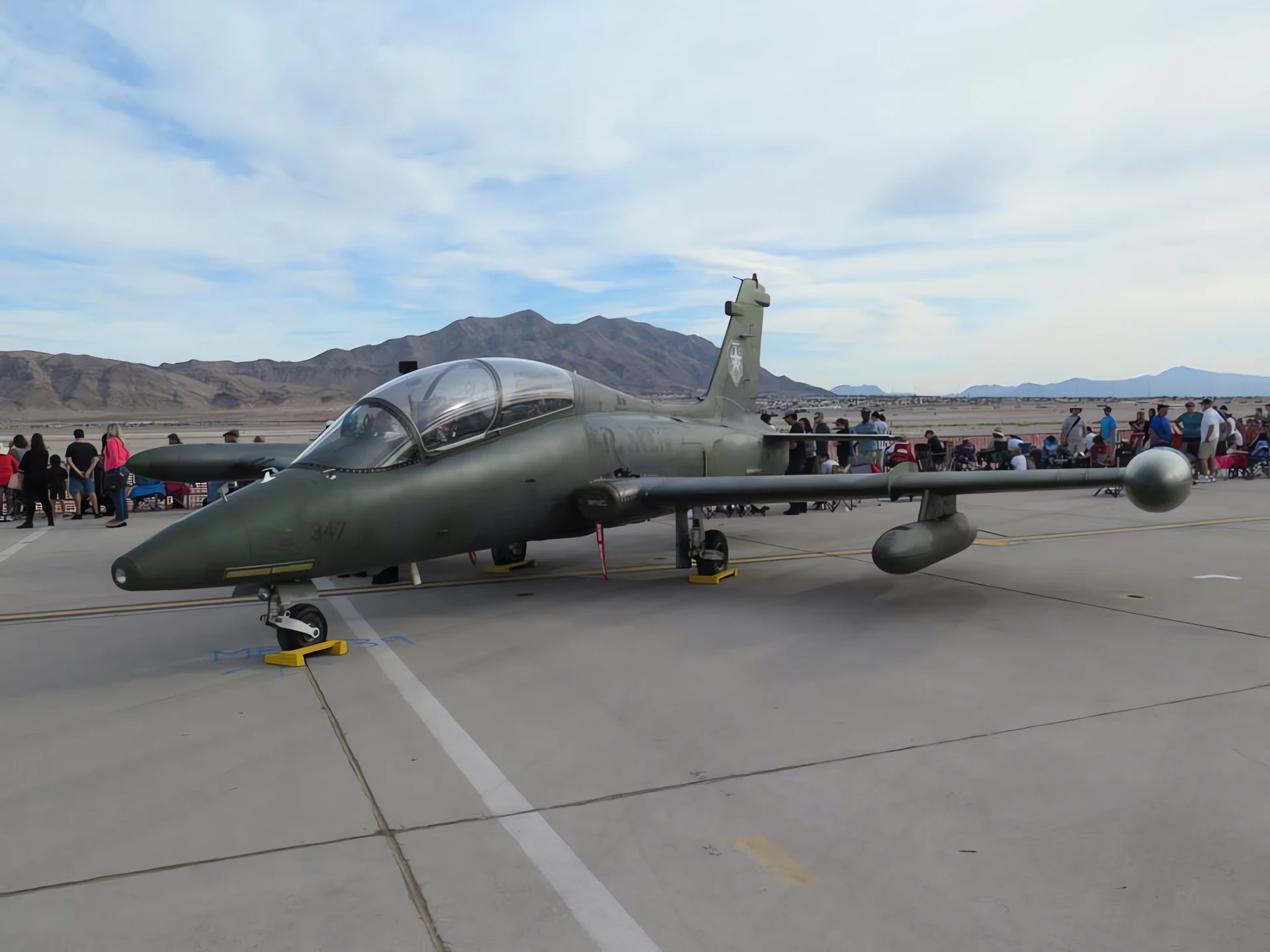

The Aermacchi MB-339 is an Italian military jet trainer and light attack aircraft. The MB-339CB variant is a specific, modernized version built for the Royal New Zealand Air Force (RNZAF). Developed as a successor to the MB-326, the 339 is designed to provide advanced jet training and is also fully capable of serving as a light close air support (CAS) and attack platform. The CB model features upgraded digital avionics, a more powerful engine (the Rolls-Royce Viper Mk 680-43), and increased ordnance capacity compared to earlier versions. Its rugged design and ease of maintenance make it suitable for secondary combat roles.
| Property | Typical Value (MB-339CB) |
|---|---|
| Rooli | Advanced Jet Trainer, Light Attack |
| National Origin | Italia |
| Valmistaja | Aermacchi (now Leonardo) |
| First Flight (MB-339) | 12 August 1976 |
| miehistö | 2 (Student and Instructor, tandem seating) |
| pituus | 10.97 m (36 ft 0 in) |
| Siipiväli | 10.86 m (35 ft 7 in) |
| korkeus | 3.60 m (11 ft 10 in) |
| Empty Weight | 3,100 kg (6,834 lb) |
| Max Takeoff Weight | 5,897 kg (13,000 lb) |
Powerplant and Performance
- Engine: 1 x Rolls-Royce Viper Mk 680-43 turbojet.
- Thrust: 18.0 kN (4,000 lbf).
- Maximum Speed: 898 km/h (558 mph; 485 kn) at sea level.
- Service Ceiling: 12,500 m (41,000 ft).
- Range: 1,736 km (1,079 mi; 937 nmi) (Ferry range with external tanks).
- Endurance: 2 hours 45 minutes (typical training mission).
Armament and Capability
- Hardpoints: 6 underwing hardpoints.
- Maximum Payload: 1,815 kg (4,000 lb).
- Armament Options: Capable of carrying air-to-air missiles, unguided rockets, bombs, and gun pods (typically 30 mm DEFA or 12.7 mm machine gun pods).
- Avionics: The CB variant features a Head-Up Display (HUD) and an integrated weapon aiming system, making it an excellent platform for lead-in fighter training (LIFT).

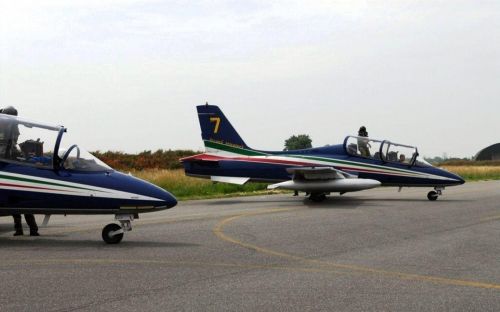

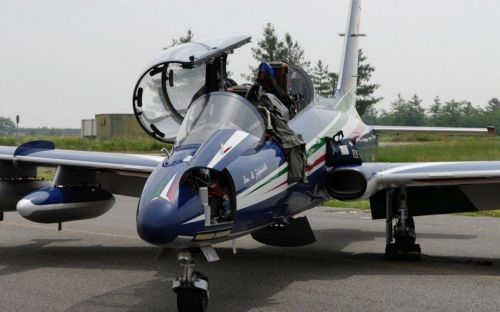

- Variants: The MB-339 remains in service with several countries and is notable as the mount of the Italian Air Force’s Frecce Tricolori aerobatic team.
