Morris C8

Morris C8
Državi	Uk
Vlogo	Topnični traktor
Proizvajalci	Morris in drugi
Zgrajena	10000+

V Morris Commercial C8 FAT (Field Artillery Tractor), commonly known as a Quad, is an artillery tractor used by the British and Commonwealth (including Canadian Army) forces during the Second World War. It was used to tow field artillery pieces, such as the 25-pounder gun-howitzer, and anti-tank guns, such as the 17-pounder. Although its sloped sides suggest otherwise, the Quad was not armoured.

Vir: Morris Commercial C8 FAT na Wikipediji

Morris-Commercial C8 Mk.III No.3 Mk.5 Walk Around
Fotograf	Yuri Pasholok
Lokalizacijo	Neznano
Fotografije	357

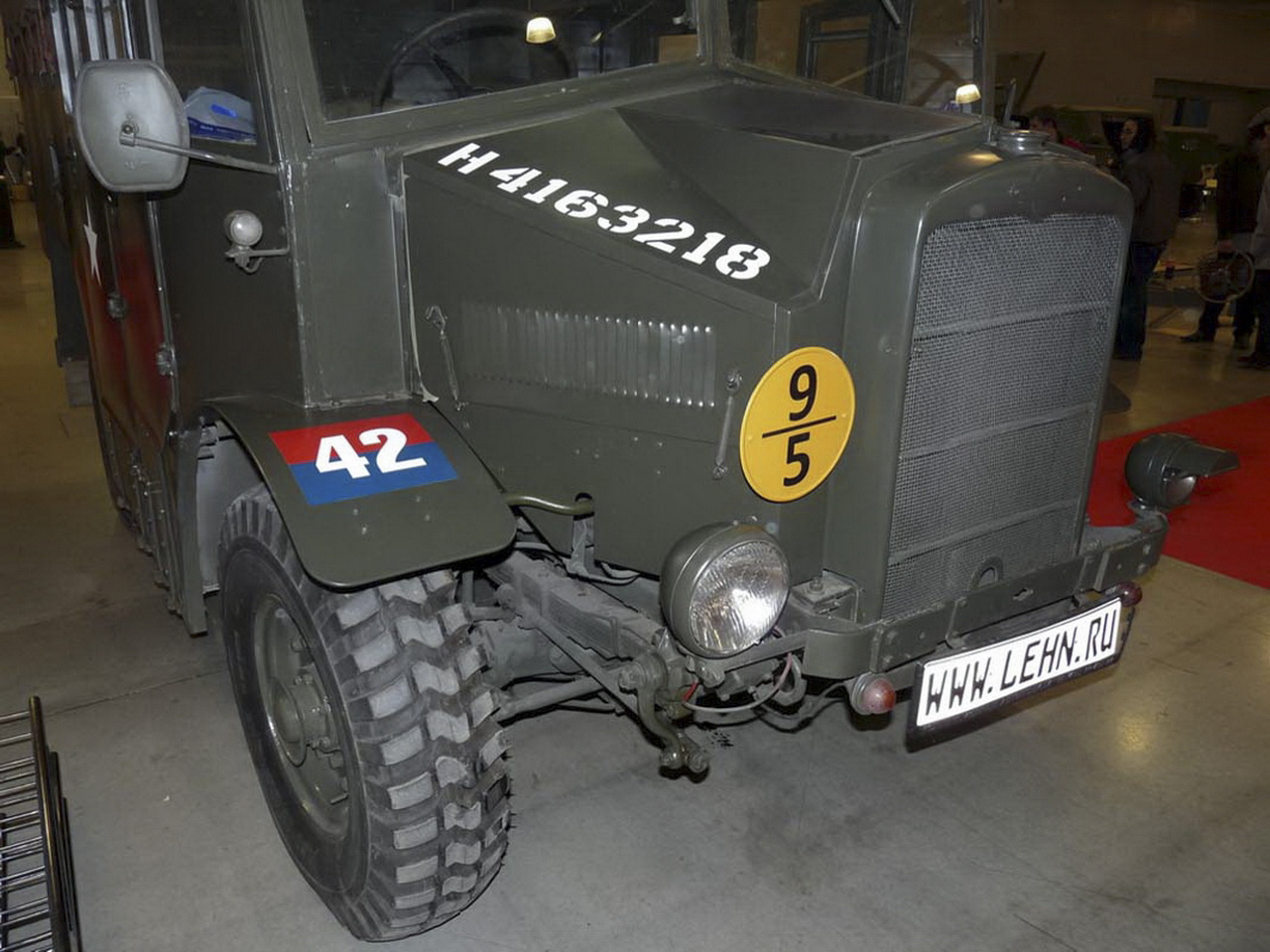

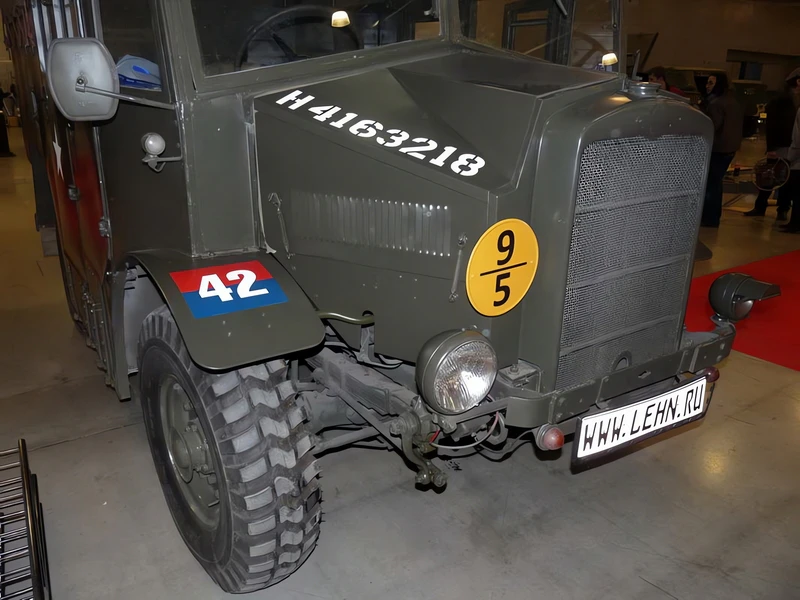

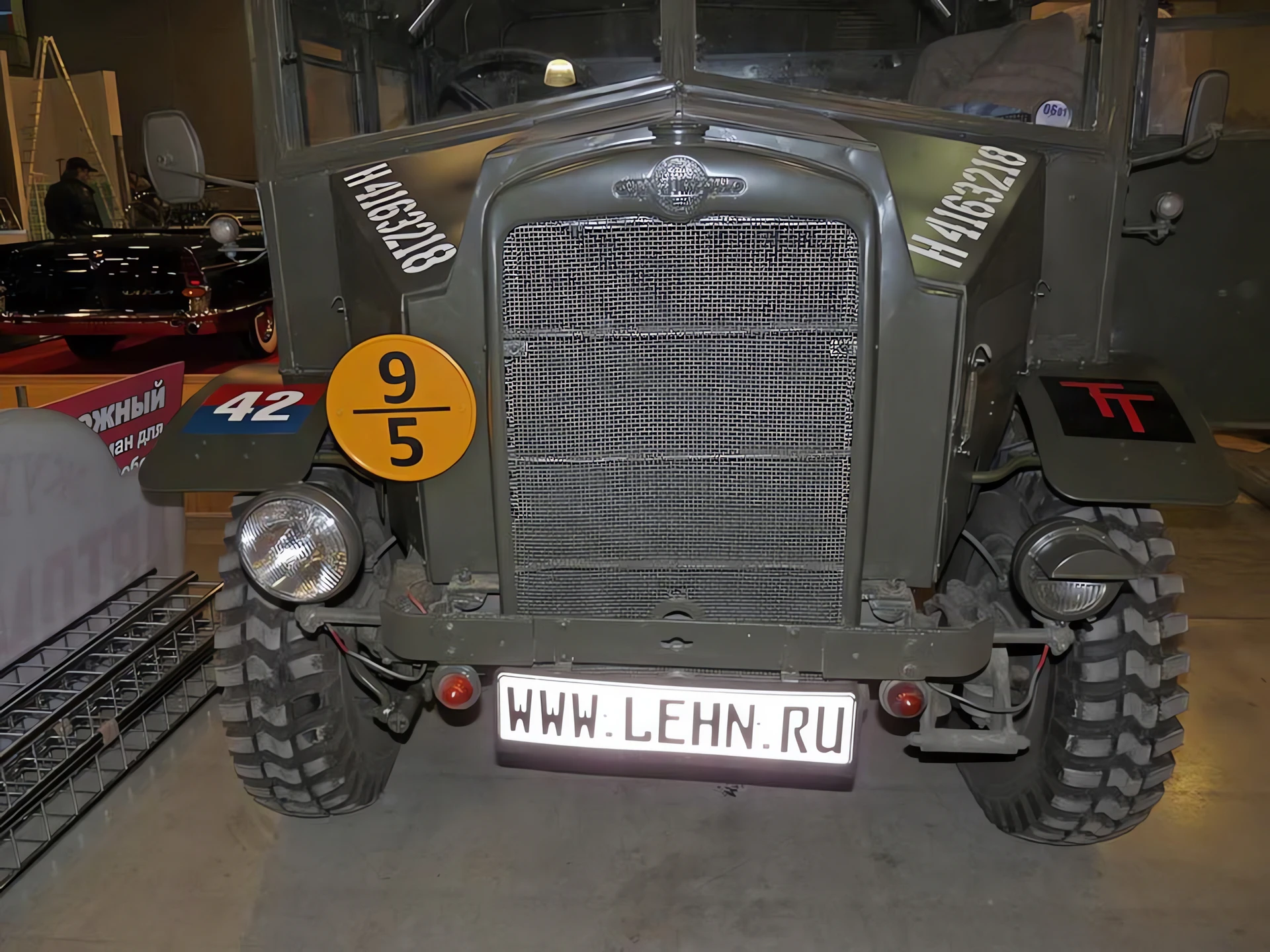

Morris-Commercial C8 1

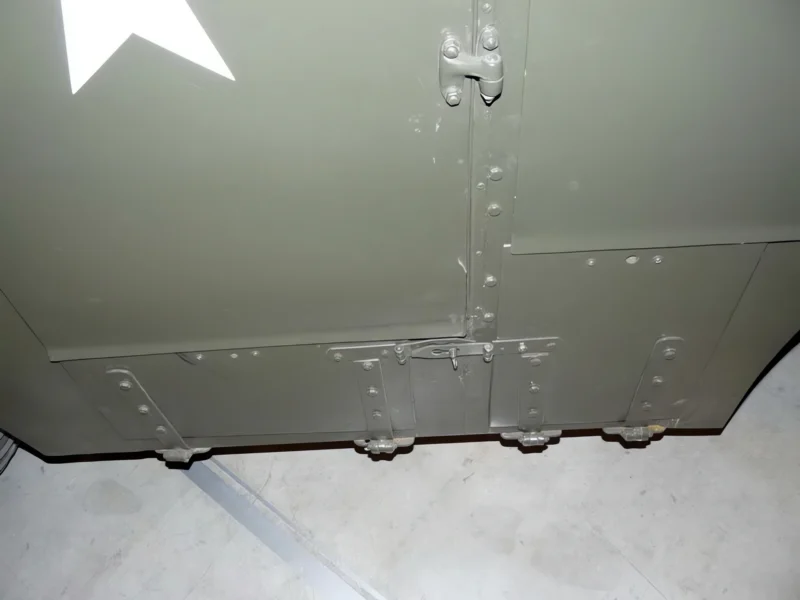

Morris-Commercial C8 92

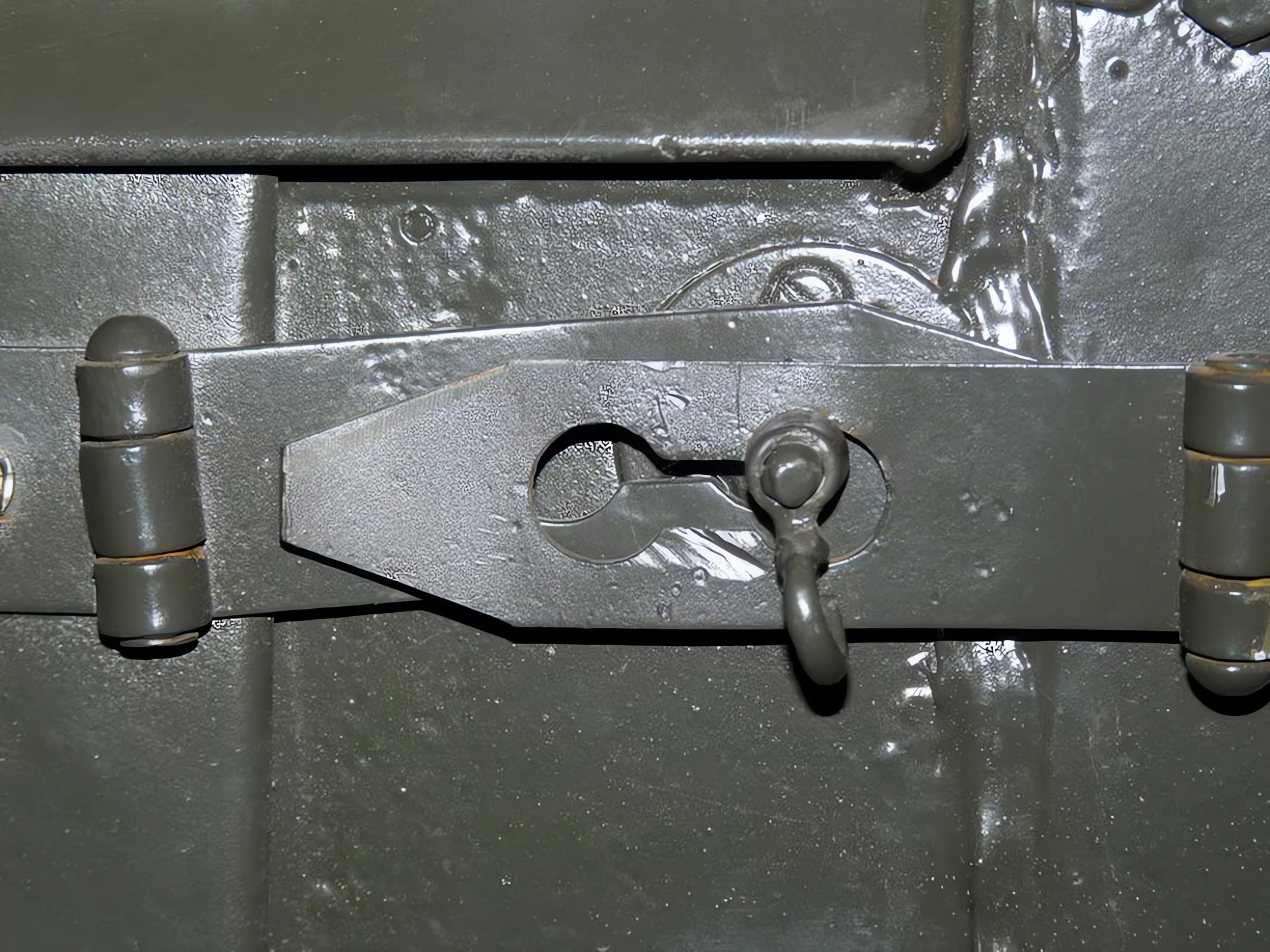

Morris-Commercial C8 91

Morris-Commercial C8 90

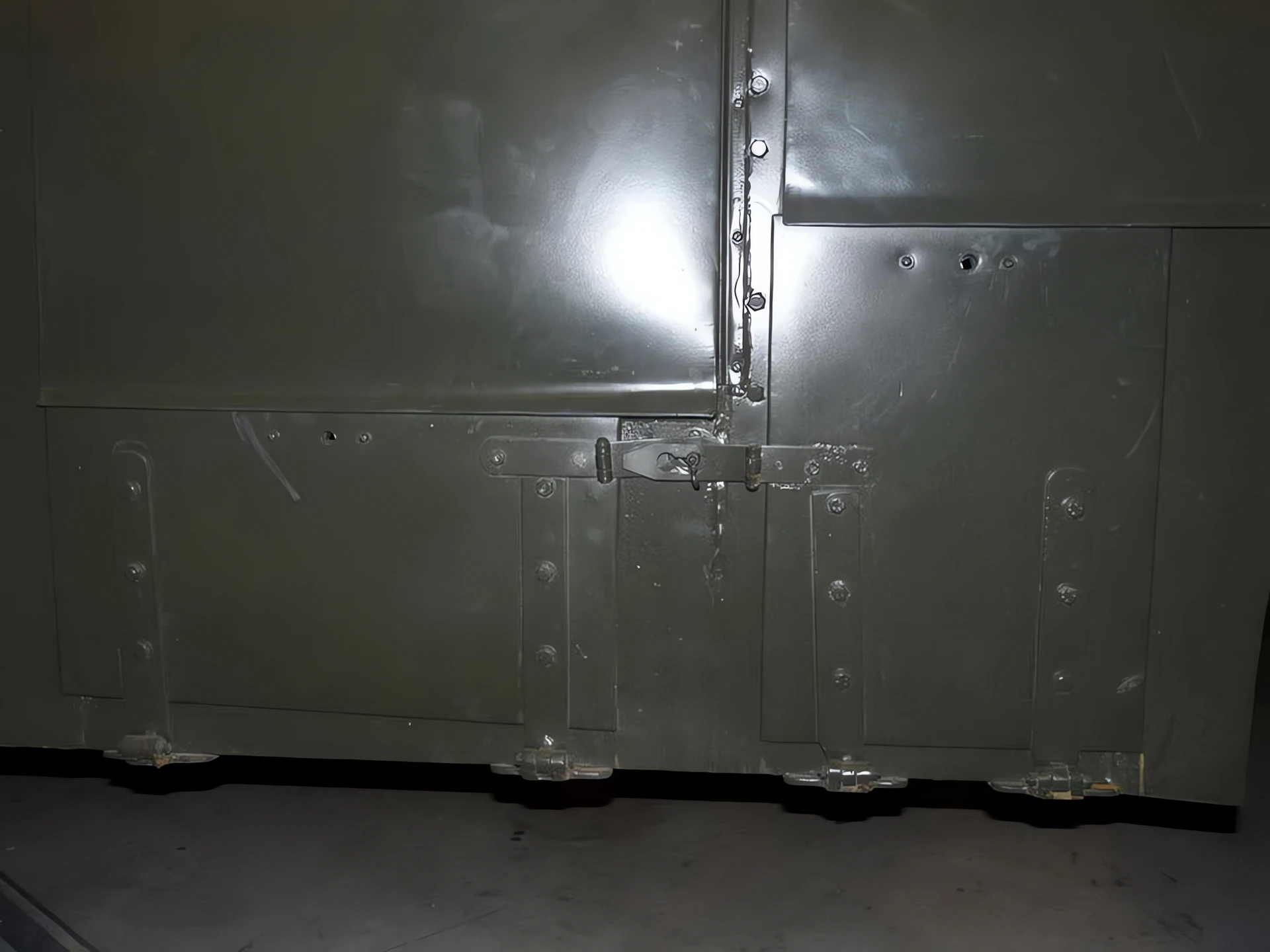

Morris-Commercial C8 89

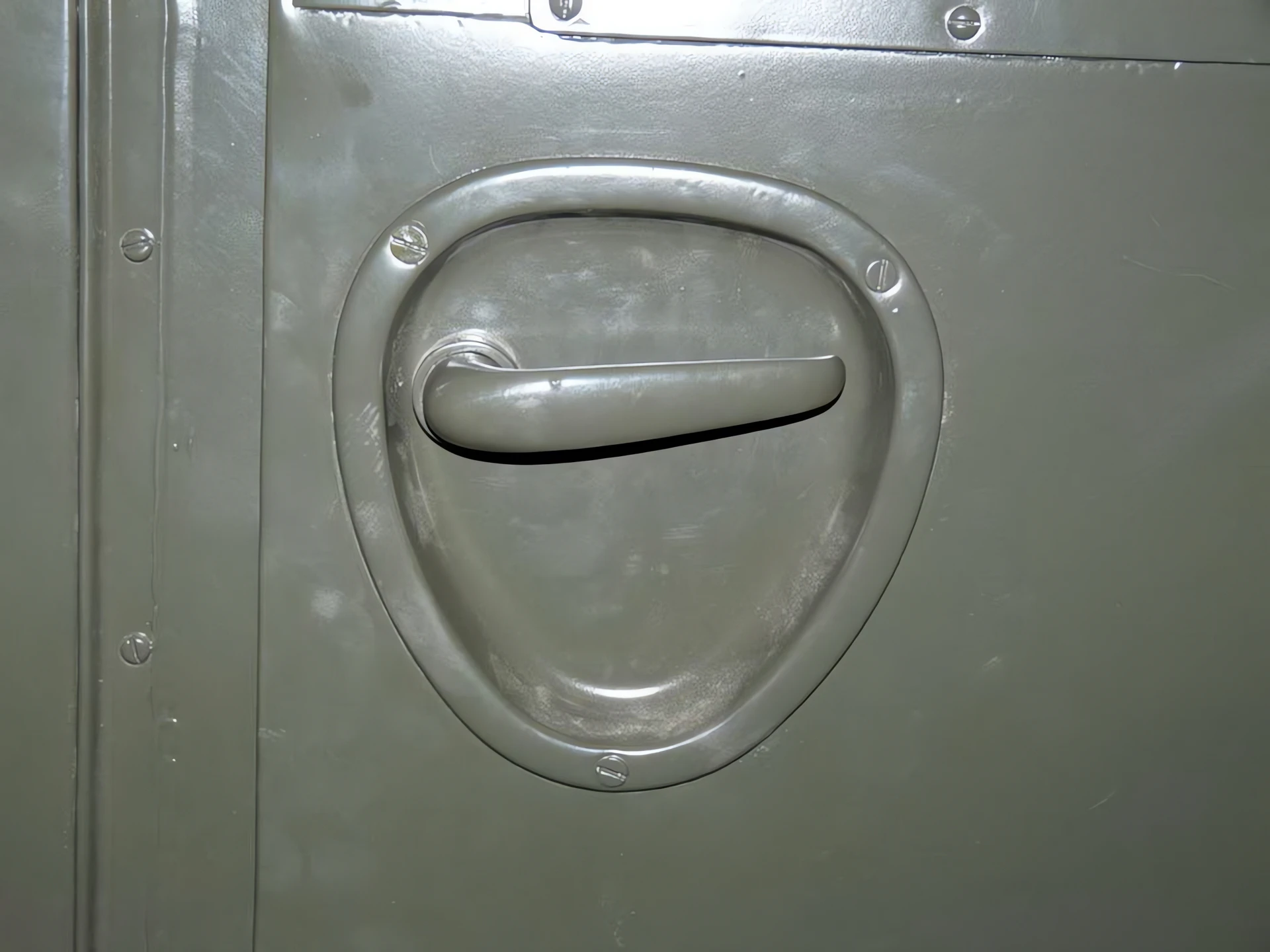

Morris-Commercial C8 88

Morris-Commercial C8 87

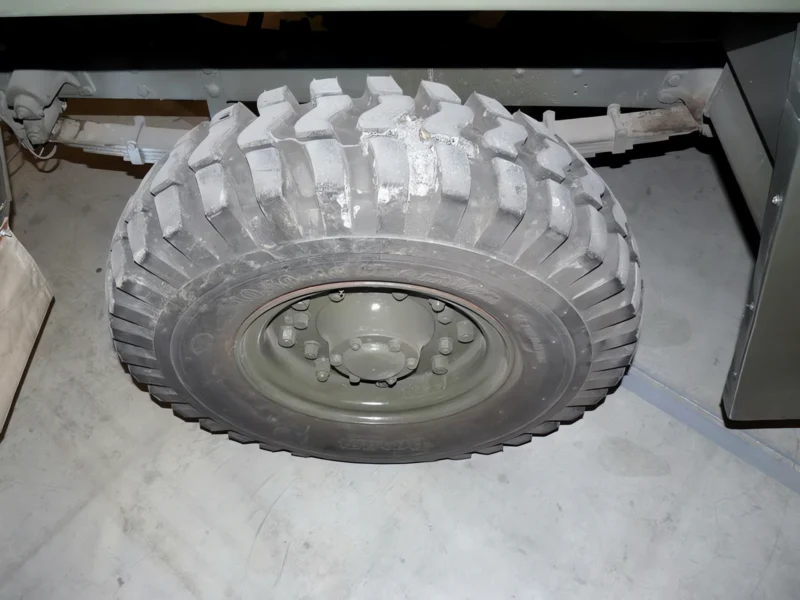

Morris-Commercial C8 86

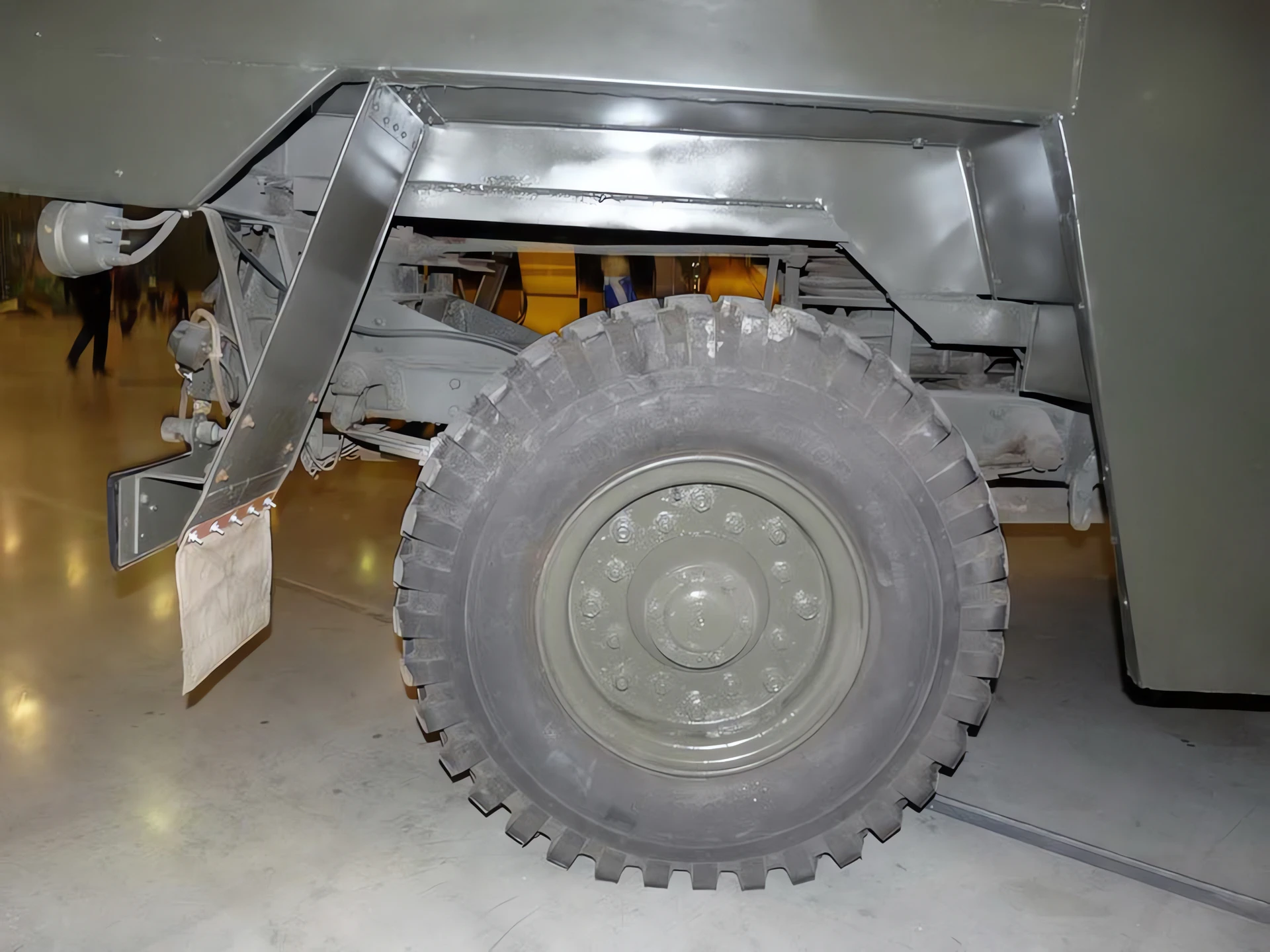

Morris-Commercial C8 85

Click on a photo and use the mouse scroll to view all photos

Počakajte, iščem Morris C8 za vas ...

Glej tudi:

General Characteristics

The Morris Commercial C8 FAT (Field Artillery Tractor), universally known as the “Quad” due to its four-wheeled, four-wheel drive configuration, was the primary British and Commonwealth artillery tractor of World War II. It was specifically designed to tow medium artillery pieces like the highly successful Ordnance QF 25-pounder gun-howitzer and later, the Ordnance QF 17-pounder anti-tank gun. The vehicle featured a distinctively sloped, “beetle-back” body, which, contrary to popular belief, was not armored, but was designed to facilitate chemical weapon decontamination and allow a gun traversing platform to be carried on the roof. Over 10,000 units were built between 1939 and 1945.

Property	Typical Value (C8 FAT Mk III)
Vlogo	Artillery Tractor (Towing and Transport)
National Origin	United Kingdom (UK)
proizvajalec	Morris Commercial Cars Ltd.
Service Entry	October 1939
No. Built	Over 10,000 (across all Marks)
Posadke	1 (Driver) + 5 (Gun Detachment Crew)
Combat Weight	5,645 kg (12,445 lb)
Dolžina	4.49 m (14 ft 9 in)
Širina	2.28 m (7 ft 6 in)
Višina	2.36 m (7 ft 9 in)

Powerplant and Mobility

Engine: Morris Commercial EH 4-cylinder, liquid-cooled, side-valve petrol engine.
Displacement: 3.519 L (214 cu in).
Power Output: 52 kW (70 hp) at 3,000 rpm.
Transmission: 5-speed gearbox with a single-speed transfer case.
Drivetrain: 4×4 (four-wheel drive), with the Mk III allowing the front axle drive to be disconnected.
Maximum Speed (Road): Approx. 50-60 km/h (31-37 mph).
Operational Range: Approx. 256 km (160 miles).
Features: Equipped with a 4-ton winch for self-recovery or assisting the towed gun.

Logistics and Service

Primary Role: Towed the 25-pounder gun and its No. 27 limber (carriage) which carried extra ammunition.
Ammunition Capacity: Capable of carrying 24 complete boxed rounds of 25-pounder ammunition and space for other anti-tank shells and equipment.
Variants: The C8 underwent several changes (Mk I, Mk II, Mk III) relating to the axle design, tire size, and bodywork, including the later square-shaped “No. 5 body” (Mk III).
Extended Service: The Quad saw service in every major theatre of WWII, including North Africa and Normandy, and remained in British service through the Korean War until it was finally replaced in 1959.
