Cessna 310

Cessna 310
Страны	США
Роль	Двухмоторный кабинный моноплан
Первый полет	3 Январь 1953 г.
Построен	5000 евро

Teh Цессна 310 — американский четырёх-шестиместный низкопланный двухмоторный моноплан, выпускавшийся компанией Cessna в период с 1954 по 1980 год. Это был первый двухмоторный самолет, который Cessna запустила в производство после Второй мировой войны.

Источник: Cessna 310 в Википедии

Cessna U-3A Blue Canoe Walk Around
Photographer	Vladimir Yakubov
Localisation	Castle Air Museum
Photos	102

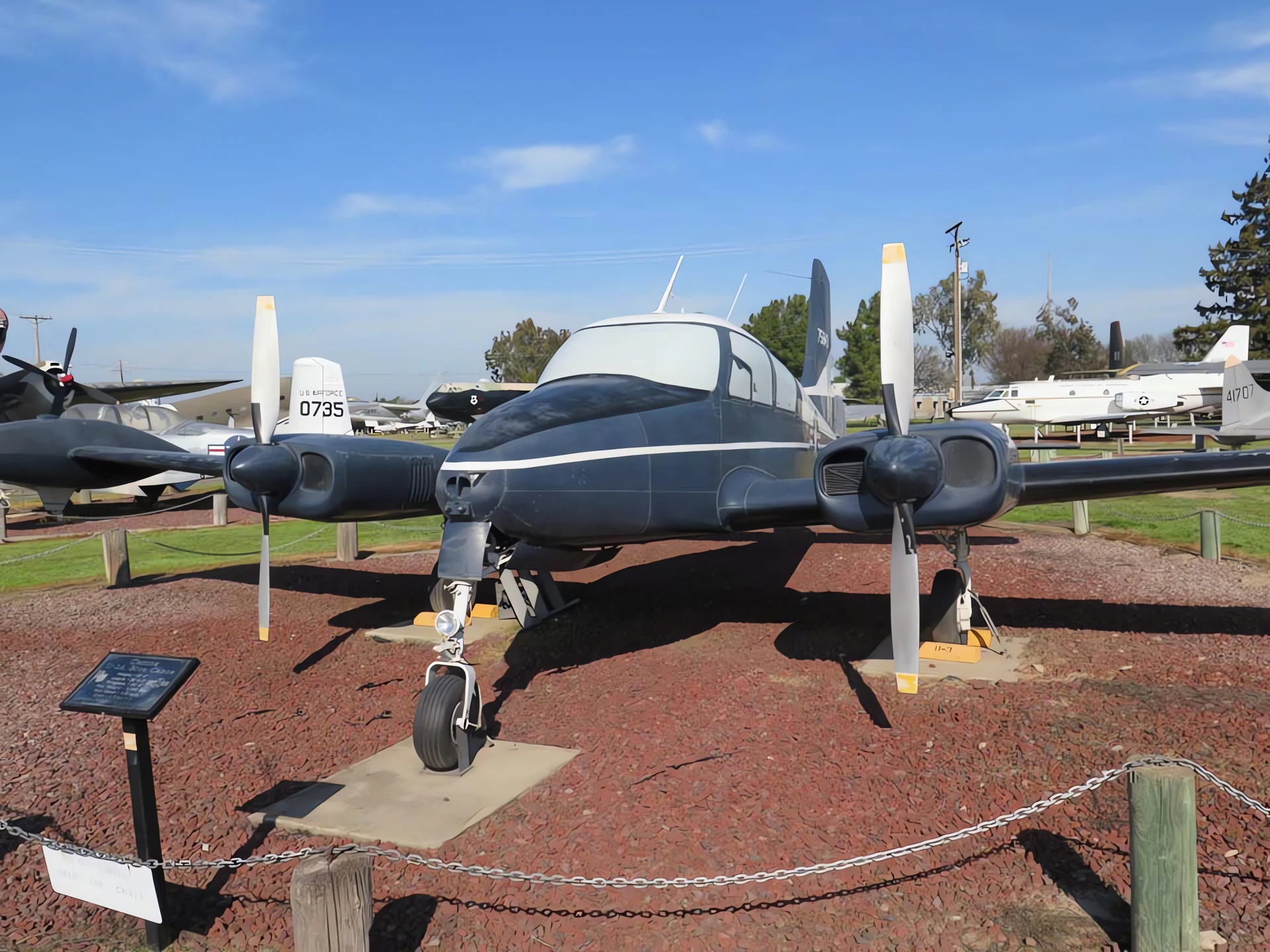

Cessna U-3A Blue Canoe 1

Cessna U-3A Blue Canoe 2

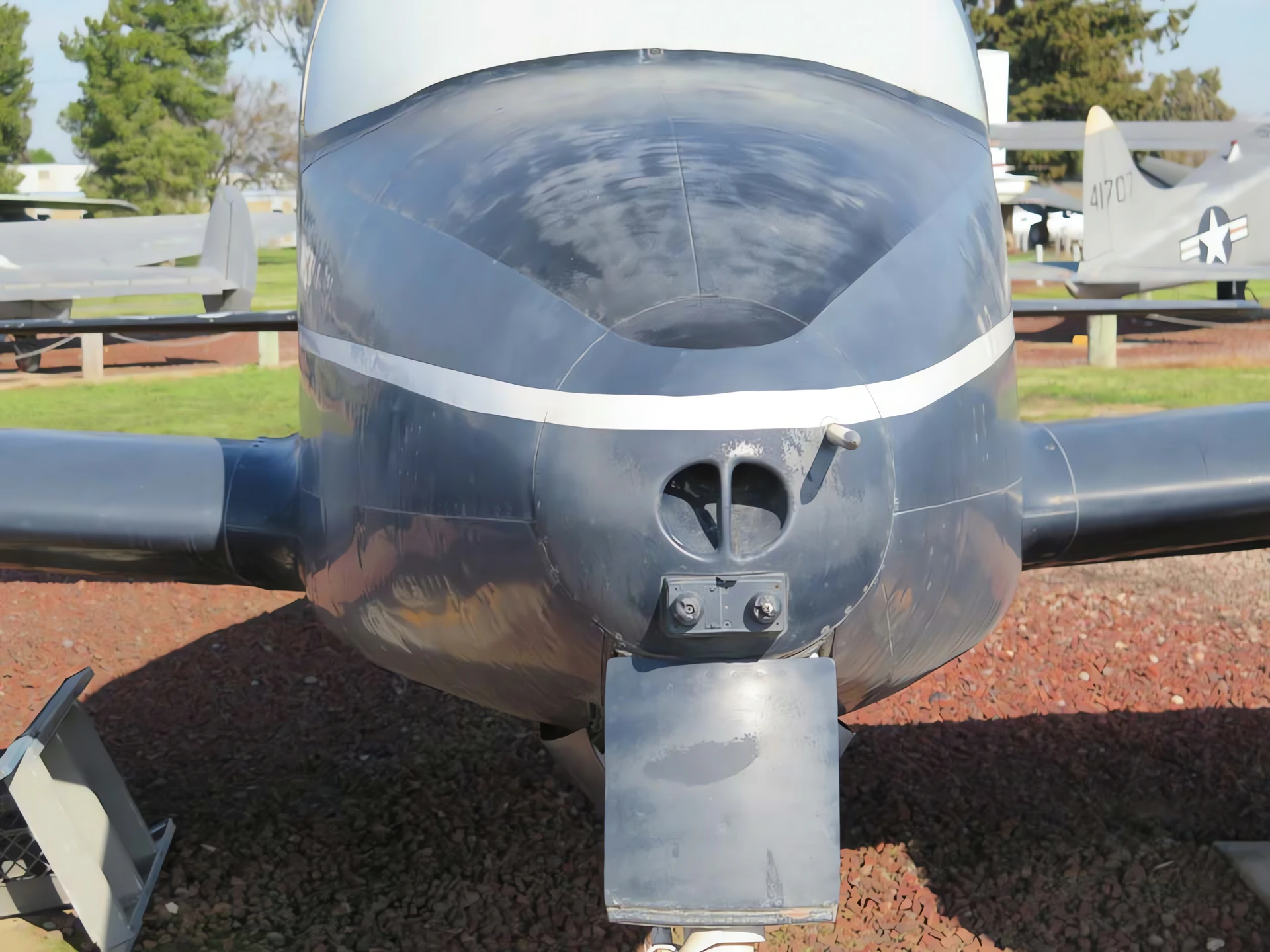

Cessna U-3A Blue Canoe 3

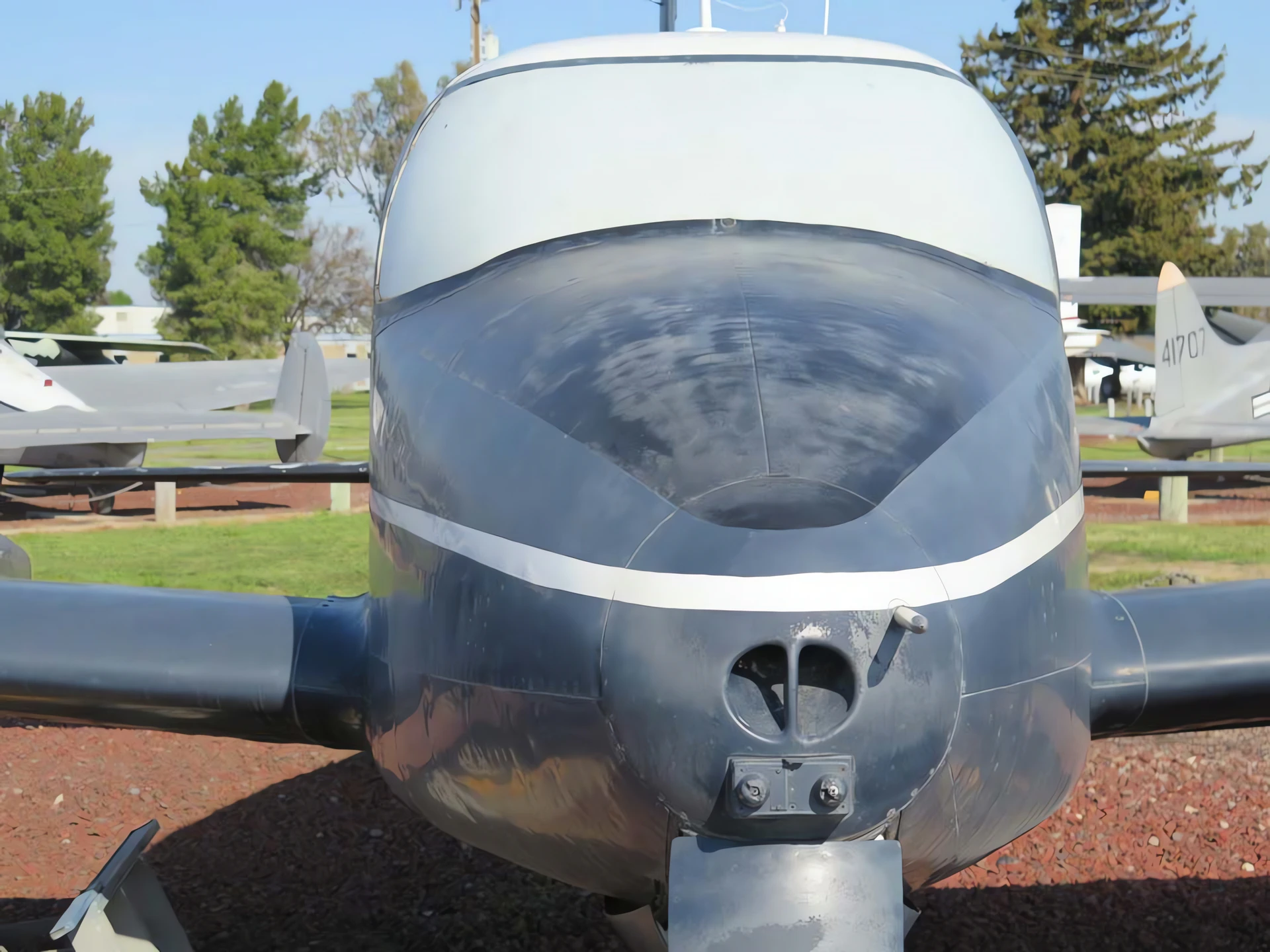

Cessna U-3A Blue Canoe 4

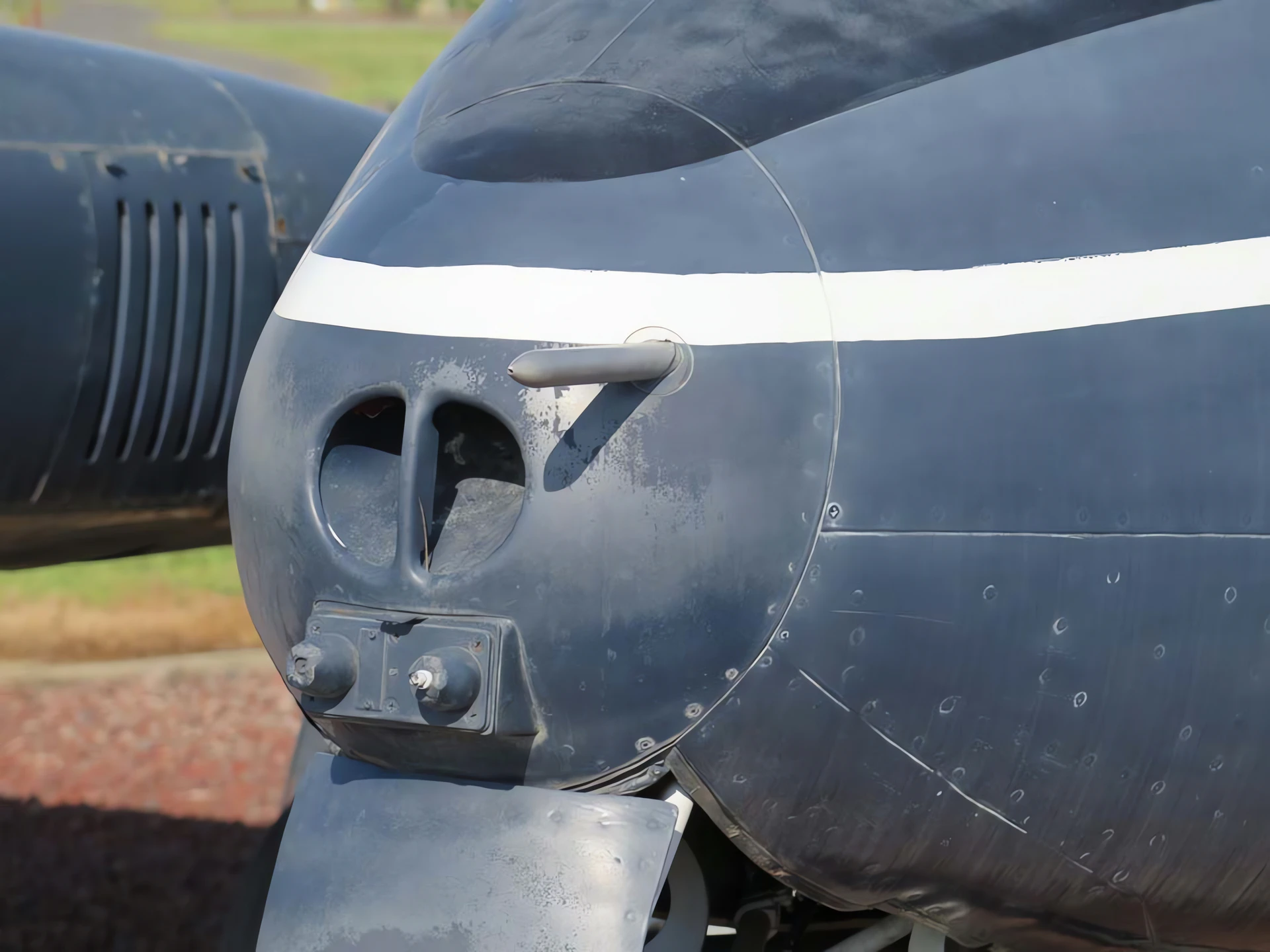

Cessna U-3A Blue Canoe 5

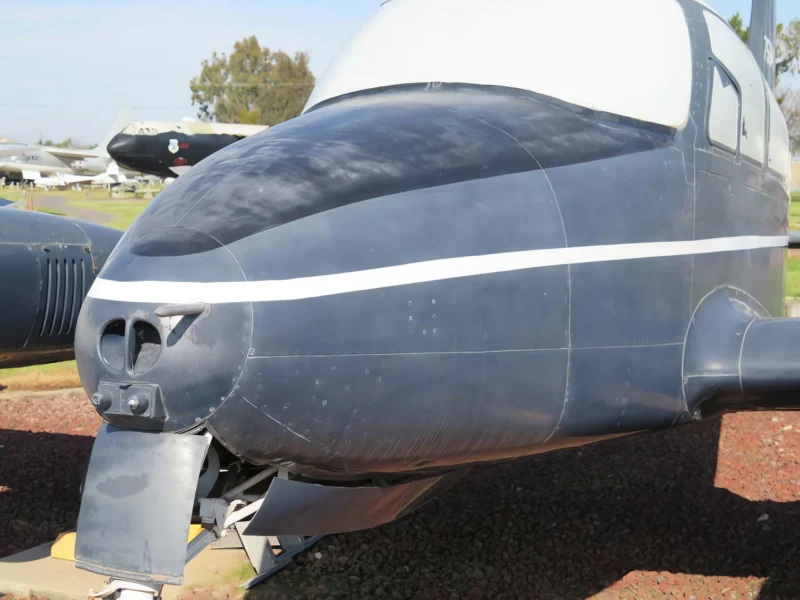

Cessna U-3A Blue Canoe 6

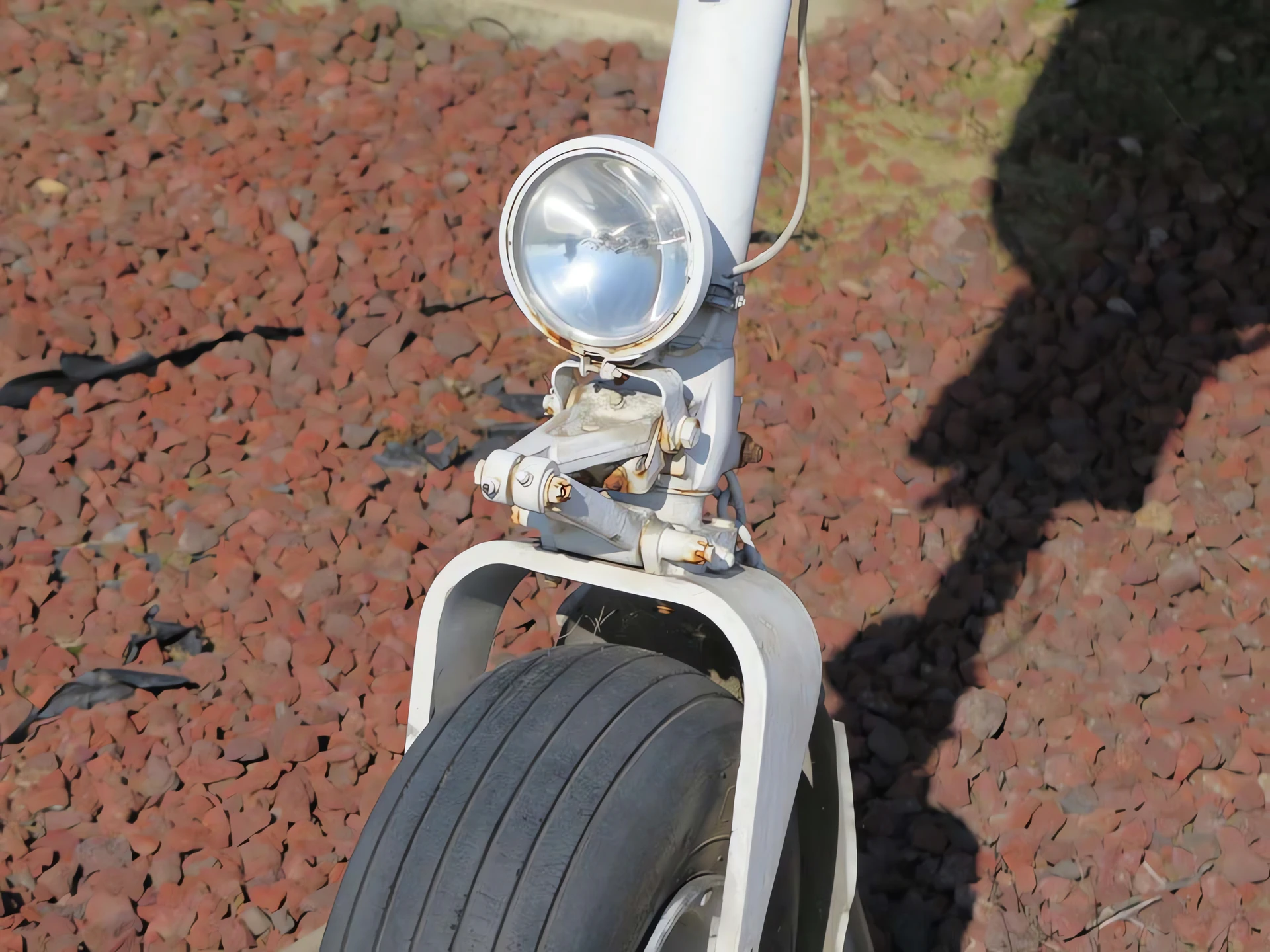

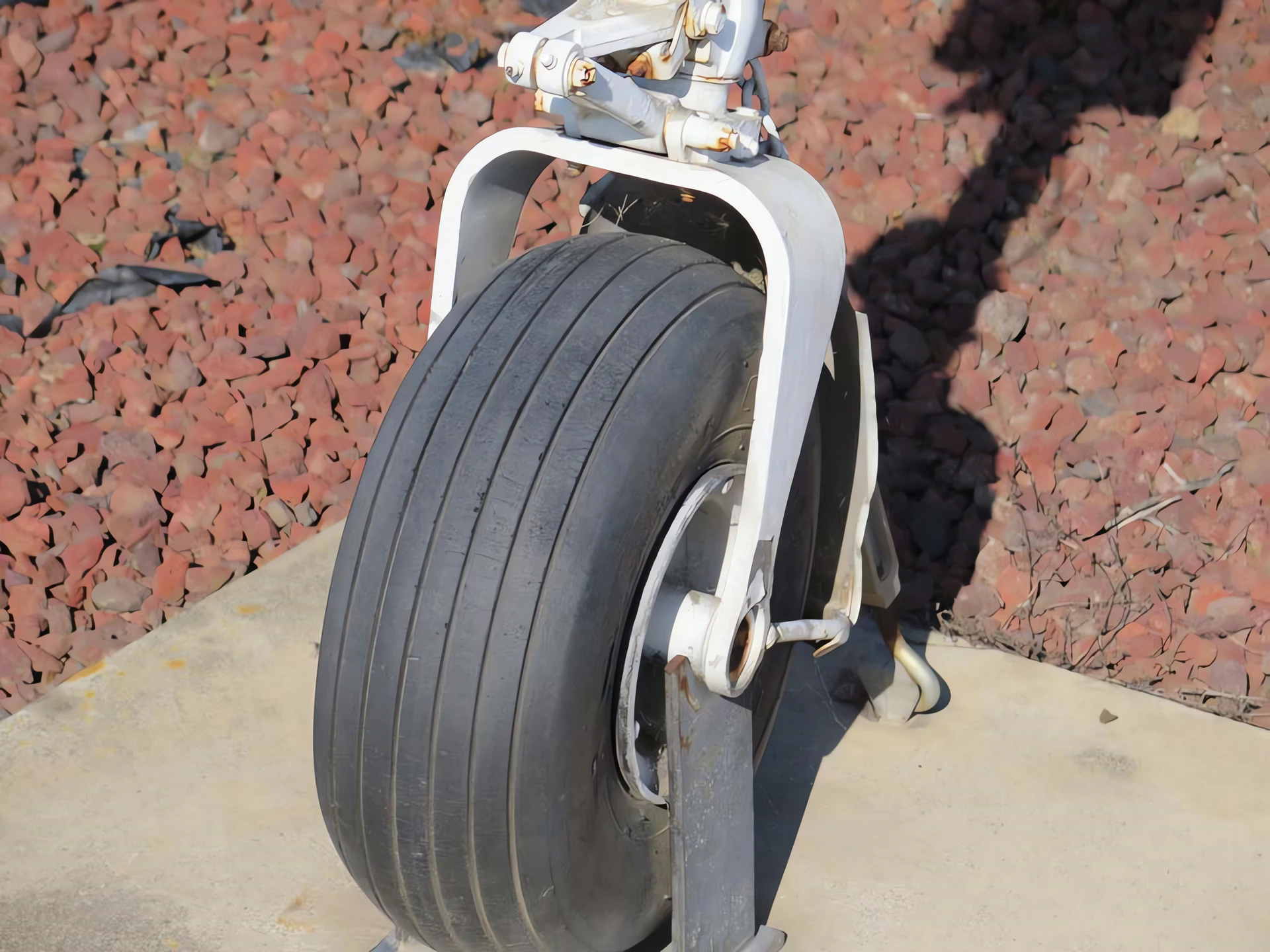

Cessna U-3A Blue Canoe 7

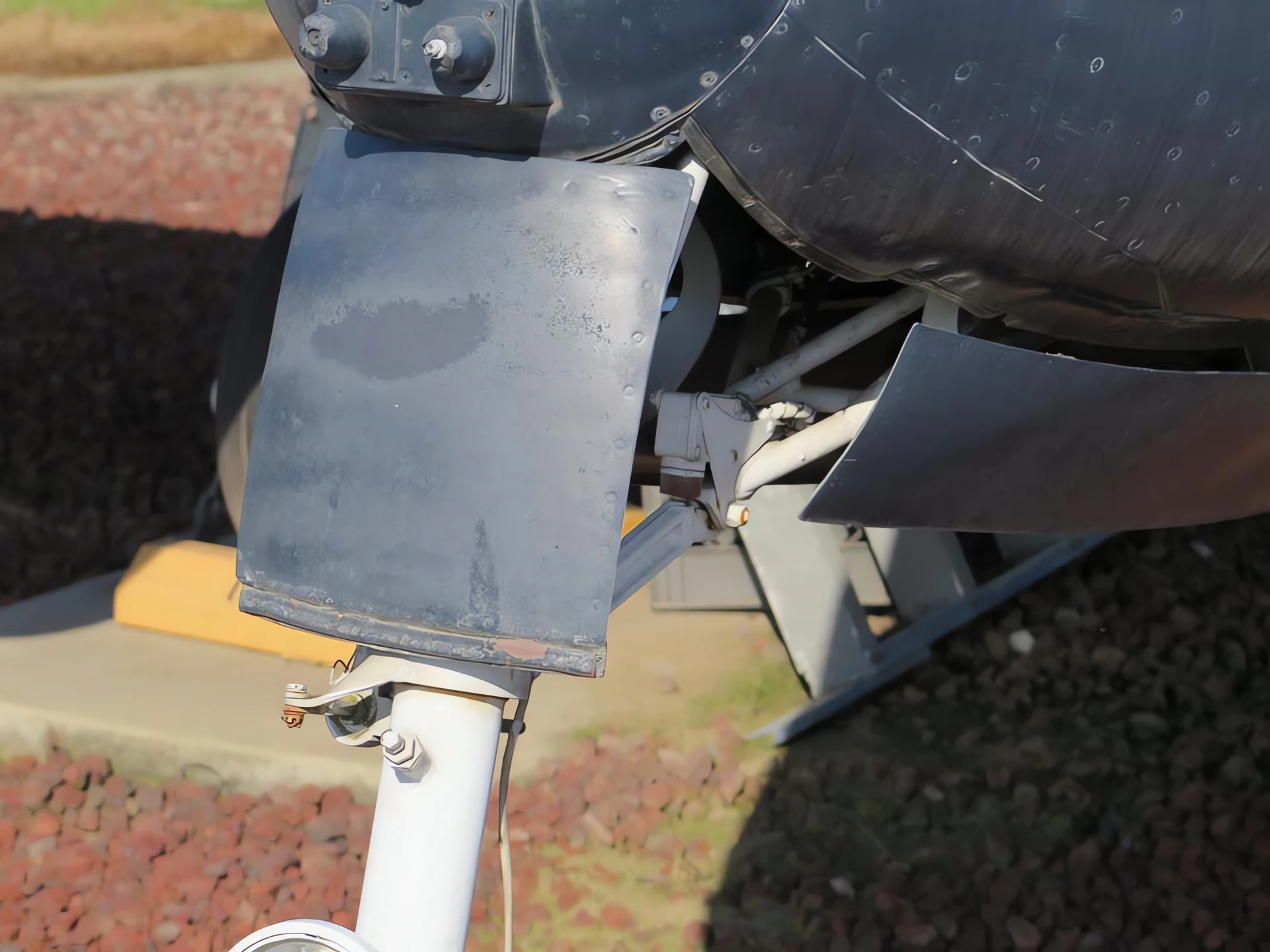

Cessna U-3A Blue Canoe 8

Cessna U-3A Blue Canoe 9

Click on a photo and use the mouse scroll to view all photos

Подождите, поиск Panhard M3 для вас ...

General Characteristics and Role

The Cessna U-3A Blue Canoe is the United States military designation for the commercially successful Cessna 310 light twin-engine aircraft. It was adopted by the U.S. Air Force in the late 1950s primarily for high-priority light transport, utility, and administrative duties. Its nickname, “Blue Canoe,” refers to its distinctive blue and white military paint scheme. The U-3A was one of the first light twin-engine aircraft used by the Air Force for non-combat tasks, allowing heavier aircraft to be dedicated to combat and strategic transport roles. Its main task was providing quick, reliable liaison and staff transport for base and unit commanders. It was also famously used as a chase and instructor plane for the difficult-to-land Lockheed U-2 reconnaissance aircraft.

Property	Typical Value (U-3A / Cessna 310A)
Роль	Light Command, Liaison, and Utility Transport
National Origin	США
Производителя	Cessna Aircraft Company
First Flight (Cessna 310)	3 January 1953
Экипажа	1 (Pilot)
Capacity (Passengers)	4–5 passengers
Длина	8.23 m (27 ft 0 in)
Размах крыла	10.87 m (35 ft 8 in)
Высота	3.17 m (10 ft 5 in)
Empty Weight	1,293 kg (2,850 lb)
Max Takeoff Weight	2,190 kg (4,830 lb)

Powerplant and Performance

Engine: 2 x Continental O-470-M six-cylinder, air-cooled, horizontally opposed piston engines.
Power Output (Per Engine): 179 kW (240 hp).
Maximum Speed: 383 km/h (238 mph; 207 kn).
Cruise Speed (Typical): 290 km/h (180 mph; 156 kn).
Range: 1,448 km (900 mi; 782 nmi).
Service Ceiling: 6,700 m (22,000 ft).

Design Characteristics and Variants

Tip Tanks: Features distinctive, non-removable fuel tanks at the wing tips, a hallmark of the Cessna 310 design that aids stability.
Initial Designation: Originally designated as the L-27A before the 1962 DoD redesignation.
U-3B Variant: A later military version derived from the Cessna 310E, featuring a swept vertical fin, slightly more powerful 260 hp engines, and a longer nose.
U-2 Chase Role: The U-3A’s similar cockpit height and low-speed flight characteristics made it an ideal training and safety escort aircraft for U-2 Dragon Lady pilots during landings.
