오토블라인다 40 | |
|---|---|
| 국가 | 이탈리아 |
| 역할 | 장갑차 |
| 마침표 | 차 세계 대전 |
Autoblinda 40의 사진 갤러리, 1940 년 이탈리아 육군은 장갑차의 새로운 모델을 받았습니다. 오토블라인다 모델로 40. 이 모델은 AB41 (550 대 생산 차량)과 AB43을 탄생시킨 1941 년과 1943 년에 개선되었습니다. 그들은 사막 전쟁, 동부 전선 및 발칸 반도를 경험했습니다.
소스: 위키백과에 오토블라인다 40 freeforumzone.leonardo.it 포럼에서 볼 수 있습니다.

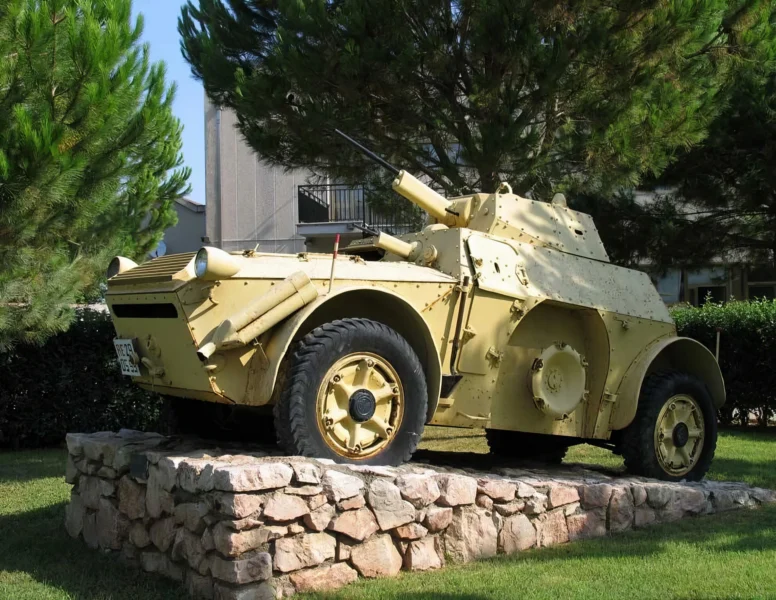

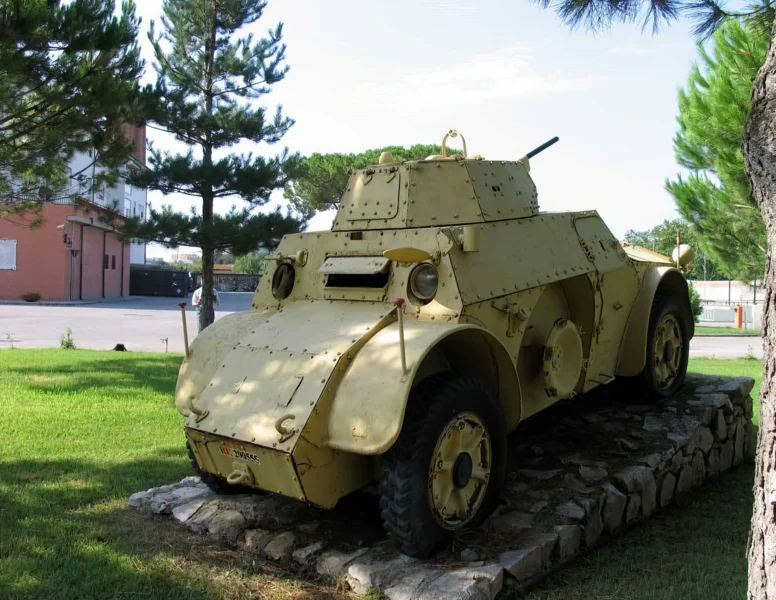

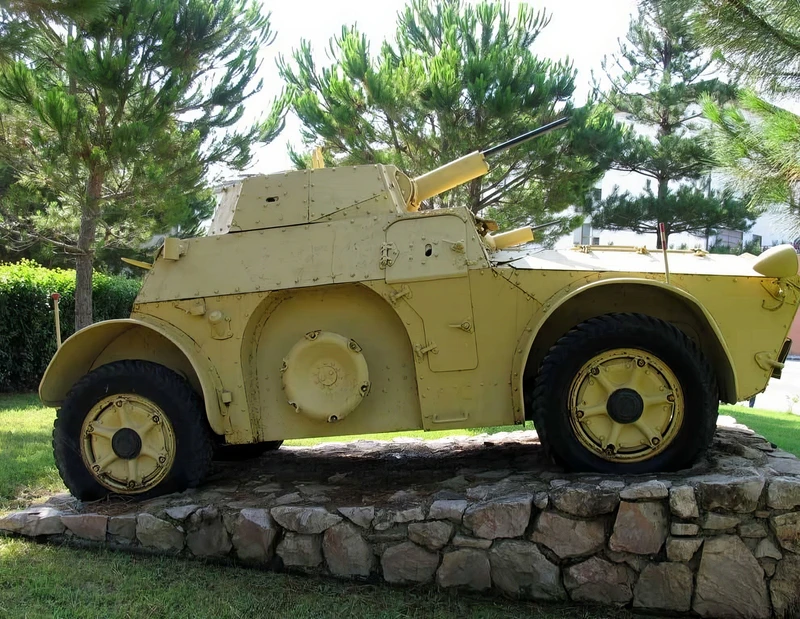

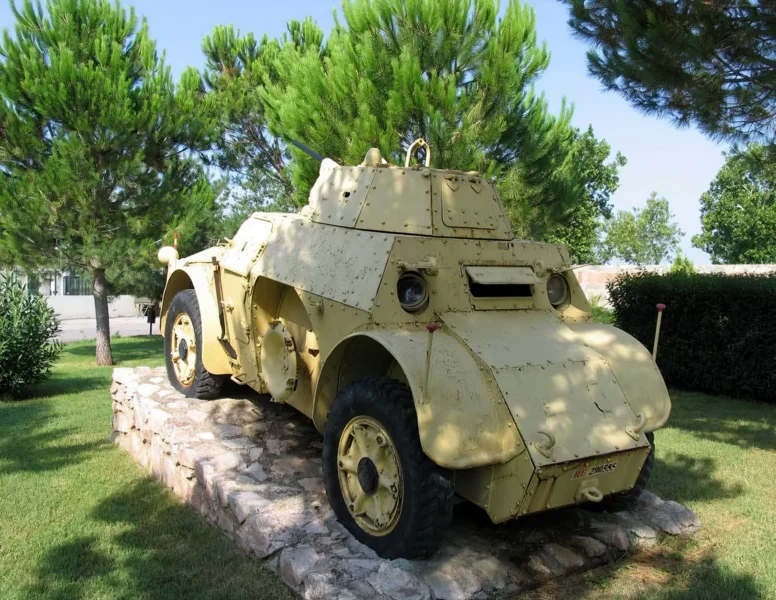

| Autoblinda AB43 | |
|---|---|
| 사진 작가 | 파브리지오 바카리 |
| 로컬라이제이션 | Unknow |
| 사진 | 37 |
| Autoblinda 40 | |
|---|---|
| 사진 작가 | Unknow |
| 로컬라이제이션 | Unknow |
| 사진 | 30 |
| Autoblinda AB41 | |
|---|---|
| 사진 작가 | 파브리지오 바카리 |
| 로컬라이제이션 | Unknow |
| 사진 | 80 |
참고 항목:
General Characteristics and Role
The Autoblinda AB43 was an improved version of the successful Italian AB41 series of armored cars, designed and produced during World War II. Developed by Fiat-Ansaldo, the AB43 was the last and most advanced variant of the series, created after the AB41 and AB42. It maintained the key features of its predecessors, including 4×4 capability and a unique reversible driving position, allowing the crew to quickly drive away from danger without having to turn the vehicle around. The AB43 was intended to feature a much more powerful main gun than the earlier models to better counter Allied armor, but production was delayed and ultimately taken over by the Germans after the Italian armistice in 1943. Most vehicles produced were used by German and Italian Social Republic (RSI) forces.
| Property | Typical Value (AB43) |
|---|---|
| 역할 | Armored Car, Reconnaissance, Light Support |
| National Origin | 이탈리아 |
| 제조업체 | Fiat-Ansaldo |
| Service Entry | 1943 (Limited production) |
| 승무원 | 4 (Two Drivers, Commander, Gunner) |
| 주무장 | 20 mm Breda 35 cannon (planned 47 mm gun) |
| 보조 무장 | 2 x 8 mm Breda 38 machine guns (coaxial and anti-aircraft) |
| 길이 | 5.37 m (17 ft 7 in) |
| 너비 | 1.92 m (6 ft 4 in) |
| Height (Overall) | 2.48 m (8 ft 2 in) |
| Combat Weight | 7.8 tonnes (8.6 short tons) |
Powerplant and Performance
- Engine: 1 x Fiat SPA AB 6-cylinder diesel engine (Likely the improved type used in AB42).
- Power Output: 88 kW (118 hp).
- Maximum Speed (Road): 78 km/h (48 mph).
- Range (Road): 400 km (250 mi).

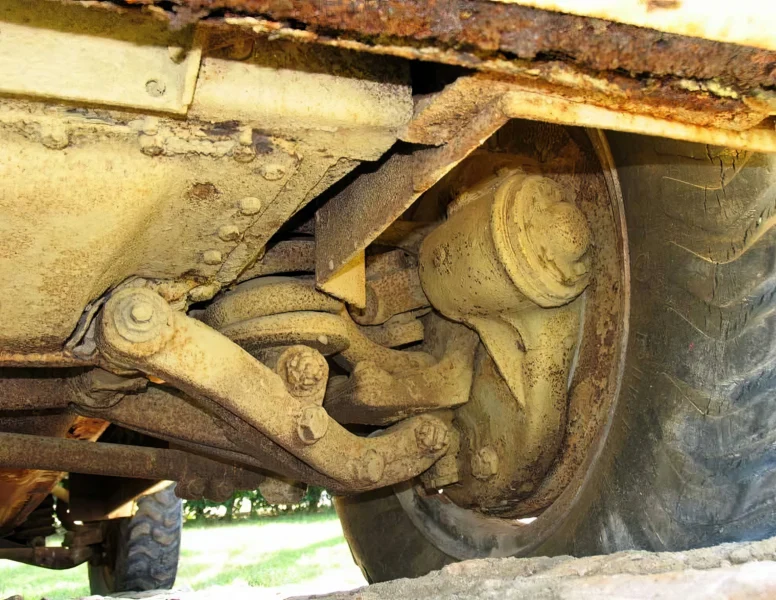

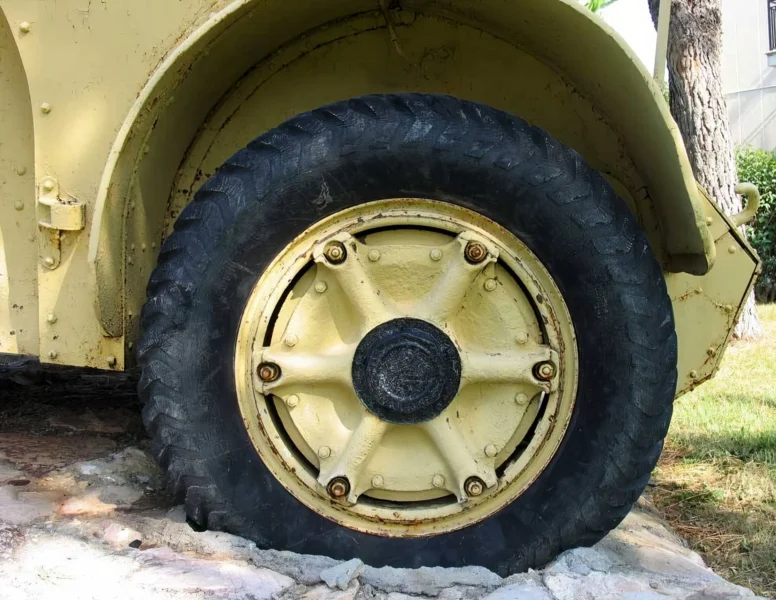

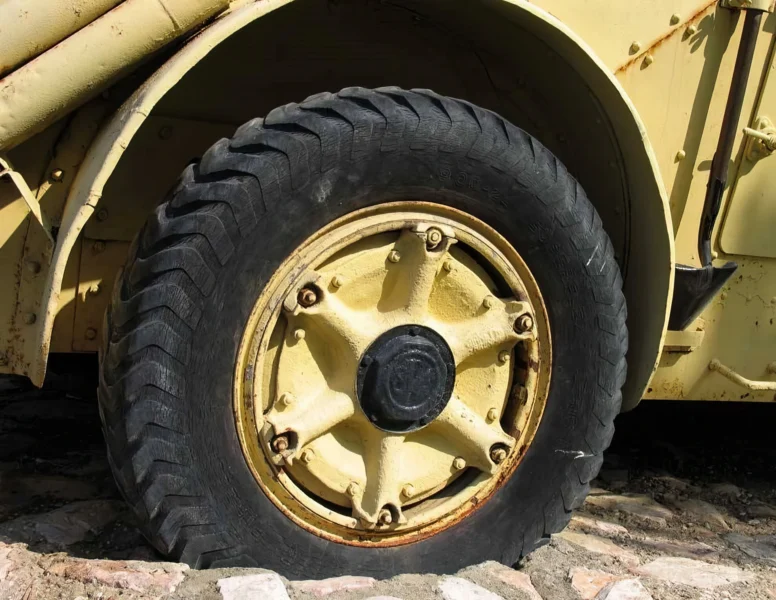

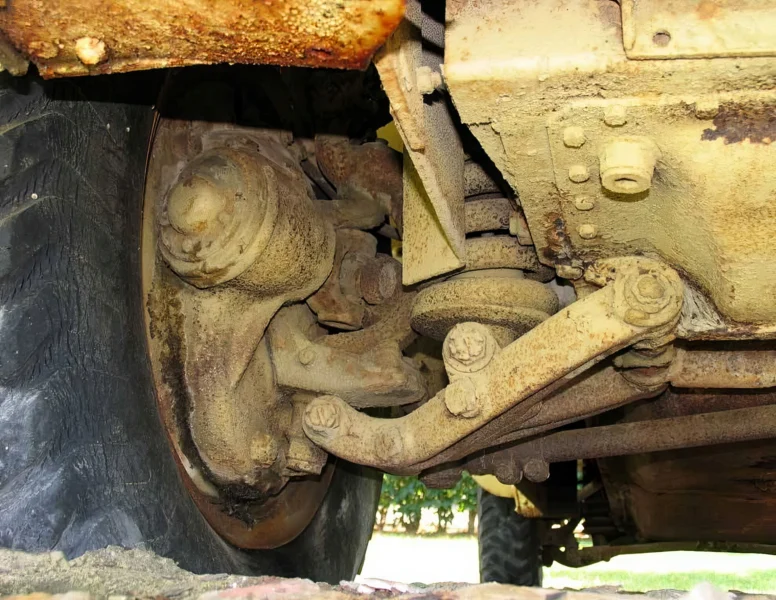

- Drivetrain: 4×4, with four steerable wheels, providing exceptional maneuverability.

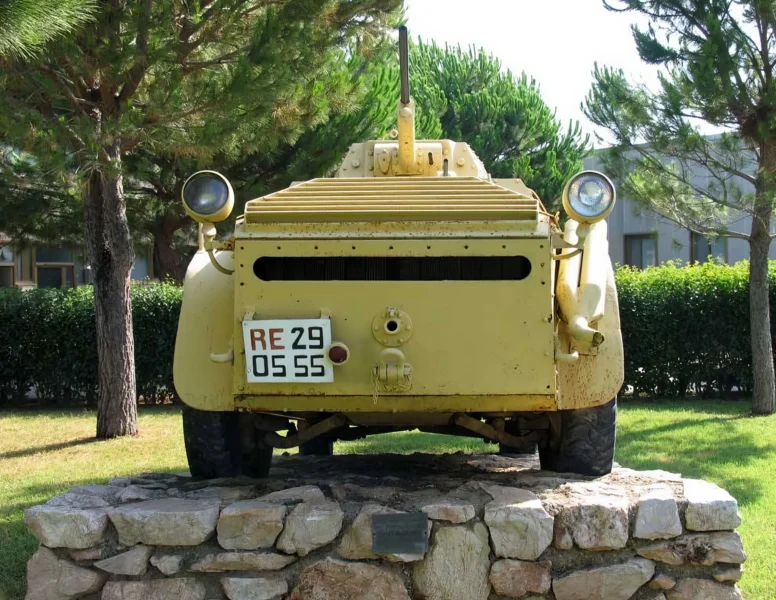

- Reversible Drive: The presence of a second driver’s position and steering wheel at the rear made quick retreats possible.
Design Improvements and Fate
- Planned Armament: The primary intended upgrade for the AB43 was the installation of the 47 mm 47/32 anti-tank gun in a redesigned turret, replacing the 20 mm cannon.
- Armour: Welded steel plate, increased slightly over earlier models, offering protection up to 18 mm.
- Operational Use: Very few AB43s were completed before the Italian Armistice. Post-1943, those manufactured were pressed into service by the German Wehrmacht (as Panzerspähwagen AB43 203(i)) and the Italian RSI.
- Legacy: The design concept, particularly the 4×4 capability and reversible drive, was highly successful, making the AB series one of the better armored cars of the early war period.
