FCM36 - Photos et vidéos

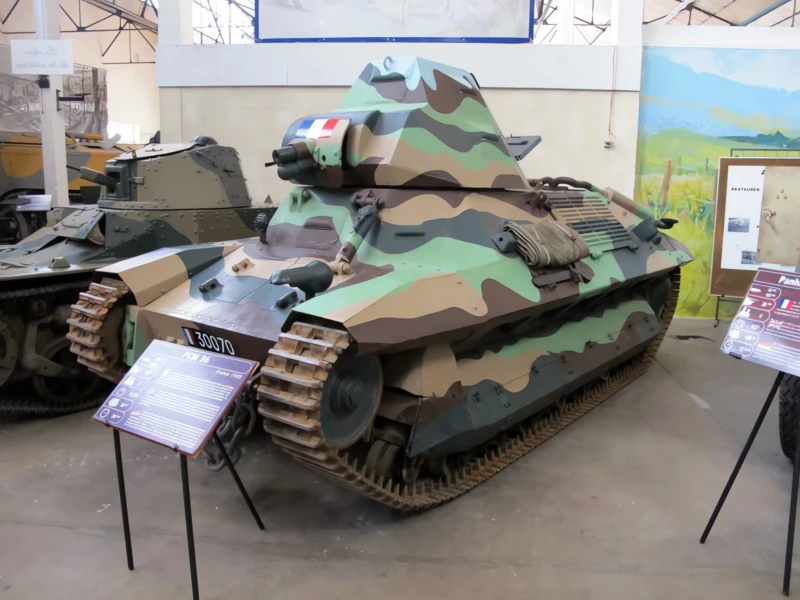

FCM36 (FCM36)
Pays	France
Rôle	Réservoir léger d’infanterie
Construit	100

Galerie de photos d’un FCM36 (FCM36) at Musee des Blindes, Saumur, The FCM 36 or Char léger Modèle 1936 FCM, was a light infantry tank that was designed for the French Army prior to World War II. It had a crew of two and was equipped with a short 37 mm main armament and a 7.5 mm coaxial machine gun. Power was provided by a diesel engine.

Source: FCM36 sur Wiki

FCM36
Photographe	Vladimir Yakubov
Localisation	Musee des Blindes, Saumur
Photos	91

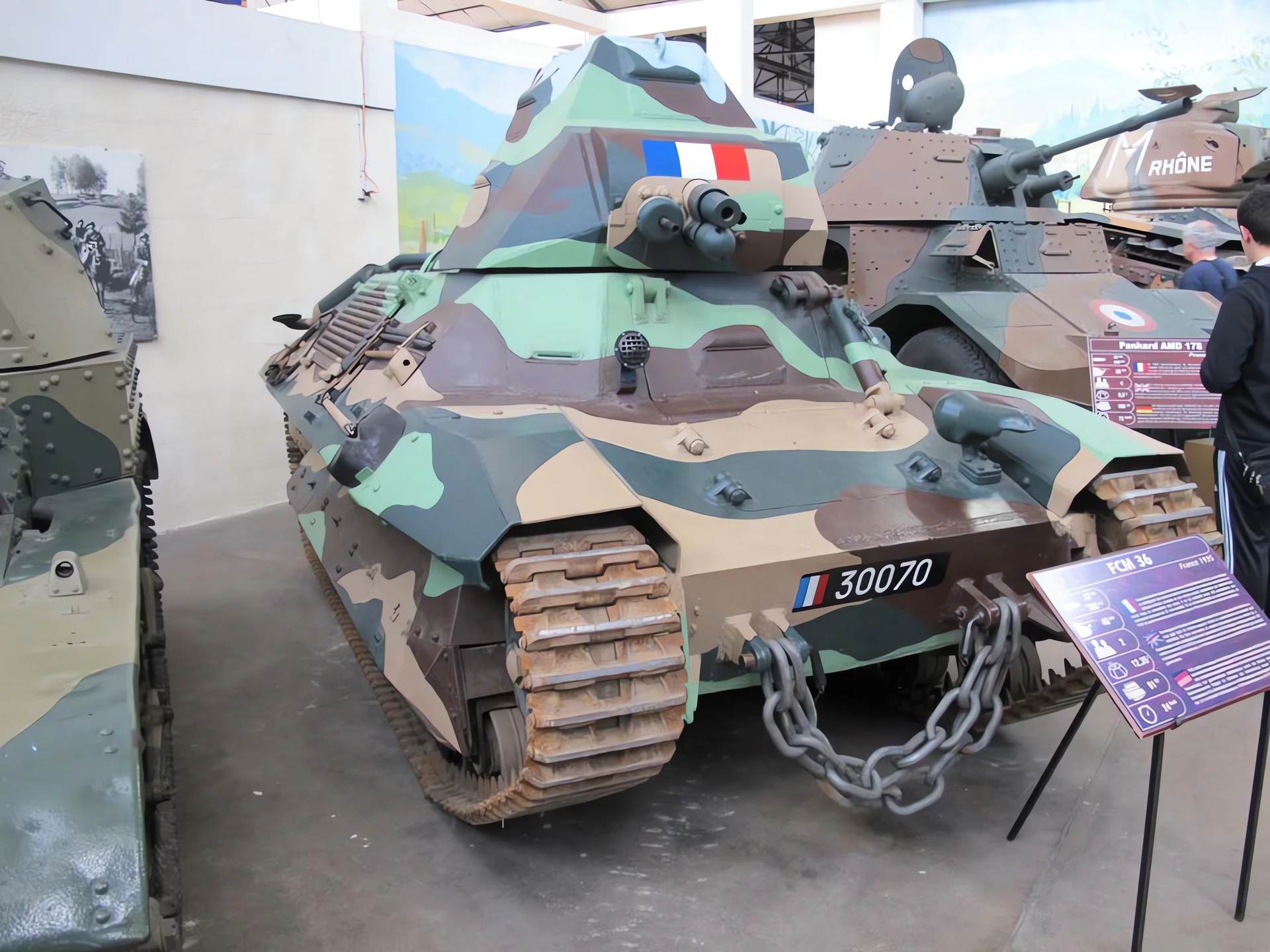

FCM36 01

FCM36 02

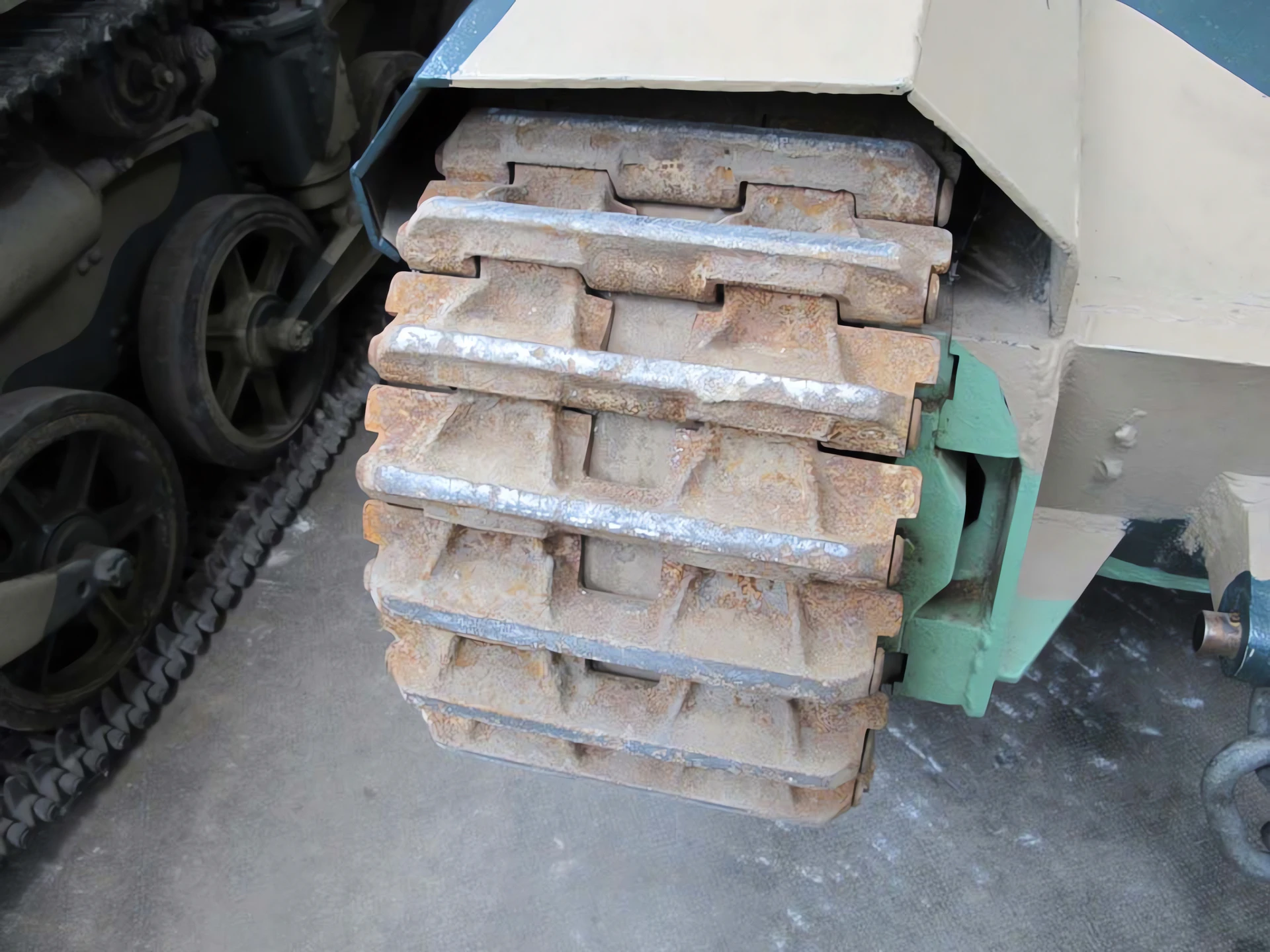

FCM36 03

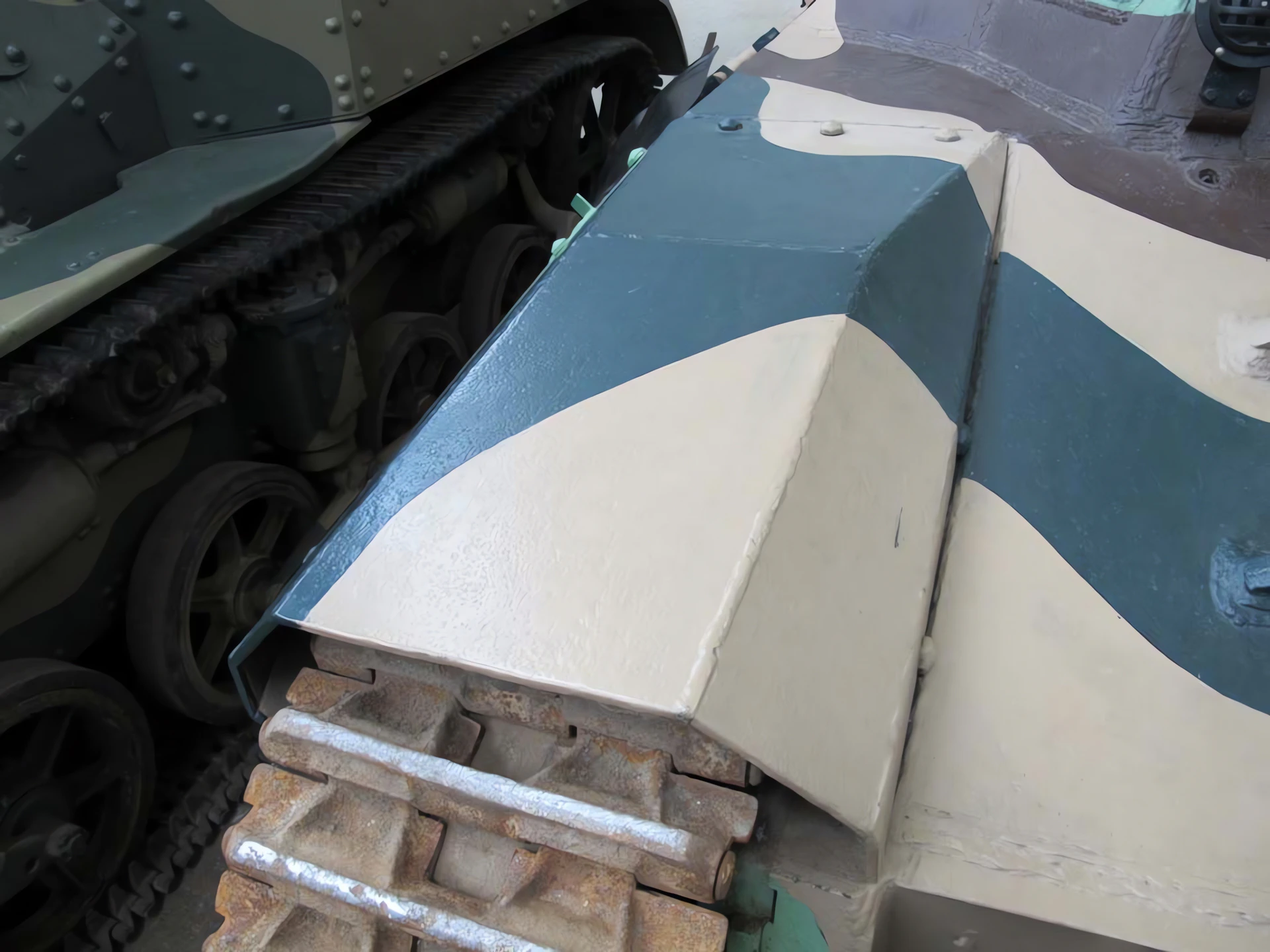

FCM36 04

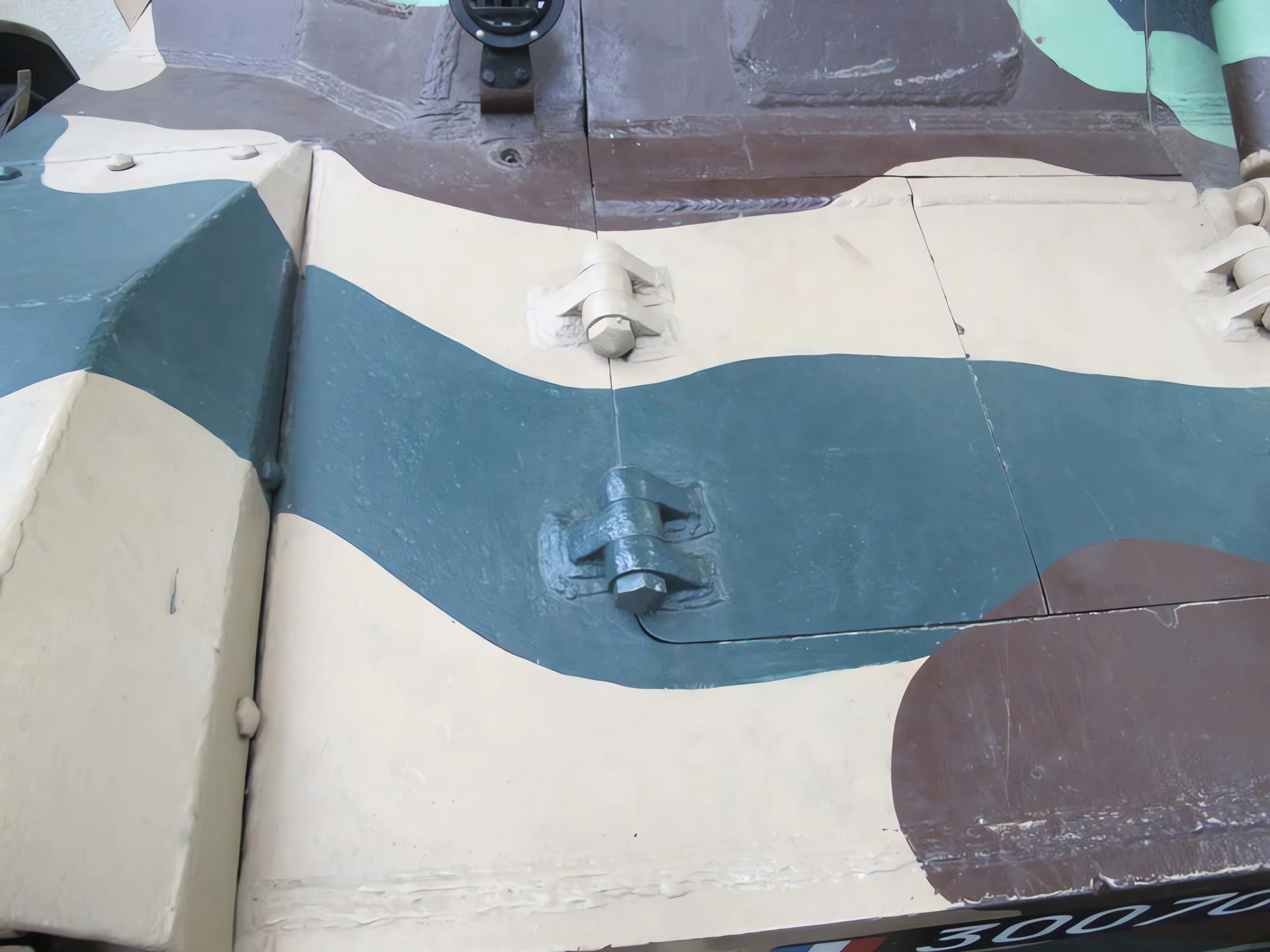

FCM36 05

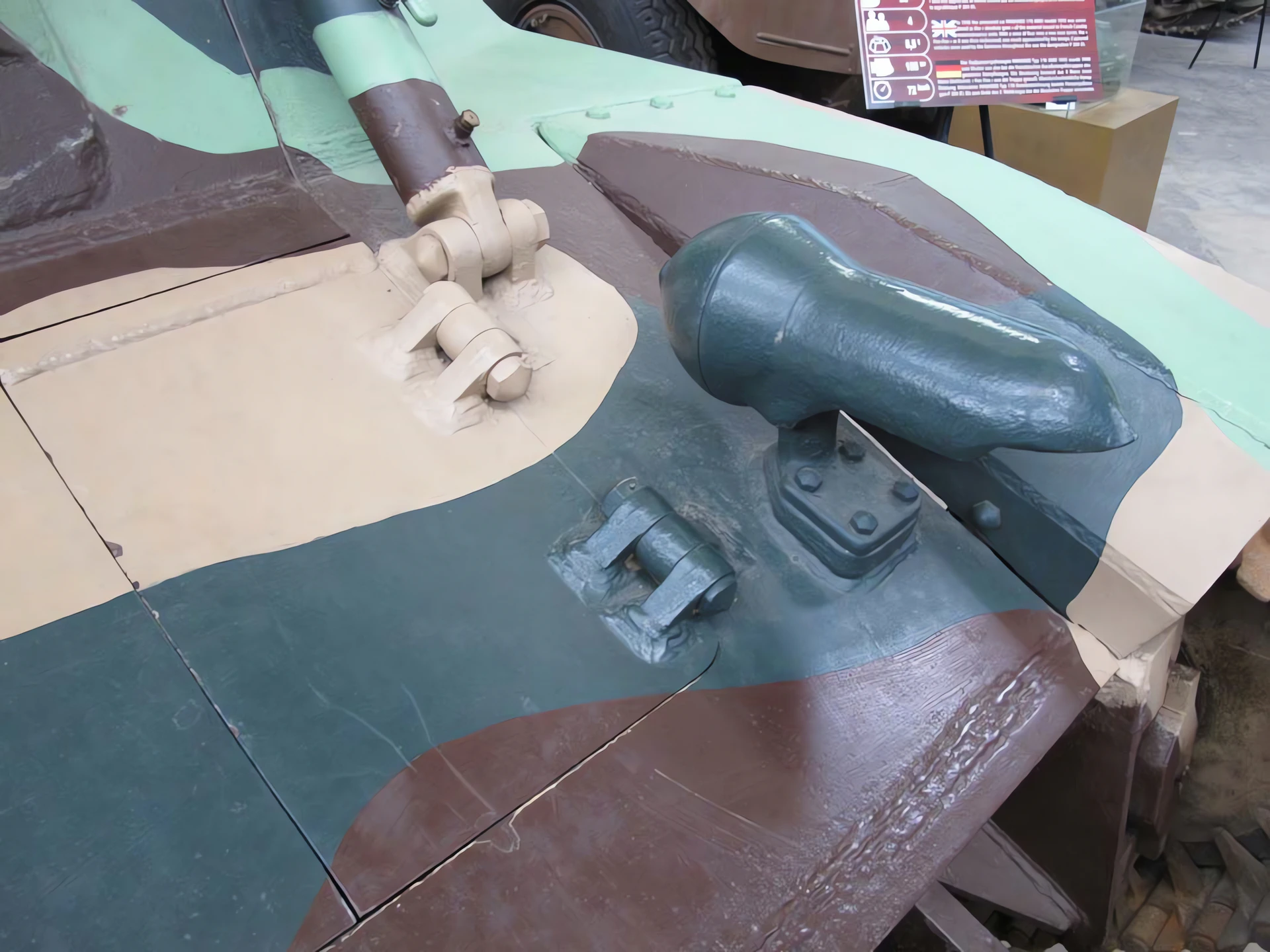

FCM36 06

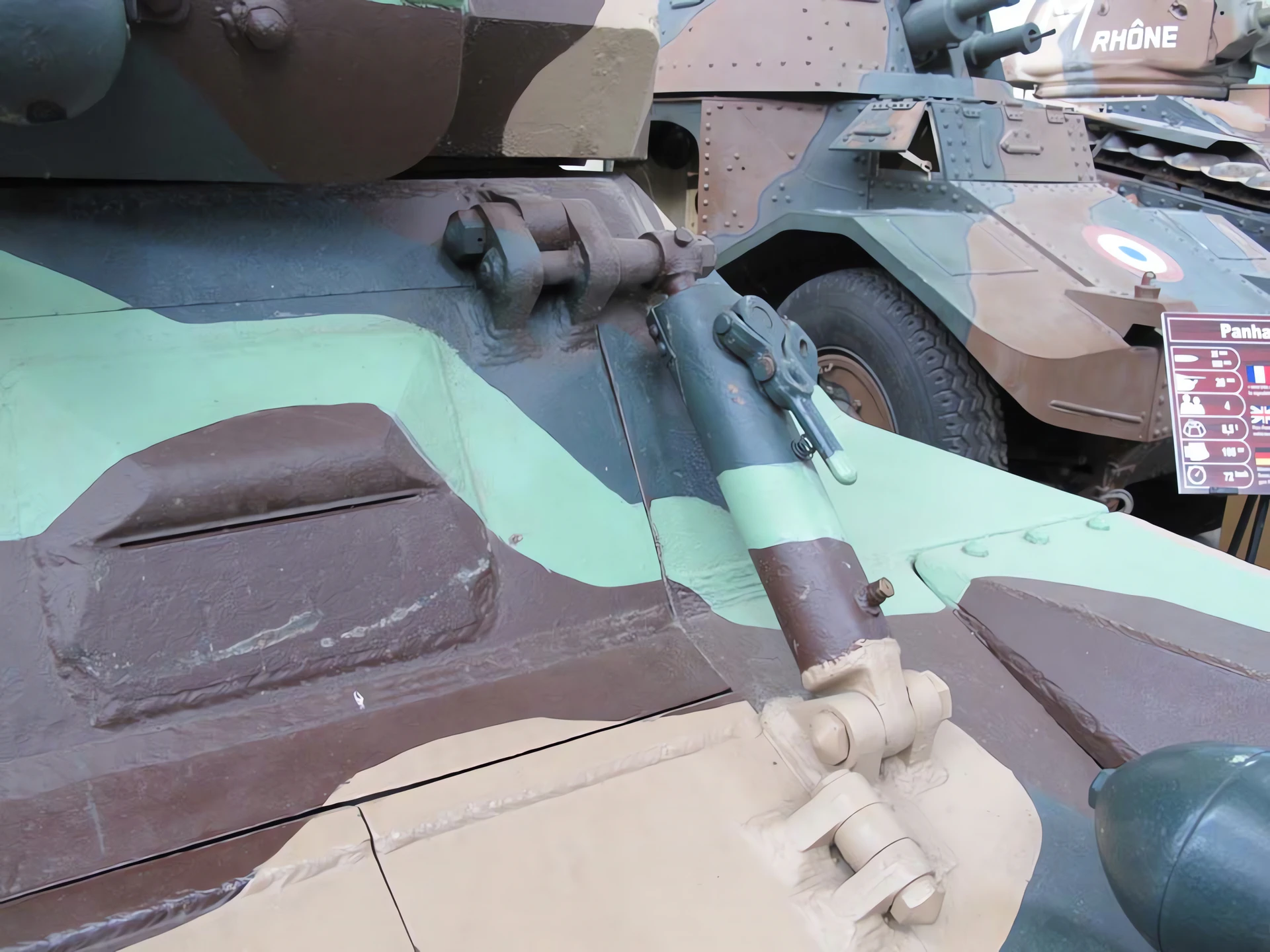

FCM36 07

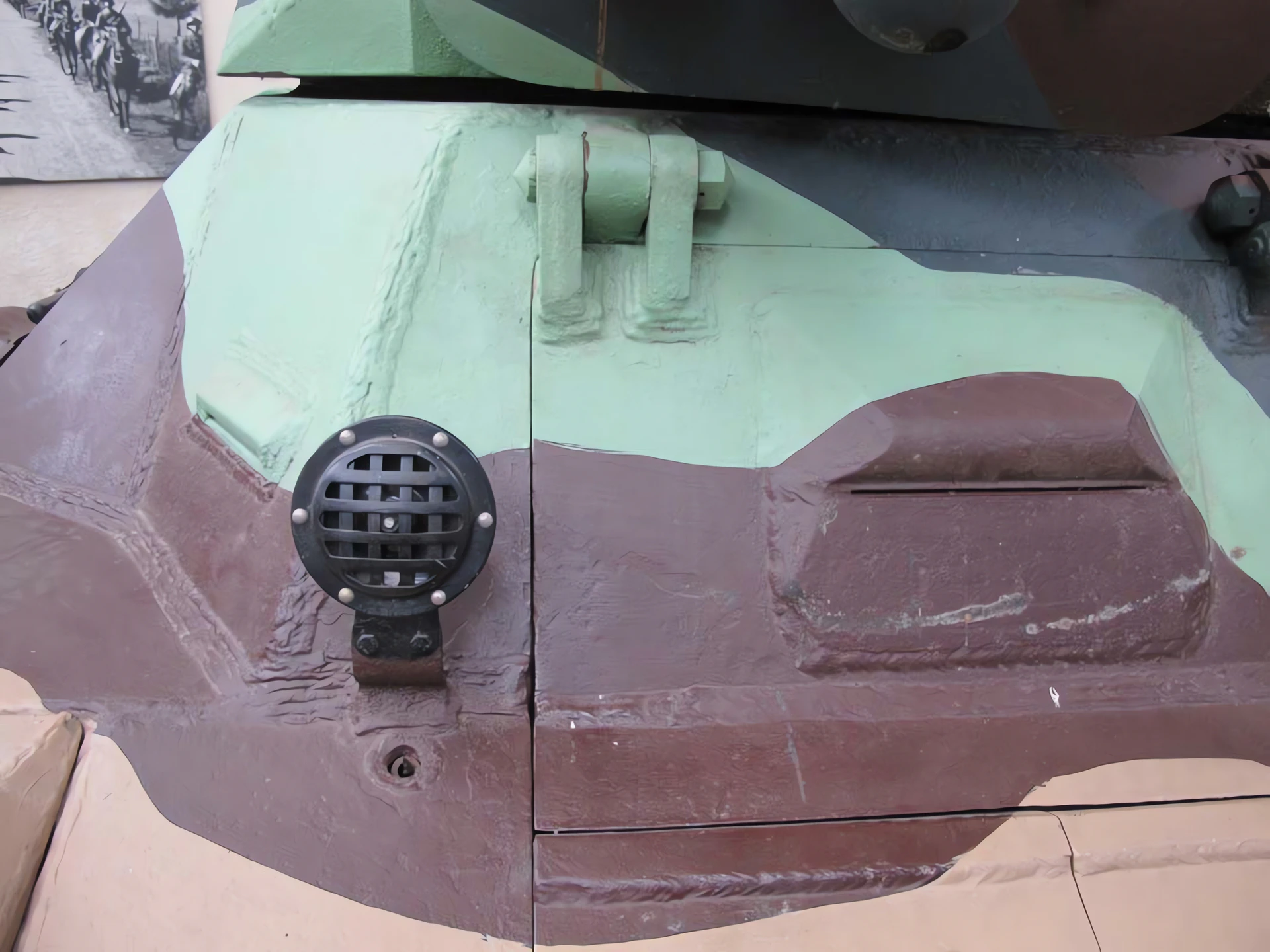

FCM36 08

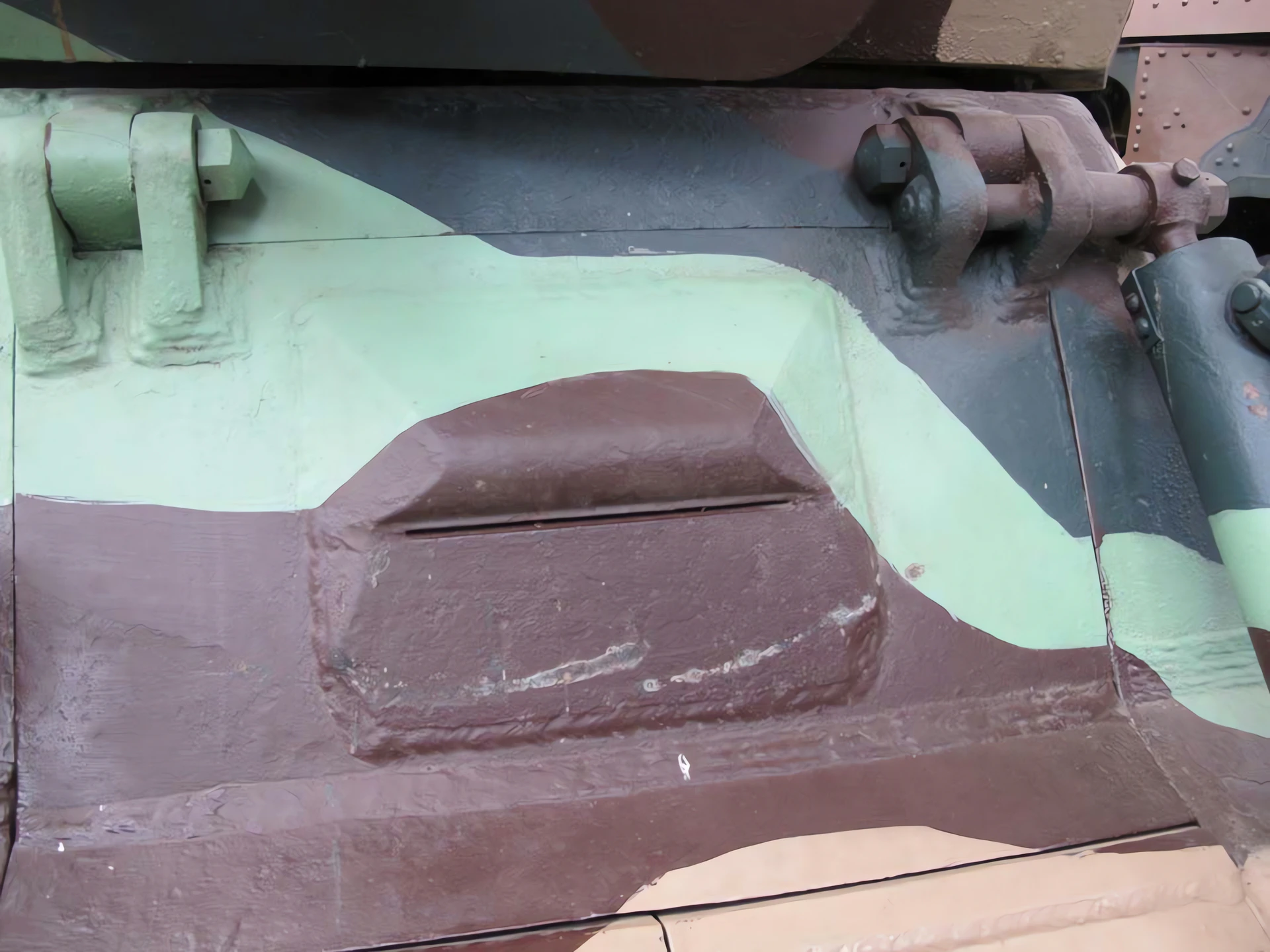

FCM36 09

Click on a photo and use the mouse scroll to view all photos

Attendez, la recherche FCM36 photos pour vous ...

FCM 36 Walk Around
Photographe	Legion
Localisation	Inconnu
Photos	56

FCM 36 01

FCM 36 02

FCM 36 03

FCM 36 04

FCM 36 05

FCM 36 06

FCM 36 07

FCM 36 08

FCM 36 09

click on a photo and use the mouse scroll to view all photos

FCM 36 Restauration Walk Around
Photographe	Unknow
Localisation	Inconnu
Photos	145

FCM 36 Restauration

Charger plus...

Voir aussi :

The Avant-Garde Defender

Lla FCM 36 was perhaps the most visually striking tank of the 1930s. Developed by Forges et Chantiers de la Méditerranée, it was designed as a modern infantry support tank. While its contemporaries like the Renault R35 were cast or riveted, the FCM 36 featured a revolutionary all-welded hull with extreme sloped armor. Its futuristic, pyramid-like shape was decades ahead of its time, designed to deflect enemy shells with ease. However, its high production cost and complex engine meant only 100 were ever built, making it a rare but formidable sight during the Battle of France in 1940.

Attribute	Technical Specification (FCM 36)
Rôle	Light Infantry Tank
Crew	2 (Commander/Gunner and Driver)
First Production	1936
Armement principal	37 mm SA 18 L/21 gun
Armor	40 mm (Highly sloped/welded)
Groupe motopropulseur	Berliet MDP 4-cylinder Diesel (91 hp)
Top Speed	24 km/h (15 mph)
Weight	12.35 tonnes

Engineering: Welding and Sloping

Advanced Ballistic Geometry: Every single plate on the FCM 36 was sloped. Even the turret was a complex truncated pyramid. This gave the 40mm of armor an « effective » thickness much higher than its actual weight suggested, making it nearly immune to the German 37mm Pak 36 anti-tank gun.
First Diesel Tank: The FCM 36 was one of the first French tanks to utilize a diesel engine. This reduced the risk of catastrophic fires (a common fate for gasoline tanks) and provided the vehicle with a very respectable operational range of 225 km.
Fully Welded Hull: Unlike the bolt-and-rivet construction of the time, the FCM 36 was entirely welded. This eliminated « rivet popping » (where rivets would become internal projectiles when hit) and made the hull waterproof and gas-tight.
Complex Suspension: The suspension was protected by heavy armored skirting. It used a system of many small wheels, which provided a smooth ride for the crew but was notoriously difficult to clean once clogged with thick French mud.

1940: The « Hedgehog » in Battle

The Counter-Attack at Stonne: In May 1940, the FCM 36s of the 4th and 7th BCC (Battalion de Chars de Combat) fought in the brutal Battle of Stonne. They proved so difficult to destroy that German crews often had to target their tracks or wait for point-blank range to knock them out.
Lla « Toothpick » Gun: Despite its incredible armor, the FCM 36 was crippled by its old 37mm SA 18 gun. Designed in WWI, it lacked the velocity to penetrate German tanks, forcing French commanders to get dangerously close to have any effect.
German Service (Marder I): After the fall of France, the Germans captured many FCM 36s. Impressed by the hull but hating the turret, they stripped the tanks and used the chassis to create the Marder I tank destroyer and various mobile artillery pieces.
Legacy: The FCM 36’s influence can be seen in the design of later tanks like the AMX-13, which continued the French tradition of utilizing aggressive sloping and innovative engineering to maximize weight efficiency.
