ATS-59G suurtükitraktor | |
|---|---|
| Riik | URSS |
| Tüüp | Suurtükiväe traktor |
| Kirjeldus | Galerii 190 fotod ATS-59G suurtükitraktor |
Suurtükiväetraktori ATS-59G fotogalerii, Artilleriyskiy Tyagach Sredniy 59 ehk ATS-59 (tähendab keskmist suurtükiväe traktorit) oli Nõukogude külma sõja aegne suurtükiväetraktor.
Allikas: ATS-59G suurtükitraktor
kaal: 13 000 kg pikkus: 6,28 m laius: 2,78 m kõrgus: 2,3 m Mootor: diisel 300hj Tööulatus: 350 km Kiirus: 45 km/h
Osta mulle kohvi| Tractor Artillery ATS-59 | |
|---|---|
| Fotograafid | Teadmata |
| Lokaliseerimine | Teadmata |
| Fotod | 12 |
Vaata ka:
General Overview
| Designation | Artilleriyskiy Tyagach Sredniy – 59G (Medium Artillery Tractor – 59G) |
|---|---|
| Place of Origin | Nõukogude Liit |
| Entry into Service | Late 1950s/Early 1960s (ATS-59); ATS-59G improved variant later |
| Primary Role | Towing heavy artillery (e.g., 130 mm M-46 gun, 152 mm howitzers) and transporting crew/supplies. |
| Crew & Passengers | 7 (including driver) in the large cab |
| Design Basis | Utilizes many components, including the engine and running gear, of the T-54 Main Battle Tank. |
Technical Specifications (ATS-59G)
| Mass (Empty) | Approx. 13.5 tonnes |
|---|---|
| Mootor | A-650 V-12 water-cooled diesel (a throttled version of the T-54’s V-2 engine) |
| Engine Power | 300 hp at 1,700 rpm |
| Max Towed Load | Kuni 14 tonni |
| Payload Capacity | 3.0 tonnes (on the cargo platform) |
| Top Speed (Road) | Approx. 39–45 km/h |
| Operational Range | 350 km (500 km with auxiliary tanks) |
| Key Feature | Equipped with a powerful **mechanical winch** (15-ton capacity). |
ATS-59G Improvements

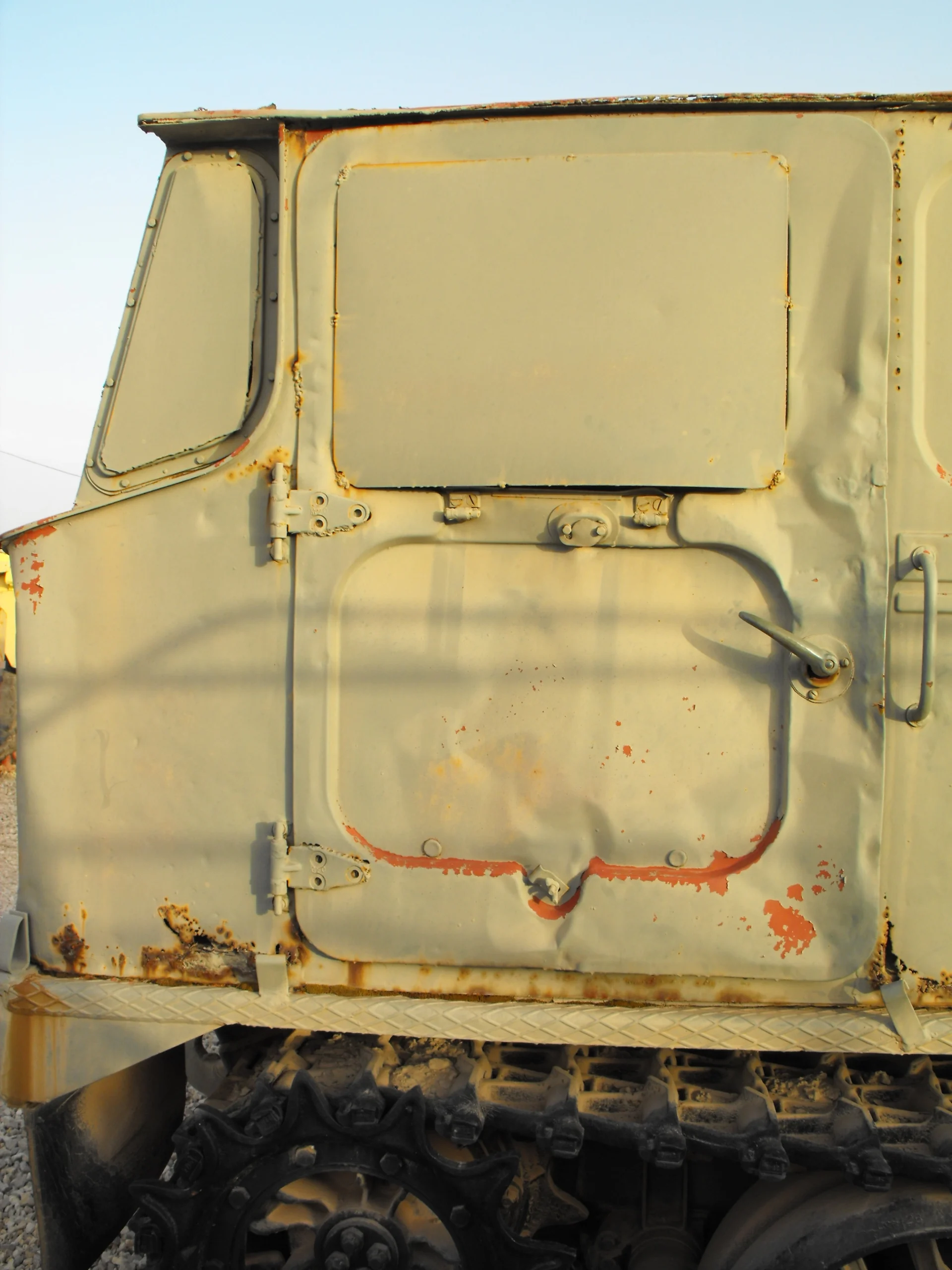

The original ATS-59 had a small two-person cab. The ATS-59G was developed to address this and featured a significantly larger, fully enclosed cab, which could seat up to 7 people (driver + 6 passengers). This allowed the entire artillery crew to be transported with the piece they were towing, rather than sitting exposed on the cargo platform.
Additionally, the ‘G’ model included an NBC (Nuclear, Biological, Chemical) overpressure system for crew protection.
