M915 truck | |
|---|---|
| 国家 | 美国 |
| 作用 | 6×4 半拖拉机 |
| 建立 | 未知 |
这 M915 是美国陆军用于线路运输任务的拖拉机部队。专为改善道路而设计，没有驱动前车轴。
源： 维基百科上的 M915 卡车

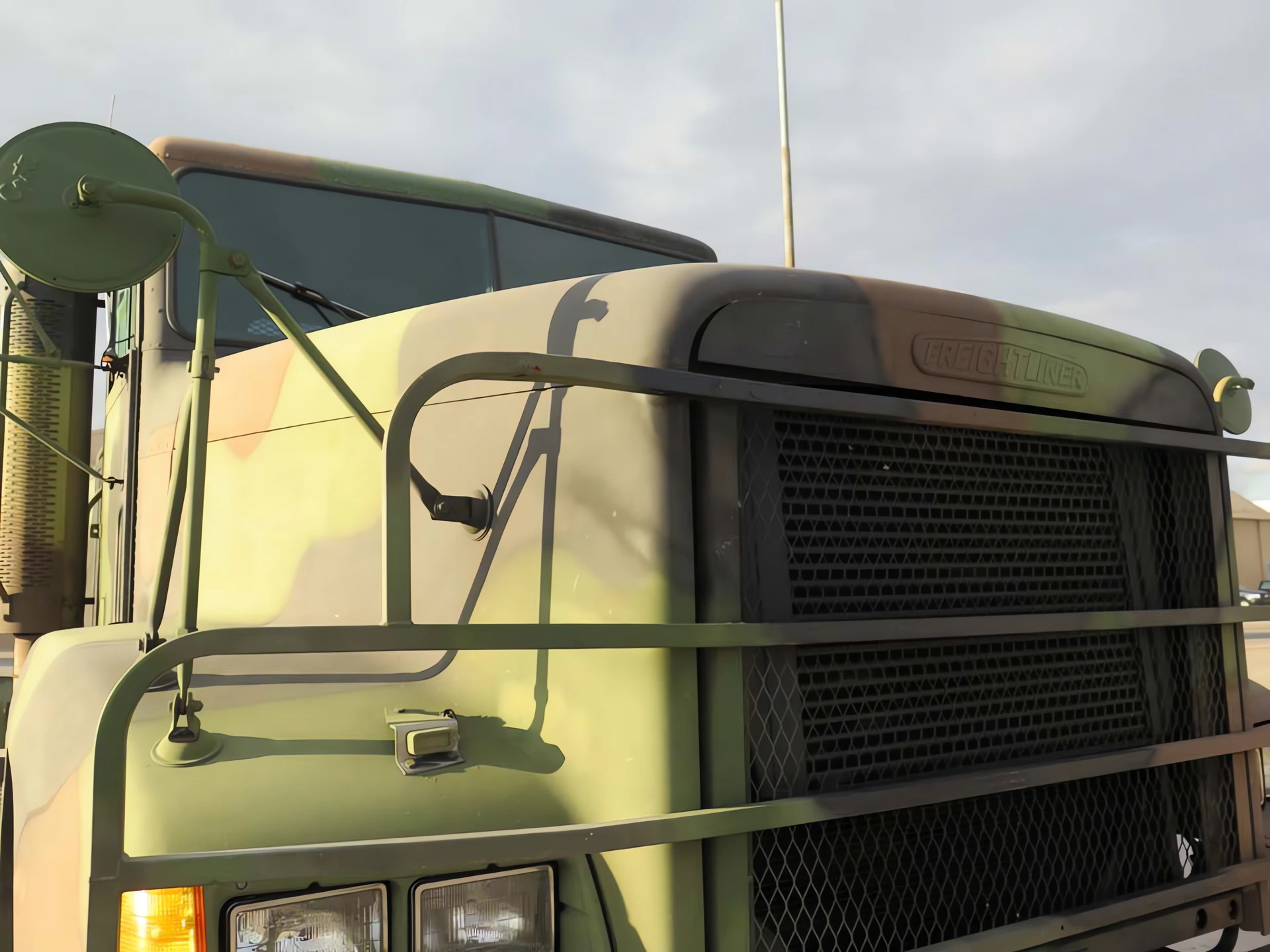

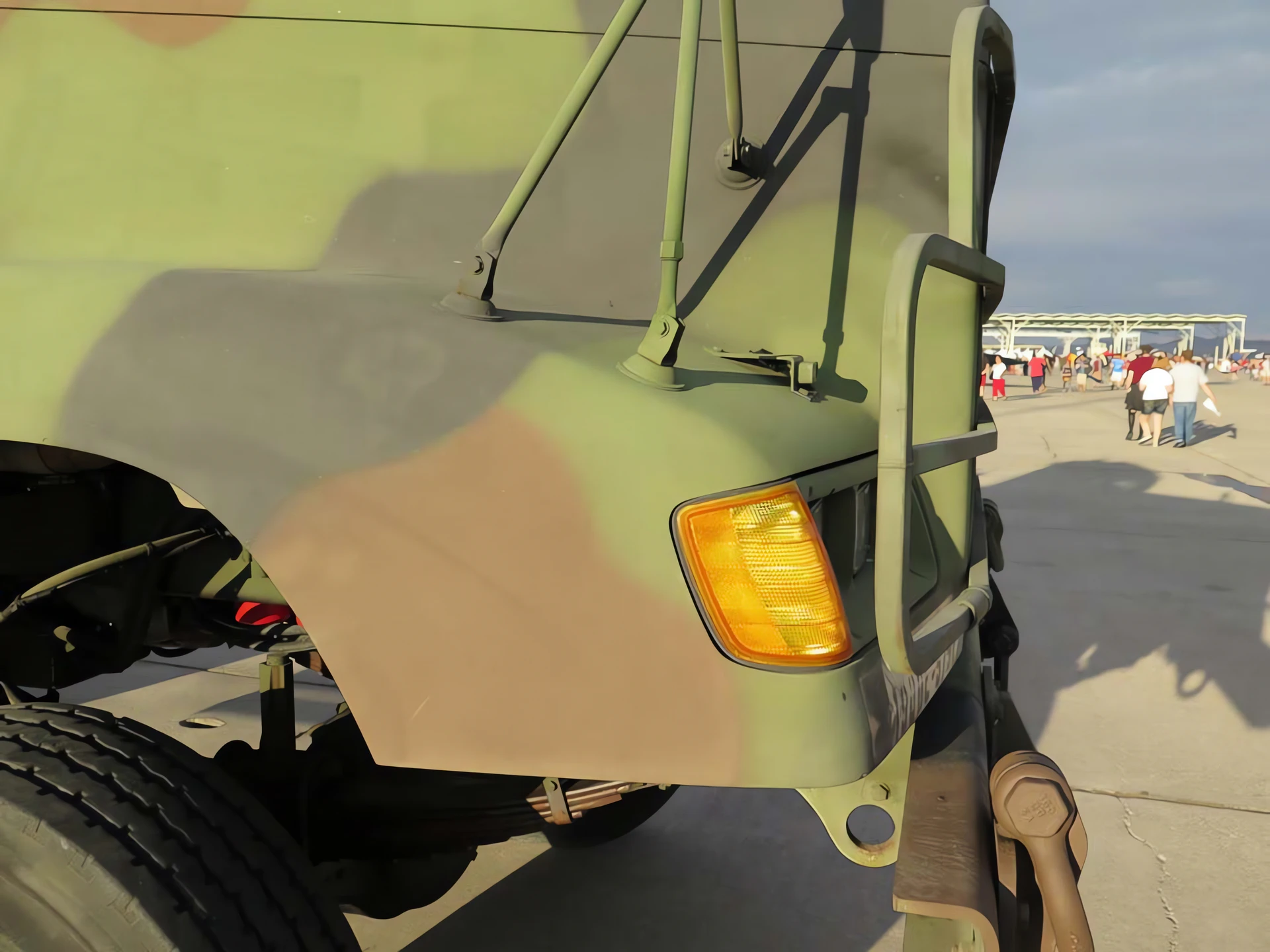

| M916 Tractor Truck Walk Around | |
|---|---|
| Photographer | Vladimir Yakubov |
| Localisation | Nellis Air Force Base |
| Photos | 82 |
另请参阅：
General Characteristics and Role

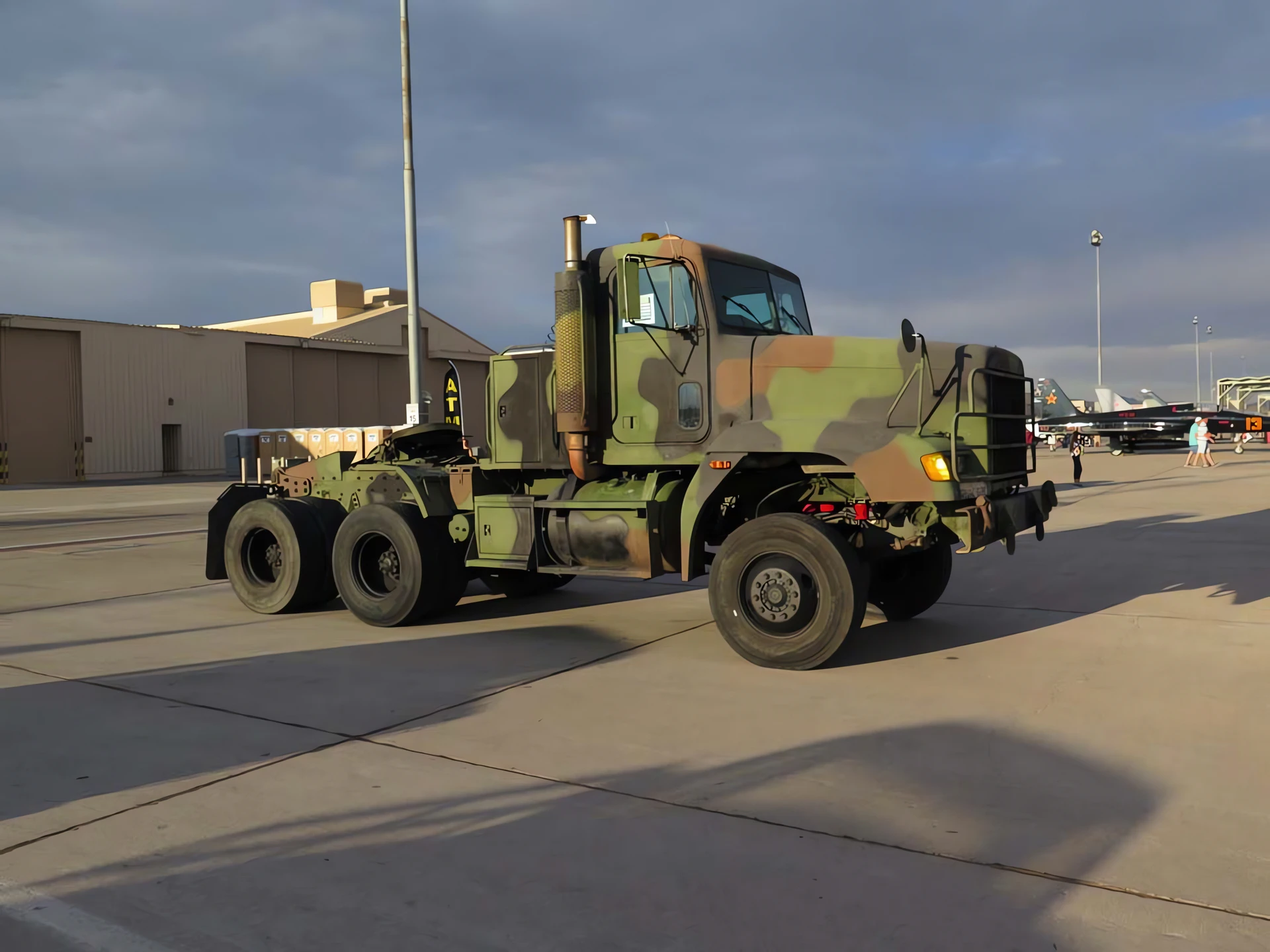

The M916 Tractor Truck is a tactical 6×6 truck tractor designed for the US Army as part of the M915 series of heavy military trucks. It is officially designated as the Light Equipment Transporter (LET). Unlike the M915 line-haul tractor, the M916 features a 6×6 (all-wheel-drive) configuration, giving it superior off-road mobility essential for transporting construction and engineering equipment in theater operations. Its primary role is to act as a prime mover for low-bed semi-trailers, such as the M172A1 (25-ton payload) and M870 (40-ton payload), transporting heavy construction loads on primary, secondary, and off-road routes. Early models were built by AM General, with later modernized versions like the M916A3 built by Freightliner.
| Property | Typical Value (M916 Original) |
|---|---|
| 作用 | Light Equipment Transporter (LET) / Tractor Truck |
| National Origin | 美国 |
| Manufacturer (Original) | AM General |
| Service Entry | 1979 (As part of M915 Series) |
| 传动系统 | 6×6 All-Wheel Drive |
| Gross Vehicle Weight Rating (GVWR) | 56,000 lb (25,400 kg) |
| Max Gross Combination Weight (GCVW) | Up to 130,000 lb (59,000 kg) (Towing M870 Trailer) |
| Curb Weight (Empty) | Approx. 27,500 lb (12,500 kg) |
| 长度 | Approx. 7.47 m (294.3 in) |
| 宽度 | Approx. 2.46 m (96.75 in) |
Powerplant and Driveline
- Engine (Original): Cummins NTC-400 Big Cam 400 6-cylinder turbocharged diesel engine.
- Horsepower: 400 HP @ 2,100 RPM.
- Torque: 1,150 ft·lb @ 1,500 RPM.
- Transmission: Caterpillar 16-Speed Semi-Automatic (Model D-7155) or Allison Automatic (depending on variant/rebuild).
- Transfer Case: Oshkosh F-U29 (18,000 series).
- Axles: Rockwell Tandem Axles (Model SUHD) with a 58,000 lb rating.
- Key Feature: Equipped with a rear-mounted 45,000 lb (20,400 kg) hydraulic drag winch for loading equipment onto low-bed trailers in difficult terrain.
Variants and Modernization
- M916A1: Modernized variant, new design manufactured by Freightliner, sometimes featuring a Detroit Diesel Series 60 engine.

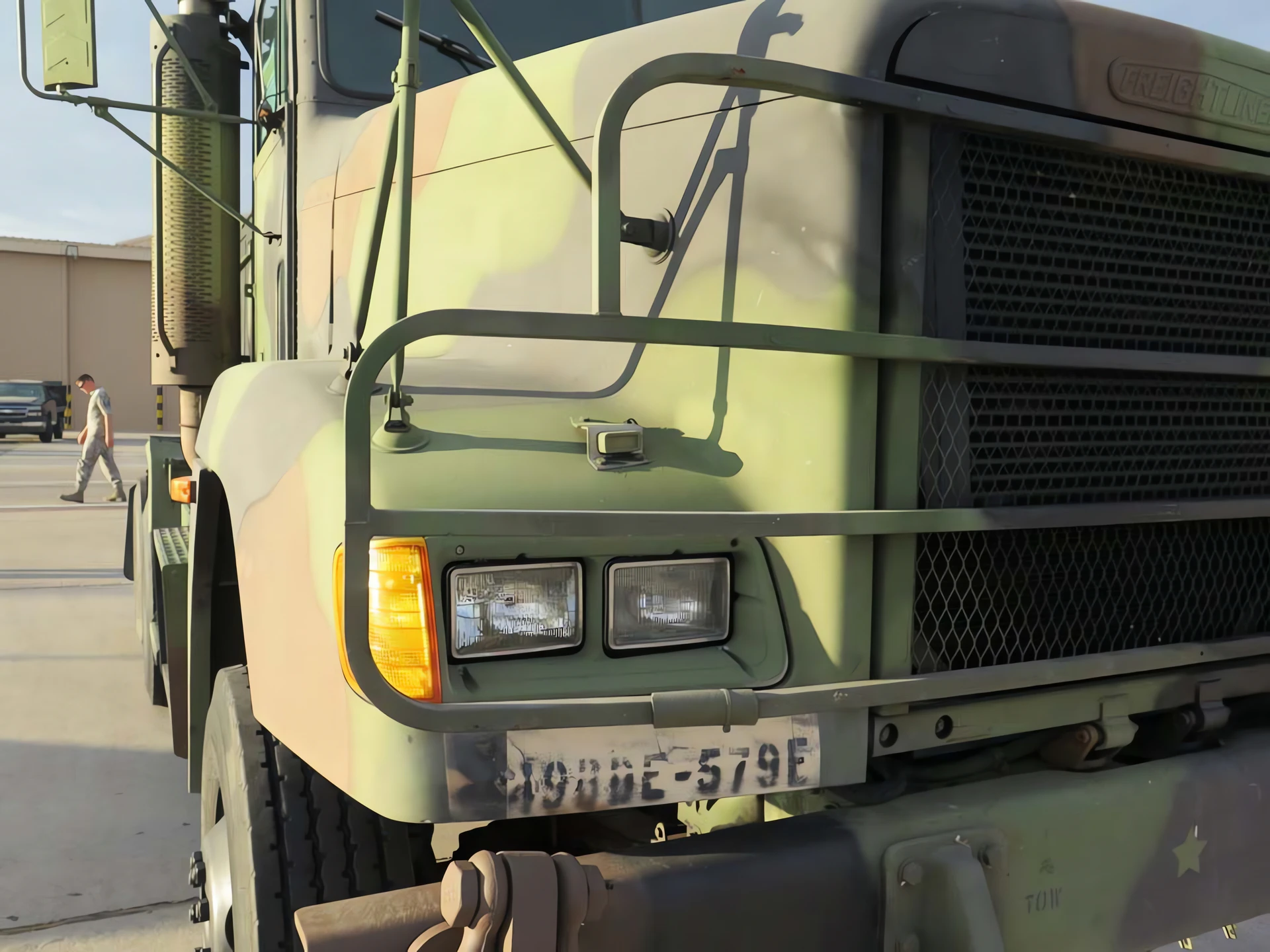

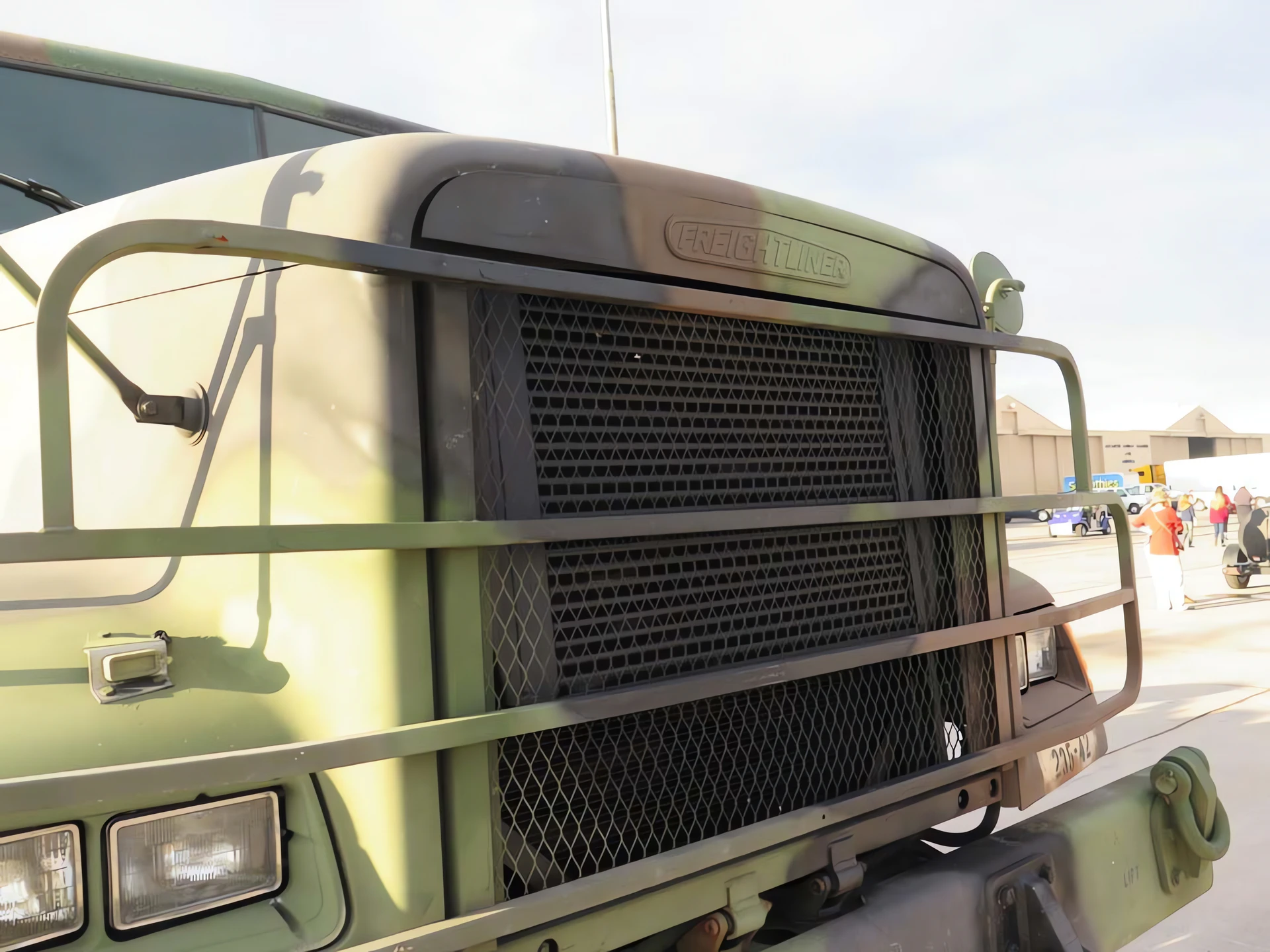

- M916A3: Further modernized version typically featuring a Freightliner FLD120 conventional cab, Detroit Diesel Series 60 engine, Allison automatic transmission, and an improved suspension system.
- Commonality: The entire M915 family (including M915, M916, M917 dump truck, etc.) was designed to share as many commercial components as possible for ease of maintenance and logistics.
