Pilatus PC-12

Pilatus PC-12
Kraju	Szwajcaria
Roli	Samoloty pasażerskie i towarowe
Pierwszy lot	31 May 1991
Zbudowany	2000+

Tthe Pilatus PC-12 is a pressurized, single-engined, turboprop aircraft manufactured by Pilatus Aircraft of Stans, Switzerland since 1991. It was designed as a high-performance utility aircraft that incorporates a large aft cargo door in addition to the main passenger door

Źródła: Pilatus PC-12 na Wikipedii

Pilatus PC-12 Spacer
Fotograf	Władimir Yakubov
Lokalizacja	Pacific Coast Dream Machines 2010
Zdjęcia	59

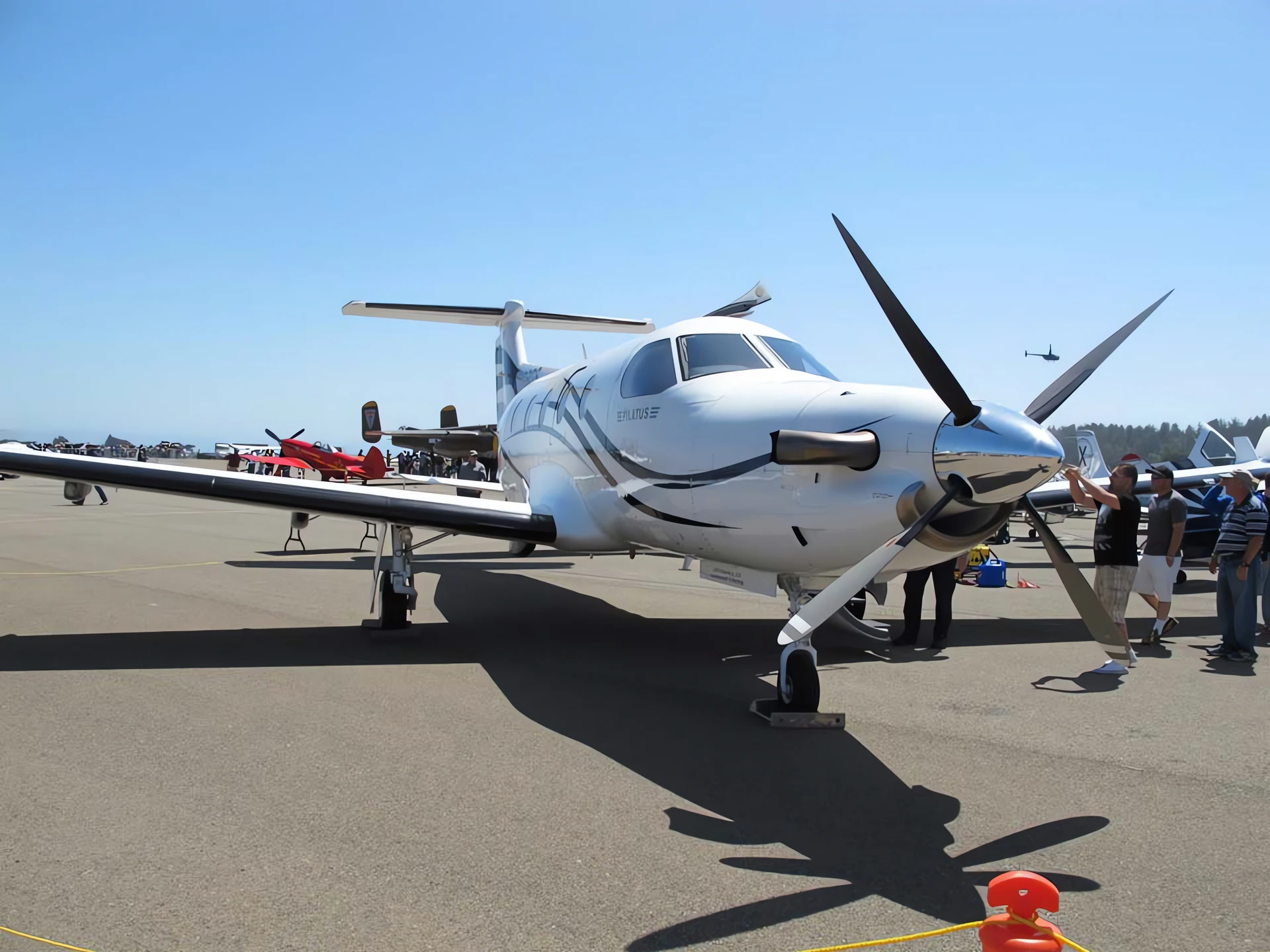

Pilatus PC-12NG 01

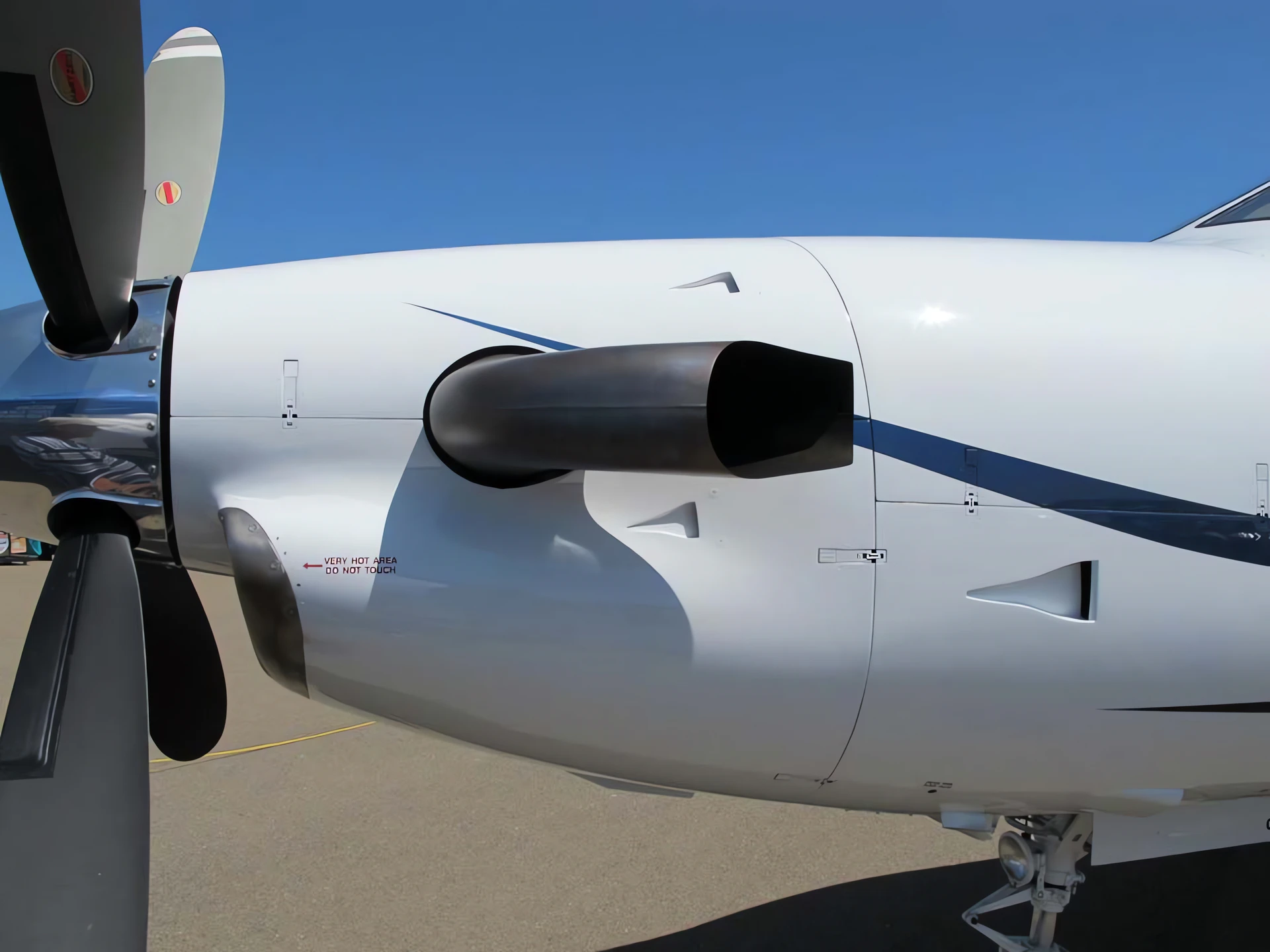

Pilatus PC-12NG 02

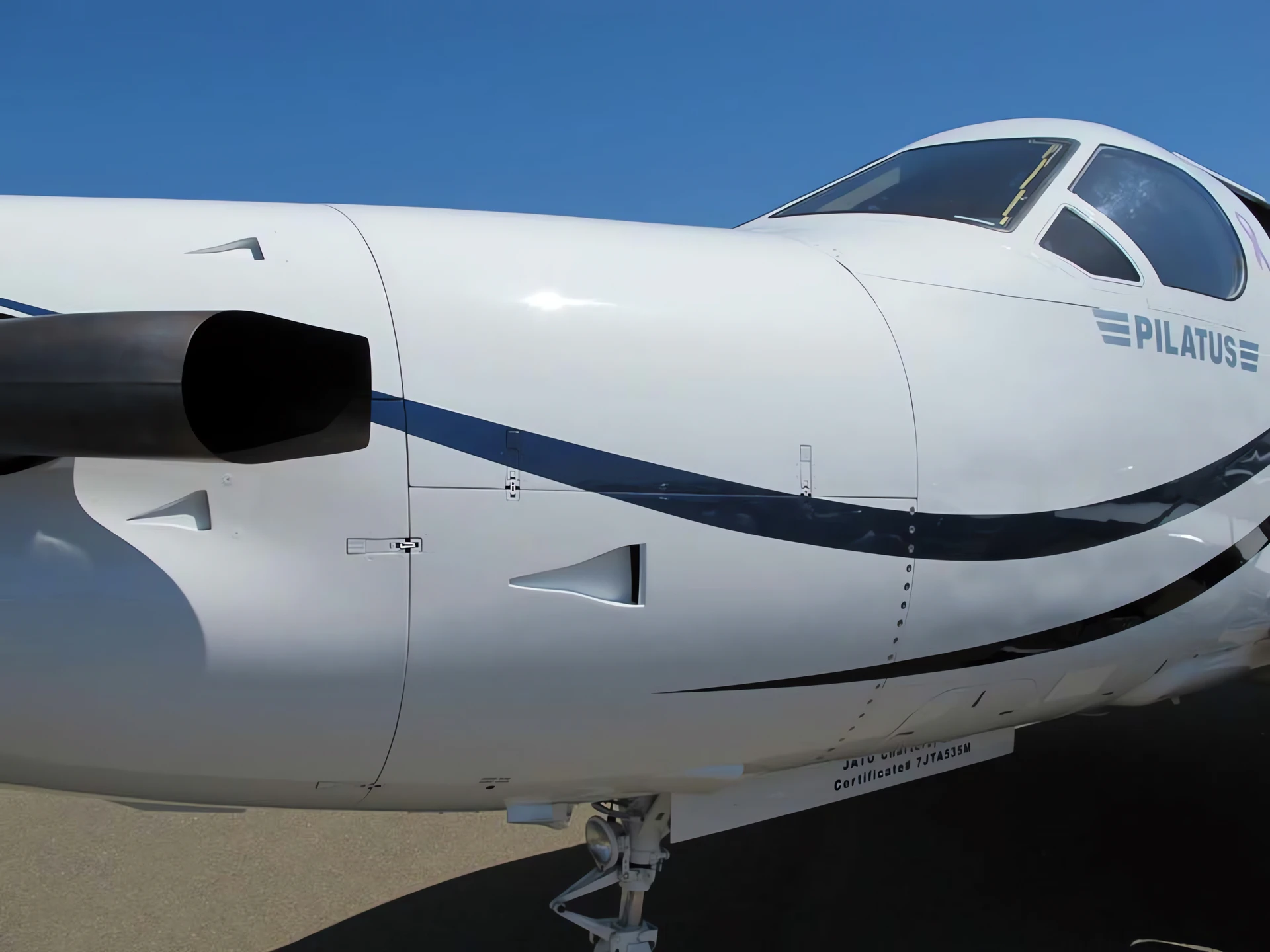

Pilatus PC-12NG 03

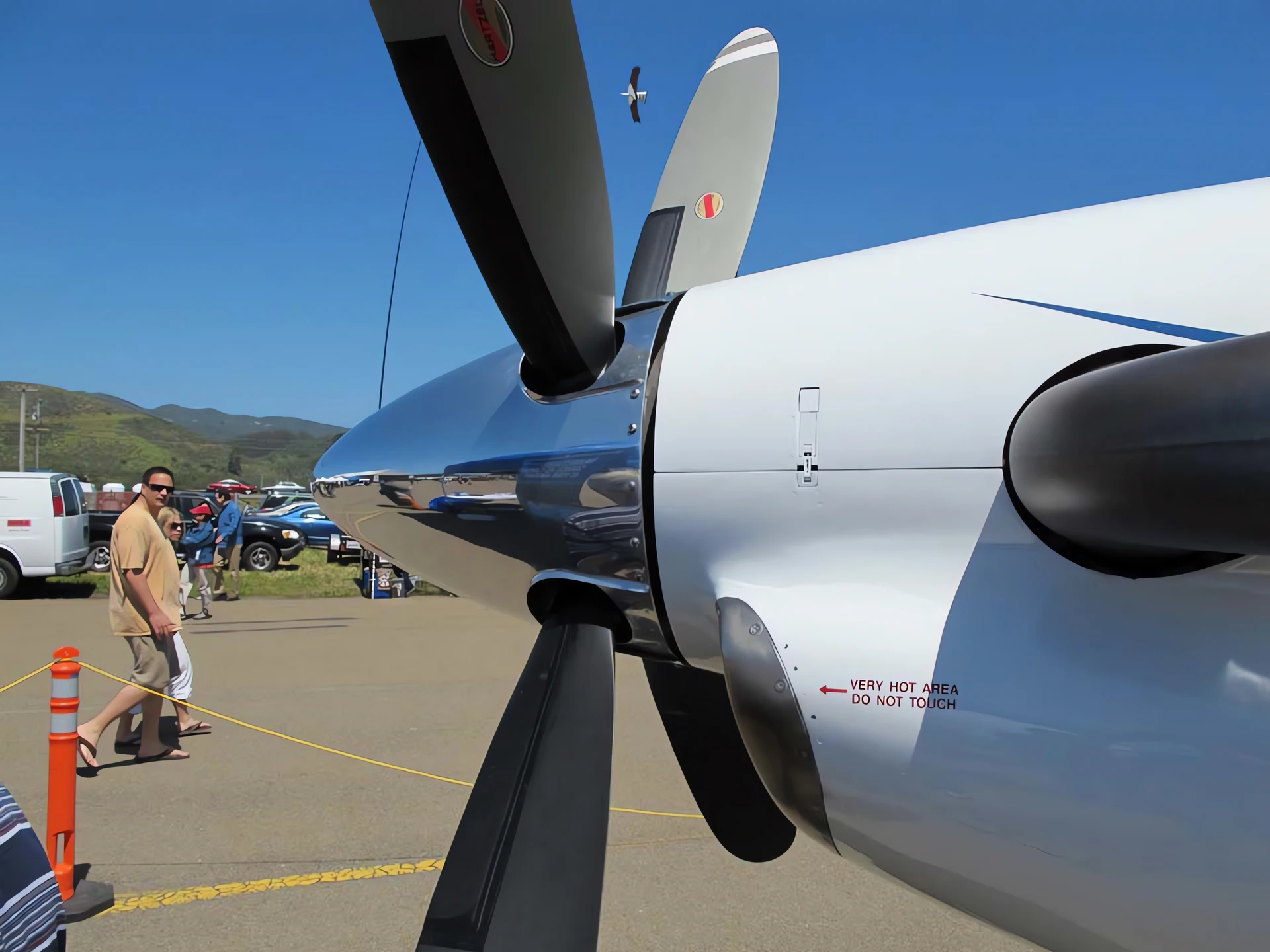

Pilatus PC-12NG 04

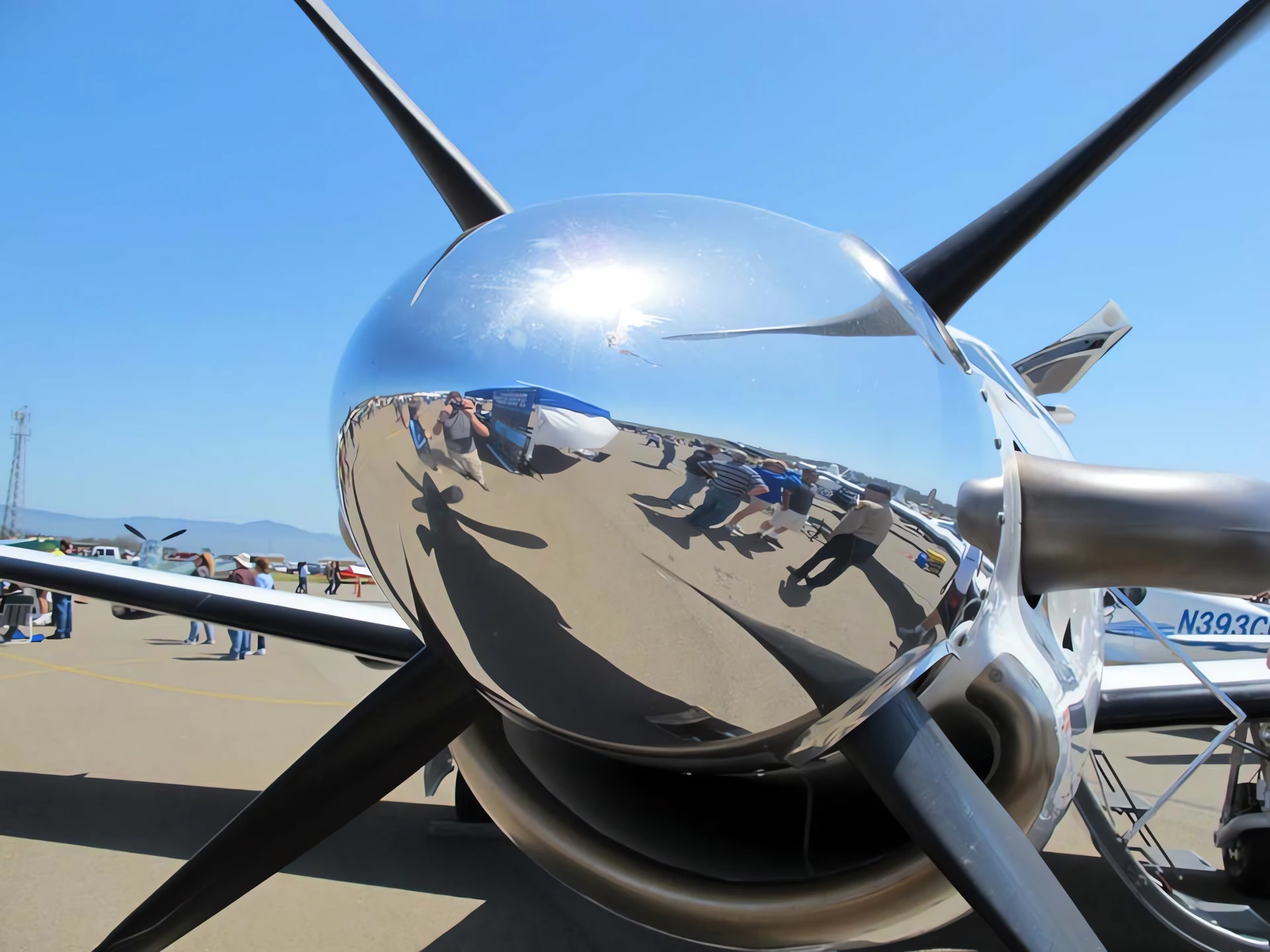

Pilatus PC-12NG 05

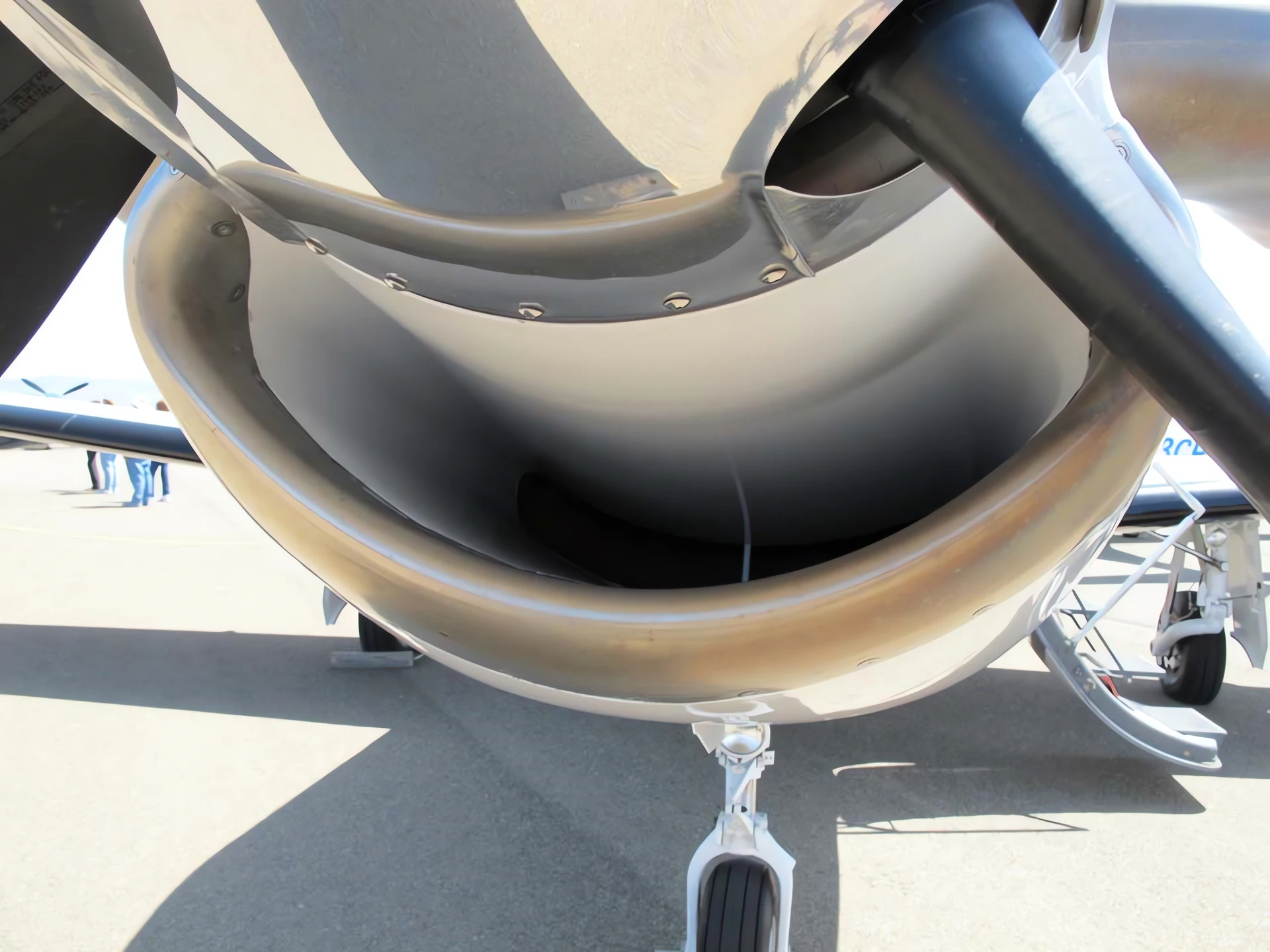

Pilatus PC-12NG 06

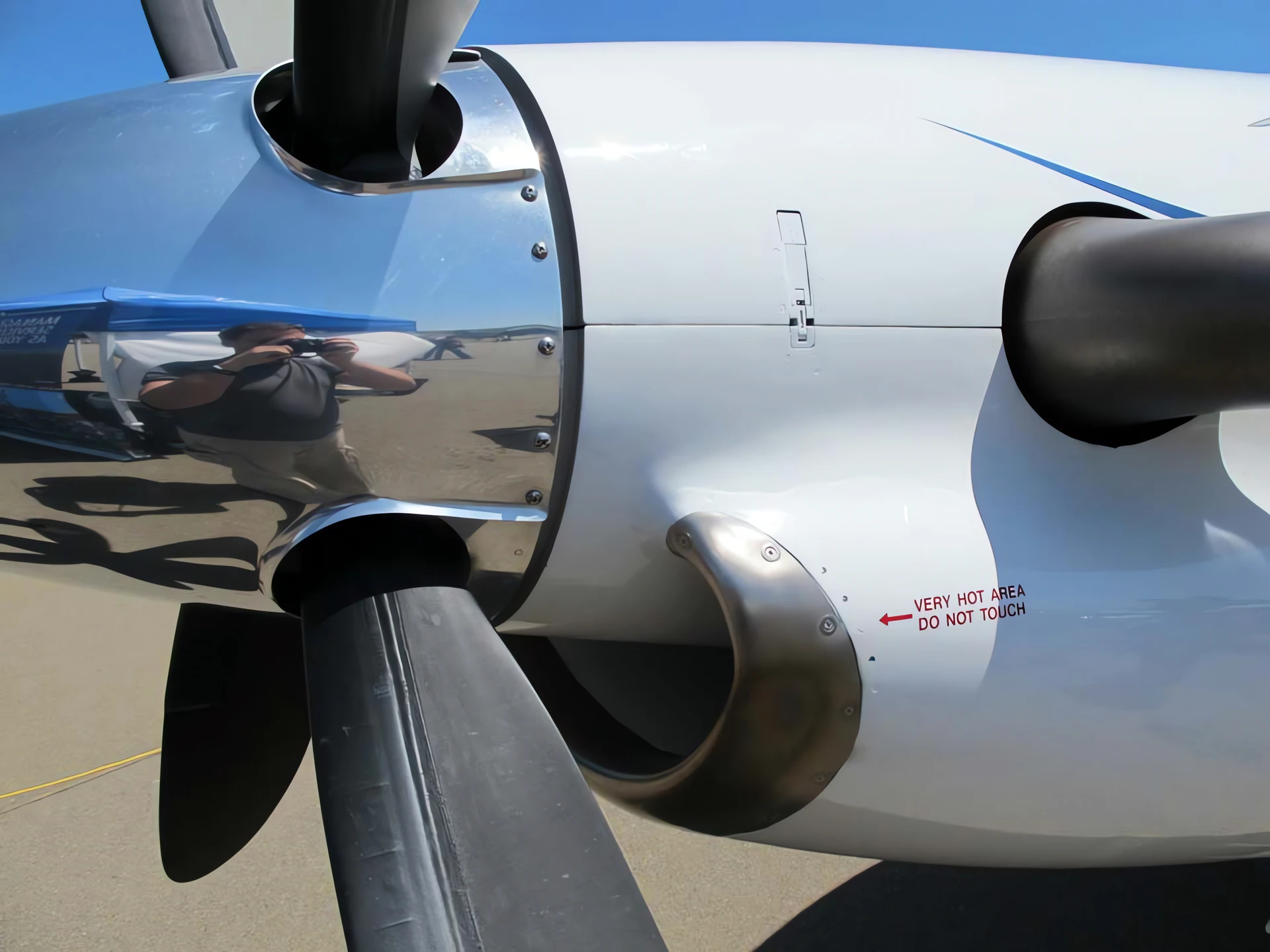

Pilatus PC-12NG 07

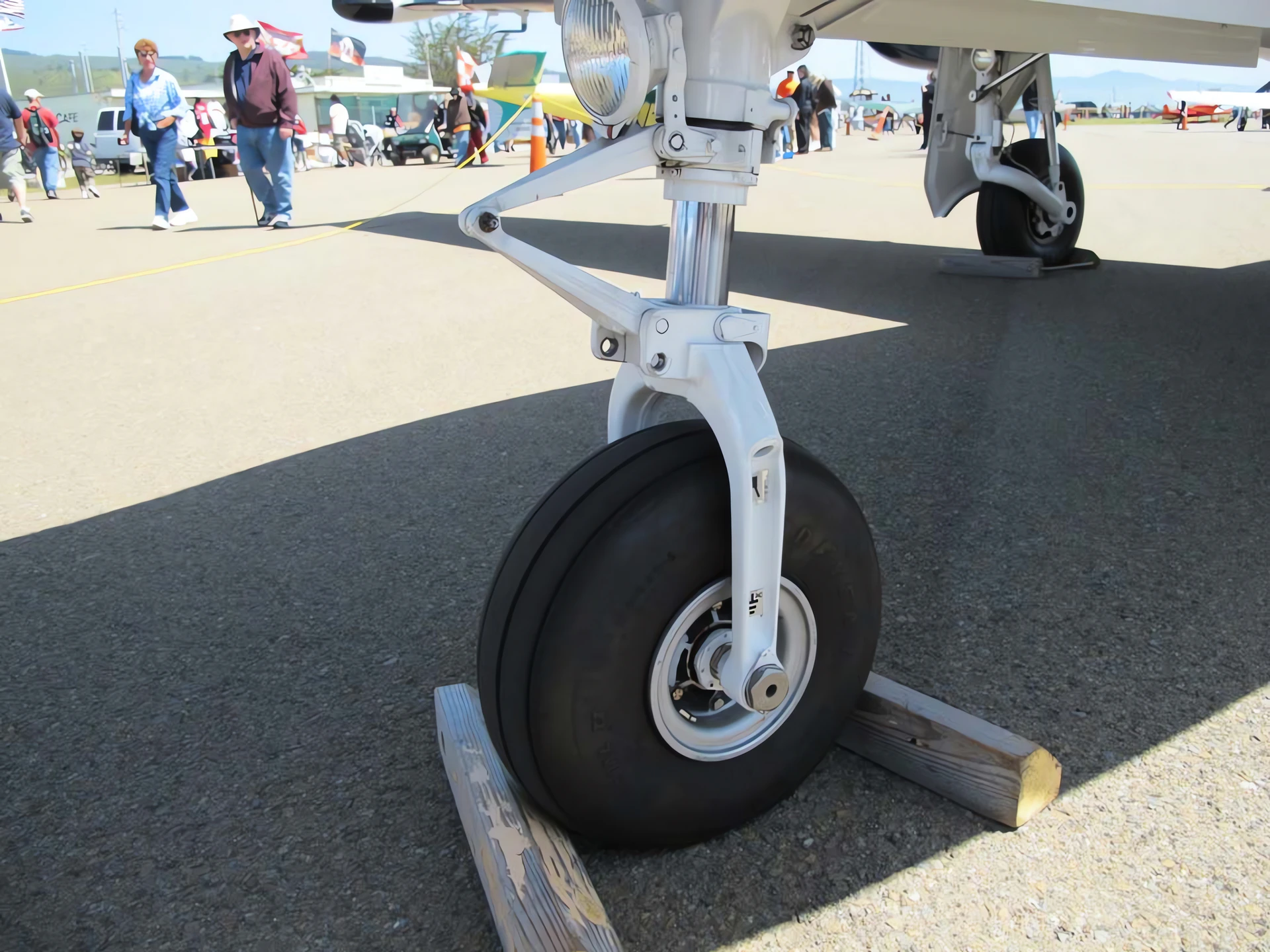

Pilatus PC-12NG 08

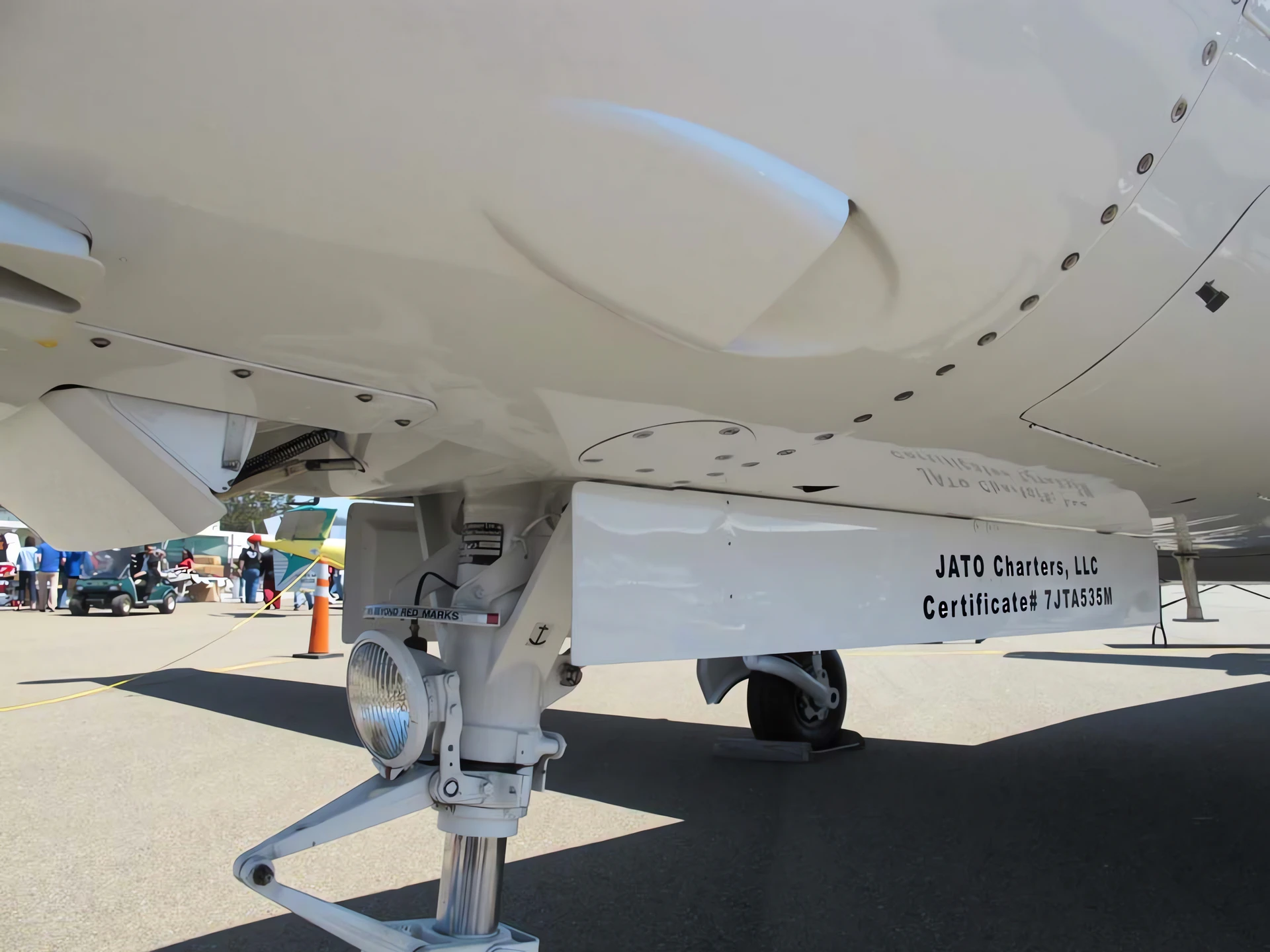

Pilatus PC-12NG 09

Click on a photo and use the mouse scroll to view all photos

Wait, Searching Pilatus P-12 for you…

Zobacz też:

General Characteristics

The Pilatus PC-12 is a highly successful, single-engine turboprop aircraft known for its versatility, reliability, and low operating costs. It is used globally for corporate transport, air ambulance, cargo, and regional airline services, often operating from short, unpaved runways.

Property	Typical Value (PC-12 NGX Variant)
Roli	Utility/Executive Transport, Air Ambulance
Producent	Pilatus Aircraft Ltd (Stans, Switzerland)
First Flight	May 31, 1991
Załogi	1 or 2 pilots
Pojemność	Up to 9 passengers
Rozpiętość	16.23 m (53 ft 3 in)
Max Takeoff Weight	4,740 kg (10,450 lb)

Design and Powerplant

Engine: One Pratt & Whitney Canada PT6E-67XP turboprop engine (NGX model).
Power Output: Flat-rated to 895 kW (1,200 shp). The PT6 is famous for its reliability and power-to-weight ratio.
Construction: Conventional low-wing cantilever monoplane with retractable tricycle landing gear.
Fuselage Feature: The PC-12 is instantly recognizable for its large, aft cargo door (1.35 m x 1.32 m), which facilitates the loading of oversized cargo, stretchers, or palletized goods.
Cockpit (NGX): Features the modern Honeywell Epic 2.0 integrated avionics system, offering a digital, glass cockpit experience with advanced safety features.

Performance and Safety

Maximum Cruise Speed: 537 km/h (290 knots) at 20,000 ft.
Maximum Range: Approximately 3,339 km (1,803 nautical miles) with reserves.
Service Ceiling: 9,144 m (30,000 ft).
Short Field Capability: Renowned for excellent Short Take-off and Landing (STOL) performance, requiring less than 800 meters (2,600 ft) to clear a 50 ft obstacle.
Single-Engine Safety: The PC-12’s single-engine configuration is offset by the PT6’s historically low in-flight shutdown rate, making it a very safe aircraft, often operating under single-engine IFR rules comparable to twins.
