Дуглас А-3 Скайвоорриор |
|
|---|---|
| Страны | США |
| Тип | Стратегический бомбардировщик |
| Первый полет | 28 октября 1952 |
| Построен | 282 |
Фотогалерея Дуглас А-3 Скайвоорриор,
The Douglas A-3 Skywarrior was designed as a strategic bomber for the United States Navy and was among the longest serving carrier-based aircraft in history. It entered service in the mid-1950s and was retired in 1991. Throughout its service, it was the heaviest operational aircraft to operate from aircraft carriers, earning its nickname, “The Whale.” Its primary function for much of its later service life was as an electronic warfare platform, tactical air reconnaissance platform, and high capacity aerial refueling tanker.
Источник: Дуглас А-3 Скайвоиор в Википедии
| Дуглас А-3 Скайвоорриор | |
|---|---|
| Фотограф | Билл Сидл |
| Локализации | Неизвестная |
| Фотографии | 56 |

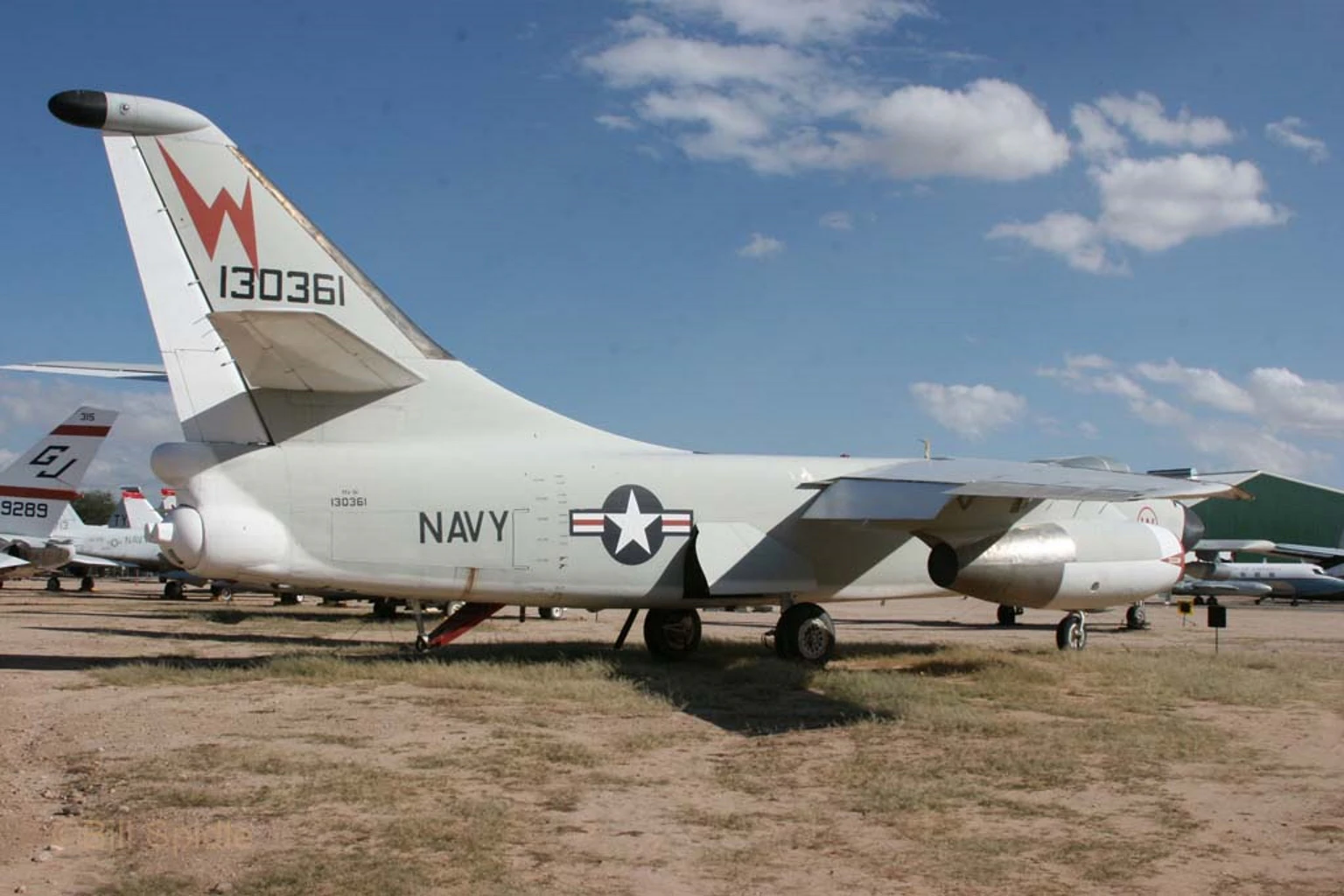

Douglas A-3 Skywarrior 01

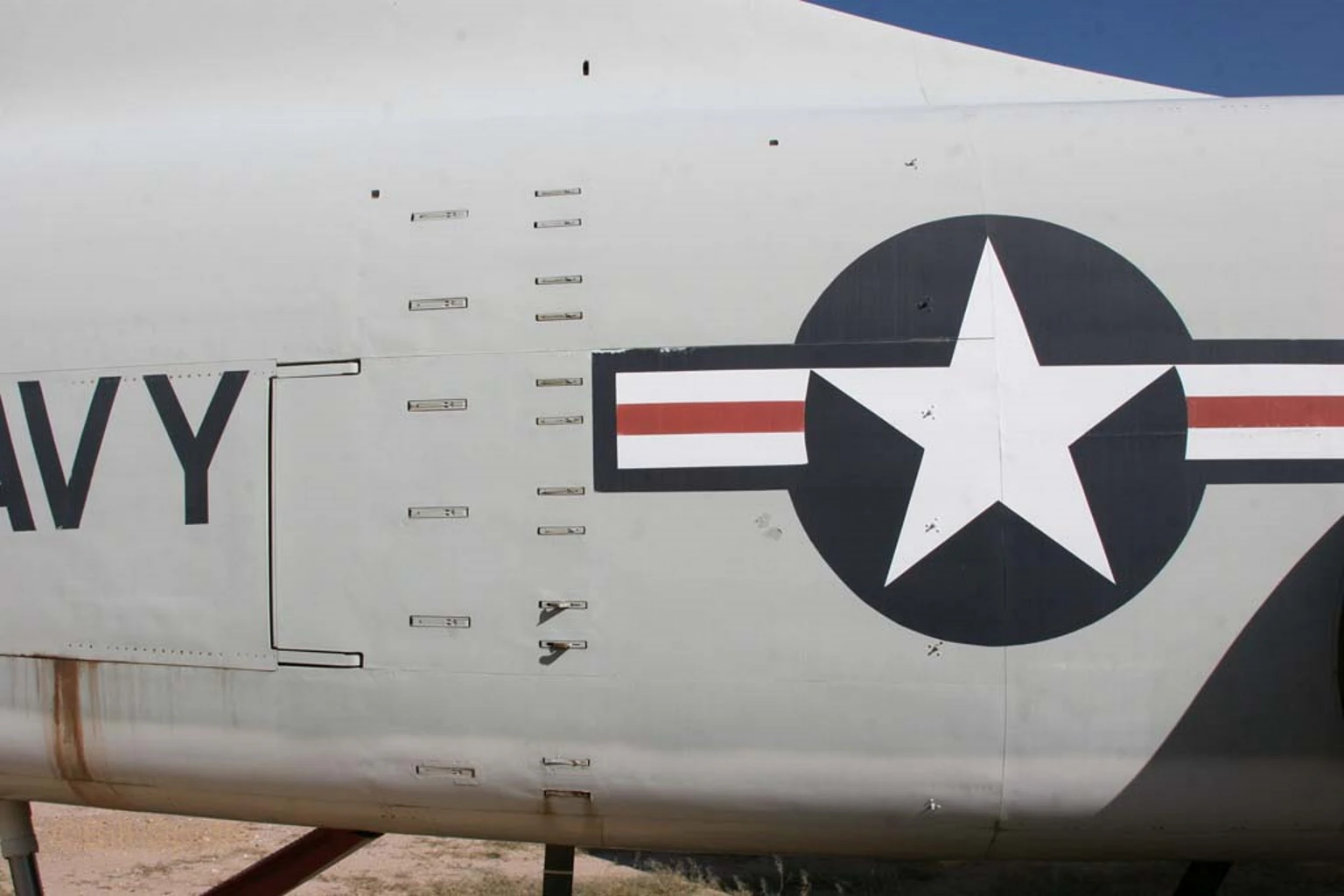

Douglas A-3 Skywarrior 02

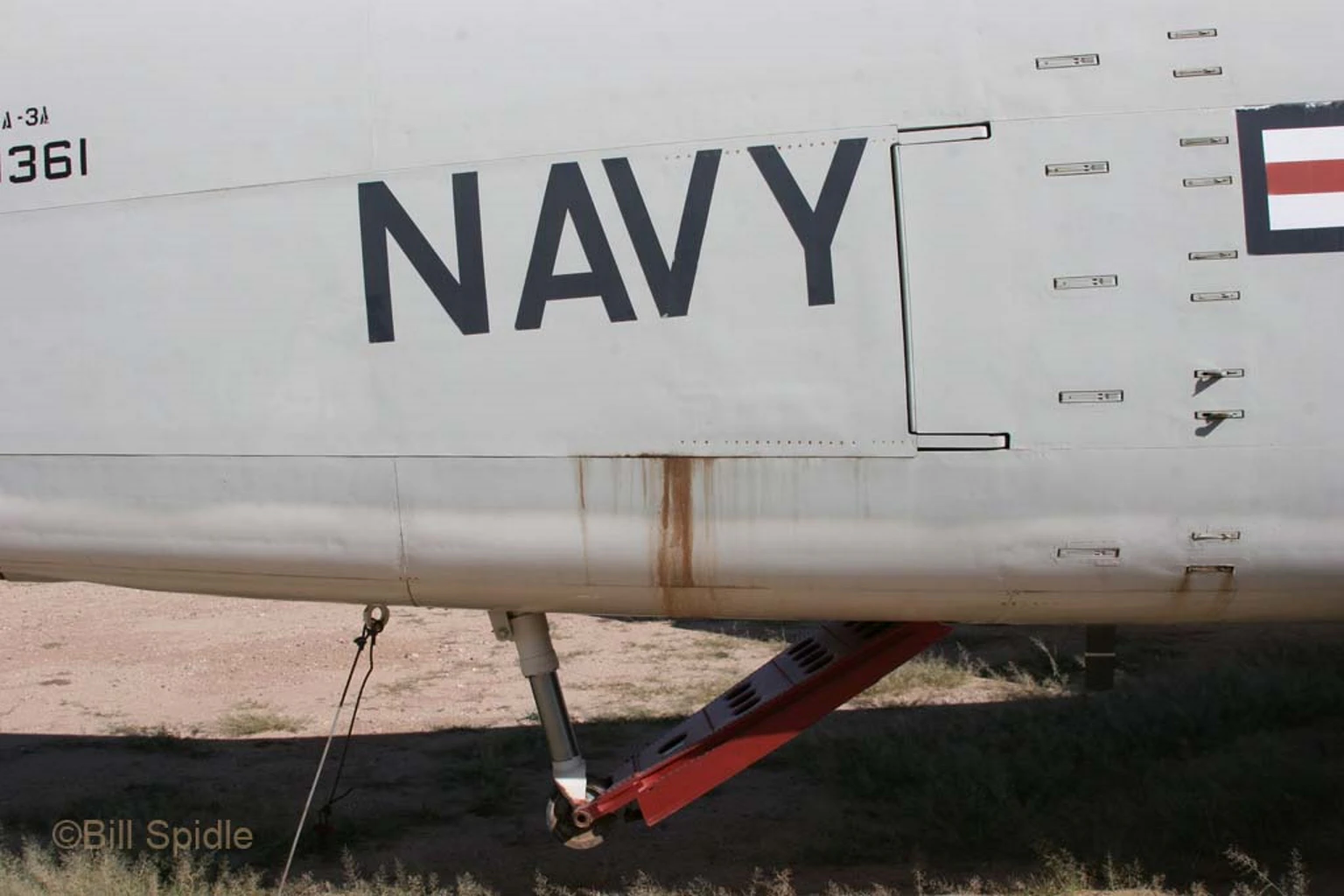

Douglas A-3 Skywarrior 03

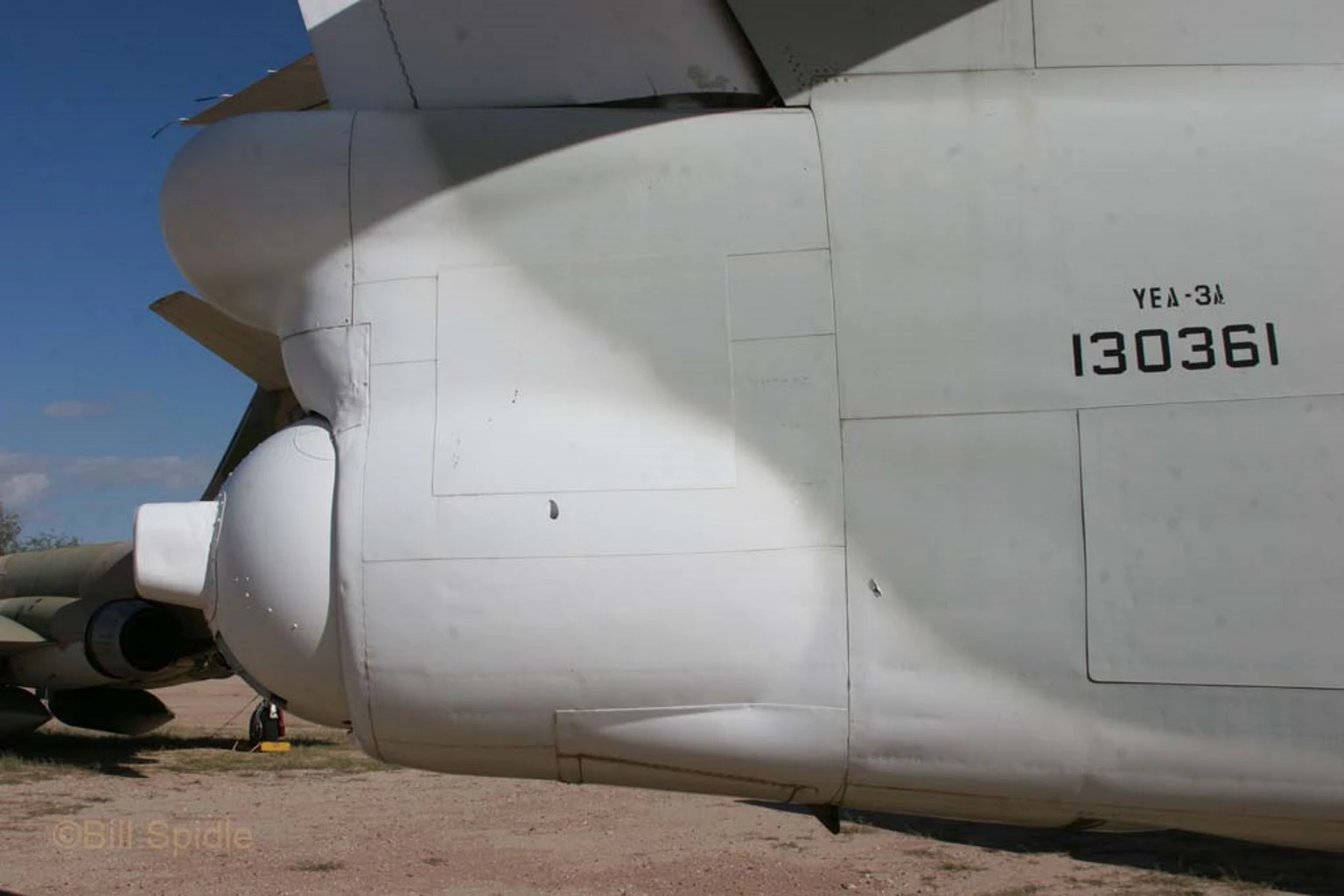

Douglas A-3 Skywarrior 04

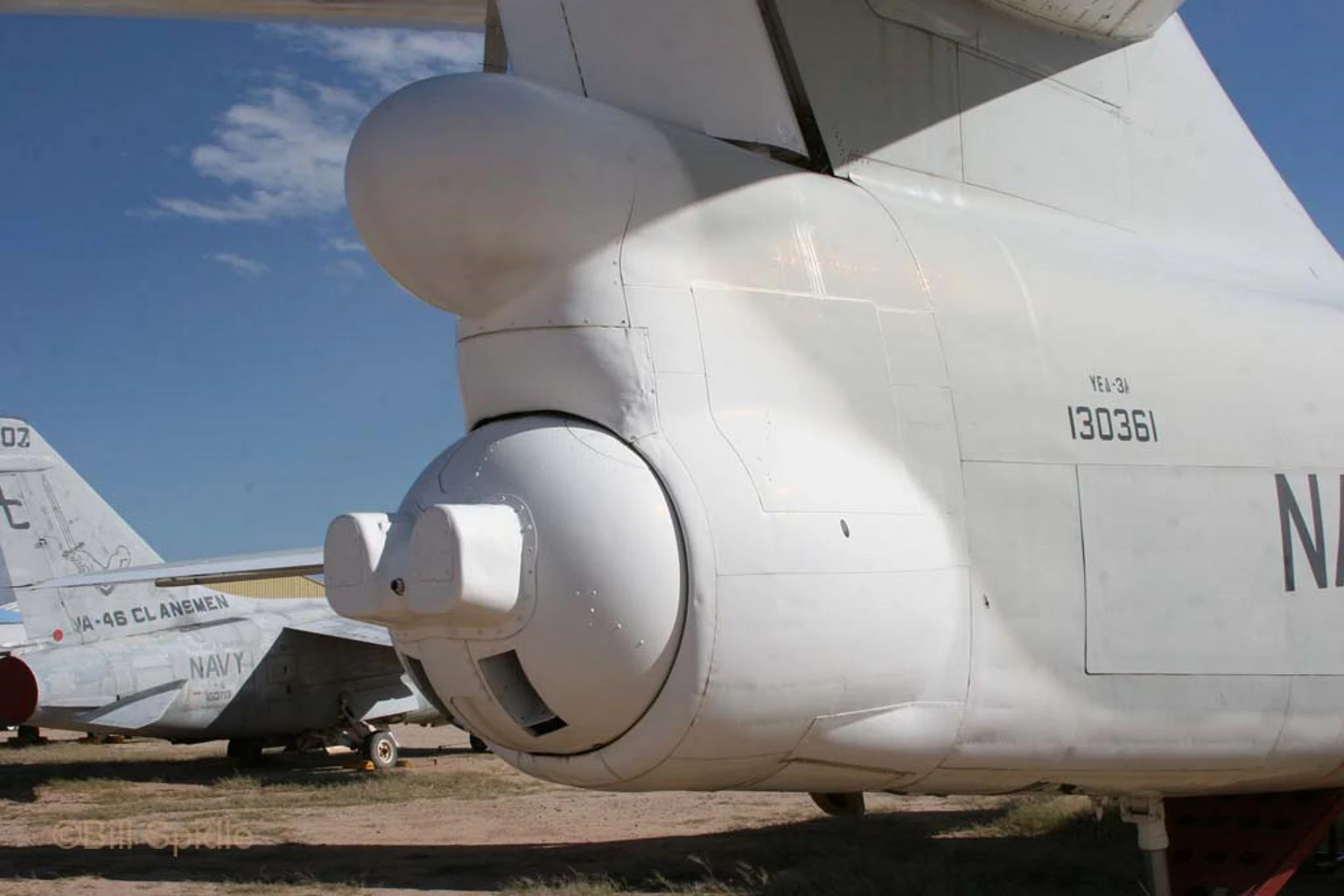

Douglas A-3 Skywarrior 05

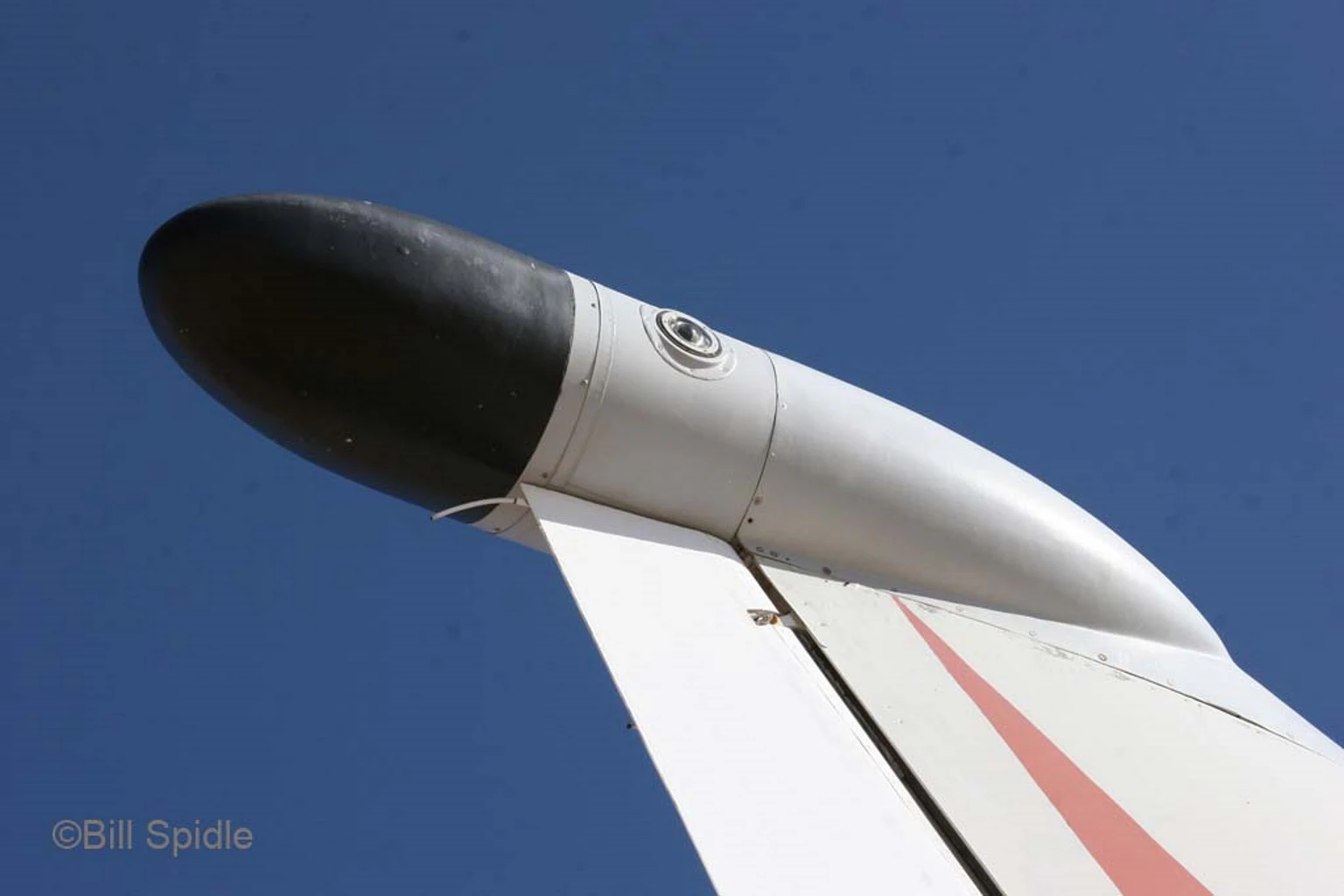

Douglas A-3 Skywarrior 06

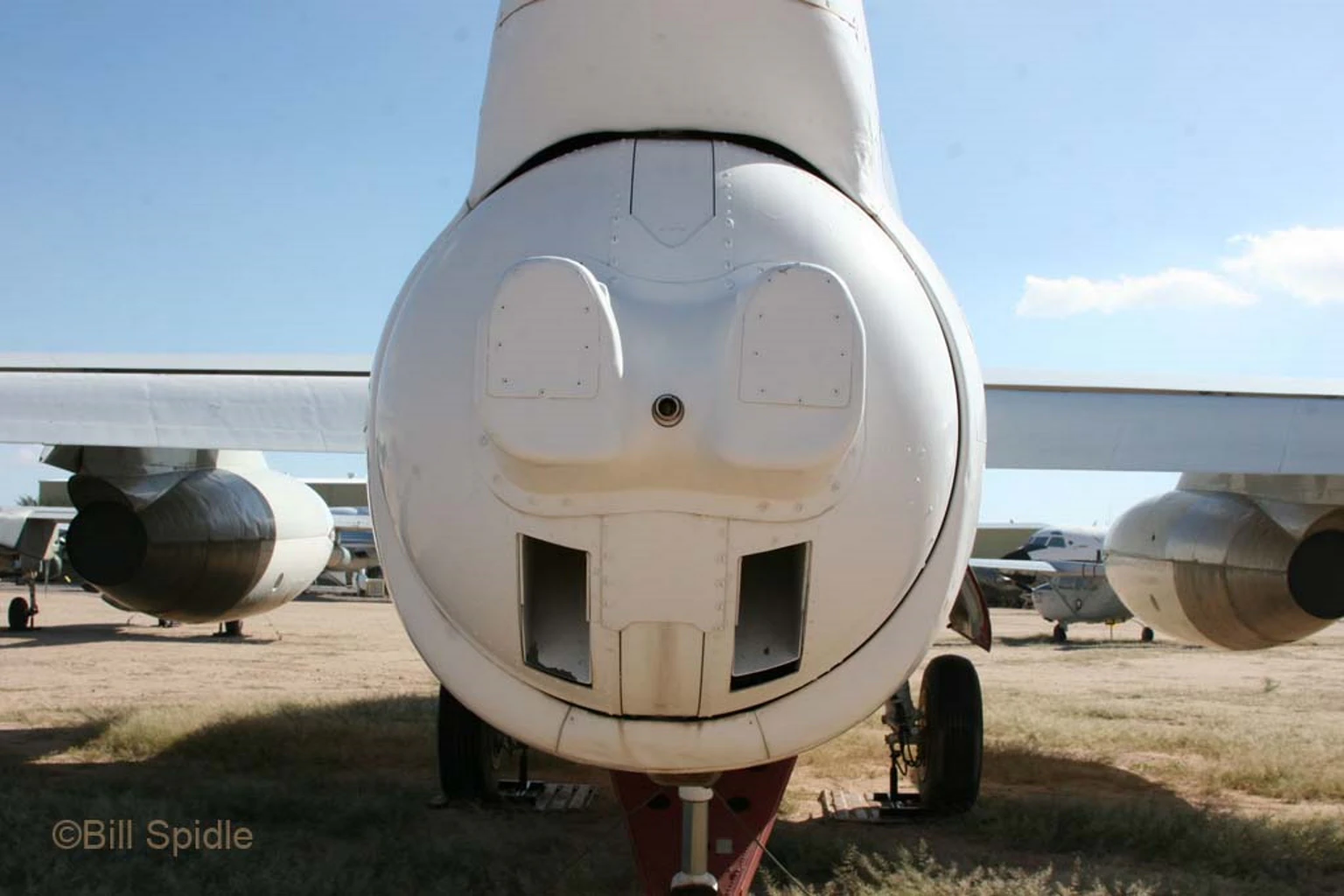

Douglas A-3 Skywarrior 07

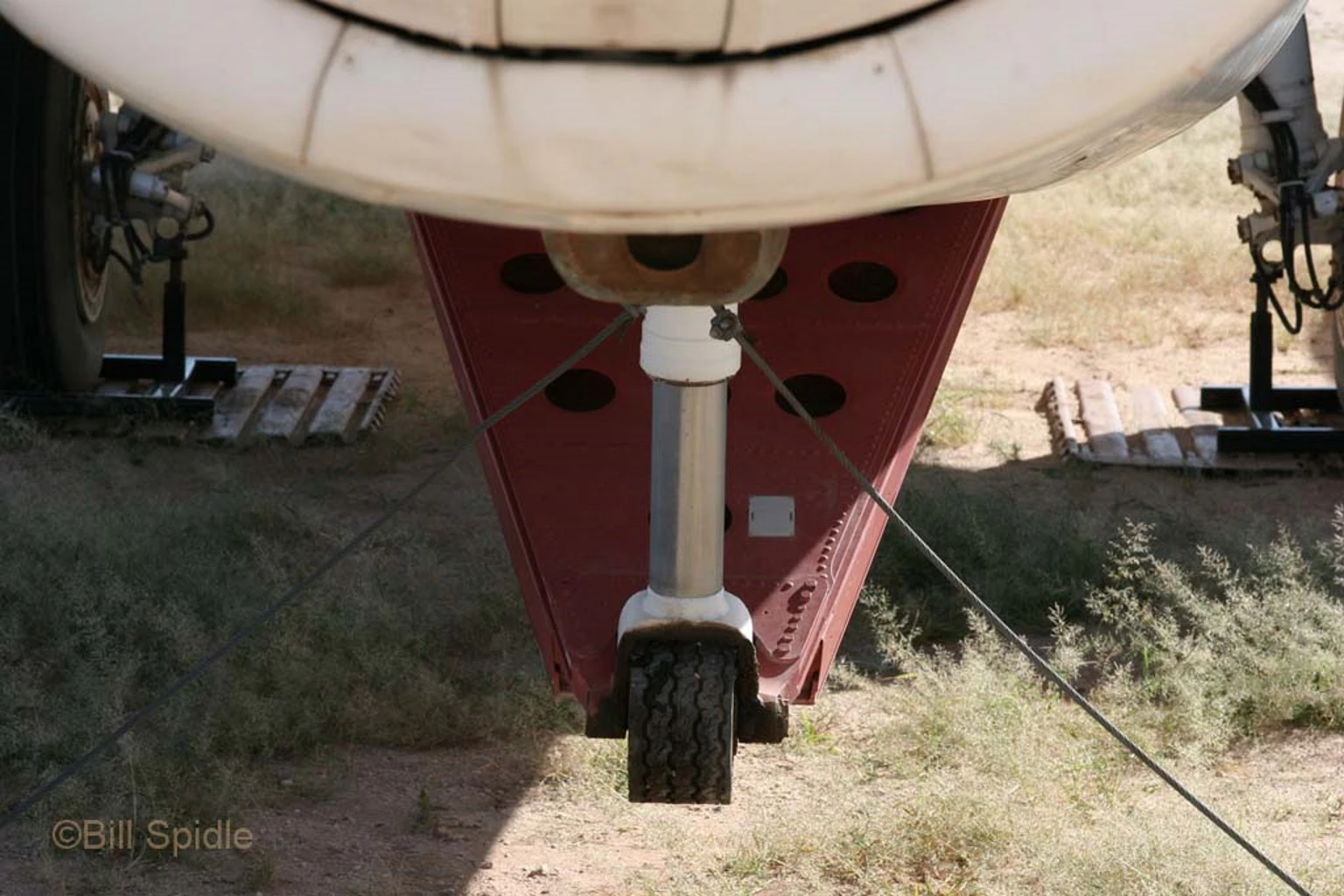

Douglas A-3 Skywarrior 08

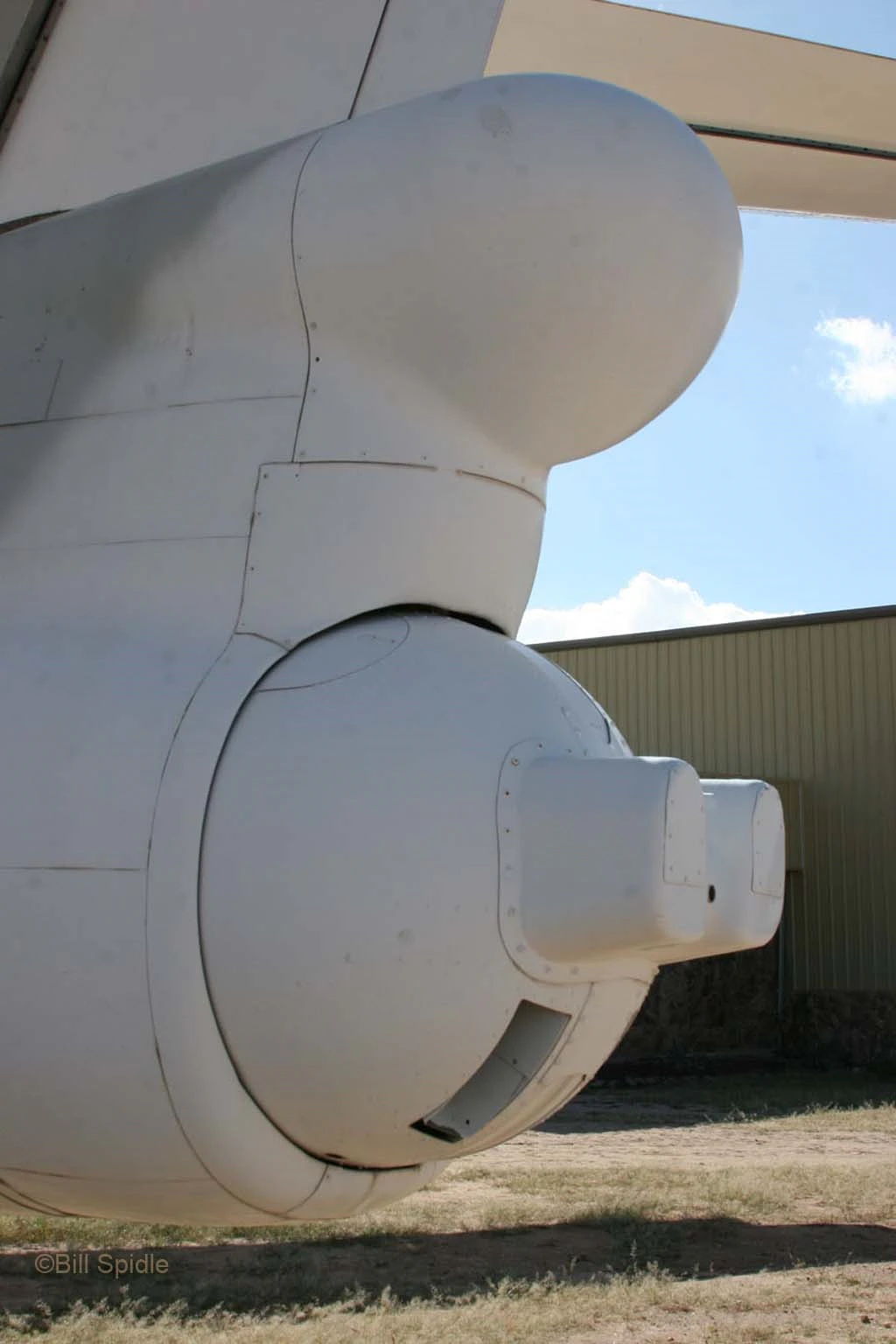

Douglas A-3 Skywarrior 09
Подождите, Поиск фотографий Дугласа A-3 Skywarrior для вас...
| Douglas EKA-3B Whale Walk Around | |
|---|---|
| Фотограф | Владимир Якубов |
| Локализации | Западный аэрокосмический музей |
| Фотографии | 58 |

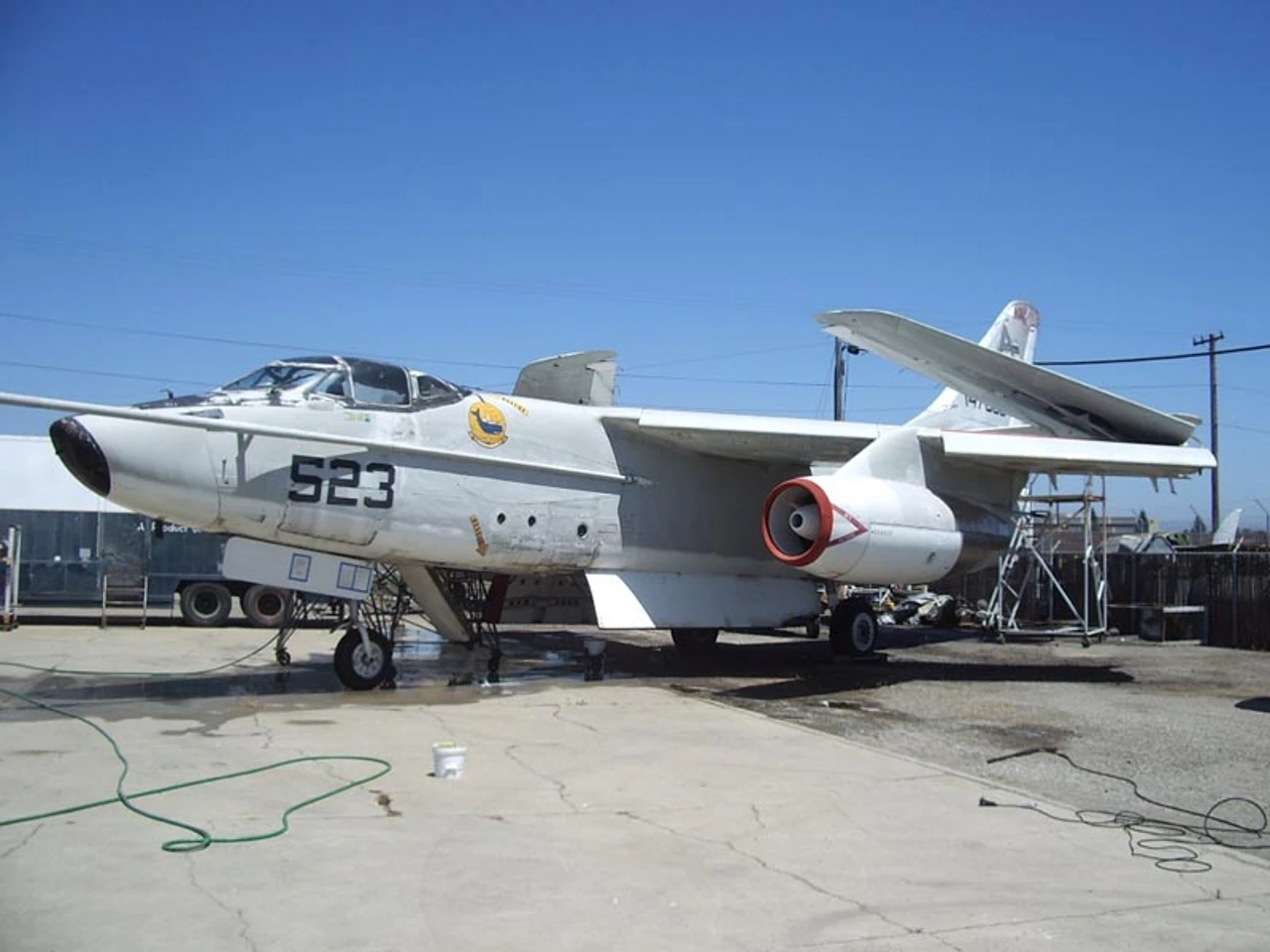

Douglas EKA-3B Whale 01

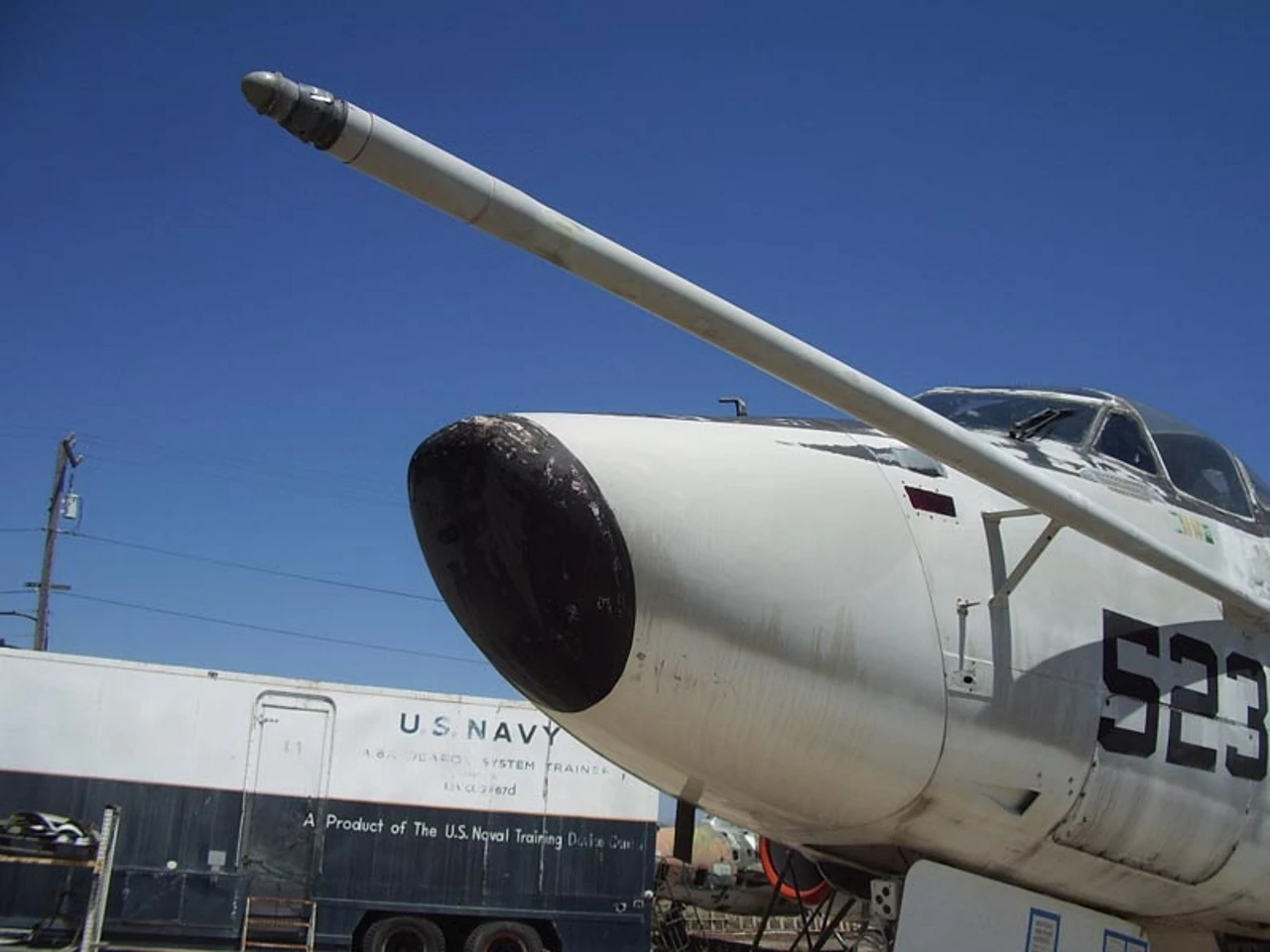

Douglas EKA-3B Whale 02

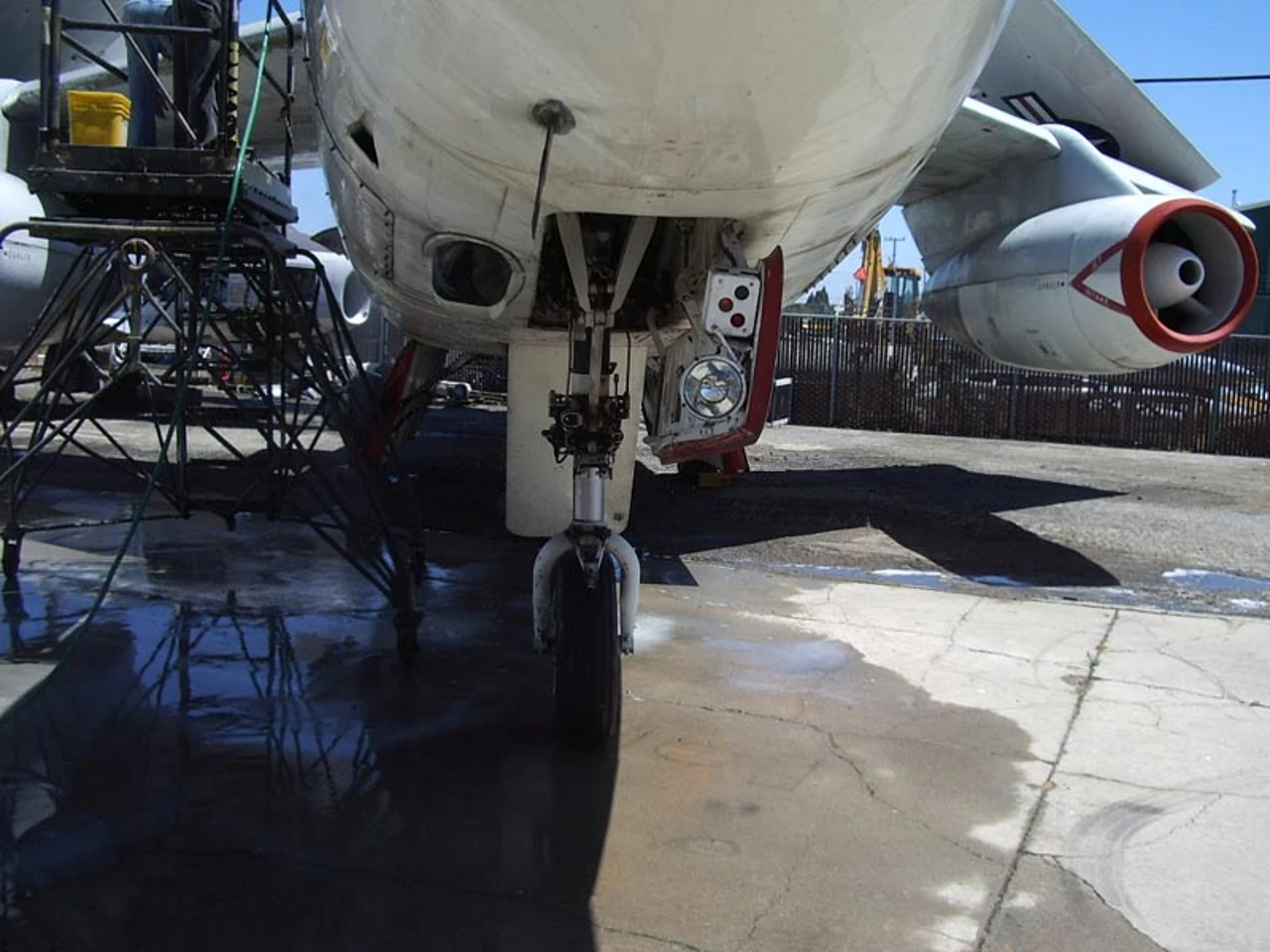

Douglas EKA-3B Whale 03

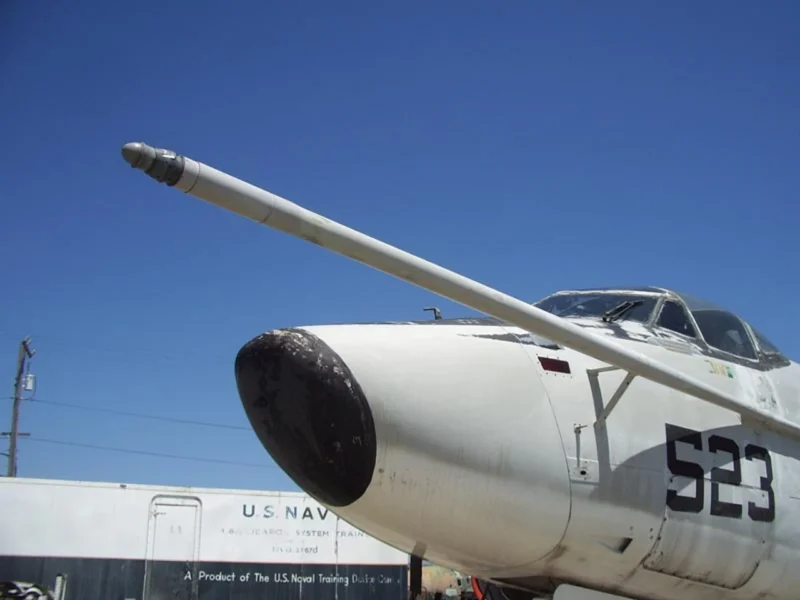

Douglas EKA-3B Whale 04

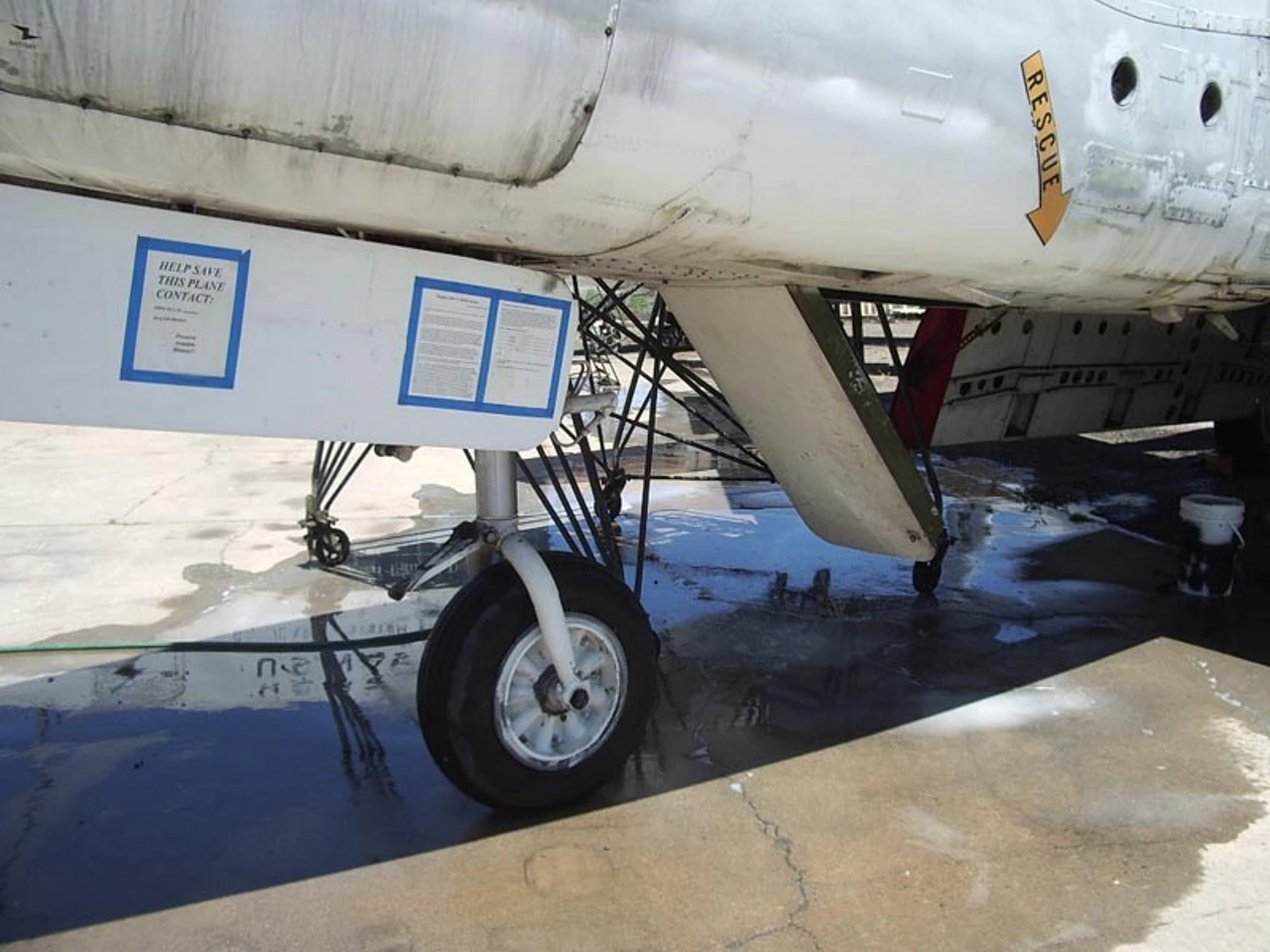

Douglas EKA-3B Whale 05

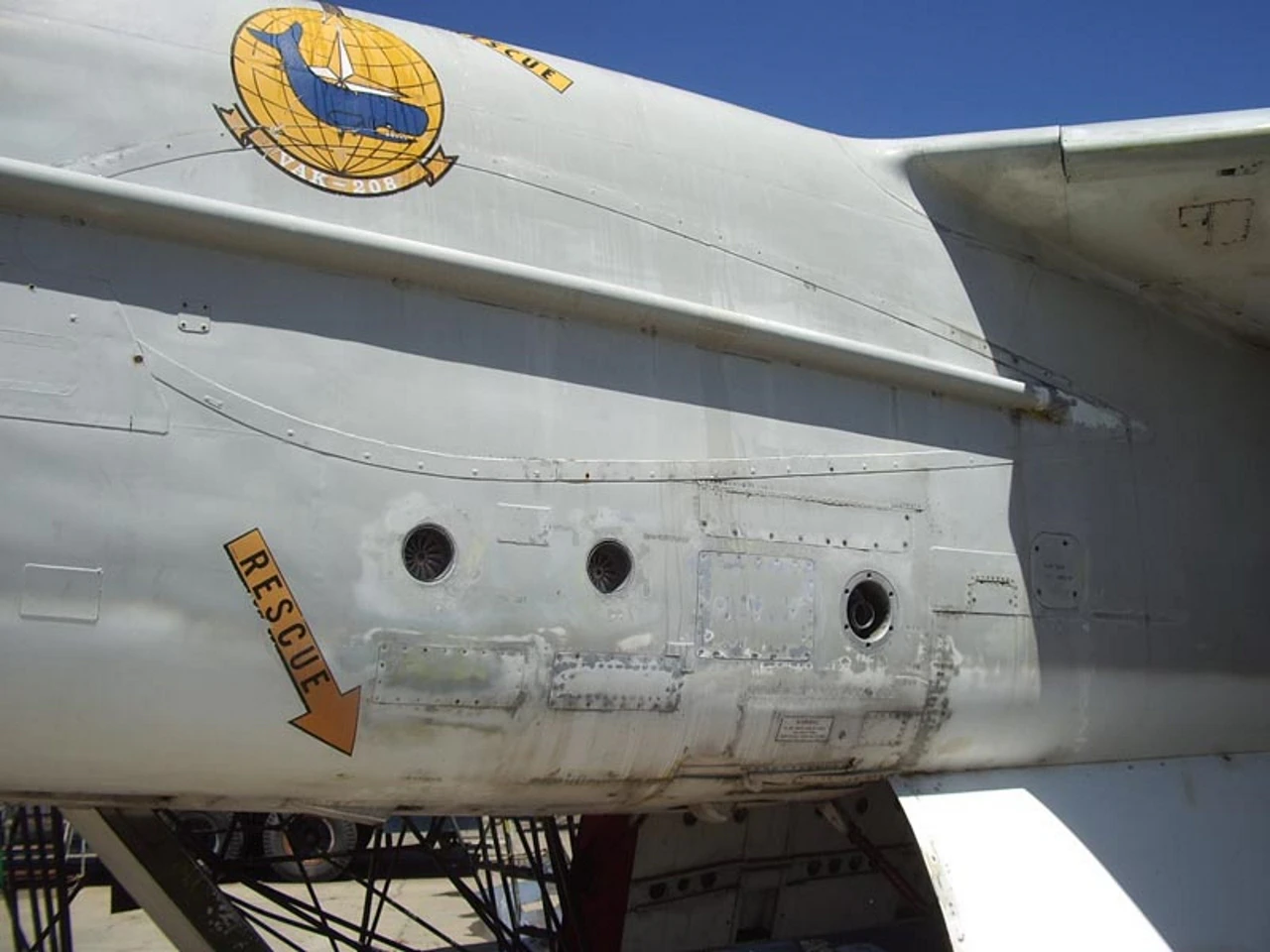

Douglas EKA-3B Whale 06

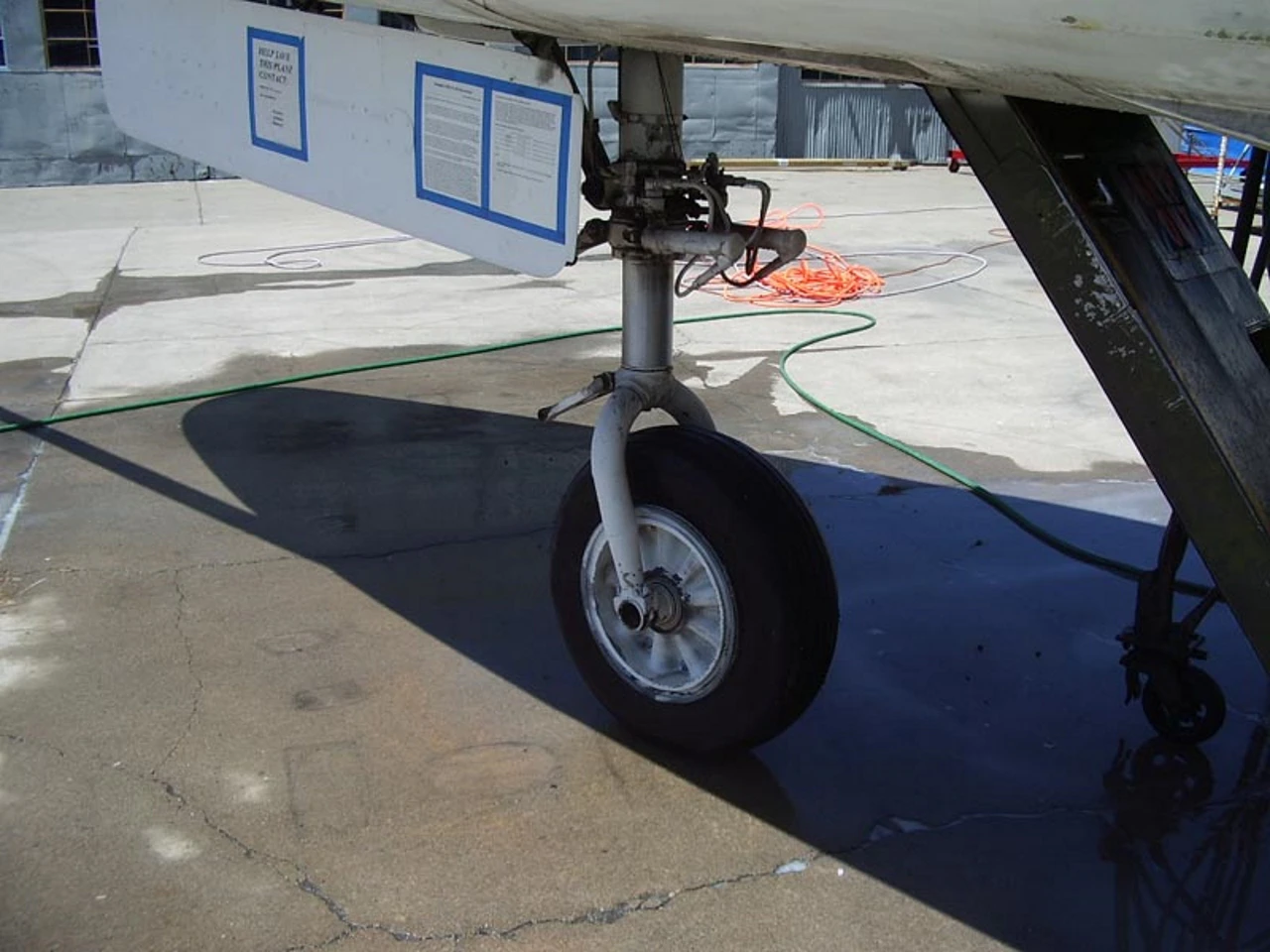

Douglas EKA-3B Whale 08

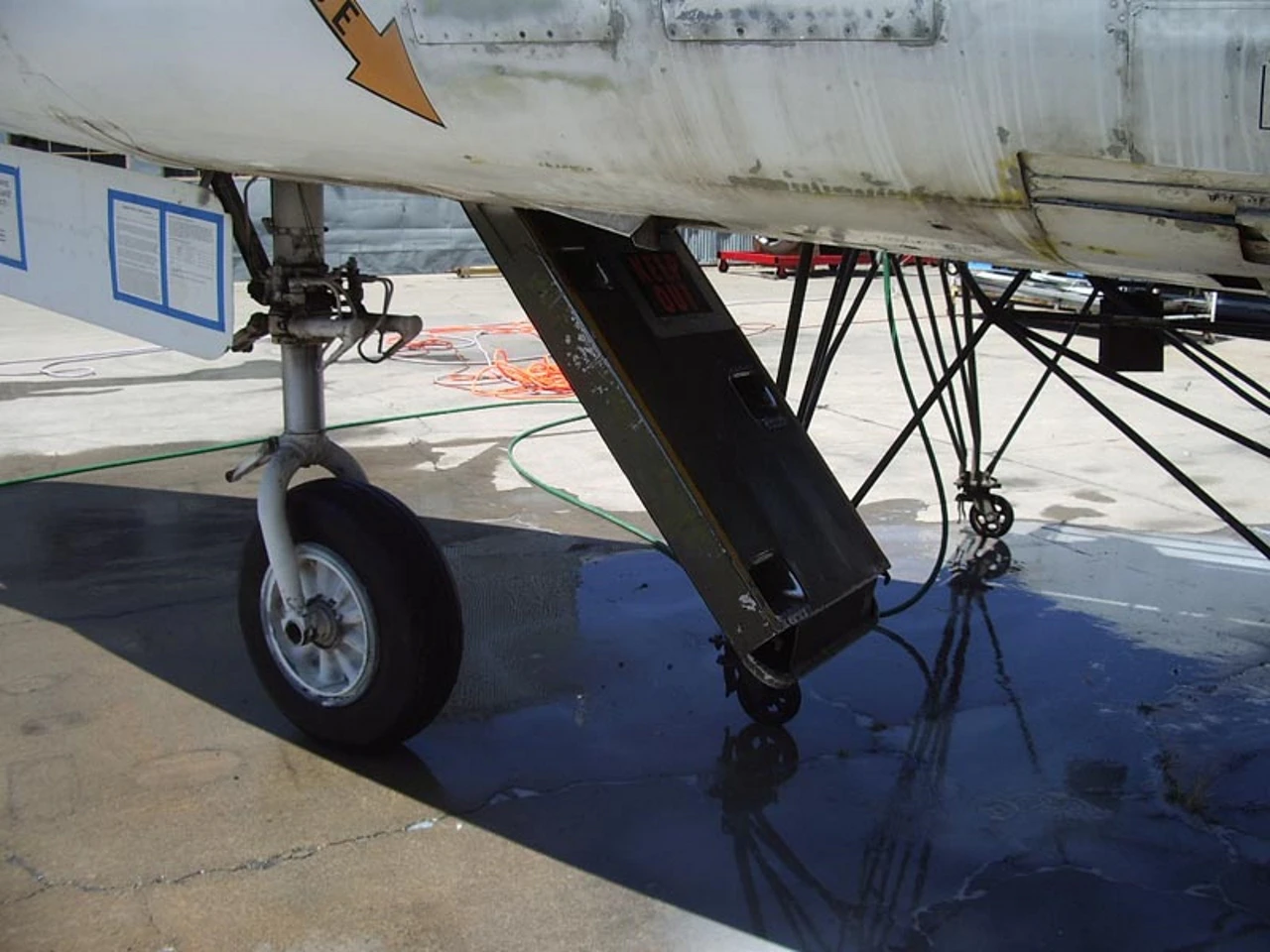

Douglas EKA-3B Whale 07

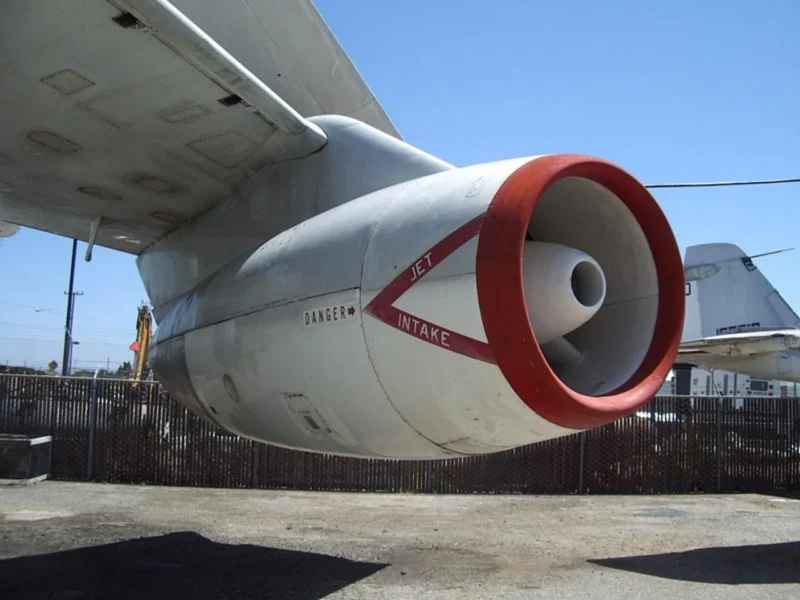

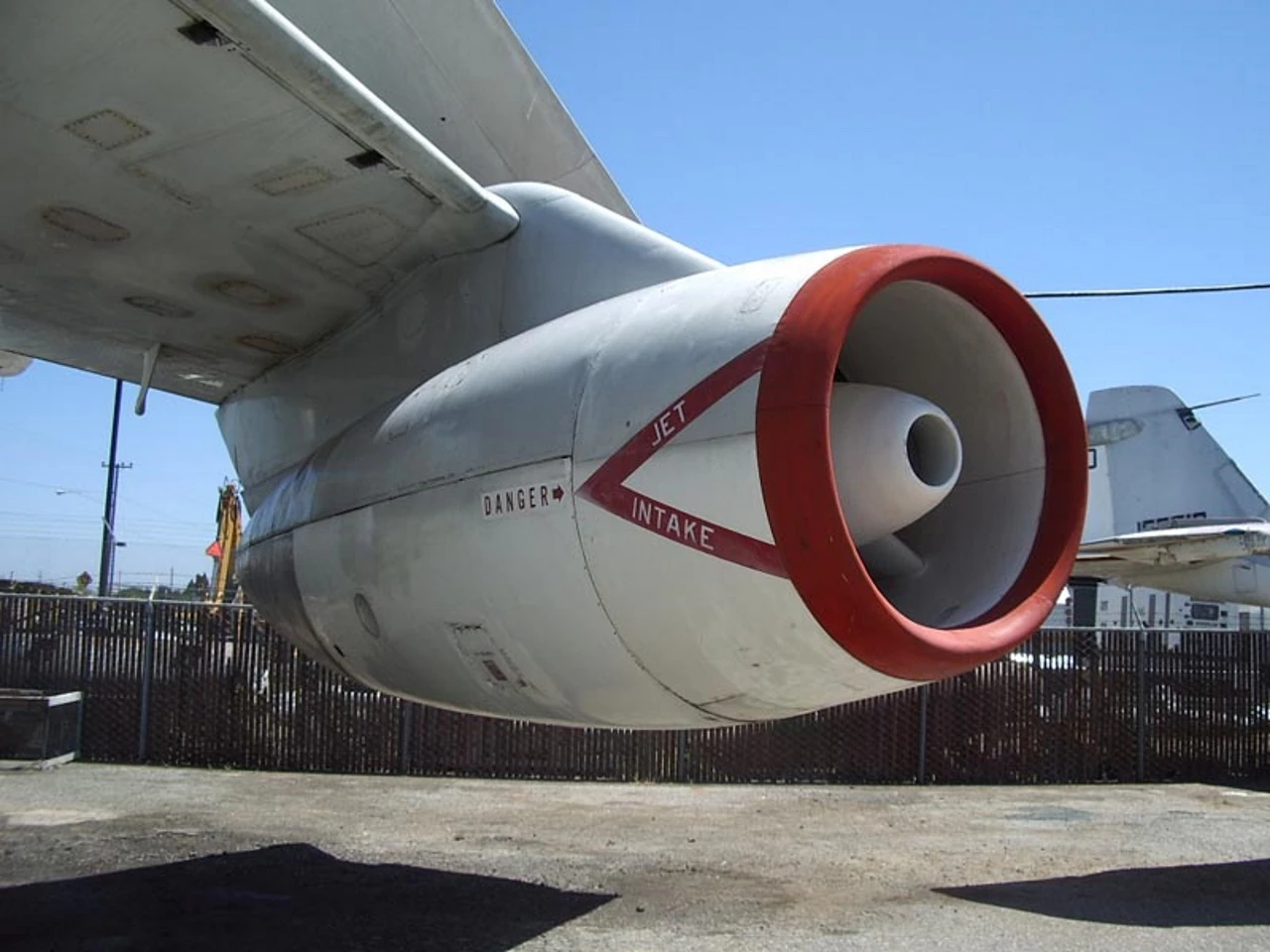

Douglas EKA-3B Whale 10
| Douglas EA-3B Skywarrior Walk Around | |
|---|---|
| Фотограф | Владимир Якубов |
| Локализации | USS Yorktown CV-10 |
| Фотографии | 185 |
Купить мне кофе| Douglas ERA-3B Skywarrior Walk Around | |
|---|---|
| Фотограф | Владимир Якубов |
| Локализации | Музей воздуха замка, Атуотер |
| Фотографии | 33-е годы |
| YEA-3A Skywarrior Walk Around | |
|---|---|
| Фотограф | Fotios Rouch |
| Локализации | Неизвестная |
| Фотографии | 94 |
Читайте также:
| YEA-3A Skywarrior Walk Around | |
|---|---|
| Фотограф | Fotios Rouch |
| Локализации | Неизвестная |
| Фотографии | 49 |

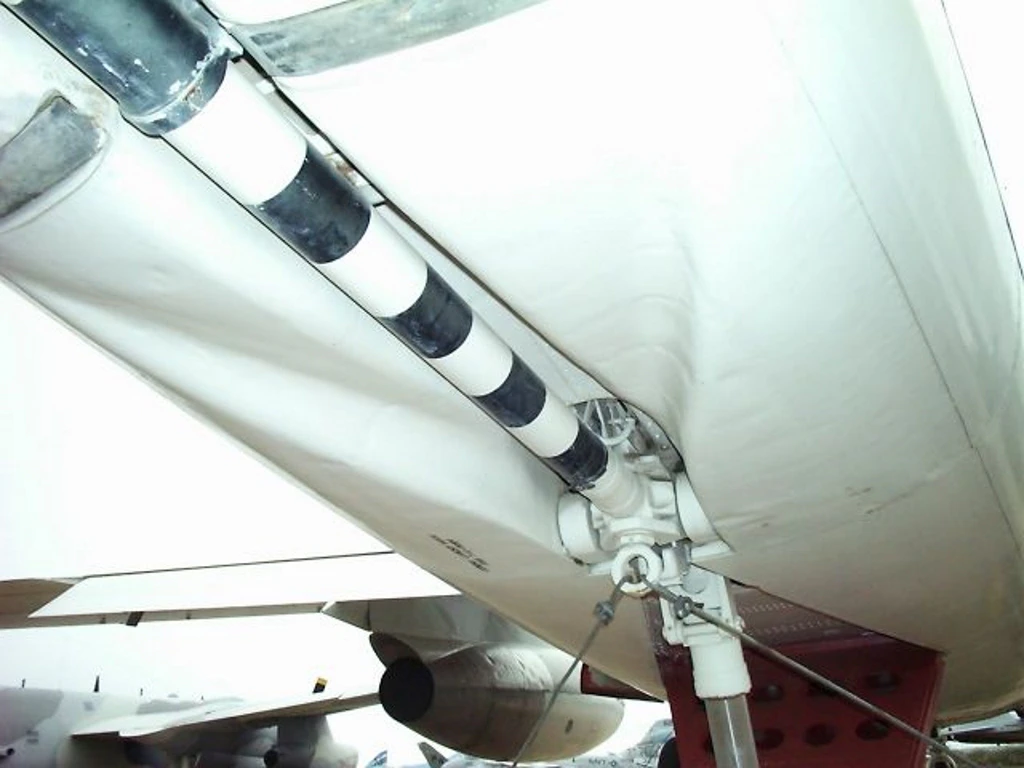

YEA-3A Skywarrior 01

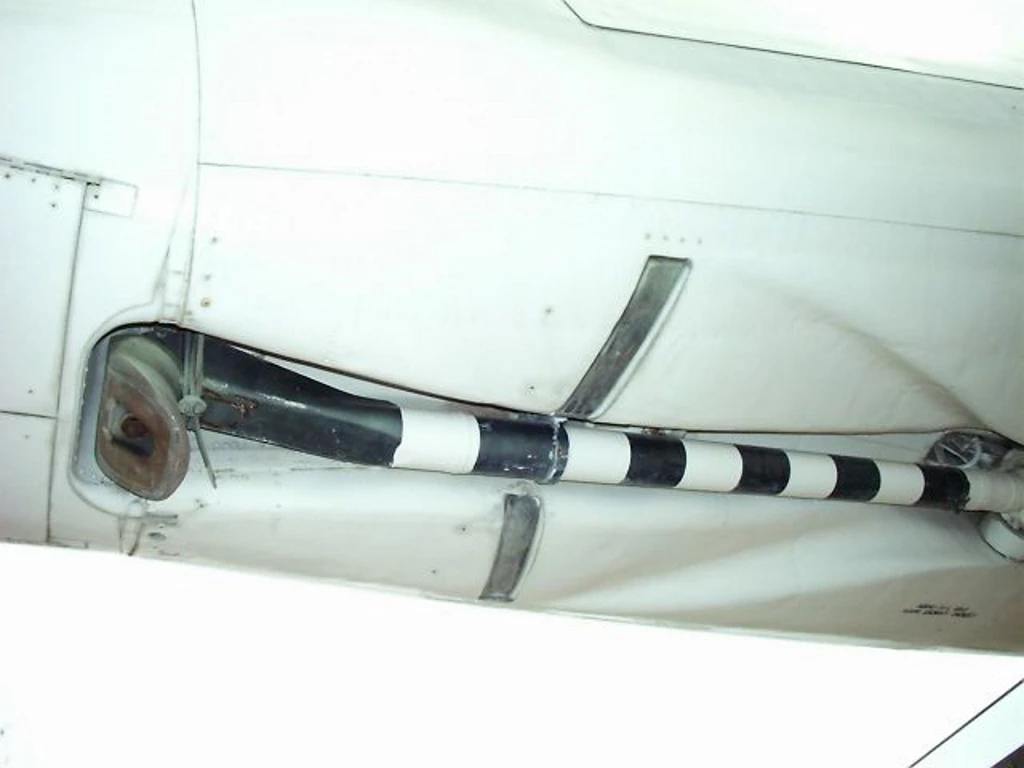

YEA-3A Skywarrior 02

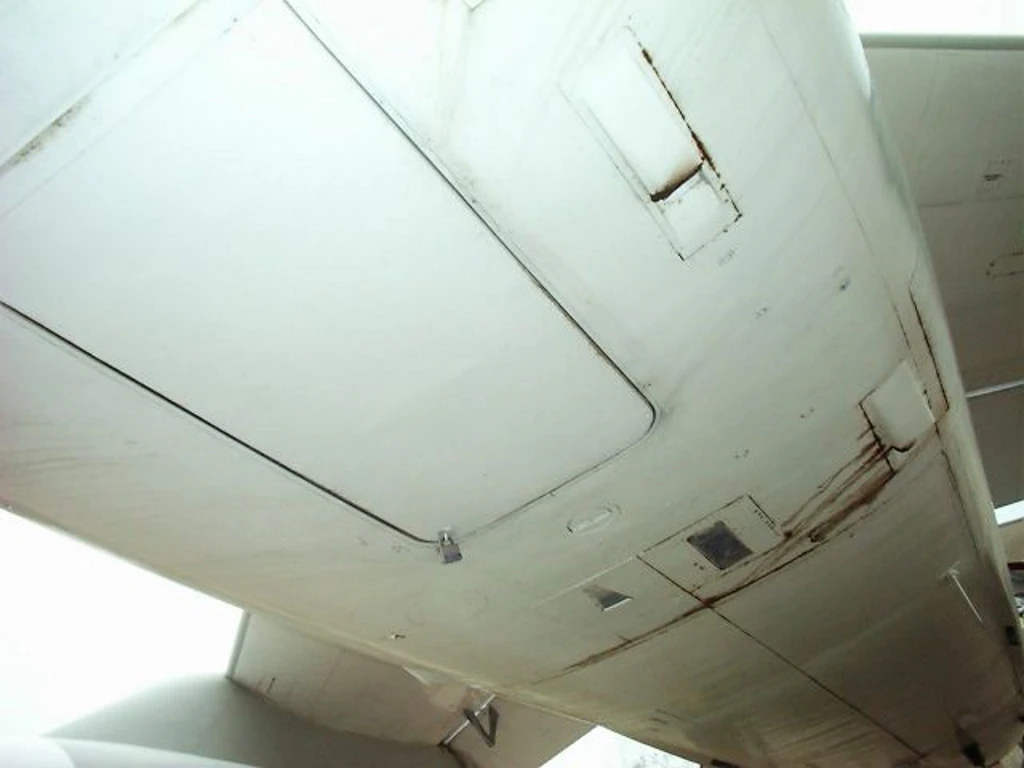

YEA-3A Skywarrior 03

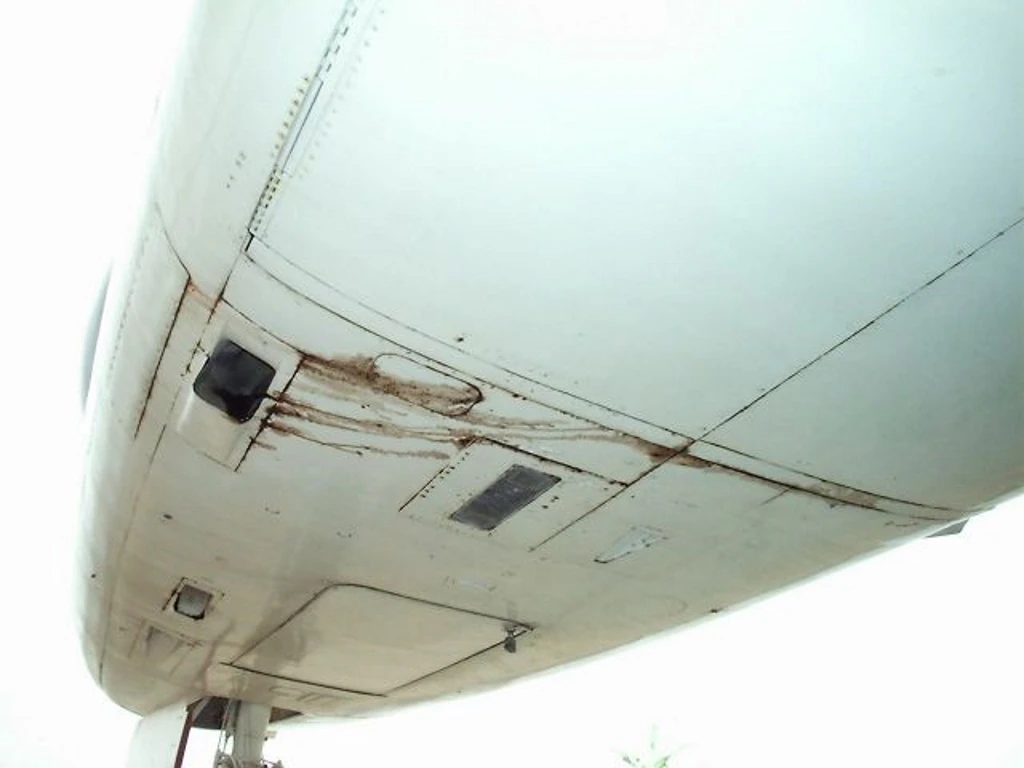

YEA-3A Skywarrior 04

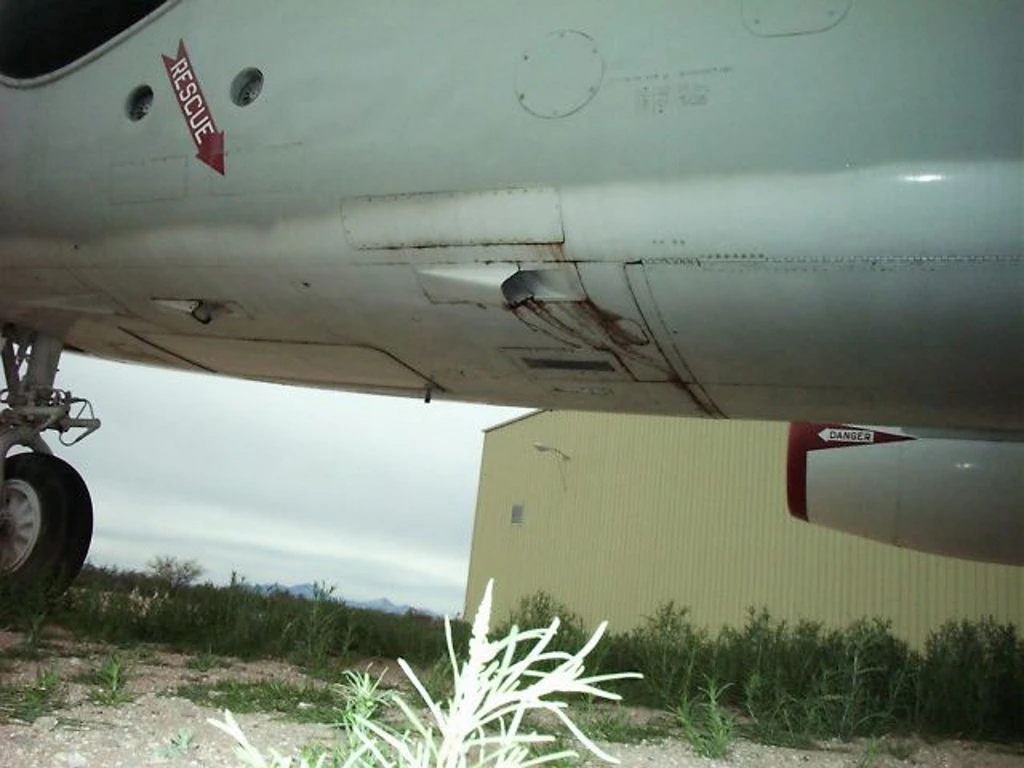

YEA-3A Skywarrior 05

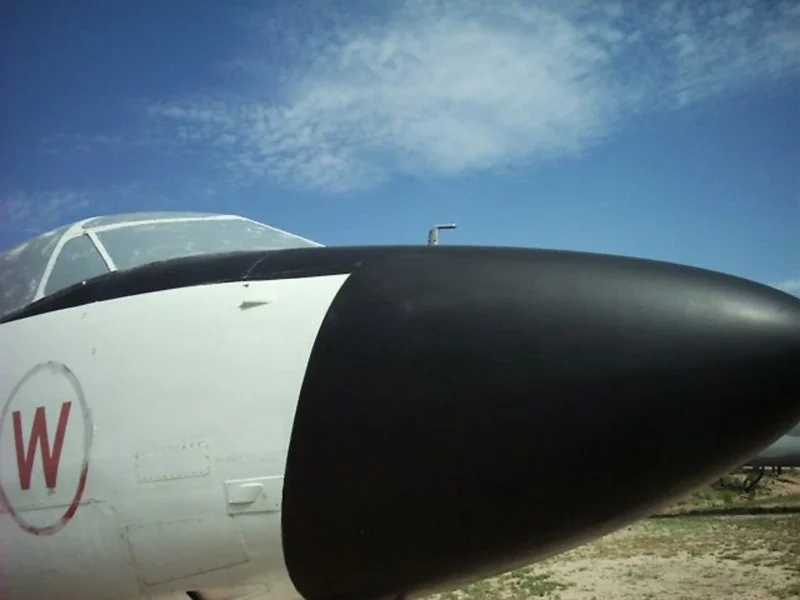

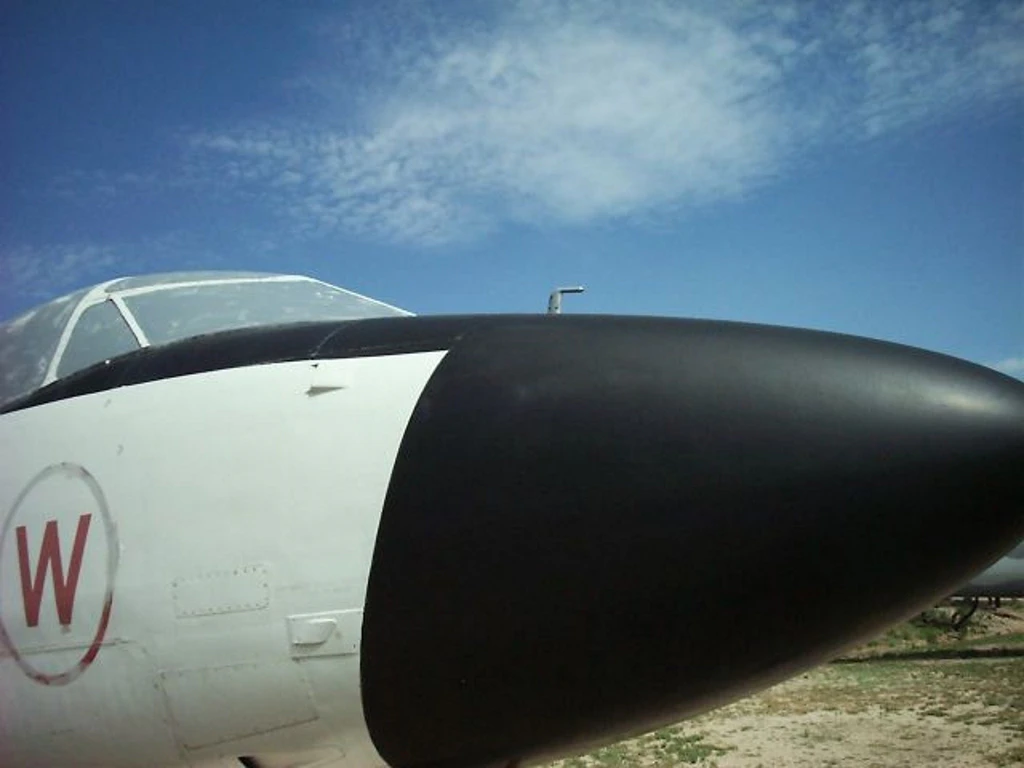

YEA-3A Skywarrior 06

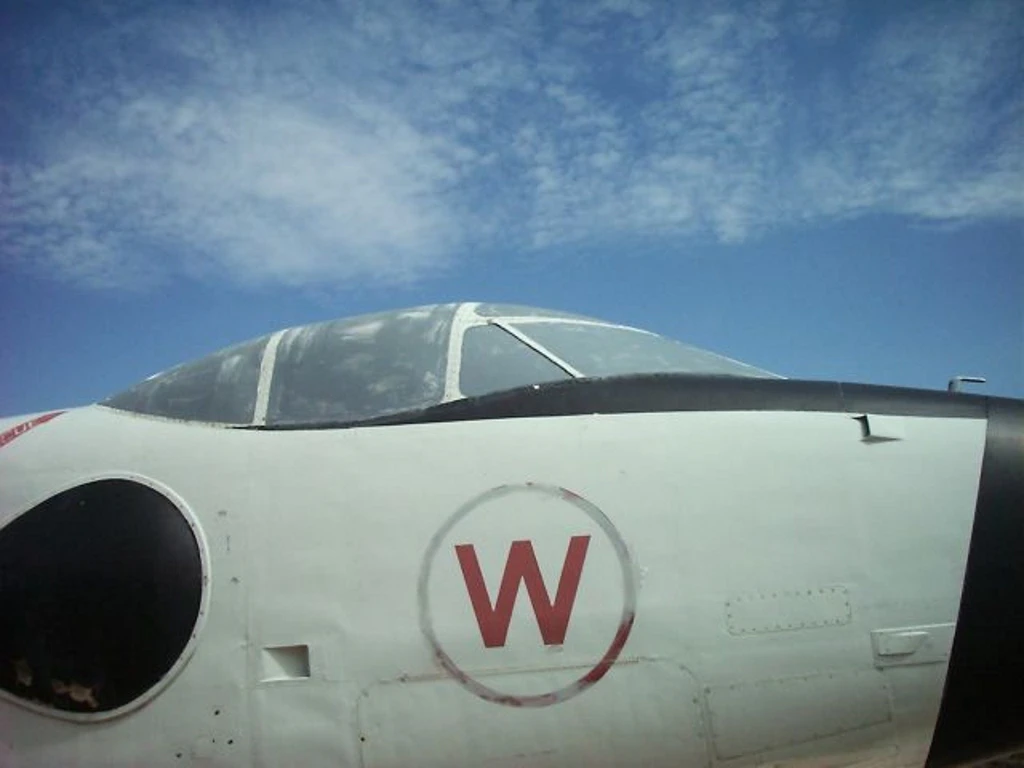

YEA-3A Skywarrior 07

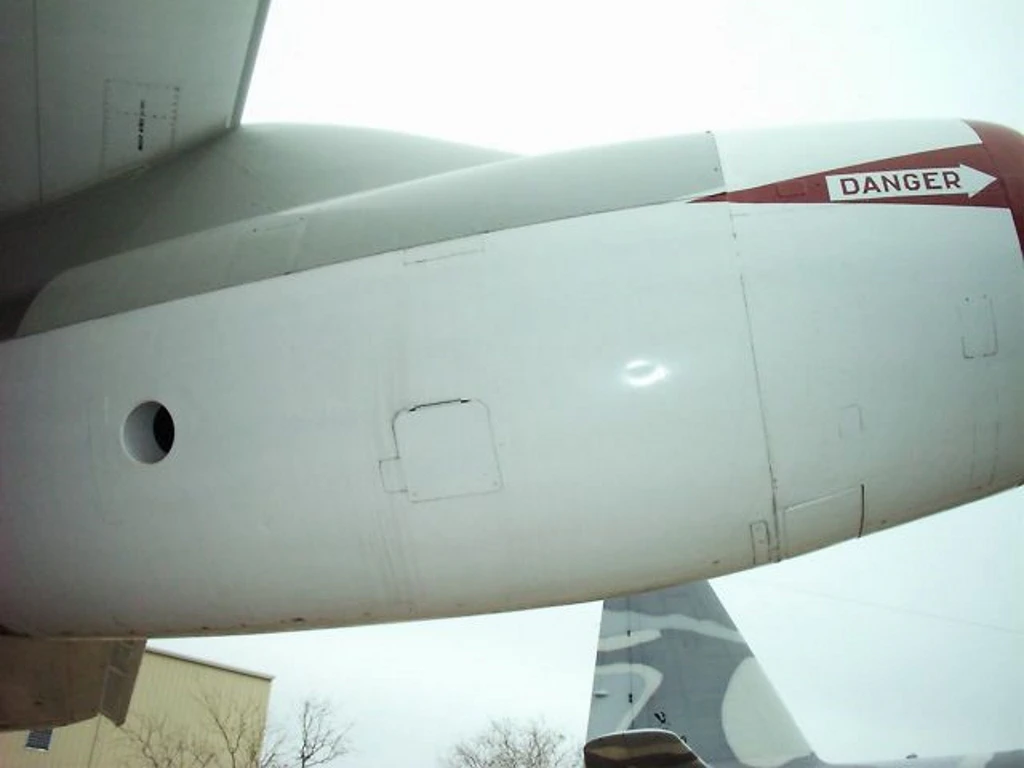

YEA-3A Skywarrior 08

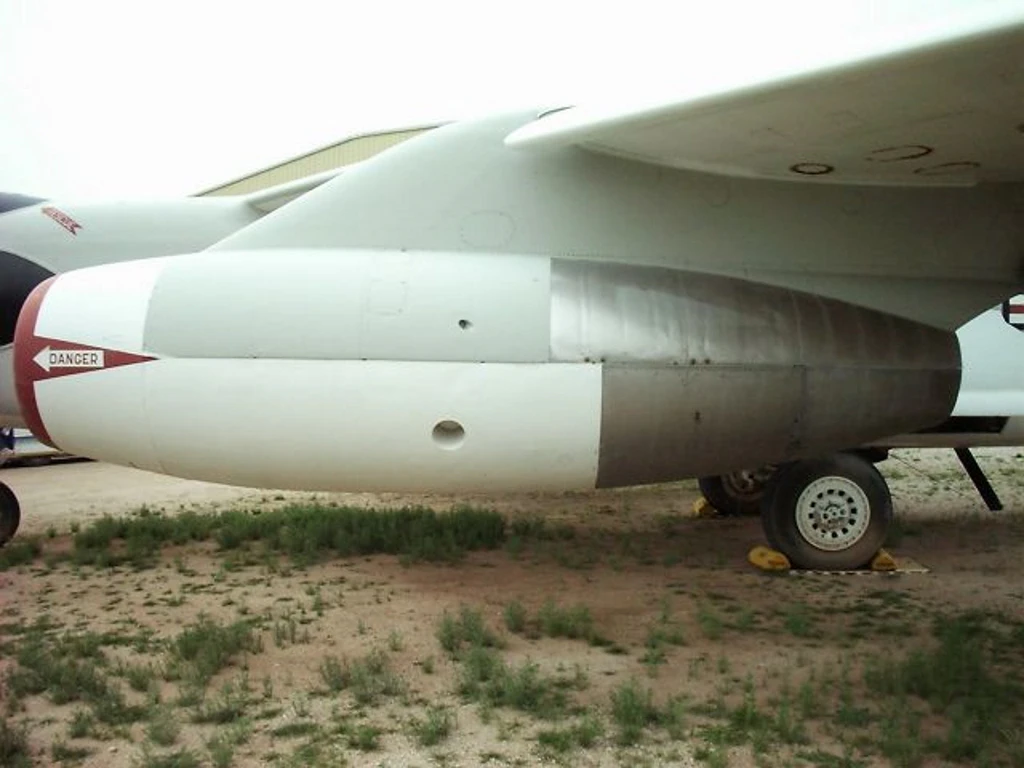

YEA-3A Skywarrior 09
The Strategic Giant of the US Navy
Teh Дуглас А-3 Скайвоорриор (originally A3D) was a leviathan of naval aviation. Born from the early Cold War need to launch nuclear strikes from aircraft carriers, it was the heaviest operational aircraft ever designed for regular carrier use. While its role as a strategic bomber was eventually superseded by ballistic missiles, the “Whale” proved to be one of the most versatile airframes in history. For over three decades, it served as the fleet’s primary tanker, electronic jammer, and reconnaissance platform, outlasting many of the supersonic jets that were meant to replace it.
| Attribute | Technical Specification (A-3B) |
|---|---|
| Роль | Strategic Bomber / Tanker / Electronic Warfare |
| Экипажа | 3 (Standard Bomber) up to 7 (Electronic Warfare) |
| Двигателей | 2 × Pratt & Whitney J57-P-10 turbojets (12,400 lbf each) |
| Max Takeoff Weight | 37,195 kg (82,000 lbs) — The Carrier Record |
| Максимальная скорость | 982 km/h (610 mph) |
| Combat Range | 4,660 km (2,900 miles) |
| Armament (Early) | 2 × 20mm M3L remote tail cannons; 12,000 lbs of bombs |
| Service Life | 1956 – 1991 |
Design Engineering: Strength Without a Safety Net
- The Weight Struggle: Designer Ed Heinemann famously fought to keep the A-3 under 70,000 lbs so it could operate from existing Midway-class carriers. He succeeded by eliminating heavy systems—most notoriously the ejection seats. This led to the crew’s dark alternative nickname for the A3D: “All 3 Dead.”
- Foldable Geometry: To fit in a carrier’s hangar deck, the Whale’s wings folded flat and its massive vertical stabilizer (tail) folded to the side. It was so large that even when folded, it dominated the deck “spot.”
- JATO Assistance: When launching at maximum “overload” weight (up to 84,000 lbs), the A-3 could use 12 JATO (Jet-Assisted Take-Off) rocket bottles to blast itself off the deck, providing a spectacular display of fire and smoke.
- The “Crows” and “Ravens”: In the EA-3B electronic version, the bomb bay was replaced with a pressurized compartment for four electronic warfare specialists who monitored enemy radars, known as “Ravens” or “Crows.”
Operational History: The Life-Saving Tanker
- Vietnam’s Guardian: During the Vietnam War, the KA-3B tanker variant became the most beloved plane on the carrier. It is credited with saving hundreds of strike jets (F-4s and A-4s) that were returning from missions with battle damage or empty tanks, “nursing” them all the way back to the carrier’s wire.
- The “Electronic Whale”: The EKA-3B was a unique dual-role hybrid. It could jam North Vietnamese surface-to-air missile (SAM) radars while simultaneously refueling the very strike planes it was protecting.
- Nuclear Heritage: In its early years, the A-3 was the “tip of the spear” for the Navy’s nuclear deterrent. It carried the massive, early-generation nuclear gravity bombs that were too heavy for any other carrier aircraft.
- Final Bow in the Desert: The Skywarrior’s last combat service was in Operation Desert Storm (1991), where EA-3B electronic reconnaissance planes provided critical intelligence before the type was finally retired that same year.
