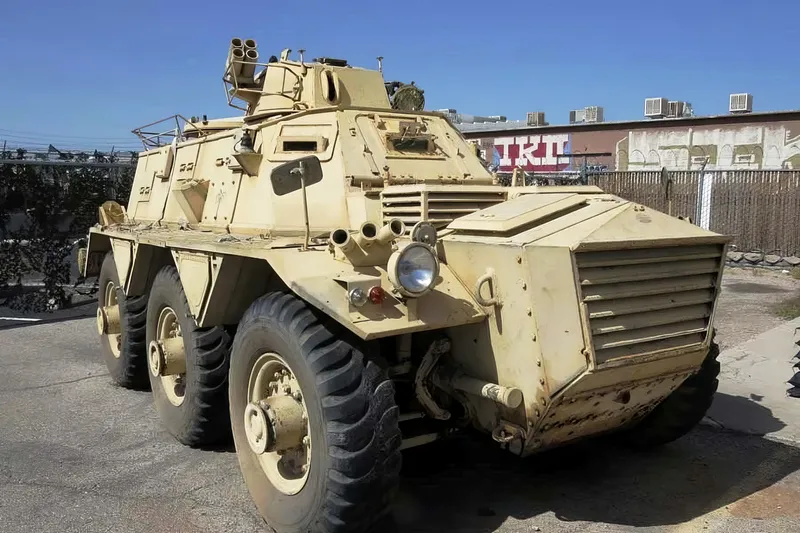

FV603 Saracen | |
|---|---|
| Pays | Royaume-uni |
| Rôle | Véhicule blindé de transport de troupes |
| Entrée en service | 1952 |
| Construit | Inconnu |
Lla FV603 Sarrasin est un véhicule blindé de transport de troupes à six roues conçu et produit par Alvis depuis 1952. Il a été utilisé par une variété d’opérateurs à travers le monde, et est toujours utilisé dans des rôles secondaires dans certains pays. Le Saracen est devenu un véhicule reconnaissable en raison de son rôle dans le maintien de l’ordre en Irlande du Nord ainsi que pour son rôle dans le gouvernement sud-africain’l’application de l’apartheid.
Source: FV603 Saracen sur Wikipédia
| FV603 Saracen Walk Around | |
|---|---|
| Photographes | Inconnu |
| Localisation | Inconnu |
| Photos | 34 |
Voir aussi :
General Characteristics (Cold War Era)
The FV603 Saracen is a classic British six-wheeled Armored Personnel Carrier (APC) designed and manufactured by Alvis. Developed in the post-WWII era, it was part of the FV600 series (sharing many components with the Saladin armored car). It is most famously recognized for its use by the British Army in internal security and riot control roles, particularly during the conflict in Northern Ireland.
| Property | Typical Value (FV603 Mk 2) |
|---|---|
| Rôle | Armored Personnel Carrier (APC) / Internal Security |
| Designer/Manufacturer | Alvis Ltd. |
| Entered Service | 1952 |
| Crew | 2 (Driver, Commander) |
| Capacité | 10 troops |
| Length | 5.23 m (17 ft 1 in) |
| Width | 2.54 m (8 ft 4 in) |
| Combat Weight | ~10,170 kg (11.2 tons) |
| Wheel Configuration | 6×6 |
Design and Powerplant
- Engine: Rolls-Royce B80 Mk 6A 8-cylinder petrol engine.
- Power Output: 119 kW (160 hp).
- Transmission: Fluid coupling with a 5-speed pre-selector gearbox.
- Armor: Rolled Homogeneous Armor (RHA) with a maximum thickness of 16 mm, providing protection against small arms fire and shell splinters.
- Shared Components: Shares its basic chassis, suspension, and H-drive drivetrain with the FV601 Saladin Armored Car.
- Troop Access: Troops enter and exit via two large doors at the rear of the hull.
Performance and Armament
- Maximum Road Speed: 72 km/h (45 mph).
- Operational Range: Approximately 400 km (250 miles).
- Main Armament: One 7.62 mm (.30 cal) Browning M1919 machine gun (or L37 GPMG) in a small one-man turret.
- Secondary Armament: A 7.62 mm machine gun (often a Bren or another M1919) on a ring-mount at the rear of the troop compartment roof.
- Fire Ports: Firing ports in the hull sides and rear allowed the transported troops to engage targets from within the protection of the armor.
- Riot Control Role: For non-lethal use, Saracens were often fitted with wire mesh screens (for protection against improvised explosives/firebombs) and, occasionally, water cannons.
