| Bandvagn BvS10 | |
|---|---|
| Land | Sverige |
| Rolle | Amfibisk pansret kjøretøy |
| Designer | BAE Systems Land Systems Hägglunds |
| Bygget | Unknow |
Den BvS10 (Bandvagn Skyddad 10, også kjent som Bandvagn 410 eller BV410) er et belteledd amfibisk terrengpansret kjøretøy produsert av BAE Systems Land Systems Hägglunds i Sverige. Dette kjøretøyet, referert til som All Terrain Vehicle (protected) – ATV(P) eller Viking av de britiske styrkene, ble opprinnelig utviklet som et samarbeid mellom industrien – Hägglunds Vehicle AB – og det britiske forsvarsdepartementet (MoD) på vegne av Royal Marines.
Kilde: Bandvagn BvS10 på Wikipedia

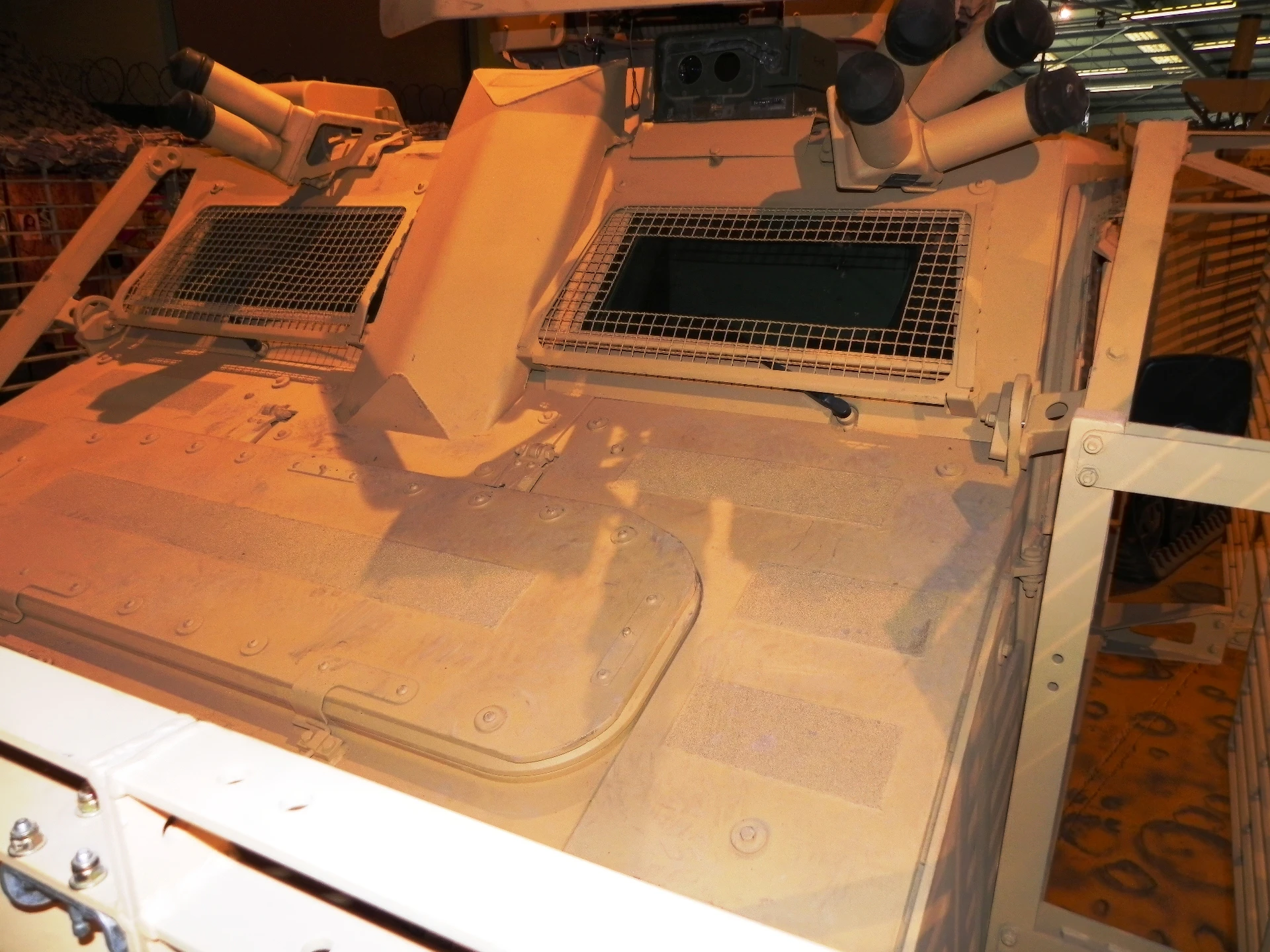

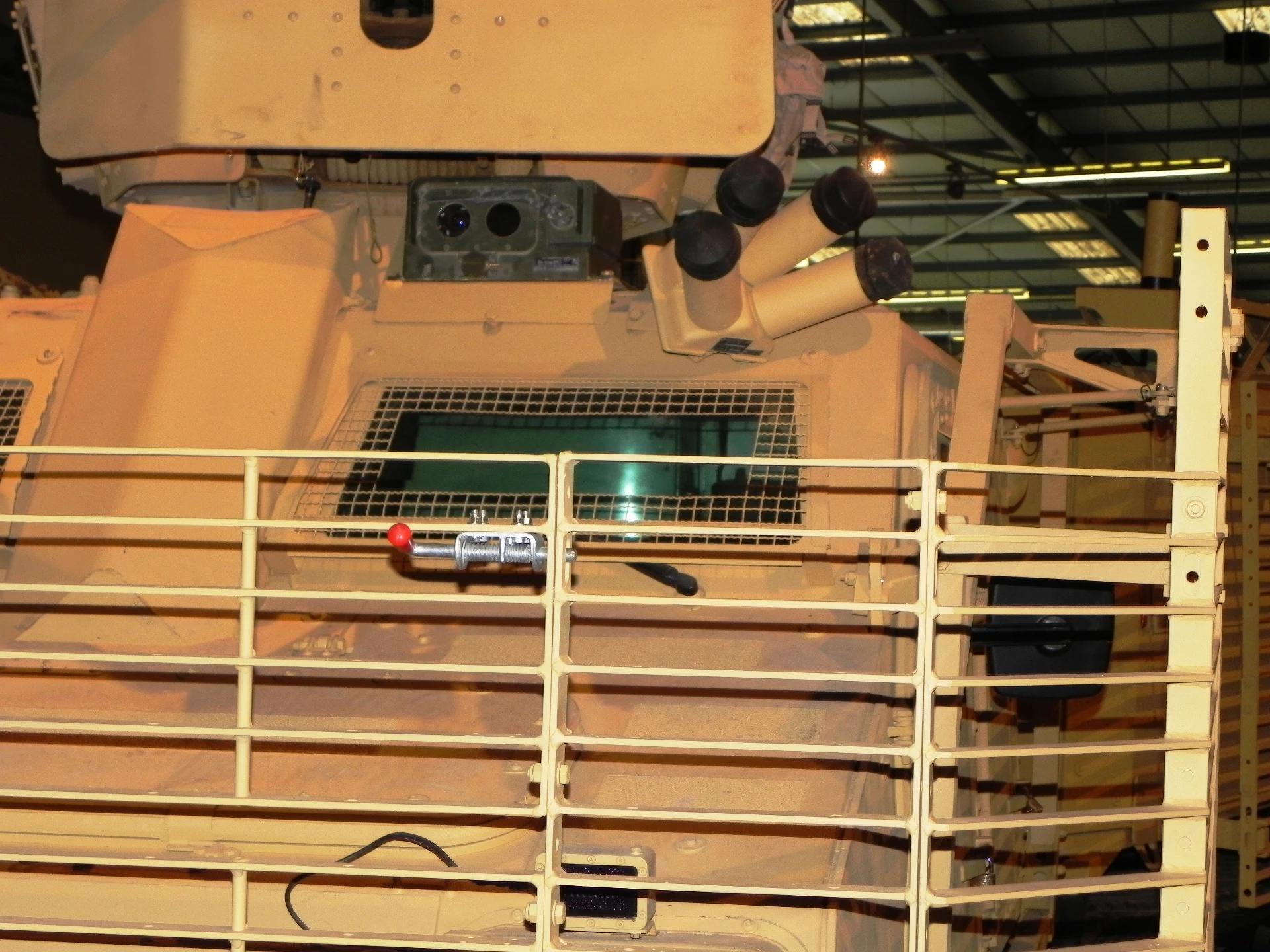

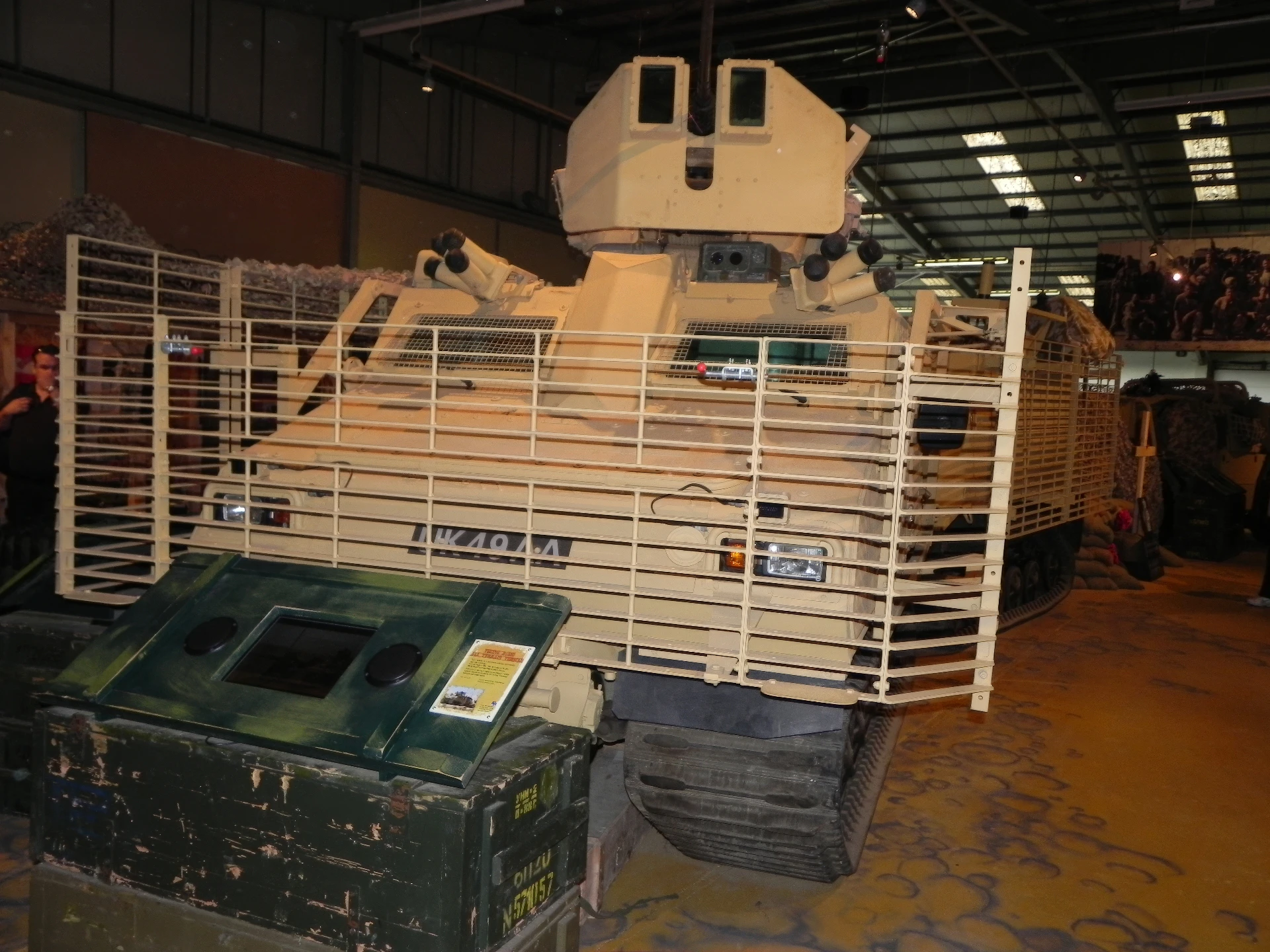

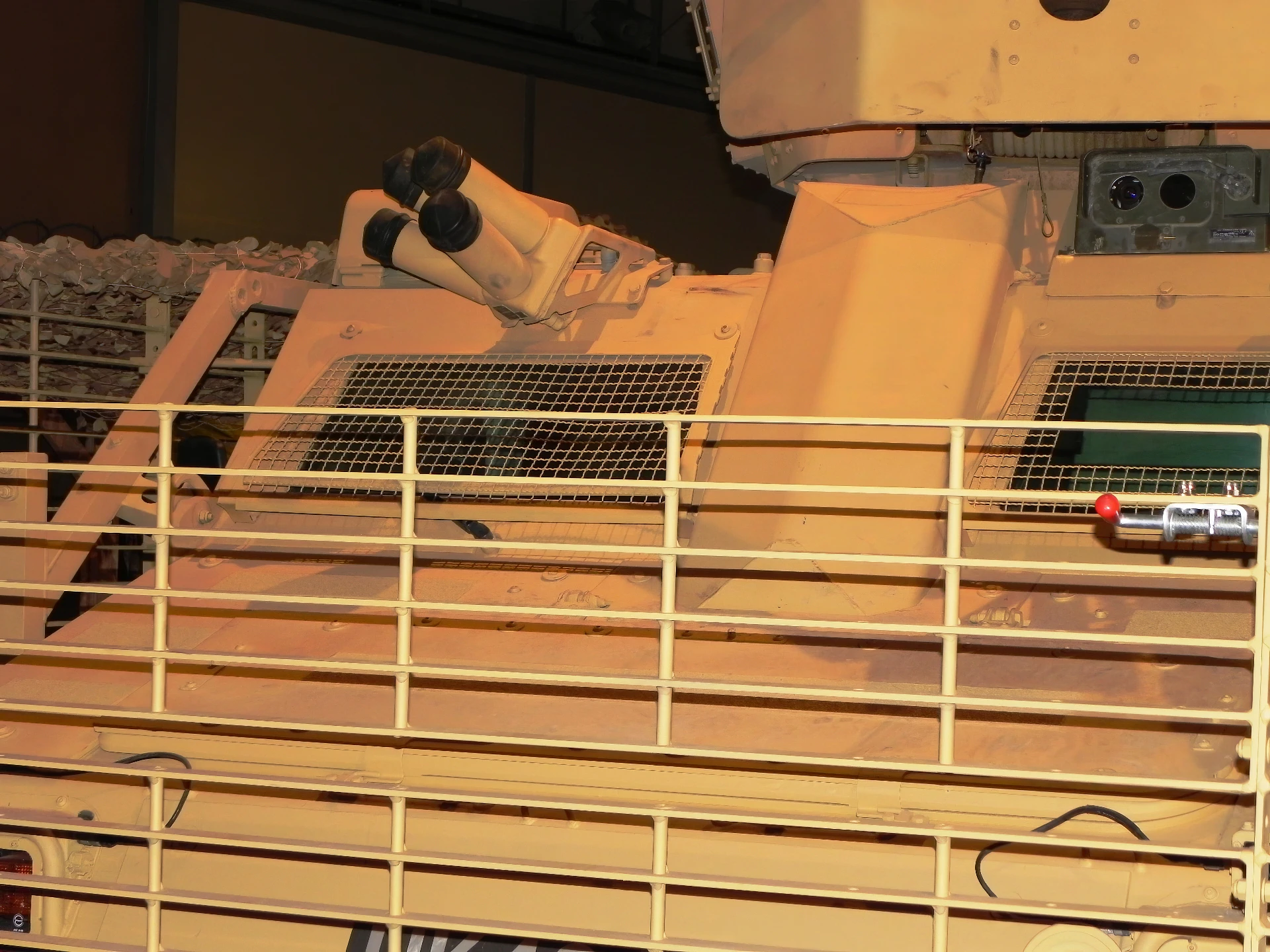

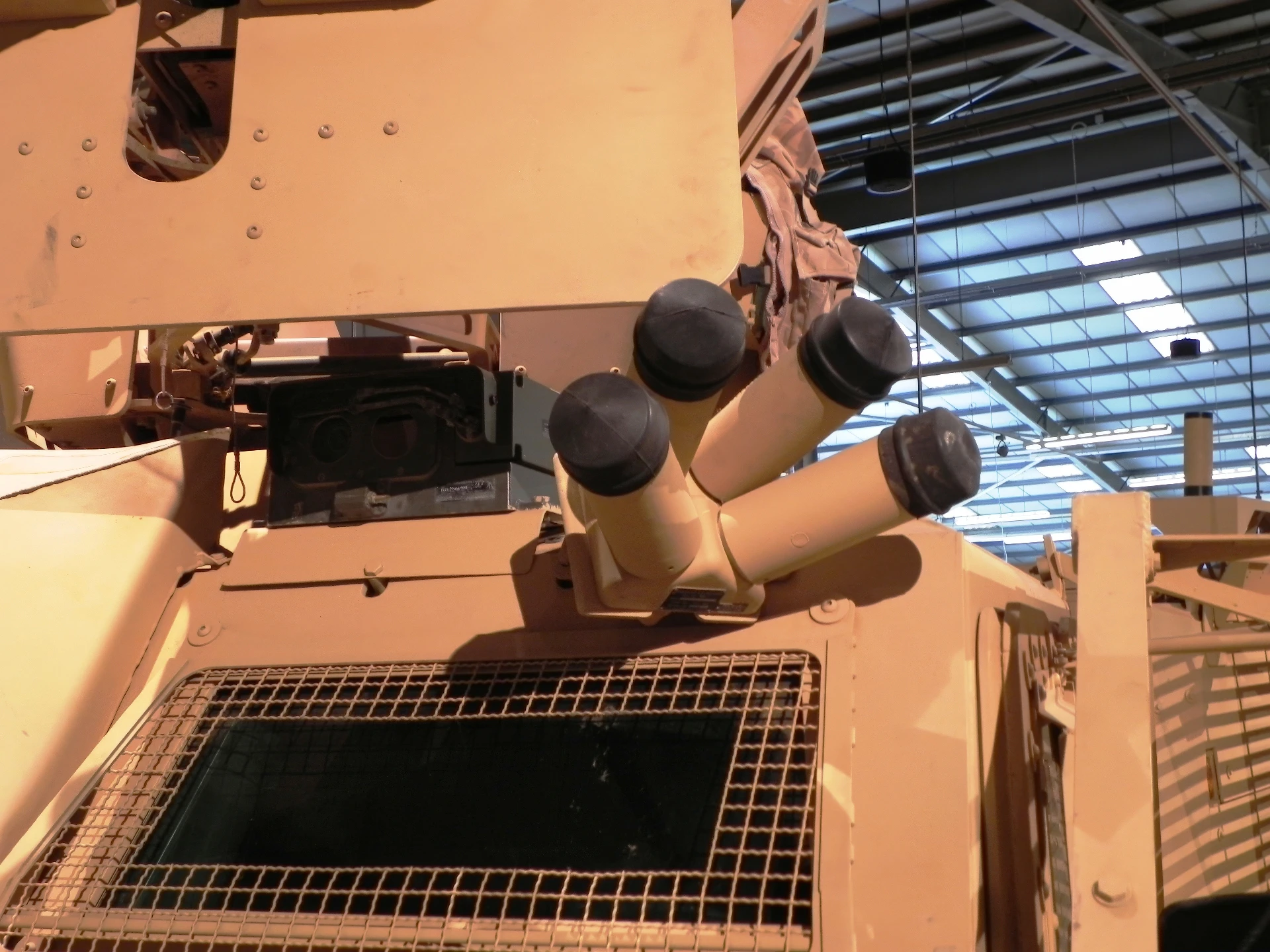

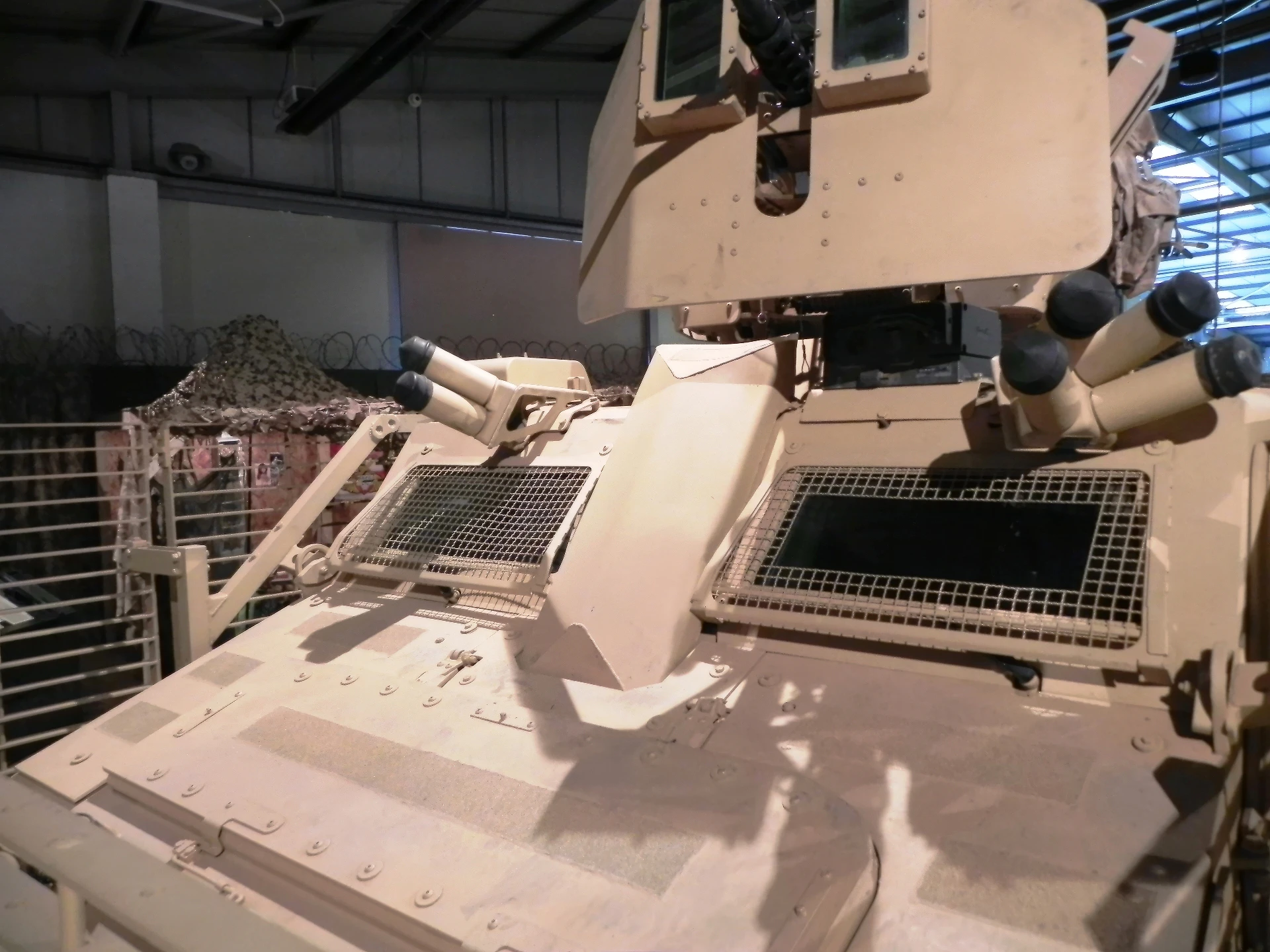

| Bandvagn BvS 410 Viking går rundt | |
|---|---|
| Fotograf | Unknow |
| Lokalisering | Unknow |
| Bilder | 73 |
Les også:
General Characteristics
The BvS10 is an amphibious articulated all-terrain vehicle developed by Hägglunds (now BAE Systems Bofors). It is a larger, more powerful, and armored successor to the venerable unarmored Bandvagn 206 (Bv 206). It is highly specialized for operations in extreme environments like snow, mud, and swamps.
| Property | Value (BvS10 Viking/Beowulf) |
|---|---|
| Rolle | Armored All-Terrain Transport, Logistics, Utility |
| Produsenten | Hägglunds / BAE Systems Bofors |
| Introdusert | 2005 (UK Service as Viking) |
| Crew Capacity | Up to 11 (2 in front unit, 9 in rear unit) |
| Combat Weight | Approx. 10.6 tonnes (Standard Armoured) |
| Konfigurasjon | Articulated Tracked Vehicle (two units) |
| Lengde | 8.0 m (26 ft 3 in) |
Powerplant and Mobility
- Engine: Cummins 6.7 Litre in-line six-cylinder turbocharged diesel engine. (Earlier versions used a 5.9L Cummins).
- Power Output: Approx. 210 kW (285 hp).

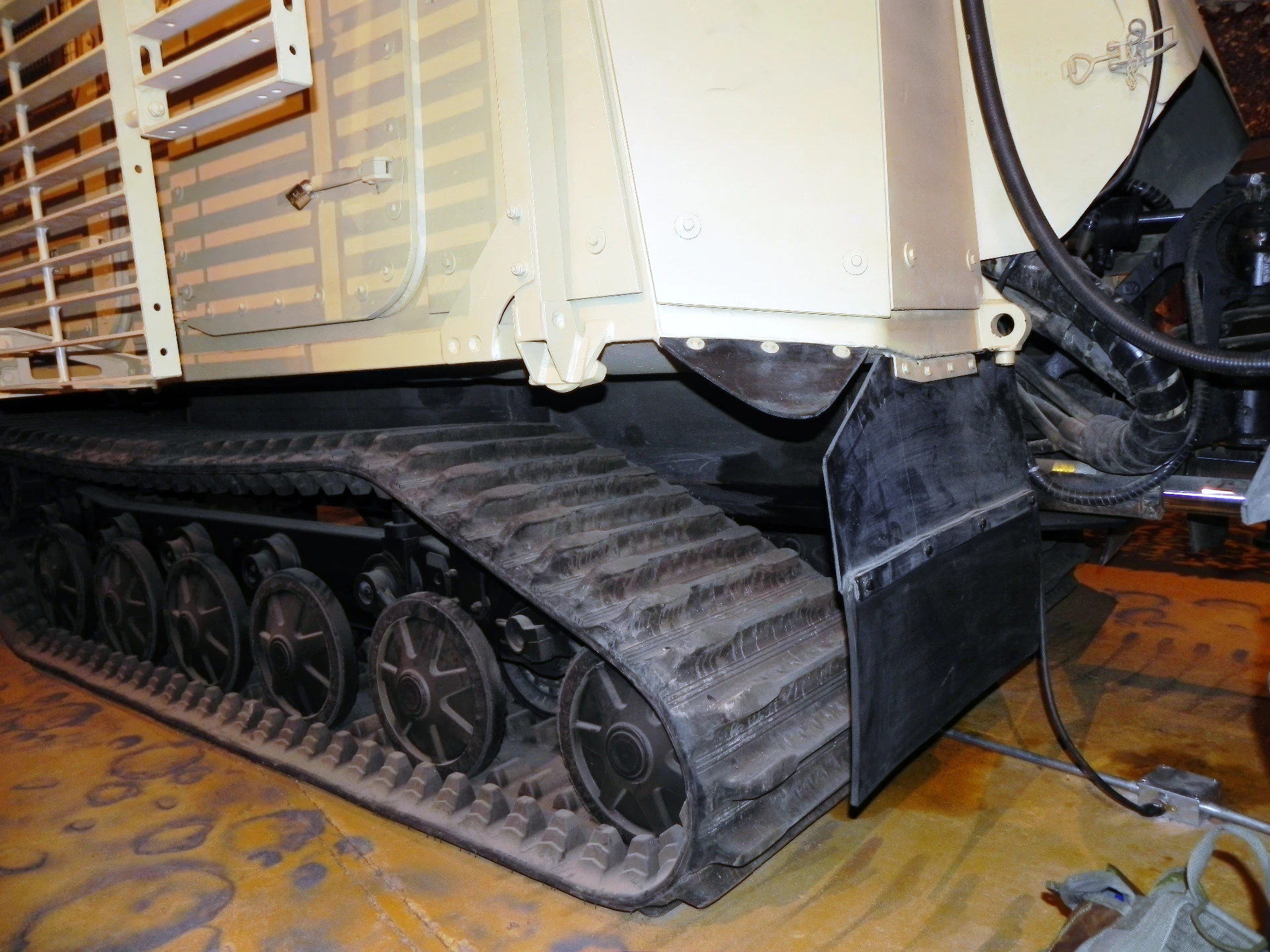

- Drive System: Drive is transferred to all four track sets via a unique articulated joint between the two units.
- Maximum Road Speed: 70 km/h (43 mph).
- Amphibious Speed: Up to 5 km/h (3 mph) in water.
- Key Mobility Feature: The articulated steering and all-track power allow it to traverse deep ditches, climb steep slopes (45 degrees), and operate fully loaded across terrain impassable to conventional vehicles due to its low ground pressure.
Protection and Variants
- Protection (Armoured BvS10): Basic hull protection against small-arms fire and artillery fragments (STANAG 4569 Level 2), with optional add-on armor up to Level 4.
- Protection (Beowulf): The Beowulf is the unarmored version, prioritizing payload and lower weight.

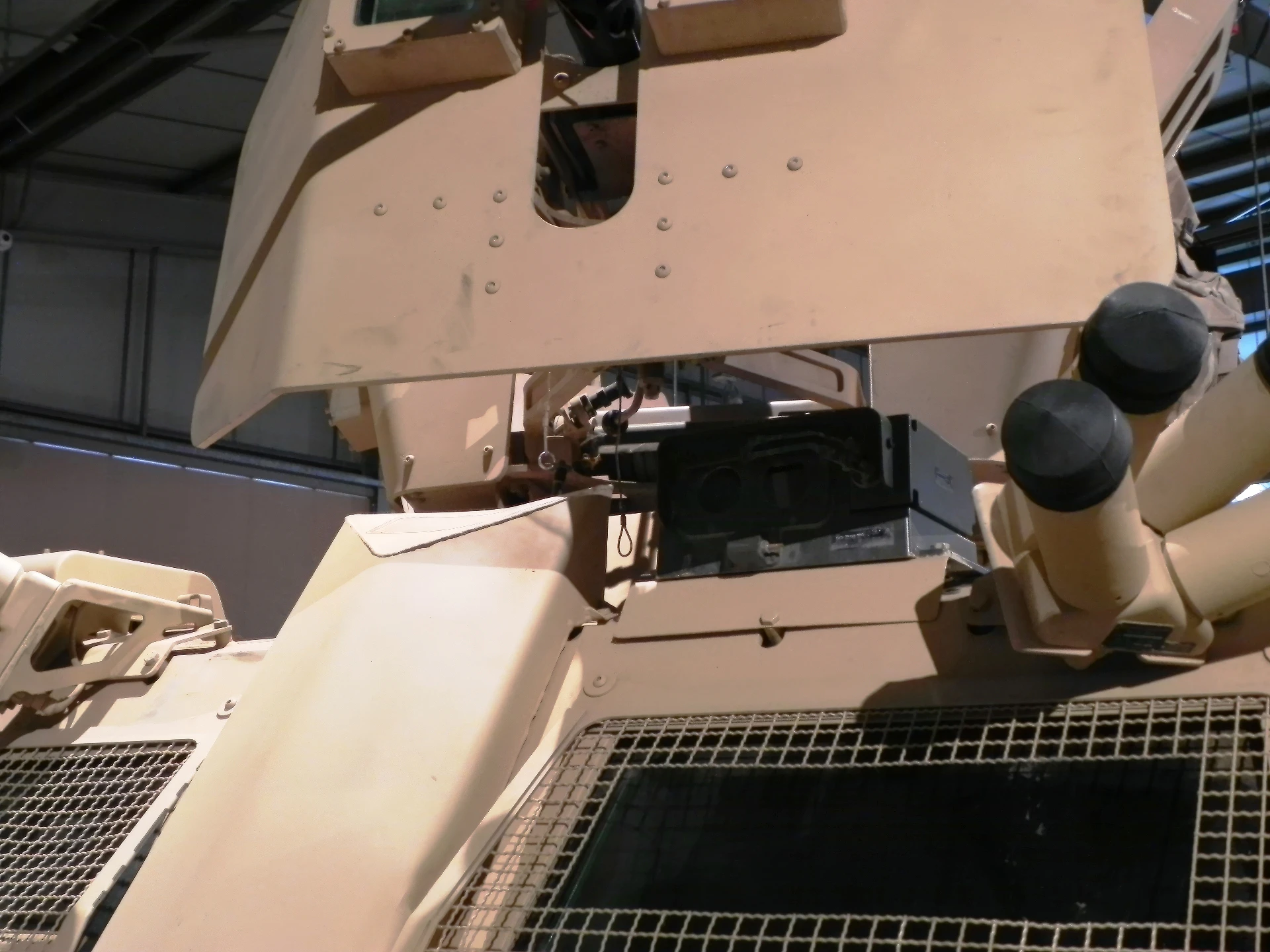

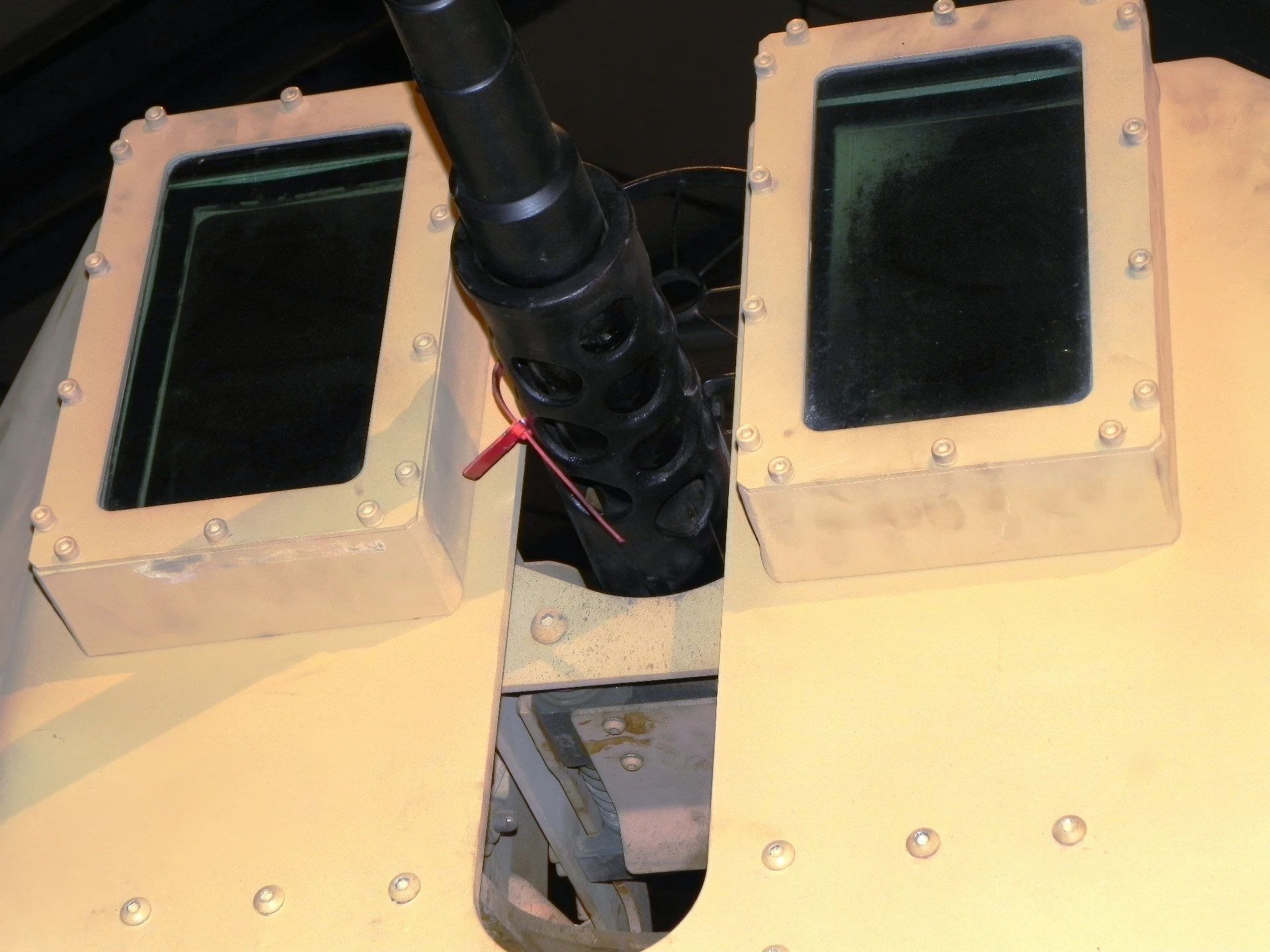

- Armament: Typically fitted with a light machine gun (LMG) or heavy machine gun (HMG) on a ring mount or remote weapon station, with calibers ranging from 5.56 mm to 12.7 mm, or a 40 mm automatic grenade launcher.
- Payload Capacity: The unarmored Beowulf can carry up to 8 tonnes.
- International Use: Used by the armed forces of the UK (as Viking), Sweden, France, the Netherlands, and Austria.
